Overview
Versatile dedicated scanning for your small office needs
- Placing and Accessing the Scanner
- Scanning both sides of a document in one go
- Can be placed anywhere
- Scanning Performance
- Fast scanning speed at a rate of 25 ppm / 50 ipm
- Efficiency made possible by combining flatbed and ADF
- A wide variety of scanning solutions available
- Comes with PaperStream IP for SP Series and PaperStream Capture Lite
- Availability of this model may vary depending on region.
Features
Placing and Accessing the Scanner

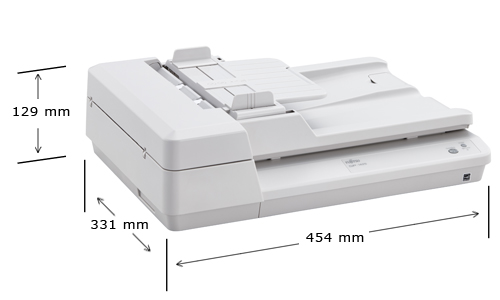

Insufficient space is not an issue due to the compact design of the SP-1425. This scanner is designed to be used in all kinds of situations, including in places where space is limited.
- Scanning both sides of a document in one go

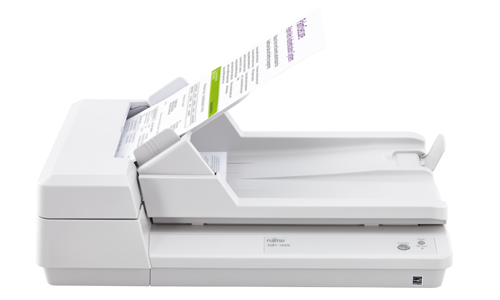

The ADF, which has a duplex scanning mode function, and the flatbed have been combined into a single compact scanner. - Can be placed anywhere

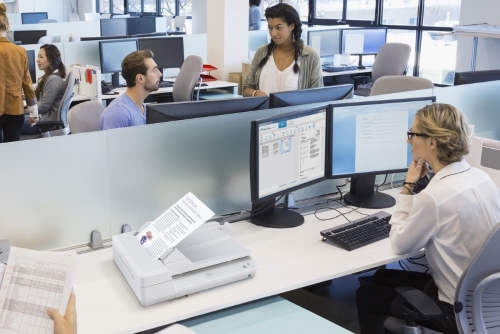

The scanner can be used for any purpose in accordance with your business needs, such as scanning documents for clerical work purposes at an office and for identification/application purposes at a reception desk.
Scanning Performance
An all-round model providing excellent operability. The scanner with the flatbed and the ADF, which has a stable paper feed function, supports your demands in order to raise business efficiency by meeting your needs for scanning various documents.
- Fast scanning speed at a rate of 25 ppm / 50 ipm
Fast scanning capability in duplex scanning mode with the ADF, 25 ppm/50 ipm (A4 portrait, color 200 dpi/300 dpi) has been enabled. - Efficiency made possible by combining flatbed and ADF

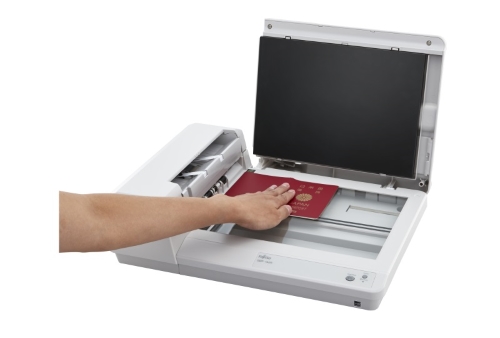

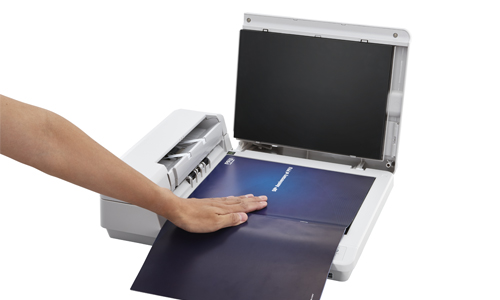

Equipped with an ADF and flatbed, SP-1425 can scan various documents, from batches of paper to plastic cards* and passports.
* Flatbed Only - A wide variety of scanning solutions available
Combining multiple software to work together with your business system allows you to use these solutions with ease thus improving and making your business more efficient.
Bundled Software Solutions
Software programs that can be used for your business are bundled together with this scanner. The easy-to-understand UIs and the advanced image processing feature improves the efficiency of your work, which helps to greatly increase productivity.
- PaperStream IP for SP Series automatically produces images of the highest clarity
PaperStream IP for SP Series has attained high levels of image processing. This is a scanner driver that supports TWAIN/ISIS™, easily converting various documents into high-quality images automatically. Configuring or changing the settings according to the type or condition of a document is unnecessary. Images with good visibility and images that are suitable for post-processing such as OCR can be created. - PaperStream Capture Lite specializes in routine scans
Seamless linkage with PaperStream IP is established by using "PaperStream Capture Lite" which is an application to scan documents, thus increasing productivity with the easy to use operability. In addition, this application focuses on routine scans, such as batch scanning, and has easy-to-understand UIs for users and administrators, thus raising the level of business efficiency. - Searchable documents made possible with ABBYY™ FineReader™ Sprint
An OCR application to convert images scanned with the SP-1425 into Word/Excel® documents. Once scanned images are converted into these document formats, it becomes easier to edit these documents in Word/Excel files than PDF files, which improves businesses efficiency.
Specifications
| Description | SP-1425 | ||
|---|---|---|---|
| Supported operating systems | Windows® 11, Windows® 10, Windows® 8.1, Windows® 7, Windows Server® 2022, Windows Server® 2019, Windows Server® 2016, Windows Server® 2012 R2, Windows Server® 2012, Windows Server® 2008 R2, Linux (Ubuntu) | ||
| Scanner Type | Automatic Document Feeder (ADF) and Flatbed | ||
| Scanning modes | Simplex / Duplex, Color / Grayscale / Monochrome | ||
| Image Sensor Type | Single line CMOS-CIS x 2 (Front / Flatbed x 1, Back x 1) | ||
| Light Source | R, G, B LED x 2 (Front / Flatbed x 1, Back x 1) | ||
| Multifeed detection | Ultrasonic Multi-feed Detection Sensor x 1 | ||
| Document size | ADF | Maximum | 216 x 356 mm (8.5 x 14 in.) |
| Minimum | 114 x 140 mm (4.5 x 5.5 in.) | ||
| Long page scanning(2) | 216 x 3,048 mm (8.5 x 120 in.) | ||
| Flatbed | Maximum | 216 x 297 mm (8.5 x 11.7 in.) | |
| Minimum | 25.4 x 25.4 mm (1 x 1 in.) | ||
| Paper weight
(Thickness)(3) | Paper | 52 to 127 g/m2 (14 to 34 lb) | |
| Plastic Card | Not Support | ||
| Carrier sheet | Not Support | ||
| Scanning speed
(A4, Portrait) (4) | ADF | Color (5) | Simplex: 25 ppm (200 dpi / 300 dpi)
Duplex: 50 ipm (200 dpi / 300 dpi) |
| Grayscale (5) | |||
| Monochrome (6) | |||
| Flatbed | Color (5) | 4 Seconds (200 dpi / 300 dpi) | |
| Grayscale (5) | |||
| Monochrome (6) | |||
| Paper chute capacity (A4 Portrait) (7) | 50 sheets (A4: 80 g/m2 or 21 lb) | ||
| Expected Daily Volume | 4,000 sheets | ||
| Background colors | ADF | White | |
| Flatbed | Black | ||
| Optical Resolution | 600 dpi | ||
| Output Resolution (8) | Color (24-bit) | 50 dpi to 600 dpi (adjustable by 1 dpi increments), 1,200 dpi (driver) (9) | |
| Grayscale (8-bit) | |||
| Monochrome (1-bit) | |||
| Output format(10) | Color | 24-bit | |
| Grayscale | 8-bit | ||
| Monochrome | 1-bit | ||
| Internal video processing | 65,536 levels (16-bit) | ||
| Interface | USB2.0 / USB 1.1 | ||
| Connector shape | B type | ||
| Image processing function | Image emphasis, Error diffusion, Dither, Dynamic threshold (iDTC), Static threshold, Advanced DTC, SDTC, De-Screen, Dropout color(Red, Green, Blue, White, None, Saturation, Custom), Automatic color detection, Multi image output, Blank page detection, sRGB Output, Split image, Vertical streaks reduction, Edge Filler, Automatic page size detection | ||
| Power requirement | AC 100 V to 240 V ± 10% | ||
| Power consumption | Operating: 16 W or less
Sleep mode: 2.9 W or less Auto standby (OFF) mode: 0.5 W or less | ||
| Operating environment | Temperature: 5 to 35 °C (41 to 95 °F)
Relative humidity: 20 to 80% (Non-condensing) | ||
| Dimensions: Width x Depth x Height (11) | 454 mm x 331 mm x 129 mm (17.9 in. x 13 in. x 5.1 in.) | ||
| Weight | 4.3 kg (9.5 lb) or less | ||
| Included software / drivers | PaperStream IP for SP Series driver (TWAIN/TWAIN x64/ISIS), WIA Driver(12), PaperStream Capture Lite, Software Operation Panel, Error Recovery Guide, Presto!™ PageManager™(13), ABBYY™ FineReader™ Sprit(13), Scanner Central Admin | ||
| Environmental compliance | ENERGY STAR® and RoHS | ||
| Included items | Pad Unit, AC adapter, AC cable, USB cable, Setup DVD-ROM, Included items Quick Installation Sheet | ||
[Note]
- Availability of support may vary depending on region. Some functions may not be available with the Image Scanner Driver for Linux.
- Long page scanning supports documents with a length of up to 3,048 mm (120 in.) when the resolution is set to 200 dpi or less.
- The paper weight only applies to using the ADF.
- Actual scanning speeds are affected by data transmission and software processing times.
- Indicated speeds are from using JPEG compression.
- Indicated speeds are from using TIFF G4 compression.
- Maximum capacity depends on paper weight and may vary.
- Selectable maximum density may vary depending on the length of scanned document.
- When scanning at high resolution (over 600dpi), some limitations apply to the size of the document that could be scanned, depending on system environment.
- Bit of output format indicates the value through the driver processing.
- Excluding the ADF paper chute.
- Functions equivalent to those offered by PaperStream IP may not be available with the WIA Driver.
- Software can be downloaded from the website designated in the Setup DVD-ROM.
Accessories
| Part Number | Description | |
|---|---|---|
| SP-1425 Consumables | ||

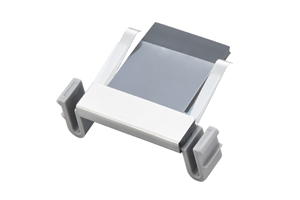

Pad Unit
 | PA03753-0001 | Lifetime: Every 30,000 sheets or one year.
The rubber part of this unit is used to separate documents. |

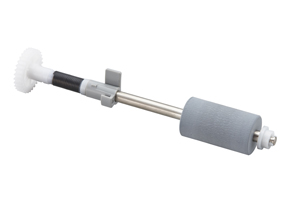

Pick Roller Unit
 | PA03753-0002 | Lifetime: Every 200,000 sheets or one year.
The roller of this unit feeds documents into the scanner. |
| SP-1425 Cleaning Kits | ||
Cleaner F1
 | PA03950-0352 | 100 ml
Moisten a cloth or Cleaning Paper with this liquid to wipe the scanner clean. It may take a long time to dry if an excessive amount is used. Use it in small quantity. Wipe off the cleaner completely to leave no residue on the cleaned parts. |
Cleaning Paper
 | CA99501-0012 | 10 sheets
Use this non-woven sheet with Cleaner F1. |
Cleaning Wipe
 | PA03950-0419 | 24 packets
Pre-moistened with Cleaner F1. It can be used instead of moistening a cloth with Cleaner F1. |
