Overview

Deliver an uninterrupted customer experience

Whether at a bank, hotel, hospital or hire service counter, that first interaction at front of house can be all-important for customer satisfaction. Scanning ID and paper documents separately slows this process down, creates more work for staff and impacts customer experience.

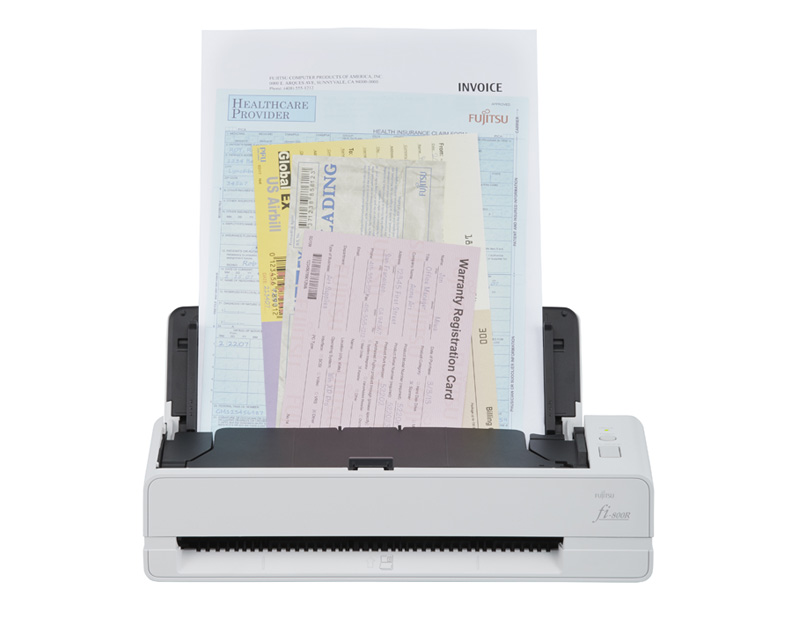

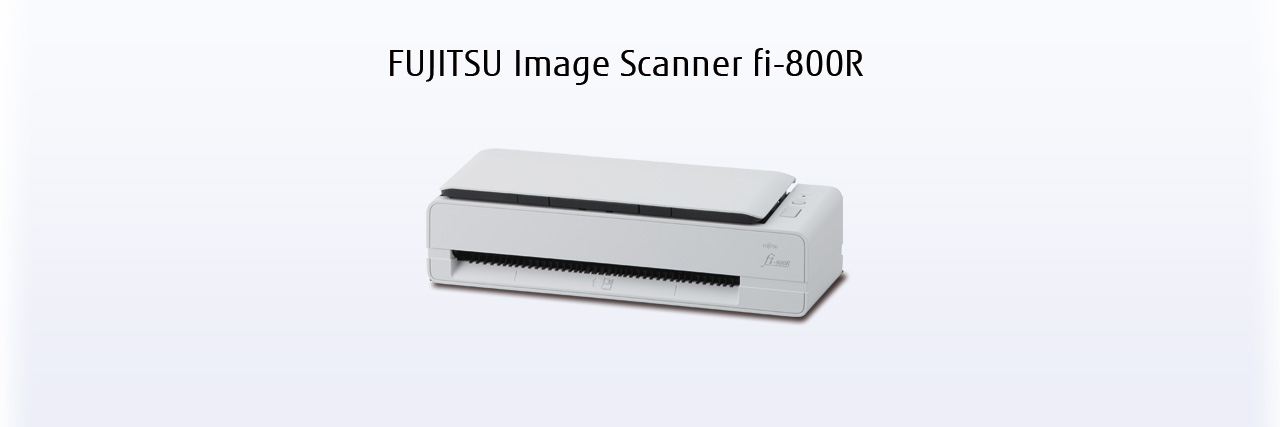

Now, one device can transform front desk operations for everybody. The versatile fi-800R scans and extracts data from passports (including Machine Readable Zones), ID and A4 documents without the need for additional accessories. Advanced dual path scanning technology improves customer service while reducing equipment expenditure.

Its innovative compact design is ideal for the front desk, saving space while allowing staff to stay in one place – so ID and documents never leave the customers’ sight.

As you’d expect from Fujitsu, the fi-800R also offers fuss-free dependability. An Automatic Document Feeder with Active Separation technology makes input smoother than ever, while Automatic Skew Correction eliminates feed errors. Our smart PaperStream software optimises images for downstream processes, as well as extracting information to enrich customer profiles. And with a 40ppm/80ipm scan speed, customers can get on with their day in record time.

All of this combines to create a seamless experience, where customer service meets customer satisfaction.

•
•

Provide exceptional customer service, effortlessly.

Dual path capability

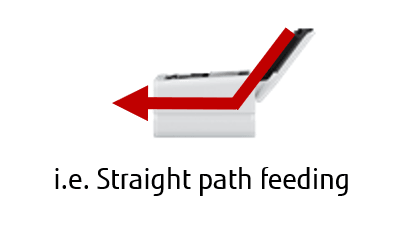

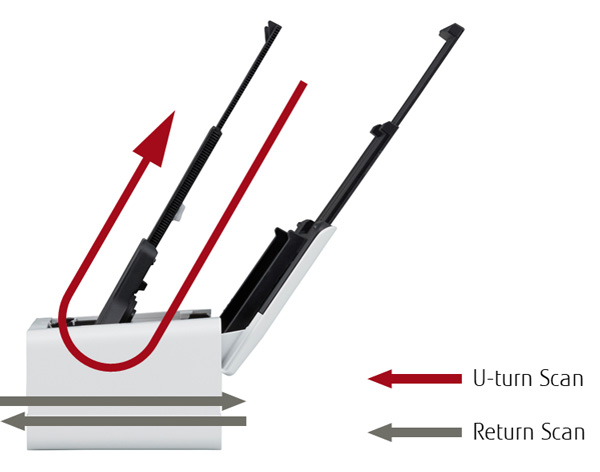

Our state-of-the-art dual path mechanism enables staff to complete all of their tasks in one place. The two scanning paths process thicker items such as ID cards and passports (including the Machine Readable Zone) alongside A4 documents, on the same machine. As well as the obvious benefits of saved time and effort, it means documents stay in sight of the customer – supporting GDPR compliance and giving customers peace of mind.

Space-saving design

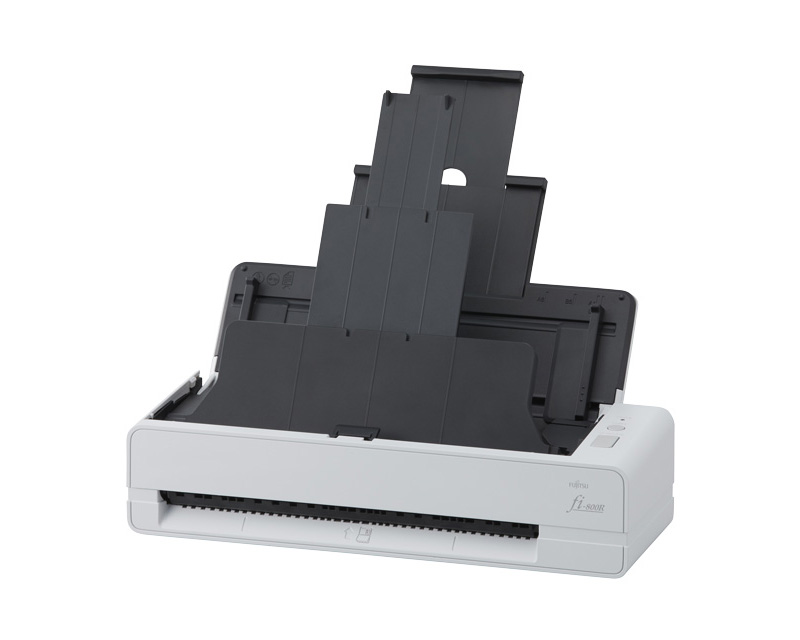

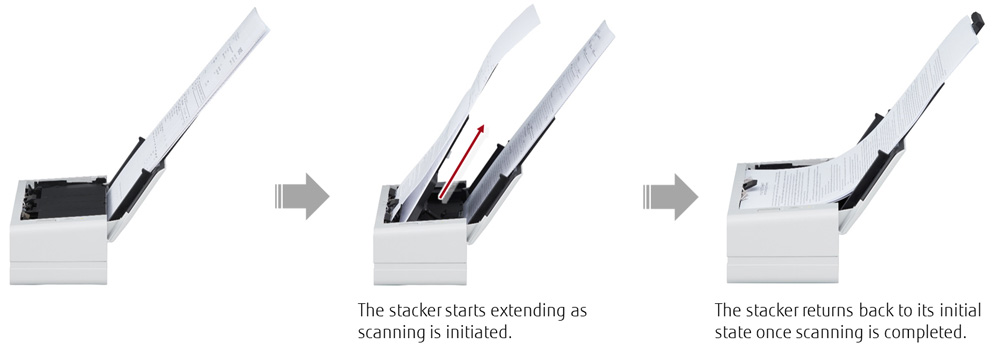

Taking up half the space of alternative solutions, the fi-800R is perfect for the front desk, or any other place where space is tight. The innovative U-turn path mechanism with Automatic Stacking Technology ejects papers back up through the scanner, removing the need for a front output tray and drastically reducing the machine’s footprint. Because of this, the fi-800R can be used in spaces half the size of an A4 sheet.

No-fuss ID and passport scanning

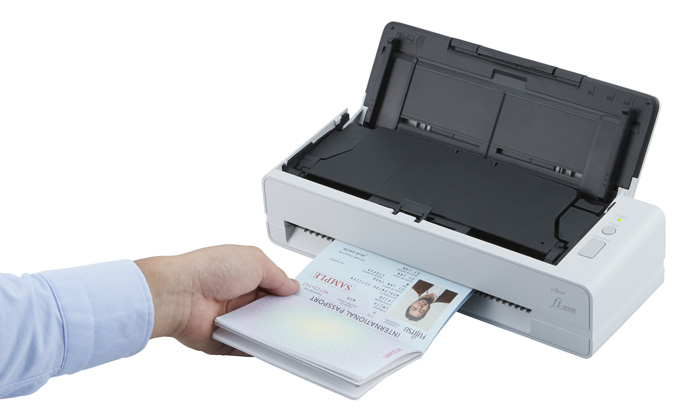

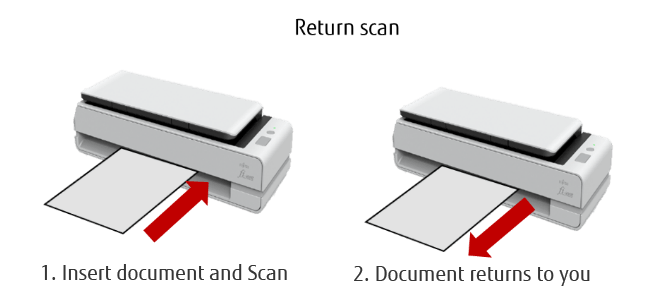

Scanning identification documents is now faster and easier with the fi-800R’s convenient Return Scan functionality. ID cards up to 5mm in thickness and passports are both inserted and ejected at the front of the machine – without the need for carrier sheets or paper path switching.

Hassle-free operation

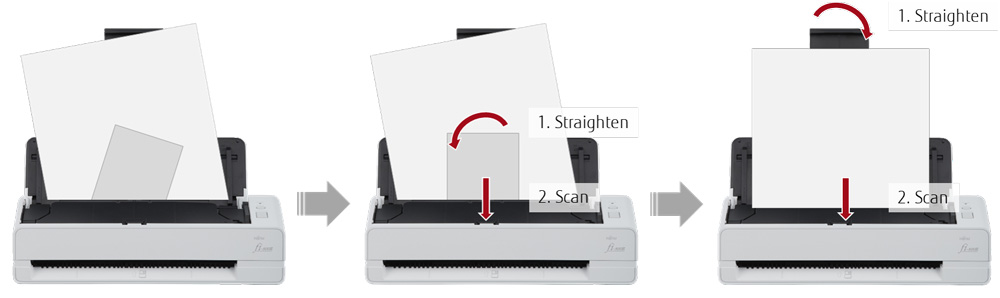

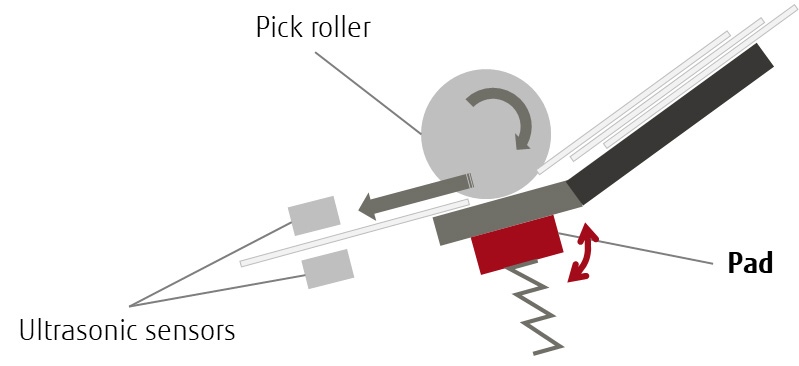

The fi-800R’s reliable paper feeding mechanisms help you avoid unnecessary interruptions for customers. Automatic Skew Correction straightens each document before scanning to prevent paper jams or images with missing edges. Newly developed Active Separation technology offers much more precise paper separation, adjusting the pressure applied to each sheet depending on its thickness. Both of these features reduce time-consuming rescans and document damage to provide a more professional experience for customers.

Impressive speed

Nobody likes to be kept waiting in a queue, especially if they’re arriving for something important like a business trip or hospital stay. The fi-800R’s impressive 40 page/80 image per minute scan speed guarantees a smoother experience for customers. And the 20-sheet Automatic Document Feeder also removes the need to manually input one page after another, further boosting staff productivity.

Robust build

As the world’s leading scanner manufacturer, Fujitsu builds trusted products that allow you to focus on your business, not your technology. With the fi-800R, we’ve used all of our 50-plus years of experience and our expertise in craftmanship to design a product that’s as reliable as it is innovative.

Industry-leading image quality

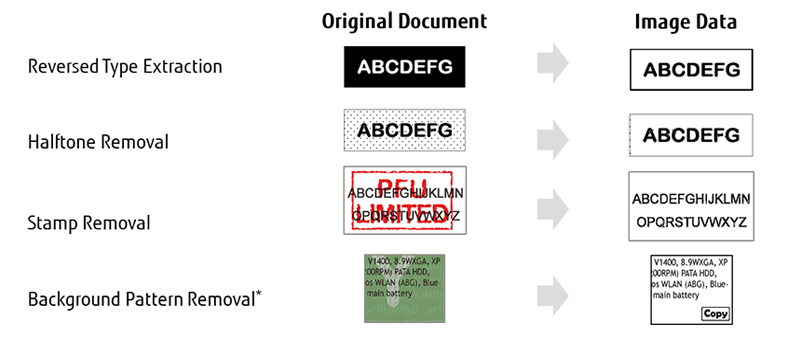

Our free bundled driver software, PaperStream IP, has been developed to enhance and optimise the quality of scanned images. It removes stains, imprints and watermarks to deliver crystal-clear readability. This plays an essential role in aiding onward processes such as OCR (Optical Character Recognition). Text can also be inverted to white characters on a black background to vastly improve legibility.

Software automation

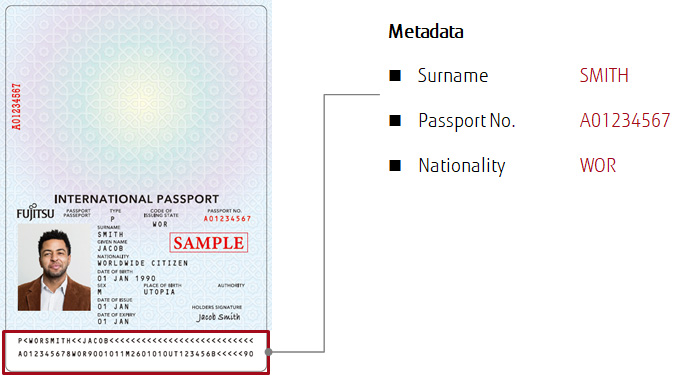

PaperStream Capture workflow software (also bundled free) uses patch and barcodes to automatically name, sort and distribute scanned documents, as well as extract information for indexing and other post-scan processes. Captured data (such as from passport Machine Readable Zones) can be automatically fed into your existing systems and workflows, helping you to enrich customer profiles quickly and easily.

Specifications

Product Name		fi-800R
Scanner Type		ADF (Automatic Document Feeder) / Manual Feed, Duplex
Scanning Speed(1) (A4 Portrait) (Color(2)/Grayscale(2)/Monochrome(3))	ADF	Simplex: 40 ppm (200/300 dpi) Duplex: 80 ipm (200/300 dpi)
	Manual Feed	3.5 seconds (200/300 dpi)
Image Sensor Type		CIS x 2 (front x 1, back x 1)
Light Source		RGB LED (front x 1, back x 1)
Optical Resolution		600 dpi
Output Resolution(4) (Color / Grayscale / Monochrome)		50 to 600 dpi (adjustable by 1 dpi increments), 1,200 dpi (driver)(5)
Output Format		Color: 24-bit, Grayscale: 8-bit, Monochrome: 1-bit
Background Colors		White
Document Size	Maximum	210 x 297 mm
	Minimum	50.8 x 50.8 mm (2 x 2 in.)
	Long Page Scanning(6)	5,588 mm (220 in.)
Paper Weight (Thickness)	ADF	Paper: 40 to 127 g/m² (11 to 34 lb) For A6 or smaller: 40 to 209 g/m² (11 to 56 lb) For A8 or smaller: 127 to 209 g/m² (34 to 56 lb)
	Manual Feed	Paper: 20 to 413 g/m² (5.4 to 110 lb) Plastic card: 1.4mm or less Booklet: 5mm or less
ADF Capacity(7)		20 sheets (A4 80 g/m² or Letter 20 lb) 30 sheets (A4 52 g/m² or Letter 14 lb)
Expected Daily Volume(8)		4,500 sheets
Interface		USB 3.2 Gen 1 / USB 3.0 / USB 2.0 / USB1.1 (Type B / Type B SuperSpeed Connector)
Power Requirements		AC 100 to 240 V ±10 %
Power Consumption	Operating Mode	19 W or less
	Sleep Mode	1.7 W or less
	Auto Standby (Off) Mode	0.15 W or less
Operating Environment	Temperature	5 to 35 °C (41 to 95 °F)
	Relative Humidity	20 to 80% (Non-condensing)
Environmental Compliance		ENERGY STAR®, RoHS
Dimensions(9) (W x D x H)		296 x 105 x 83 mm (11.7 x 4.1 x 3.3 in.)
Weight		2.0 kg (4.4 lb)
Supported Operating Systems		Windows® 10, Windows® 8.1, Windows® 7, Windows Server® 2019, Windows Server® 2016, Windows Server® 2012R2, Windows Server® 2012, Windows Server® 2008R2, macOS Catalina v10.15, macOS Mojave v10.14
Included Software / Drivers		PaperStream IP driver (TWAIN/TWAIN x64/ISIS), WIA Driver(10), PaperStream Capture, Software Operation Panel, Error Recovery Guide, ABBYY FineReader for ScanSnap™(11), Scanner Central Admin

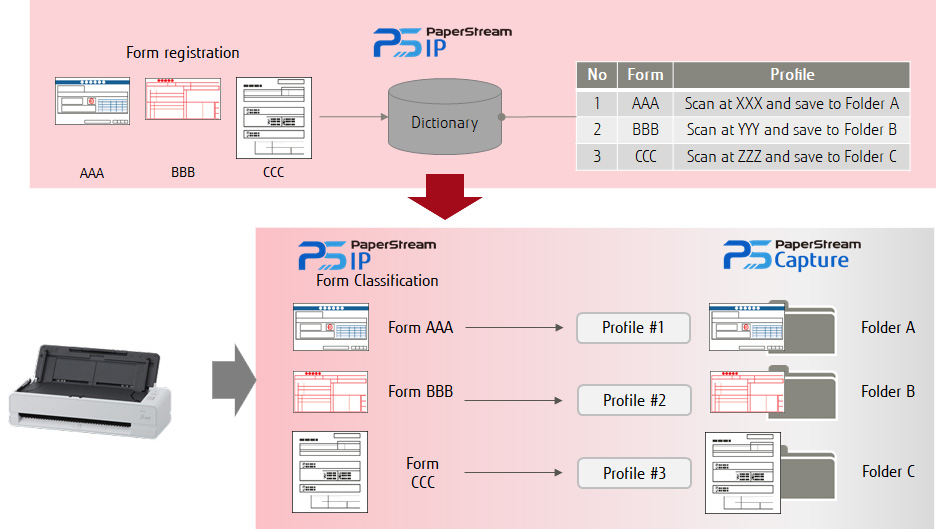

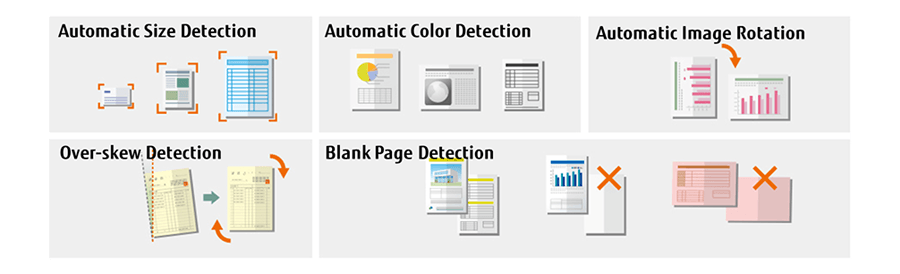

Image Processing Functions		Multi image output (B&W, Grey, Colour), Automatic Colour detection, Automatic Binarization, Automatic Profile Selection, Automatic Tone Adjustment, Vertical Streak Reduction, Automatic Cropping, Automatic Deskew, Automatic Rotation, Blank Page Detection & Deletion, Image Cleanup, Edge Fill, Vertical Streak Reduction, Split Image, Scan Folded Document (Carrier Sheet), Front/Back Merging, Barcode/Patchcode Recognition, Switch by Code Sheet (Toggle Scan), Digital Endorser, Continuous Scan, Image Preview, Assisted Scan, Static Threshold, Dynamic Threshold (iDTC), Advanced DTC, SDTC, Error Diffusion, Dither, De-Screen, Emphasis, Dropout Colour (White), sRGB Output, Index Tab Cropping, Character Extraction, Background Pattern Removal, JPEG Compression, Statistical Information
Included Items		AC cable, AC adapter, USB cable, Setup DVD-ROM

1. Actual scanning speeds are affected by data transmission and software processing times.
2. Indicated speeds are from using JPEG compression.
3. Indicated speeds are from using TIFF CCITT Group 4 compression.
4. When scanning in high resolutions (500 dpi or above), scanning may be rejected depending on scanning mode, document size, memory size, and application program. Selectable maximum density may vary depending on the length of the scanned document.
5. Limitations may apply to the size of documents that can be scanned, depending on system environment, when scanning at high resolution (over 600 dpi).
6. Long page scanning is only available when using the ADF. Supports documents with lengths of up to 5,588 mm (220 in.) when resolutions are set to 200 dpi or less. For higher resolutions, supported document lengths vary.
7. Maximum capacity may be higher if used with less than 80g/m² paper or lower if used with more than 80g/m² paper
8. Numbers are calculated using scanning speeds and typical hours of scanner use, and are not meant to guarantee daily volume or unit durability.
9. With the ADF paper chute closed.
10. Functions equivalent to those offered by PaperStream IP may not be available with the WIA Driver.
11. Software can be downloaded from the website designated in the Setup DVD-ROM.
