fi-8270 Scanner

Market defining performance

Redefining the standard for business scanning

The evolution of the market’s leading image scanners, the fi-8270 delivers state-of-the-art technology designed to address today’s business challenges and drive sustainable value creation.

Our ground-breaking Clear Image Capture produces image quality that surpasses other available technologies, resulting in industry-leading OCR accuracy rates. PaperStream IP software optimises output files for faster, lower cost operations. Plus, the fi-8270 can easily capture the widest range of document types – from 20gsm to 465gsm, cards or booklets up to 7mm thick.

Driven by 32 new patentsǂ, the innovations we have made to the world’s most trusted scanning solution deliver a product you can rely on, now and into the future. The result is reduced power consumption and state-of-the-art Automatic Separation Control that consistently delivers the perfect feed. Meanwhile, Intelligent Sonic Paper Protection (ISoP) and the world’s-first Image Monitoring technology combine for the safe capture and protection of passports, booklets or mixed batches even when labels or photos are attached.

A 100 sheet ADF and 70ppm duplex scanning speed combined with many marginal process gains mean the fi-8270 delivers real-world productivity without equal. Overscan Control and enhanced multifeed detection prevent stoppages from misfeeds, jams or skews, while post-scan filing time is also reduced. And with no need to prepare different document types in separate batches, a fast start-up time and centralised remote scanner monitoring and management, users benefit from uninterrupted operation, maximum uptime and an unsurpassed user experience.

Long-term strategic advantage is also made a reality. Organisational intelligence is enhanced by the scalable, automated capture of richer, more diverse data sets, making the fi-8270 the perfect partner to support the evolution of the digital transformation journey, from the early to advanced stages.

ǂPatents pending

Ricoh fi-8270
Ricoh fi-8270

Market defining performance

Clear Image Capture

Clear Image Capture is a breakthrough proprietary optical technology innovation debuting in the fi-8270. True image rendering and colour shift prevention deliver industry leading OCR accuracy rates and image quality that surpasses the capabilities of standard CIS or CCD alone. And, as a more efficient optical technology, power consumption for every scan is reduced. It also enables capture of the widest range of document types from 20gsm-465gsm – including A4 envelopes, cards, passports, or booklets up to 7mm thick.



Tech you can trust

Automatic Separation Control

Our patentedǂ Automatic Separation Control delivers the perfect feed so organisations can scan larger volumes and mixed batches of documents with confidence. By sensing their weight and adapting and adjusting torque automatically, mis-feed and mid-scan interruptions are eliminated. This guarantees feed stability for different document formats and saves users from wasting time sorting different document types into individual batches. It also enables the 100 sheet ADF capacity and higher speeds for more efficient, high-throughput workgroup scanning.



Ricoh fi-8270

Industry leading paper protection

The fi-8270 protects documents from damage using innovative new technology. Patentedǂ Image Monitoring identifies overly skewed documents in real time and halts the scanning process before they can be damaged. ISoP will do the same if it detects any abnormal feed sounds. While Lag detection ensures documents are feeding through at the expected high speed, high throughput.


Specialist passport capture capability

The patentedǂ feeding mechanism ensures safe capture of passports without a carrier sheet, while MRZ recognition ensures consistently accurate capture of personal data.


Ricoh fi-8270



Real-world productivity without equal

Enhanced multi-feed detection

Unnecessary stoppages in the scanning process are eliminated by automatically recognising and ignoring cards, stickers, and small defined attachments. This patentedǂ technology is an evolution beyond standard multi-feed detection which stops when anything beyond a single sheet is identified during feed through.

High speed, high throughput

Fast boot time and up to 70ppm duplex mean the fi-8270 delivers a highly efficient scanning process for the ultimate in workgroup productivity. Incorporating USB 3.2 and gigabit LAN connectivity also makes rapid file transfer possible.

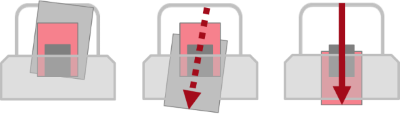

Overscan Control

Automatically adjust scanning area to prevent image loss on skewed documents, removing the need to ever have to rescan slightly skewed documents. Three precisely positioned sensors detect document edges and adjust the scanning area accordingly to fit the document, even if it has been inserted at a skewed angle. Users can scan safe in the knowledge that the entire document will be scanned every time and no part of the image will ever be lost.

Ricoh fi-8270

Urethane rollers

Urethane rollers are resistant to absorption of oil from NCR paper, unlike EPDM rollers which can swell and affect feed torque. Maintaining their integrity avoids misfeed and jams for consistent feed performance.

Stacker support

Ergonomically designed stacker support neatly stacks scanned documents for faster, easier post-scan filing.

ǂPatents pending



Software that elevates efficiency and productivity

Ricoh fi-8270

PaperStream IP

A scanner driver that cleans and optimises image files for faster, lower-cost access and storage.

Ricoh fi-8270

PaperStream Capture

Streamlines and automates capture into workflows.

Ricoh fi-8270

PaperStream ClickScan

Ad-hoc scanning with a single touch.

Ricoh fi-8270

Scanner Central Admin

Scalable real-time, remote management of up to 1,000 scanners.

Ricoh fi-8270

Flexible connectivity options

Choose between PaperStream IP Net for flexible, adaptable capture architectures, and PaperStream NX Manager for centralised, server-based capture.



Co-creation services

For integration support or custom solution development.

Product Name fi-8270
Scanner Type Automatic Document Feeder (ADF) / Manual Feed, Flatbed, Duplex
WORKGROUP Scanner
ADF Capacity 100 x A4 80 g/m²
100 x Letter 20 lb
Scanning Colour Modes Colour, Greyscale, Monochrome
Automatic (Colour / Greyscale / Monochrome detection)
Optical Resolution 600 dpi
 Image Sensor Type ADF: Monochrome Contact Image Sensor (CIS) 2x with Clear Image Capture Technology
FB: Colour Charge Coupled Device (CCD)
Light Source ADF: RGB LED (Front & Back)
FB: White LED
Scanning Speed (A4 Portrait) Simplex: 70 ppm
Duplex: 140 ipm
Media Support Standard Sizes A4, A5, A6, B5, B6, Business Card, Post Card, Letter, Legal and Custom Size.
Custom Sizes Minimum: 48 x 50 mm (1.9 x 2.0")
Maximum: 216 x 355.6 mm
A4 Portrait (210 x 297 mm), Legal (8.5 x 14")
Maximum paper feeding width: 240 mm (9.5")
Manual Feed Paper Sizes Folded A3, B4, Double Letter and all document sizes listed above.
Paper Sizes with optional Carrier Sheet A3, B4, Double Letter, Photographs and all document sizes listed above.
Paper Weight 20 g/m² - 465 g/m²
Long Page Scanning 6,096 mm (240 ")
Card Scanning Card with the size specified in ISO7810 (85.6 mm x 53.98 mm) with a maximum thickness of 1.4 mm
Special Media Types Passport scanning: ISO/IEC 7810 ID-3 compliant passport with thickness 7mm or less when opened including Carrier Sheet
Multifeed Detection YES
Image Processing Functions Advanced DTC, Automatic Colour Detection, Automatic Profile Selection, Automatic Rotation, Background Pattern Removal, Blank Page Detection, Character Extraction, Cropping, Custom Rotation, De-Screen, De-Skew, Dither, Dropout Colour (None / Red / Green / Blue / White / Saturation / Custom), Dynamic Threshold (iDTC), Edge Fill, Edge Repair, Error Diffusion, Front Back Merging, Halftone, Hole Punch Removal, Image Emphasis, Index Tab Cropping, Multi Image Output, SDTC, Split Image, sRGB Output, Static Threshold, Vertical Streaks Reduction.
Output Filetypes PDF, Searchable PDF, PDF/A, TIFF, Multi-Page TIFF, Bitmap, JPEG, JPEG2000, PNG, Word, Excel, PowerPoint (Varies by application)
Paper Separation Method Brake Roller
Expected Daily Volume 10,000
Local Interface USB Port USB 3.2 Gen 1/ 3.0 / 2.0 / 1.1 (Type-B Connector)
Ethernet Interface  Ethernet Specification 10BASE-T/100BASE-TX/1000BASE-T
Ethernet Port Connector Type RJ-45
Power Requirements 100V - 240V AC ±10 % (50 / 60 Hz)
Power Consumption   Operating Mode 28 W or less
17 W (Eco Mode)
Sleep Mode 2.0 W or less (LAN)
*When the EEE function (Power saving Ethernet) of the AP or router is enabled
1.4 W or less (USB)
Standby Mode 0.2 W or less
Operating Environment Operating Temperature Range 5°C - 35°C (41°F - 95°F)
Operating Humidity Range 15% - 80% (non-condensing)
Device Colour Black / Light Grey
Device Dimensions (Height x Width x Depth) 300 mm x 577 mm x 234 mm
11.81" x 22.72" x 9.21""
Device Weight (approx) 8.8 kg
Environmental & Regulatory Compliance ENERGY STAR® / RoHS
Recommended Windows Driver PaperStream IP (TWAIN)
PaperStream IP (TWAIN x64) for 64-bit applications
PaperStream IP (ISIS)
Other Drivers Available Image Scanner Driver for Linux (32 bit / 64 bit) [SANE]
Software PaperStream Capture
PaperStream ClickScan
PaperStream NX Manager (available as download)
Software Operation Panel
Error Recovery Guide
Scanner Central Admin
fi Series Online Update
ABBYY FineReader for ScanSnap (available as download)
1 Year Standard Warranty Advance Exchange Next Business Day.
Valid for 1 year from date of scanner purchase.
Includes replacement of defective product and two-way shipping costs.
Included in the price of a new scanner product.
Ricoh fi-8270

1 Year Standard Warranty


Advance Exchange - Next Business Day.
Included in the price of a new scanner product.
Valid for 1 year from date of purchase.
Ricoh fi-8270

3 Year Extended Warranty


Advance Exchange - Next Business Day.
Extends the 1 Year Standard Warranty to 3 Years.
Includes replacement of defective product and two-way shipping costs.
SKU:U3-EXTW-WKG
