Provides unmatched performance and market-leading document imaging capabilities with faster scanning speeds
- Fast, 60 ppm / 120 ipm scanning in color, grayscale and monochrome
- 80-sheets Automatic Document Feeder (ADF)
- Advanced paper handling technology for the ultimate in feeding reliability
- LED light-source
- Scanner Central Admin Suite
- Embossed card scanning (1.4 mm thickness)
- iSOP (Intelligent Sonic Paper Protection)
- Comes with PaperStream IP (TWAIN/ISIS), PaperStream Capture and PaperStream Capture Pro is available as an option.

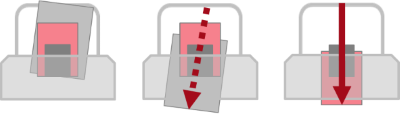

With duplex scanning speeds of 120 images per minute at 300 dpi in Color, Grayscale, and Monochrome, the fi-7160 protects your documents with acoustic sensors, ensures your data is captured with smart ultrasonic technology, and reduces rescans by cleaning up documents automatically in a single pass. Reliability is enhanced even further with new skew prevention technology for exceptional paper handling.
- USB 3.0 for forward compatibility
- Continuous hard and embossed card scanning up to 1.4mm thick
- Ultrasonic multi-feed Detection sensor for security against lost images
- Scan sticky notes, taped receipts, and labels while securing against multifeeds
- Long document support up to 5.6 m (18.3 feet) in PaperStream IP
PaperStream IP (32/64 Bit)
The PaperStream IP driver takes the work out of image cleanup when scanning invoices, ID cards, receipts, forms, or any other day to day paperwork. PaperStream IP automatically improves the image quality, removes unwanted backgrounds, and optimizes your scanned images for optical character recognition. It is fast and easy to use. Our latest innovation, Assisted Scan, allows users to replace poor images by visually selecting the image they lack rather than learning driver settings. If driver settings need to be adjusted for rare and difficult documents, our preview function allows scan operators to see their adjustments in real-time without time consuming re-scans. PaperStream IP works with both ISIS and TWAIN applications.
PaperStream Capture makes advanced capture with Fujitsu scanners easier than before. PaperStream Capture has a streamlined User Interface to reduce training time and increase productivity. Not only have we provided users with the most common profiles used by customers—black and white, color, and auto-color—new profiles are easily created or modified through a wizard. We have organized the release screen so that batches can easily be suspended or continued. PaperStream Capture is also integrated with PaperStream IP’s assisted scanning for visual cleanup of documents. The reading of barcodes and patch codes make document separation easy, improving document organization.
A high-quality, front end scanning software, PaperStream Capture Pro enhances Fujitsu fi Series’ superior scanning abilities with an improved feature set that includes options for high level data extraction and indexing, the import of electronic images, and support for multi-station licensing. PaperStream Capture Pro offers cost-effective improvement tools such as PaperStream IP for optimized image capture. As a distributed capture model, this scanner software captures your data without added costs and resources. This solution benefits organizations and departments that require an efficient yet easy way to convert paper documents into a digital file for high level data indexing and extraction. Improve records management processes and drive down business expenses with PaperStream Capture Pro.
Whether the infrastructure is fixed or expanding, managing technology efficiently inside the organization is key to reducing total cost of ownership and the Fujitsu scanner provides system administrators with advanced software tools to centrally manage the scanner more productively and cost effectively.
High-impact scanning, low environmental impact
In keeping with Fujitsu’s long-standing commitment to safeguarding the environment, the fi-7160 is the latest business scanner to adhere to strictest ecological regulations throughout the entire manufacturing process. The design and manufacture of the fi-7160 meet Energy Star’s energy consumption requirements and the European Union’s Reduction of Hazardous Substances and Volatile Organic Compounds regulations.
|Image Sensor Type||Color CCDs (Color Charge Coupled Device)|
|Light Source||White LED Array|
|Optical Resolution||600 dpi|
|Output Resolution(1)||Color (24-bit)||50 to 600 dpi
(adjustable by 1 dpi increments, 1,200 dpi(2))
|Output Color Depth||Color: 24-bit, Grayscale: 8-bit, Monochrome: 1-bit|
|Internal Video Processing||1,024 levels (10-bit)|
|Image Processing Function|
|Hardware||Dropout color (Red / Green / Blue), Deskew cropping|
|Software||Multi-image, Blank page skip, i-DTC, Advanced-DTC, Simplified-DTC, sRGB, Auto color, Deskew cropping, Hole Punch removal, Tab cropping, Upper lower separation, Error diffusion, Dither, Moire removal, Image Emphasis, Color cleanup, Dropout color (R,G,B, None, white,Specified, Color Saturation), Edge repair, Vertical Streaks Reduction|
|ADF||Simplex: 60 ppm, Duplex: 120 ipm
(200 dpi / 300 dpi)
|ADF Capacity(6)||80 Sheets (A4: 80 g/m² or 20 lb.)|
|Expected Daily Duty Cycle||9,000 Pages|
|Document Size||ADF Minimum||50.8 mm x 54 mm (2 in. x 2.13 in.) (Landscape / Portrait)|
|ADF Maximum(7)||216 mm x 355.6 mm (8.5 in. x 14 in.)|
|Long Document||216 mm x 5,588 mm (8.5 in. x 220 in.)(18.3 ft.)(8)|
|Letter||27 g/m² to 413 g/m² (7.2 lb. to 110 lb.)|
|A8 Sheets||127 g/m² to 209 g/m² (34 lb. to 56 lb.)|
|Card(9)||Up to 1.4 mm portrait and landscape feeding(10)|
|Interface(11)||USB 3.0 / USB 2.0 / USB 1.1 (backward compatible)|
|Minimum PC Specification||PaperStream IP i5 2.5 MHz Processor, 4 GB RAM|
|Power Requirements||100 to 240 VAC ±10 %|
|Power Consumption||Operating mode: 38 W or less, Sleep mode: 1.8 W or less, Auto Standby(Off) mode: 0.35 W or less|
|Dimensions (WxDxH)(12)||300 mm x 170 mm x 163 mm (11.8 in. x 6.7 in. x 6.4 in.)|
|Weight||4.2 kg (9.26 lb.) or less|
|Environmental Compatibility||ENERGY STAR® / RoHS|
|Operating Environment||Temperature||5 to 35°C (41 to 95°F)|
|Relative Humidity||20 % - 80 % (non-condensing)|
|Inbox Contents||ADF paper chute, AC cable, AC adapter, USB cable, Setup DVD-ROM,
Getting Started Guide
|Bundled Software||PaperStream IP (TWAIN/ISIS) Driver, WIA Driver, Software Operation Panel, Error Recovery Guide, PaperStream Capture, ScanSnap Manager for fi Series, ABBYY FineReader for ScanSnap, Scanner Central Admin Agent|
|Options||2D Barcode for PaperStream, Post-scan Imprinter, Carrier Sheet, PaperStream Capture Pro|
|OS Support||Windows® 10 (32-bit/64-bit), Windows® 8.1 (32-bit/64-bit), Windows® 7 (32-bit/64-bit), Windows Server® 2019 (64-bit), Windows Server® 2016 (64-bit), Windows Server® 2012 R2 (64-bit), Windows Server® 2012 (64-bit), Windows Server® 2008 R2 (64-bit), Windows Server® 2008 (32-bit/64-bit), Linux (Ubuntu 18.04 / 16.04 / 14.04 LTS), macOS Catalina v10.15, macOS Mojave v10.14
|Feed Detection Features||Ultrasonic Double Feed Detection Sensor,
iSOP (Intelligent Sonic Paaper Protection),
Intelligent Multi-Feed Function (Manual Bypass)
|Other Features||Embossed Card Scanning Capability, Long Document Scanning, Scanner Central Admin management, USB 3.0 Support,
iSOP (Intelligent Sonic Paper Protection),
Automatic: Color Recognition, Paper-Size Detection, De-skew Correction
- Maximum output resolutions may vary, depending upon the size of the area being scanned.
- Scanning limitations brought about by scanning mode, document size and available memory may occur when scanning at high resolutions (600dpi or higher).
- Actual scanning speeds are affected by data transmission and software processing times.
- JPEG compressed figures
- TIFF compressed figures
- Maximum capacity varies, depending upon paper weight.
- Document sizes larger than A4, but not exceeding A3, can be scanned (single-side) using an optional carrier sheet.
- The scanning of documents that exceed 34 inches in length will be limited to using PaperStream IP at 200 dpi or less. 300 dpi is 215 inches.
- Supports ISO7810 embossed cards.
- Capable of scanning up to 3 cards at a time. (Note: does not support multi-embossed card feeding.)
- Connection with USB3.0 / 2.0 requires the USB port and the hub to support USB3.0 / 2.0. Also note that the scanning speed slows down when using USB1.1.
- Excluding the ADF paper chute and stacker
Consumables & Options
- Cleaning Kits
- Consumable Kits
- Print Cartridge (fi-C200PC) for fi-718PR print head, Part No. CA00050-0262. Lifetime: 4,000,000 printed characters
|PA03670-D201||Post-scan imprinter / Back-side printing on document|
|Carrier Sheets||PA03360-0013||Each package contains 5 carrier sheets. It is recommended that each carrier sheet be replaced after it has been used for 500 scans.|
