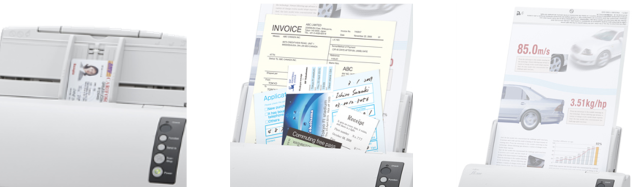

The fi-7030 handles the scanning of a wide range of documents reliably from thin documents to thick documents (40-209g/m2), and plastic cards including embossed cards. Long paper scanning of up to 5 meters and over is also available as well as A3 size scanning with a carrier sheet that comes with the scanner as an option.
The PaperStream IP scanner driver, which supports TWAIN/ISIS, avoids the inconvenience of fine adjustments to the settings for OCR processes. It automatically converts the images into exceptionally clean images, accelerating OCR even when scanning wrinkled or soiled documents, or documents with a background pattern.
A high-quality, front end scanning software, PaperStream Capture Pro enhances fi Series’ superior scanning abilities with an improved feature set that includes options for high level data extraction and indexing, the import of electronic images, and support for multi-station licensing. PaperStream Capture Pro offers cost-effective improvement tools such as PaperStream IP for optimized image capture. As a distributed capture model, this scanner software captures your data without added costs and resources. This solution benefits organizations and departments that require an efficient yet easy way to convert paper documents into a digital file for high level data indexing and extraction. Improve records management processes and drive down business expenses with PaperStream Capture Pro.
Scanner Central Admin allows the administrator to manage a large number of scanners in the network by delivering simultaneous driver updates and scanner setup information, or monitoring consumable and error statuses via the network.
Carrier Sheets allow you to scan documents, photos or clippings larger than A4 size. Documents larger than A4 (such as A3 or B4) or photos and clippings that can be damaged easily can be digitized when using the Carrier Sheet.
* Carrier Sheets (5 sheets per set) can be purchased separately. (The Carrier Sheet should be replaced approximately every 500 scans)
Model | fi-7030 | ||
---|---|---|---|
Functional Specifications | |||
Image Sensor Type | Color CIS (Contact Image Sensor) x 2 (front x 1, back x 1) | ||
Light Source | 3 Color LED (Red / Green / Blue) x 2 (front x 1, back x 1) | ||
Optical Resolution | 600 dpi | ||
Output Resolution(1) | Color (24-bit) | 50 to 600 dpi (adjustable by 1 dpi increments), 1200 dpi (driver)(2) |
|
Grayscale (8-bit) | |||
Monochrome | |||
Output Color Depth | Color: 24-bit, Grayscale: 8-bit, Monochrome: 1-bit | ||
Internal Video Processing | 1,024 levels (10-bit) | ||
Image Processing Function | Deskew, Cropping, Image emphasis, Error diffusion, Dither, Black & White Method, Dynamic threshold (iDTC), Static threshold, Advanced DTC, SDTC, De-Screen, Dropout color (Red / Green / Blue / White / None / Saturation / Custom), Automatic color detection, Multi image output, Blank page detection, sRGB output, Split image, Front/Back Merging | ||
Scanning Speed(3) (A4, Portrait) |
Color(4) Grayscale(4) Monochrome(5) |
ADF | Simplex: 27 ppm, Duplex: 54 ipm (200 dpi / 300 dpi) |
ADF Capacity(6) | 50 Sheets (A4: 80 g/m² or 20 lb.) | ||
Expected Daily Duty Cycle | 4,000 Pages | ||
Document Size | ADF Minimum | 50.8 mm x 50.8 mm (2 in. x 2 in.) | |
ADF Maximum | 216 mm x 355.6 mm (8.5 in. x 14 in.) | ||
Long Document(7) | 216 mm x 5,588 mm (8.5 in. x 220 in.) | ||
ADF Feeding Paper Weight (Thickness) |
Paper | 40 g/m² to 209 g/m² (11 lb. to 56 lb.), A8 size: 127 g/m² to 209 g/m² (34 lb. to 56 lb.) | |
Plastic Card | 0.76 mm or less, Embossed card: usable, Multiple cards cannot be set at a time | ||
Interface | USB2.0 / USB1.1 | ||
Minimum PC Specification | PaperStream Capture, i5 2.5 GHz Processor, 4 GB RAM | ||
Physical Specifications | |||
Power Requirements | 100 to 240 VAC ±10 % | ||
Power Consumption | Operating mode: 17 W or less, Sleep mode: 1.1 W or less, Auto Standby (Off) mode: 0.15 W or less | ||
Dimensions (WxDxH) | 290 x 146 x 130 mm (11.41 x 5.74 x 5.11 in.) | ||
Weight | 2.9 kg (6.4 lb) or less | ||
Environmental Compatibility | ENERGY STAR® / RoHS | ||
Operating Environment | Temperature | 5 to 35°C (41 to 95°F) | |
Relative Humidity | 20 % - 80 % (non-condensing) | ||
Inbox Contents | ADF paper chute, AC cable, AC adapter, USB cable, Setup DVD-ROM, Quick Installation Guide, Safety Precaution |
||
Bundled Software | PaperStream IP (TWAIN/ISIS) Driver, WIA Driver, Software Operation Panel, Error Recovery Guide, PaperStream Capture, ScanSnap Manager for fi Series, Scan to Microsoft SharePoint, ABBYY FineReader for ScanSnap, Scanner Central Admin Agent | ||
Options | 2D Barcode for PaperStream, Carrier Sheet, PaperStream Capture Pro | ||
OS Support | Windows® 11, Windows® 10, Windows® 8.1, Windows® 7, Windows Server® 2022, Windows Server® 2019, Windows Server® 2016, Windows Server® 2012 R2, Windows Server® 2012, Windows Server® 2008 R2, macOS, Linux (Ubuntu) |
This option enables the scanner to recognize 2D Barcode. (PDF417, QR code, Data Matrix, Aztec Code). Part number: PA43404-A433
Each package contains 5 carrier sheets. It is recommended that each carrier sheet be replaced after it has been used for 500 scans. Part number: PA03360-0013
