Overview

GIG5 ToF Camera pic 1

What is ToF?

ToF camera utilizes the time of flight principle to resolve the 3D depth image of an object by calculating the time of reflection of pulsed near IR light. The source of IR light is either a laser diode or a LED. The depth distance is measured at individual pixel level and is a very accurate way to achieve a 3D depth image of any object. ToF camera can be used to detect the shape of objects, recognize objects based on the geometrical shape and size and also used in surveillance of objects.

TOF camera is the promising solution that can be applied to a variety of applications that require 3D information in the industrial field.

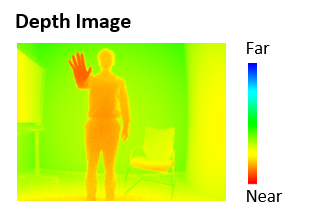

GIG5 ToF Depth image

Value from the product

ToF camera is a compact, cost effective solution to obtain 3D information of objects using the time of flight principle. Inreivum ToF camera is designed to work @940nm where the relative strength of sunlight is weak thus enabling the product to be used outdoors. The feature size of Inreivum ToF being is one of the smallest in the market and helps users integrating the ToF camera for varied use cases. The high resolution depth image with 640x480 pixels enables customers to accurately detect objects. With a large FOV, 90° in horizontal and 70° in the vertical direction Inreivum ToF camera is a cutting edge solution in 3D imaging.

More Details
