Active Optical Cables

HDMI | DisplayPort | USB | DVI

HDMI

HDMI cable needs no external power supply

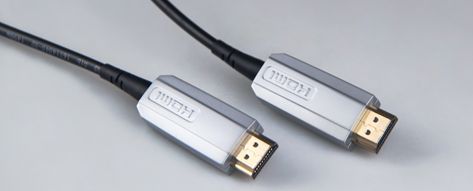

HDMI 1.4b & 2.0 AOC

  • Active Optical Cable Transceiver
    • World’s 1st HDMI 2.0 AOC Cable
  • Features
    • Available for long distance up to 100m
    • Full compatible with existing HDMI Cable
    • No external power supply
    • Able to support 4K@60Hz UHD Display
    • Able to support Plug & Play
    • No special Driver required
    • Compared to copper wire cable – thinner and lighter (1/6)
    • Very strong with EMI and RFI

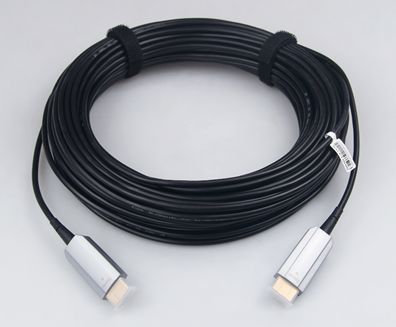

HDMI cable - Available for long distance up to 100m

DisplayPort

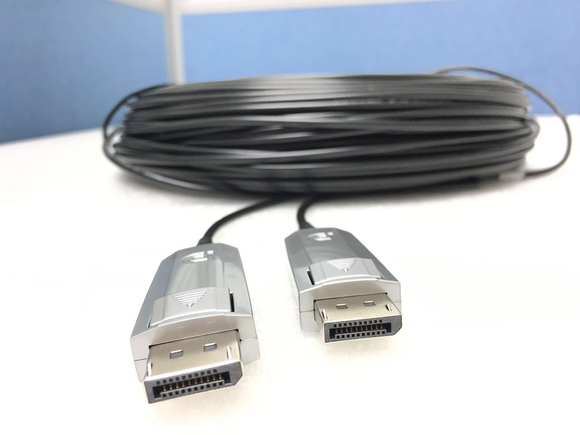

Display Port AOC img2

DisplayPort AOC

  • Long distance transmission, up to 50 meters
  • DisplayPort 1.4 standard, support up to 8K@60Hz UHD display
  • Lock on connector
  • Plug and play
  • Highly resistant with EMI and RFI
  • No external power needed
DisplayPort AOC

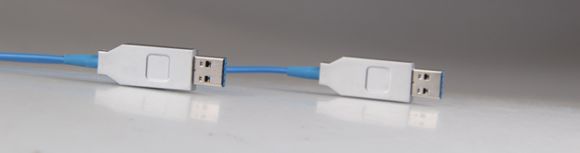

USB 3.0 AOC Pure Fiber & Hybrid

USB cable

USB3.0 Pure Active Optical Cable

  • Active Optical Cable Transceiver
    • World’s 1st USB3.0 AOC TRX IC
    • 5Gbps, USB 3.0 Compatible
    • Automatic Rx Terminal Control
    • Electrical Optical (Photoelectric conversion IC mounted)
  • External conversion Adapter
    • USB 2.0 -> convert USB 3.0
    • USB 3.0 Hub (USB 2.0 -> USB 3.0 conversion equipped)
  • Features
    • Supports High Speed 5Gbps
    • Can support up to 100m
    • Configuration/No setting required
    • Compared to coaxial cable: 1/3 weight, 1/3 thickness
    • No need to have Special Driver (works with USB Driver)
    • Very strong to EMI/ESD
    • Power supply is required on one side (External adapter)
USB cable

USB3.0 Hybrid Active Optical Cable

  • World’s very first Active Optical Cable + coaxial hybrid cable
  • Not need of external conversion adapter
  • Features
    • Available Power Supply 5V/900mA (No External Adapter Required)
    • Can support up to 50m long cable
    • Supports High Speed 5Gbps
    • USB 1.0/1.1/2.0 Device -> supports USB 3.0 conversion
    • Configuration/No Setting Required
    • Slightly thicker compared to pure fibre AOC (3mm-3.7mm)
      • Compared to conventional coaxial cable, weight is approx. 1/3 and thickness is approx. 1/3
    • No special driver required (works with regular USB Drivers)
    • Very strong with EMI/ESD

DVI

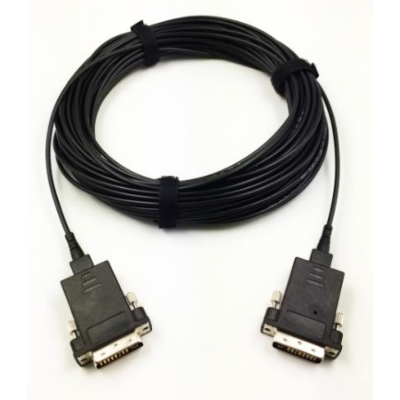

DVI AOC img

DVI AOC

  • Long distance transmission, few 100 meters
  • Single channel DVI interface, support 1080P display
  • Program and store monitor’s EDID information inside of the source connector
  • No external power needed
  • No radiation, and highly resistant with EMI
