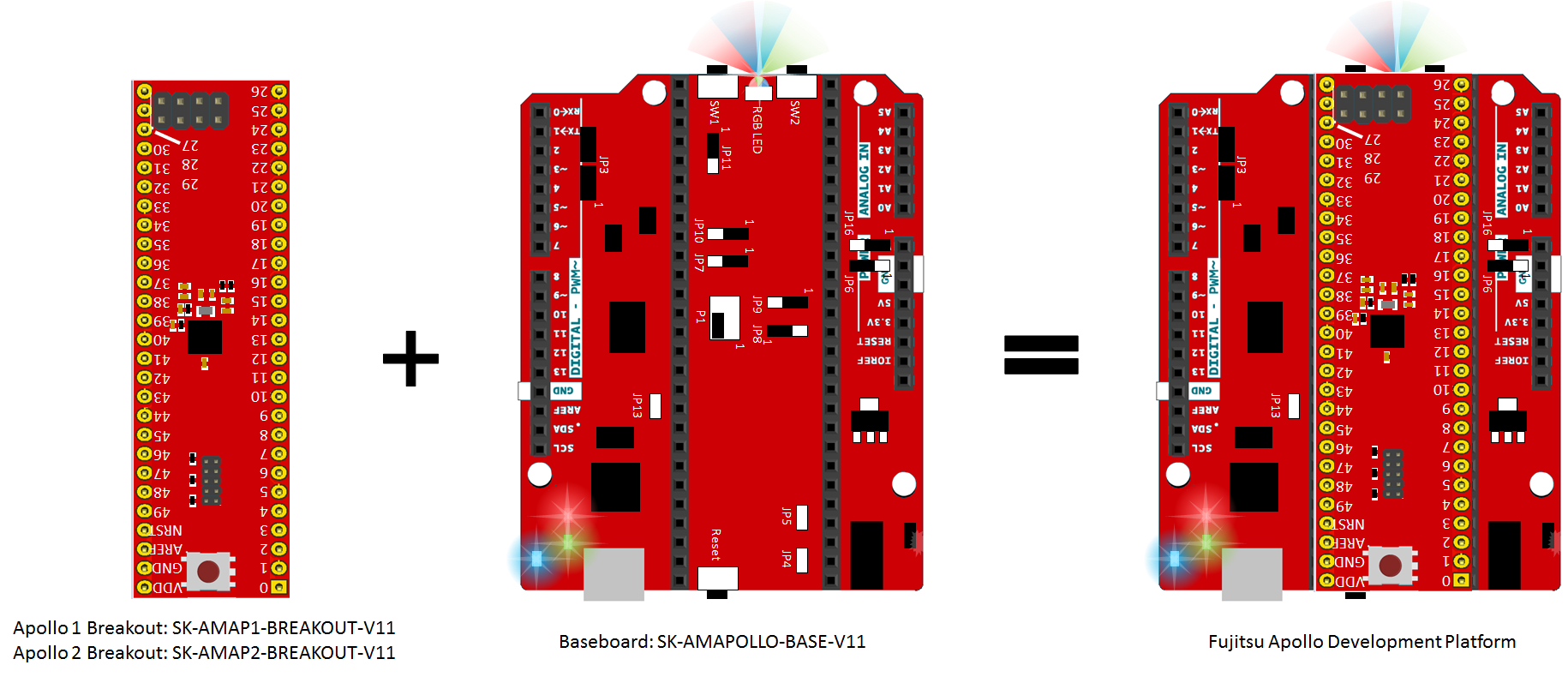

Fujitsu Apollo Evaluation Platform overview image

The Fujitsu Apollo Evaluation Platform can be used with Ambiq Micro Apollo 1 or Apollo 2. The platform consists of two parts: The breakout board and the base board. The breakout boards of Apollo 1 and Apollo 2 are designed pin-compatible, so just some jumpers must be set on the base board for Apollo 1 or Apollo 2 usage.

The base board SK-AMAPOLLO-BASE-V11

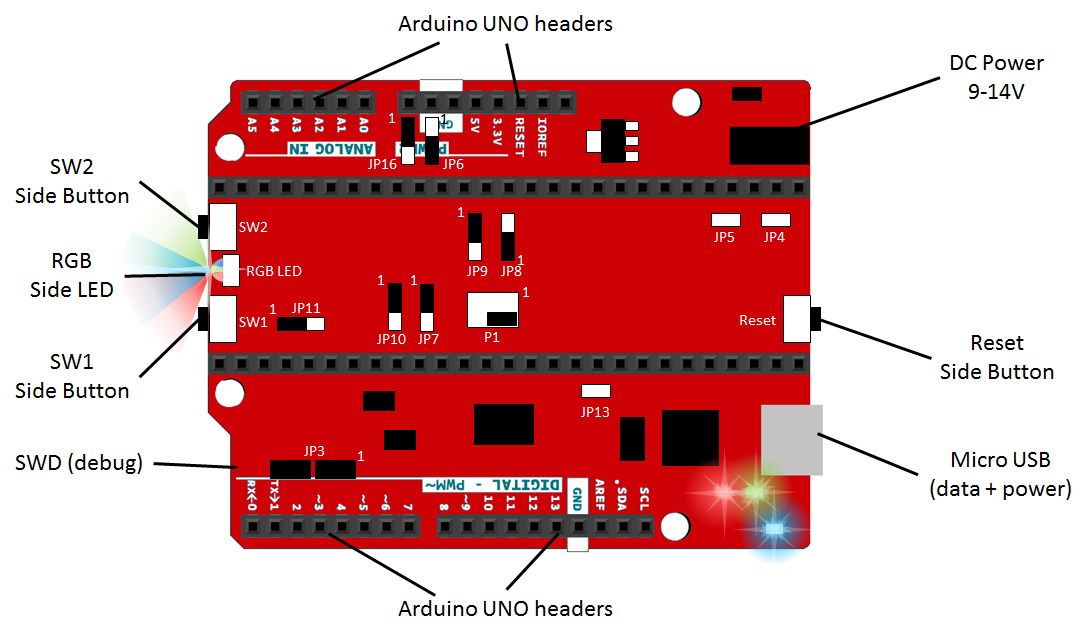

Base board SK-AMAPOLLO-BASE-V11 image

The SK-AMAPOLLO-BASE-V11 evaluation board includes a low-cost evaluation board usable with FEEUs Ambiq Micro Apollo break-out boards SK-AMAP1-BREAKOUT-V11 (Apollo 1) and SK-AMAP2-BREAKOUT-V11 (Apollo 2).

Features

  • Socket for SK-AMAP1-BREAKOUT-V11 / SK-AMAP2-BREAKOUT-V11
  • Arduino UNO compatible pin headers
  • 2 user push buttons
  • 1 reset button
  • 1 RGB LED
  • On-Board USB Debugger Fujitsu D-Bug:
    • CMSIS-DAP compatible debugger
    • Additional UART channel
    • Nano power measurement
  • Power via DC connector
  • Power via USB
  • On-Board 3.3V voltage regulator

Dimensions

  • Width: 68.6mm
  • Height: 53.3mm

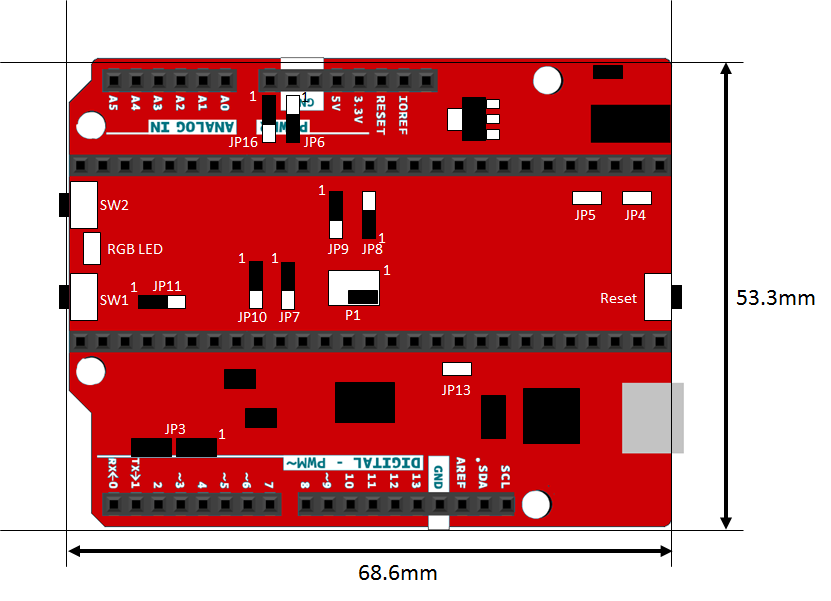

Base board SK-AMAPOLLO-BASE-V11 dimensions

Scope of delivery

  • Apollo base–board SK-AMAPOLLO-BASE-V11 in ESD bag
  • USB-Micro cable

Not scope of delivery: SK-AMAP1-BREAKOUT-V11 / SK-AMAP2-BREAKOUT-V11

The Apollo 1 breakout board SK-AMAP1-BREAKOUT-V11

Apollo 1 breakout board SK-AMAP1-BREAKOUT-V11 image

The SK-AMAP1-BREAKOUT-V11 evaluation board includes an Ambiq Micro Apollo 1 MCU with all pins available at 54 pins.


Features

  • Ambiq Micro Apollo 1:
    • Ultra-low active mode power consumption: 35µA/MHz (executing from Flash)
    • Ultra-low sleep mode power consumption: 143nA (with RTC on)
    • High-performance, 32-bit ARM Cortex-M4F processor
      • Up to 24MHz clock frequency
      • Floating point unit
      • Wake-up interrupt controller with 12 interrupts
    • Ultra-low power memory
      • Up to 512kB Flash
      • Up to 64kB low-leakage RAM
    • Ultra-low power interface for off-chip sensors
      • 10-bit, 13-channel, 1MS/s ADC
      • Temperature sensor with ±4°C accuracy
    • Rich set of timing peripherals
    • Flexible serial peripherals
      • I2C/SPI master for communication with external peripherals
      • I2C/SPI slave for optional host communications
      • UART for communication with peripherals and legacy devices
    • Wide operating range: 1.8 to 3.8V
    • Compact package options
      • 64-pin BGA with 50 GPIO
      • 41-pin CSP with 27 GPIO
  • Parts assembled:
    • MCU
    • Passives
    • Crystal
    • DC/DC converter coils
    • Reset button
    • SWD Debug header
    • 2x 27 pin headers 2.54mm
    • 1x 10 pin communication header

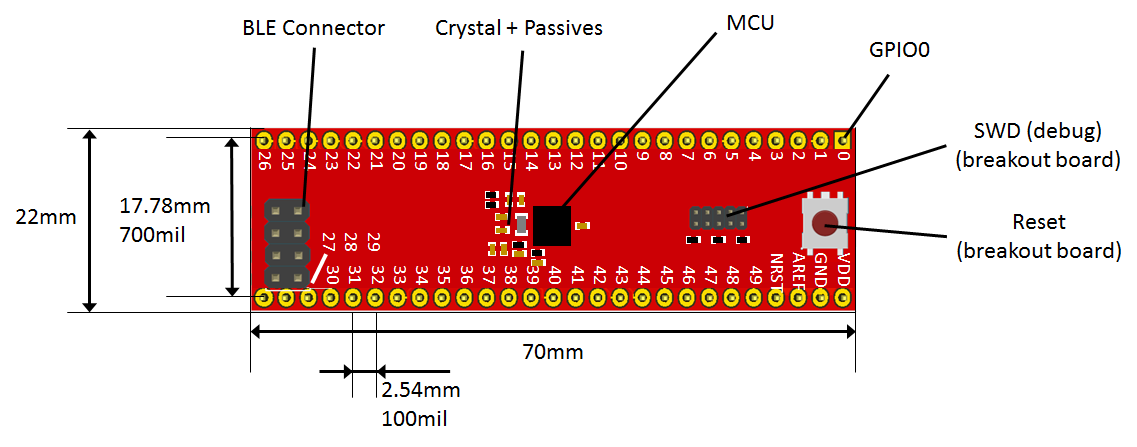

Dimensions

  • Width: 22mm
  • Height: 70mm

Scope of delivery

  • Apollo 1 breakout board SK-AMAP1-BREAKOUT-V11 in ESD bag

The Apollo 2 breakout board SK-AMAP2-BREAKOUT-V11

Apollo 2 breakout board SK-AMAP2-BREAKOUT-V11 image

The SK-AMAP2-BREAKOUT-V11 evaluation board includes an Ambiq Micro Apollo 2 MCU with all pins available at 54 pins.

Features

  • Ambiq Micro Apollo 2:
    • Ultra-low supply current:
      • <10 μA/MHz executing from flash at 3.3 V
      • <10 μA/MHz executing from RAM at 3.3 V
    • High-performance ARM Cortex-M4F Processor:
      • Up to 48 MHz clock frequency
      • Floating point unit
      • Memory protection unit
      • Wake-up interrupt controller with 32 interrupts
    • Ultra-low power memory:
      • Up to 1 MB of flash memory for code/data
      • Up to 256 KB of low leakage RAM for code/data
      • 16kB 2-way Associative Cache
    • Ultra-low power interface for off-chip sensors:
      • 14 bit, 15-channel, up to 1.2 MS/s ADC
      • Temperature sensor with +/-3ºC accuracy
      • Voltage Comparator
    • Flexible serial peripherals:
      • 6x I2C/SPI master for communication with sensors, radios, and other peripherals
      • 1x I2C/SPI slave for host communications
      • 2x UART for communication with peripherals and legacy devices
    • PDM for mono and stereo audio microphones
    • Rich set of clock sources:
      • 32.768 kHz XTAL oscillator
      • Low frequency RC oscillator – 1.024 kHz
      • High frequency RC oscillator – 48 MHz
      • RTC based on Ambiq’s AM08X5/18X5 families
    • Compact package options:
      • 2.5 x 2.5 mm (0.35mm) 49-pin CSP with 34 GPIO
      • 4.5 x 4.5 mm (0.5mm) 64-pin BGA with 50 GPIO
  • Parts assembled:
    • MCU
    • Passives
    • Crystal
    • DC/DC converter coils
    • Reset button
    • SWD Debug header
    • 2x 27 pin headers 2.54mm
    • 1x 10 pin communication header

Dimensions

  • Width: 22mm
  • Height: 70mm

Scope of delivery

  • Apollo 2 breakout board SK-AMAP2-BREAKOUT-V11 in ESD bag

Documents

Factsheet_SK-AMAP1-BREAKOUT-V11.pdf

Factsheet_SK-AMAP2-BREAKOUT-V11.pdf

Factsheet_SK-AMAPOLLO-BASE-V11.pdf

Platform Factsheet

Userguide

Schematic

Schematic_SK-AMAP1-BREAKOUT-V11.pdf

Schematic_SK-AMAP2-BREAKOUT-V11.pdf

Schematic_SK-AMAPOLLO-BASE-V11.pdf

Software Examples

Test software for Apollo 1

Test software for Apollo 2
