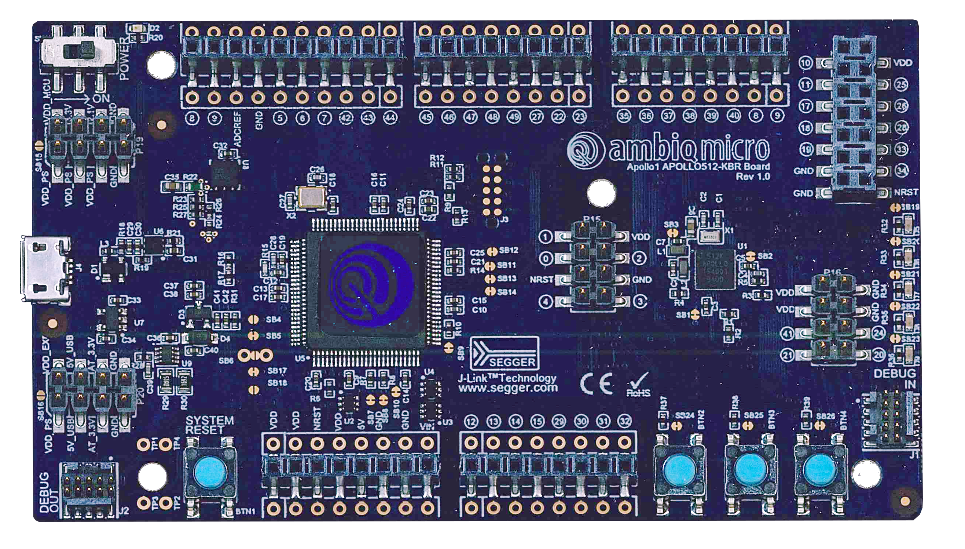

AMAP1EVK – Ambiq Micro Apollo1 Evaluation Kit

The Ambiq Micro Apollo 1 Evaluation Kit, or EVK, is the best place to start when designing with the Apollo 1 MCU. The EVK system contains already an on-board Segger JLINK Debugger and routes all available GPIOs to Arduino compatible headers; all designed to work together and provide you a low power, connected sensing platform.

Features:

  • USB connector / powering
  • Segger J-link support
  • Adruino shield ready
  • 3 push buttons
  • 4 LEDs

Documents

Quick Start Guide - Apollo1-EVB-Quick-Start-Guide-v1p0.pdf

Schematic - apollo1-apollo512-kbr-board-r1.0.pdf


Ordering Information

Via FEEU Webshop – http://shop.feeu.com/Shops/es966226/Products/AMAP1EVK
