Energy Harvesting

Photovoltaic | RF | Thermal | Vibration

Photovoltaic Harvesting

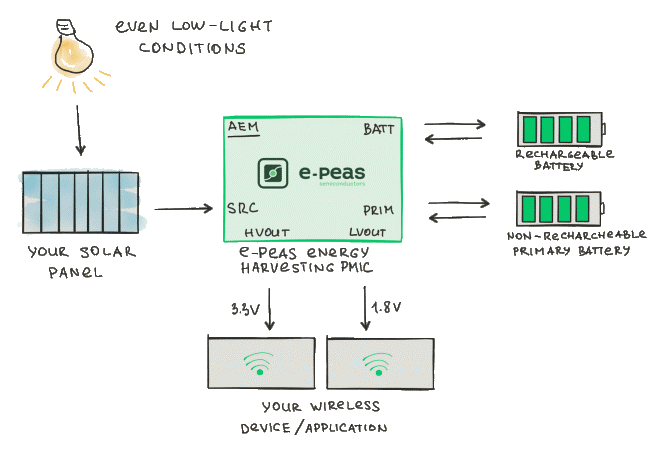

Photovoltaic Harvesting

Let’s assume that you work with battery powered IoT wireless devices that operate under light sources that may come from sun, light bulb, tube, etc. You need to replace the batteries of those devices, because they run out of energy. This generates operational costs.

But, most probably, there is enough of energy in the light surrounding your devices that you could use to power them.

Depending on the lighting conditions (low light indoor conditions to bright sunny outdoor conditions), traditional photovoltaic (PV) cells can generate from .

When properly selected (material and topology) and sized (illuminated area), a PV cell combined with our state of the art energy harvesting PMICs will recharge the batteries of your IoT applications from ambient light.

Using e-peas’ photovoltaic energy harvesting, you will avoid typical operating costs associated with battery replacement.

WHAT EXACTLY DO WE OFFER?

Best performing solutions that make your devices’ batteries live forever. Our innovative ICs autonomously and efficiently recharge your batteries in any light conditions: bright, changing, or even in very low ones with a PV cell generating .

e-peas offers you the following AEM [Ambient Energy Manager] reference:

  • The allows you for harvesting energy from up to 7 cells in series solar panels producing from 3µW up to 625mW.

HOW DO WE DIFFER FROM COMPETITION?

Both references are based on e-peas unique AEM platform offering:

  • conversion efficiency
  • supercapacitor charge
  • cold-start power
  • footprint and associated components BOM

Product Matrix

Ref.VinCold-startPinPoutMPPTPackageDisp.
AEM1094150mV to 5V380mV 3μW1μW to 625mW10mA@1.8V
80mA@2.2-4.2V
YesQFN28 5x5mmSamples

AEM10941 – Energy Harvesting Power Management IC

E-peas’ photovoltaic energy harvesting IC solution – AEM10941 – is the next generation integrated energy management subsystem that extracts DC power from up to 7 cells solar panels to simultaneously store energy in a rechargeable element and supply the system with two independent regulated voltages. This allows product designers and engineers to extend battery lifetime and ultimately get rid of the primary energy storage element in a large range of wireless applications like industrial monitoring, home automation, wearables.

The AEM10941 harvests the available input current up to 125 mA. It integrates an ultra-low-power Boost converter to charge a storage element, such as a Li-Ion battery, a thin film battery or a super- or conventional capacitor. The Boost converter operates with input voltages in a range of 50 mV to 5V. With its unique cold-start circuit, it can start operating with empty storage elements at an input voltage as low as 380 mV and an input power of just 3 µW.

The low voltage supply typically drives a microcontroller at 1.8 V. The high voltage supply typically drives a radio transceiver at a configurable voltage. Both are driven by highly efficient LDO (Low Drop-Out) regulators for low noise and high stability.

Configuration pins determine various operating modes by setting predefined conditions for the energy storage element (overcharge or overdischarge), and by selecting the voltage of the high voltage supply. However, special modes can be obtained at the expense of a few configuration resistors.

The chip integrates all the active elements for powering a typical wireless sensor. With only seven external components, integration is maximum, footprint and BOM are minimum, optimizing the time-to-market and costs of WSN designs in all markets.

Five identical capacitors and two inductors are required, available respectively in the small 0402 and 0603 SMD formats.

Tag: energy harvesting IC

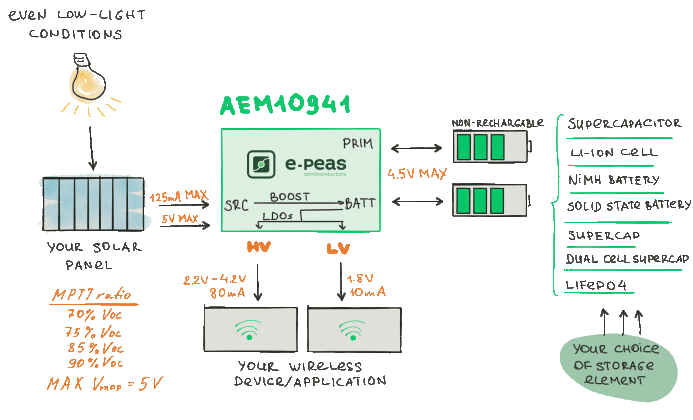

AEM10941

Features

Ultra-low-power start-up

  • Cold start from 380 mV input voltage and 3 µW input power (typical)

Ultra-low-power Boost regulator

  • Open circuit voltage sensing for MPPT every 5 s
  • Configurable MPPT with 2-pins programming
  • Selectable Voc ratios of 70, 75, 85, 90%
  • Input voltage operation range from 50 mV to 5V
  • MPPT voltage operation range from 50 mV to 5V

Integrated LDO regulator at low voltage

  • 1.8 V, high efficiency
  • Up to 10 mA load current
  • Power gated by external control

Integrated LDO regulator at high voltage

  • Configurable from 2.2 V to 4.2 V
  • Up to 80 mA load current with 300 mV drop-out
  • Power gated by external control

Flexible energy storage management

  • Programmable overcharge and overdischarge protection
  • For any type of rechargeable battery or (super)capacitor
  • Fast supercapacitor charging
  • Warns load when battery is getting empty
  • Warns when regulators are switched on

Smallest footprint, smallest BOM

  • Only seven passive external components

Optional primary battery

  • Automatically switches to the primary battery when secondary battery gets empty

Documentation

DescriptionVersionUpdatedDownload
AEM10941 product briefPB_AEM10941_REV1.317/05/2018DownloadOpen a new window
AEM10941 datasheetDS_AEM10941_REV1.301/10/2018DownloadOpen a new window

RF Harvesting

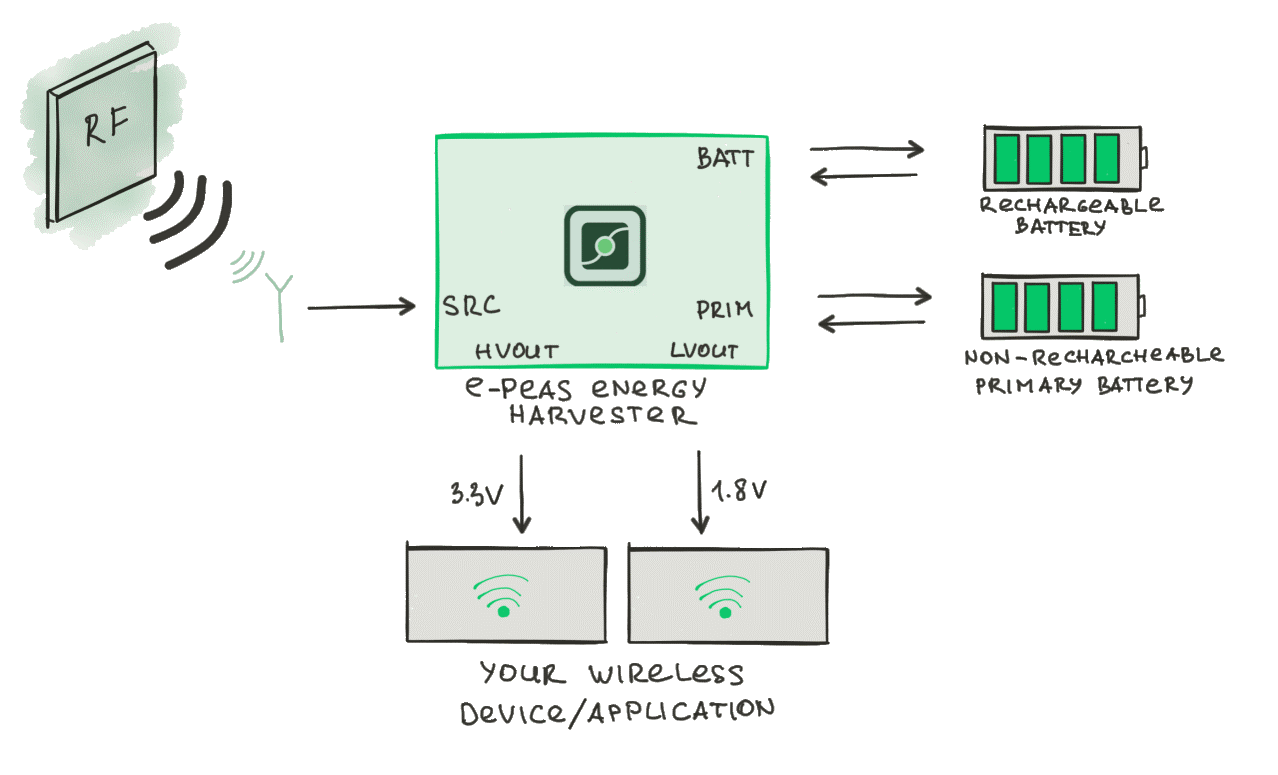

RF Harvesting

Let’s assume that you work with battery powered IoT wireless devices that operate within wireless waves rich environments. Without energy harvesting, you need to replace the batteries of those devices, because they run out of energy. This generates operational costs.

But there might be enough of energy provided by the wireless emitters surrounding your devices that you could use to power them.

Those emitters include:

And if not, you can equip the environment with dedicated emitters emitting power at 868MHz (Europe) or 915MHz (USA).

Depending on the power emitted by the source and the distance from the source (from 10’s of cm up to 15m), typical power levels you can harvest range from 10µW to mWs.

When properly selected and sized (frequency compatibility with available sources), an antenna and a balun (provided by e-peas for all above mentioned frequency ranges) combined with our state of the art energy harvesting PMICs will recharge the batteries of your IoT applications from ambient RF power.

Using e-peas’ RF energy harvesting, you will avoid typical operating costs associated with battery replacement.

WHAT EXACTLY DO WE OFFER?

Best performing solutions that make your devices’ batteries live forever. Our innovative ICs .

e-peas offers you 2 AEM [Ambient Energy Manager] references:

  • The AEM30940 allows you for harvesting energy from using properly selected external antenna, balun and rectifier
  • The AEM40940 integrates an RF rectifier and allows you for harvesting energy from using a properly selected external antenna and balun.

HOW DO WE DIFFER FROM COMPETITION?

Both references are based on e-peas unique AEM platform offering:

  • conversion efficiency
  • supercapacitor charge
  • cold-start power
  • footprint and associated components BOM

Product Matrix

Ref.VinCold-startPinPoutMPPTPackage
AEM4094050mV to 2.5V-19.5dBm-19.5dBm up to 10dBm20mA@1.8V
80mA@2.2-4.2V
YesQFN28 5x5mm
AEM3094050mV to 5V-18.5dBm-18.5dBm to 10dBm20mA@1.8V
80mA@2.2-4.2V
YesQFN28 5x5mm

AEM30940 – RF Energy Harvesting Power Management IC

AEM30940 - RF

E-peas’ RF energy harvesting IC solution – AEM30940 – is an integrated energy management subsystem that extracts DC power from ambient RF waves to simultaneously store energy in a rechargeable element and supply the system with two independent regulated voltages. This allows product designers and engineers to extend battery lifetime and ultimately get rid of the primary energy storage element in a large range of wireless applications like industrial monitoring, home automation, wearables.

The AEM30940 harvests the available input current up to . It integrates an ultra-low-power Boost converter to charge a storage element, such as a Li-Ion battery, a thin film battery or a super- or conventional capacitor. The Boost converter operates with input voltages in a range of . With its unique cold-start circuit, it can start operating with empty storage elements at an input power of just .

The low voltage supply typically drives a microcontroller at . The high voltage supply typically drives a radio transceiver at a configurable voltage. Both are driven by highly efficient LDO (Low Drop-Out) regulators for low noise and high stability.

Configuration pins determine various operating modes by setting predefined conditions for the energy storage element (overcharge or overdischarge), and by selecting the voltage of the high voltage supply. However, special modes can be obtained at the expense of a few configuration resistors.

The chip integrates all the active elements for powering a typical wireless sensor. With only seven external components, integration is maximum, footprint and BOM are minimum, optimizing the time-to-market and costs of WSN designs in all markets.

Five identical capacitors and two inductors are required, available respectively in the small 0402 and 0603 SMD formats.

Features

Ultra-low-power start-up

  • Cold start from -18.5dBm (typical)

Ultra-low-power Boost regulator

  • Configurable MPPT with single-pin programming
  • Selectable MPP ratios of 50, 65, 80, 100%
  • Open circuit voltage sensing for MPPT every 0.5 s
  • Input voltage operation range from 50 mV to 5.5V

Integrated LDO regulator at low voltage

  • 1.8 V, high efficiency
  • Up to 10 mA load current
  • Power gated by external control

Integrated LDO regulator at high voltage

  • Configurable from 2.2 V to 4.2 V
  • Up to 80 mA load current with 300 mV drop-out
  • Power gated by external control

Flexible energy storage management

  • Programmable overcharge and overdischarge protection
  • For any type of rechargeable battery or (super)capacitor
  • Fast supercapacitor charging
  • Warns load when battery is getting empty
  • Warns when regulators are switched on

Smallest footprint, smallest BOM

  • Only seven passive external components

Optional primary battery

  • Automatically switches to the primary battery when secondary battery gets empty

Documentation

DescriptionVersionUpdatedDownload
AEM30940 product briefPB_AEM30940_Rev1.317/05/2018DownloadOpen a new window
AEM30940 datasheetDS_AEM30940_REV1.101/10/2018DownloadOpen a new window

AEM40940 – Energy Harvesting Power Management IC

E-peas’ RF energy harvesting IC solution – AEM40940 – is the next generation integrated energy management subsystem integrating a rectifier that extracts AC power from ambient RF waves to simultaneously store energy in a rechargeable element and supply the system with two independent regulated voltages. This allows product designers and engineers to extend battery lifetime and ultimately get rid of the primary energy storage element in a large range of wireless applications like industrial monitoring, home automation, wearables.

The AEM40940 harvests the available input current up to . It integrates an ultra-low-power Boost converter to charge a storage element, such as a Li-Ion battery, a thin film battery or a super- or conventional capacitor. The Boost converter operates with input voltages in a range of . With its unique cold-start circuit, it can start operating with empty storage elements at an input power of just .

The low voltage supply typically drives a microcontroller at . The high voltage supply typically drives a radio transceiver at a configurable voltage. Both are driven by highly efficient LDO (Low Drop-Out) regulators for low noise and high stability.

Configuration pins determine various operating modes by setting predefined conditions for the energy storage element (overcharge or overdischarge), and by selecting the voltage of the high voltage supply. However, special modes can be obtained at the expense of a few configuration resistors.

The chip integrates all the active elements for powering a typical wireless sensor. With only seven external components, integration is maximum, footprint and BOM are minimum, optimizing the time-to-market and costs of WSN designs in all markets.

Five identical capacitors and two inductors are required, available respectively in the small 0402 and 0603 SMD formats.

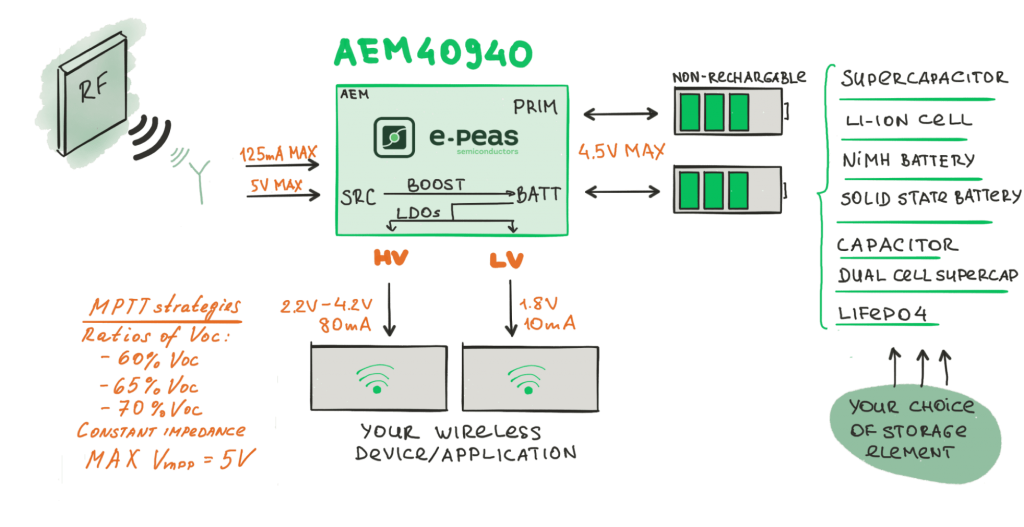

AEM40940

Features

Ultra-low-power start-up

  • Cold start from -19dBm (typical)

Ultra-low-power Boost regulator

  • Open circuit voltage sensing for MPPT every 5 s
  • Configurable MPPT with 2-pins programming
  • Selectable Voc ratios of 60, 65, 70%
  • Input voltage operation range from 50 mV to 5V
  • MPPT voltage operation range from 50 mV to 5V

Integrated LDO regulator at low voltage

  • 1.8 V, high efficiency
  • Up to 10 mA load current
  • Power gated by external control

Integrated LDO regulator at high voltage

  • Configurable from 2.2 V to 4.2 V
  • Up to 80 mA load current with 300 mV drop-out
  • Power gated by external control

Flexible energy storage management

  • Programmable overcharge and overdischarge protection
  • For any type of rechargeable battery or (super)capacitor
  • Fast supercapacitor charging
  • Warns load when battery is getting empty
  • Warns when regulators are switched on

Smallest footprint, smallest BOM

  • Only seven passive external components

Optional primary battery

  • Automatically switches to the primary battery when secondary battery gets empty

Documentation

DescriptionVersionUpdatedDownload
AEM40940 product briefPB_AEM40940_Rev1.417/05/2018DownloadOpen a new window
AEM40940 datasheetDS_AEM40940_REV1.101/10/2018DownloadOpen a new window

Thermal Harvesting

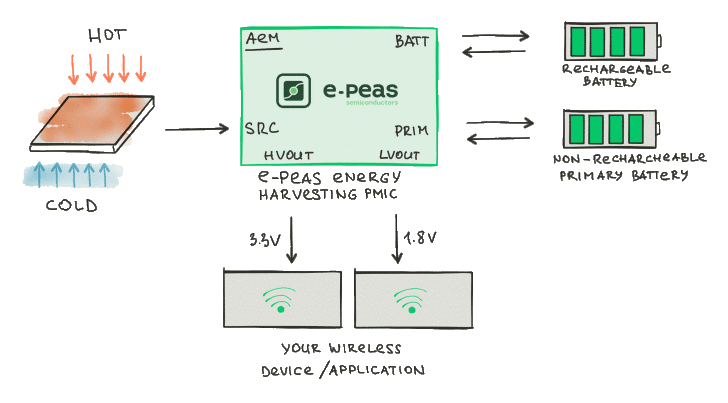

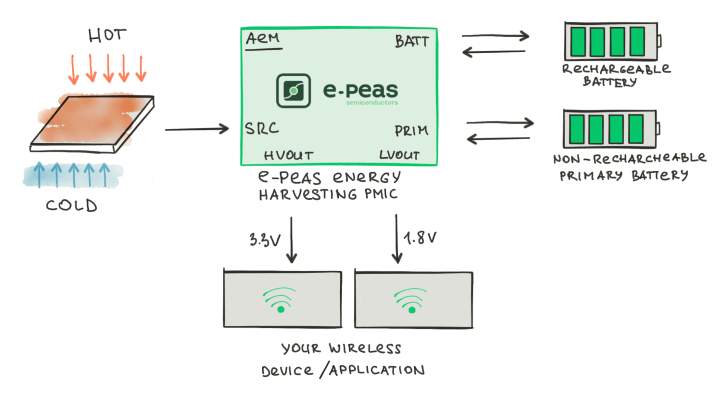

Thermal Harvesting

Let’s assume that you work with battery powered IoT wireless devices that operate in an environment presenting thermal gradients generated by heater, human body, furnace, motor, etc. Without energy harvesting, you need to replace the batteries of those devices, because they run out of energy. This generates operational costs.

But, in some environments, there is enough of energy dissipated by surrounding machines that you could use to power your devices.

Depending on the available temperature gradients, TEGs can generate from .

When properly selected (material and topology) and sized (area exposed to temperature gradients), a TEG combined with our state of the art energy harvesting PMICs will recharge the batteries of your IoT applications from hot or cold sources.

Using e-peas’ thermic energy harvesting, you will avoid typical operating costs associated with battery replacement.

WHAT EXACTLY DO WE OFFER?

Best performing solutions that make your devices’ batteries live forever. Our innovative ICs autonomously and efficiently recharge your batteries from any temperature gradients.

e-peas offers you 1 AEM [Ambient Energy Manager] references:

  • The AEM30940 allows you for harvesting energy from TEG producing from 3µW up to 625mW.

HOW DO WE DIFFER FROM COMPETITION?

This reference is based on e-peas unique AEM platform offering:

  • conversion efficiency
  • supercapacitor charge
  • cold-start power
  • footprint and associated components BOM

Product Matrix

Ref.VinCold-startPinPoutMPPTPackage
AEM2094050mV to 5V60mV 150μW3μW to 380mW20mA@1.8V
80mA@2.2-4.2V
YesQFN28 5x5mm
AEM3094050mV to 5V380mV 3μW3μW to 380mW20mA@1.8V
80mA@2.2-4.2V
YesQFN28
5x5mm

AEM20940 – Energy Harvesting Power Management IC

E-peas’ thermal energy harvesting IC solution – AEM20940 – is an integrated energy management subsystem that extracts DC power from TEG to simultaneously store energy in a rechargeable element and supply the system with two independent regulated voltages. This allows product designers and engineers to extend battery lifetime and ultimately get rid of the primary energy storage element in a large range of wireless applications like industrial monitoring, home automation, wearables.

The AEM20940 harvests the available input current up to 125 mA. It integrates an ultra-low-power Boost converter to charge a storage element, such as a Li-Ion battery, a thin film battery or a super- or conventional capacitor. The Boost converter operates with input voltages in a range of 50 mV to 5V. With its unique cold-start circuit, it can start operating with empty storage elements at an input voltage as low as 60 mV and an input power of just 150 µW.

The low voltage supply typically drives a microcontroller at 1.8 V. The high voltage supply typically drives a radio transceiver at a configurable voltage. Both are driven by highly efficient LDO (Low Drop-Out) regulators for low noise and high stability.

Configuration pins determine various operating modes by setting predefined conditions for the energy storage element (overcharge or overdischarge), and by selecting the voltage of the high voltage supply. However, special modes can be obtained at the expense of a few configuration resistors.

The chip integrates all the active elements for powering a typical wireless sensor. With very few external components, integration is maximum, footprint and BOM are minimum, optimizing the time-to-market and costs of WSN designs in all markets.

AEM20940 diagram

Features

Ultra-low-power start-up

  • Cold start from 60 mV input voltage and 150 µW input power (typical)

Ultra-low-power Boost regulator

  • Configurable MPPT with 2-pin programming
  • Selectable MPP ratios of 50, , 55, 75%
  • Open circuit voltage sensing for MPPT every 21s
  • Input voltage operation range from 50 mV to 5V

Integrated LDO regulator at low voltage

  • 1.8 V, high efficiency
  • Up to 10 mA load current
  • Power gated by external control

Integrated LDO regulator at low voltage

  • 1.2/1.8 V, high efficiency
  • Up to 20 mA load current
  • Power gated by external control

Integrated LDO regulator at high voltage

  • Configurable from 1.8-2.5-3.3 V
  • Up to 80 mA load current with 300 mV drop-out
  • Power gated by external control

Flexible energy storage management

  • Programmable overcharge and overdischarge protection
  • For any type of rechargeable battery or (super)capacitor
  • Fast supercapacitor charging
  • Warns load when battery is getting empty
  • Warns when regulators are switched on

Optional primary battery

  • Automatically switches to the primary battery when secondary battery gets empty

Documentation

DescriptionVersionUpdatedDownload
AEM20940 product briefPB_AEM20940_Rev1.215/04/2019DownloadOpen a new window
AEM20940 datasheetDS_AEM20940_REV1.115/04/2019DownloadOpen a new window

AEM30940 – Energy Harvesting Power Management IC

E-peas’ thermal energy harvesting IC solution – AEM30940 – is an integrated energy management subsystem that extracts DC power from TEG to simultaneously store energy in a rechargeable element and supply the system with two independent regulated voltages. This allows product designers and engineers to extend battery lifetime and ultimately get rid of the primary energy storage element in a large range of wireless applications like industrial monitoring, home automation, wearables.

The AEM30940 harvests the available input current up to . It integrates an ultra-low-power Boost converter to charge a storage element, such as a Li-Ion battery, a thin film battery or a super- or conventional capacitor. The Boost converter operates with input voltages in a range of . With its unique cold-start circuit, it can start operating with empty storage elements at an input voltage as low as and an input power of just .

The low voltage supply typically drives a microcontroller at . The high voltage supply typically drives a radio transceiver at a configurable voltage. Both are driven by highly efficient LDO (Low Drop-Out) regulators for low noise and high stability.

Configuration pins determine various operating modes by setting predefined conditions for the energy storage element (overcharge or overdischarge), and by selecting the voltage of the high voltage supply. However, special modes can be obtained at the expense of a few configuration resistors.

The chip integrates all the active elements for powering a typical wireless sensor. With only seven external components, integration is maximum, footprint and BOM are minimum, optimizing the time-to-market and costs of WSN designs in all markets.

Five identical capacitors and two inductors are required, available respectively in the small 0402 and 0603 SMD formats.

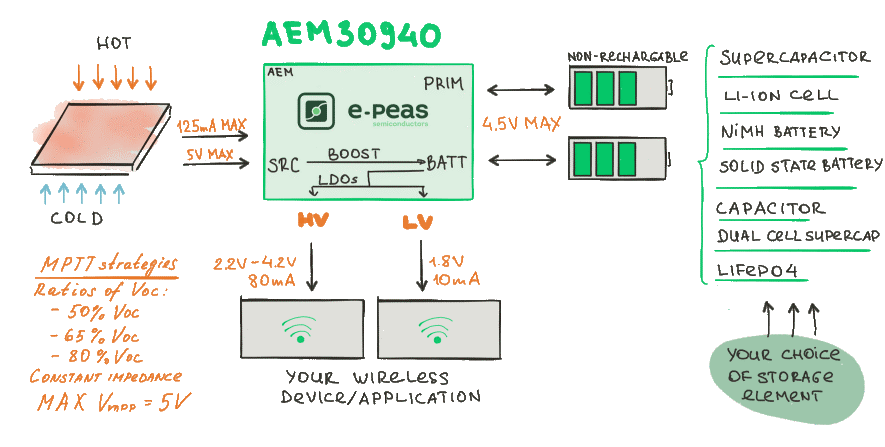

AEM30940 - Thermal

Features

Ultra-low-power start-up

  • Cold start from 380 mV input voltage and 3 µW input power (typical)

Ultra-low-power Boost regulator

  • Configurable MPPT with single-pin programming
  • Selectable MPP ratios of 50, 65, 80, 100%
  • Open circuit voltage sensing for MPPT every 0.5 s
  • Input voltage operation range from 50 mV to 5.5V

Integrated LDO regulator at low voltage

  • 1.8 V, high efficiency
  • Up to 10 mA load current
  • Power gated by external control

Integrated LDO regulator at high voltage

  • Configurable from 2.2 V to 4.2 V
  • Up to 80 mA load current with 300 mV drop-out
  • Power gated by external control

Flexible energy storage management

  • Programmable overcharge and overdischarge protection
  • For any type of rechargeable battery or (super)capacitor
  • Fast supercapacitor charging
  • Warns load when battery is getting empty
  • Warns when regulators are switched on

Smallest footprint, smallest BOM

  • Only seven passive external components

Optional primary battery

  • Automatically switches to the primary battery when secondary battery gets empty

Documentation

DescriptionVersionUpdatedDownload
AEM30940 product briefPB_AEM30940_Rev1.317/05/2018DownloadOpen a new window
AEM30940 datasheetDS_AEM30940_REV1.101/10/2018DownloadOpen a new window

Vibration Harvesting

Product Matrix

Ref.VinCold-startPinPoutMPPTPackageDisp.
AEM3094050mV to 5V380mV
3μW
1μW to 625mW10mA@1.8V
80mA@2.2-4.2V
YesQFN28 5x5mmSamples

AEM30940 – Energy Harvesting Power Management IC

E-peas’ vibration energy harvesting IC solution – AEM30940 – is an integrated energy management subsystem that extracts DC power from a piezo or micro turbine generator to simultaneously store energy in a rechargeable element and supply the system with two independent regulated voltages. This allows product designers and engineers to extend battery lifetime and ultimately get rid of the primary energy storage element in a large range of wireless applications like industrial monitoring, home automation, wearables.

The AEM30940 harvests the available input current up to . It integrates an ultra-low-power Boost converter to charge a storage element, such as a Li-Ion battery, a thin film battery or a super- or conventional capacitor. The Boost converter operates with input voltages in a range of . With its unique cold-start circuit, it can start operating with empty storage elements at an input voltage as low as and an input power of just .

The low voltage supply typically drives a microcontroller at . The high voltage supply typically drives a radio transceiver at a configurable voltage. Both are driven by highly efficient LDO (Low Drop-Out) regulators for low noise and high stability.

Configuration pins determine various operating modes by setting predefined conditions for the energy storage element (overcharge or overdischarge), and by selecting the voltage of the high voltage supply. However, special modes can be obtained at the expense of a few configuration resistors.

The chip integrates all the active elements for powering a typical wireless sensor. With only seven external components, integration is maximum, footprint and BOM are minimum, optimizing the time-to-market and costs of WSN designs in all markets.

Five identical capacitors and two inductors are required, available respectively in the small 0402 and 0603 SMD formats.

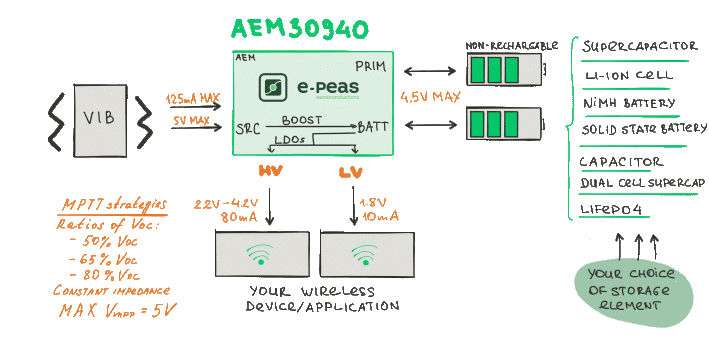

AEM30940 - Vibration

Features

Ultra-low-power start-up

  • Cold start from 380 mV input voltage and 3 µW input power (typical)

    Ultra-low-power Boost regulator

    • Configurable MPPT with single-pin programming
    • Selectable MPP ratios of 50, 65, 80, 100%
    • Open circuit voltage sensing for MPPT every 0.5s
    • Input voltage operation range from 50mV to 5.5V

    Integrated LDO regulator at low voltage

    • 1.8 V, high efficiency
    • Up to 10mA load current
    • Power gated by external control

    Integrated LDO regulator at high voltage

    • Configurable from 2.2 V to 4.2 V
    • Up to 80mA load current with 300 mV drop-out
    • Power gated by external control

Flexible energy storage management

  • Programmable overcharge and overdischarge protection
  • For any type of rechargeable battery or (super)capacitor
  • Fast supercapacitor charging
  • Warns load when battery is getting empty
  • Warns when regulators are switched on

Smallest footprint, smallest BOM

  • Only seven passive external components

Optional primary battery

  • Automatically switches to the primary battery when secondary battery gets empty

Documentation

DescriptionVersionUpdatedDownload
AEM30940 product briefPB_AEM30940_Rev1.317/05/2018DownloadOpen a new window
AEM30940 datasheetDS_AEM30940_REV1.101/10/2018DownloadOpen a new window

More Details

Contact Us

Find out how Fujitsu Electronics Europe can help you

Top of Page
