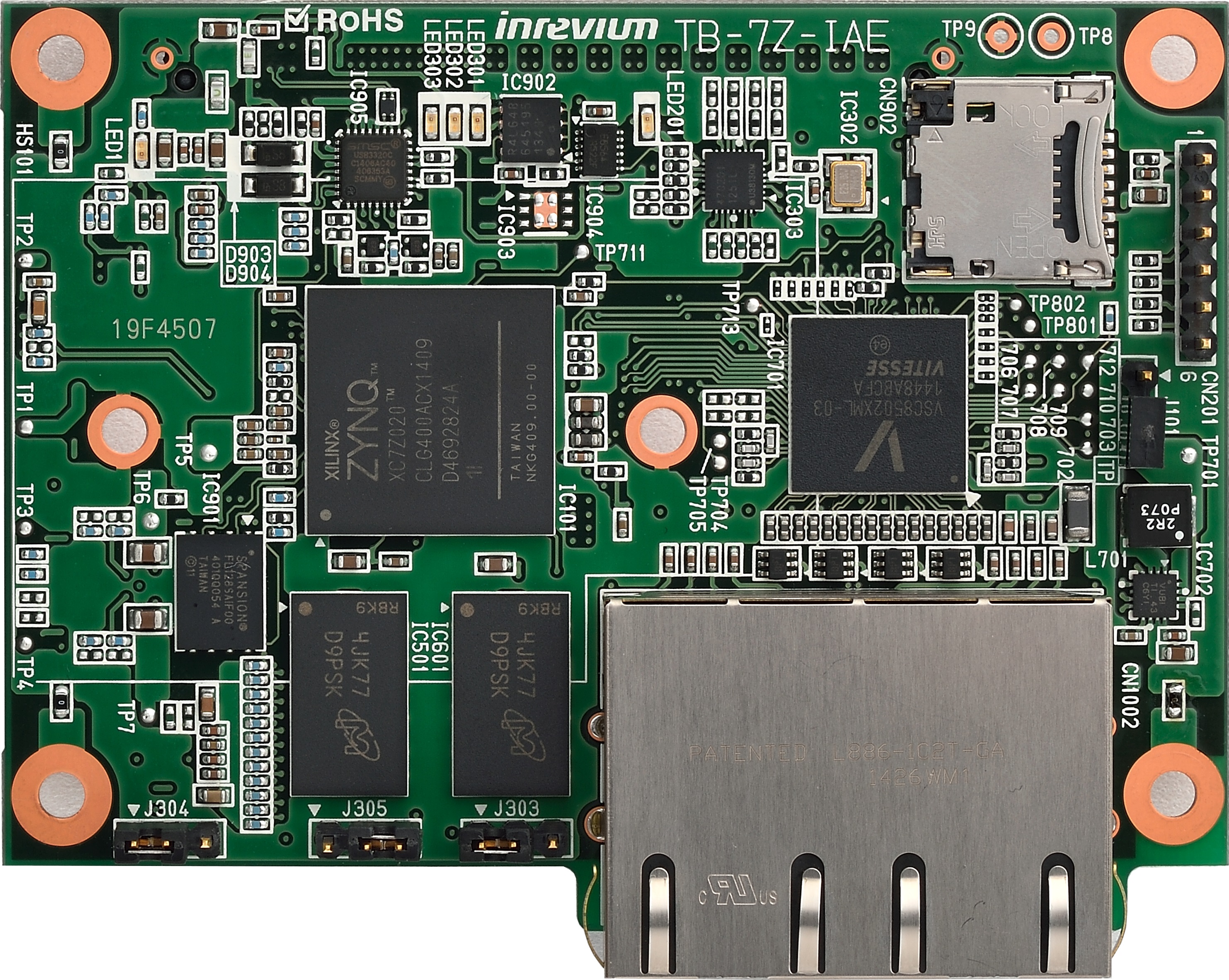

Industrial Grade SOM (System On Module)

Industrial Grade SOM (System On Module) image

User guide

Part Number: TB-7Z-IAE

  • Business Card sized small module with Zynq-7000 All Programmable SoC and peripherals.
  • Time to Market Solution
  • Enables to implement multiple industrial network on single platform
  • 2ch Gigabit Ethernet for supporting flexible topology
  • Available for mass production usage


  • Device: XC7Z020-CLG400I
  • Memory
  • Expansion IO Connector
    • DDR3 SDRAM 512MByte
    • QSPI Flash 16MByte
    • 64Kbit Non-volatile F-RAM
  • Expansion IO Connector
    • 120 Position Connector 0.80mm Pich (PL IO:60 / PS IO:10)
  • General Purpose Interface
    • Gigabit Ethernet x 2
    • Socket for microSD card
  • Debug Interface
    • JTAG
    • LED
  • Clock
    • Processing System
    • Programmable Logic
    • RTC Device
  • Power Supply: Single DC5V operation
  • Board size: H60xW85 (mm)
  • Operating Temperature: 0℃ ~ +50℃
  • SDSoC Development Environment

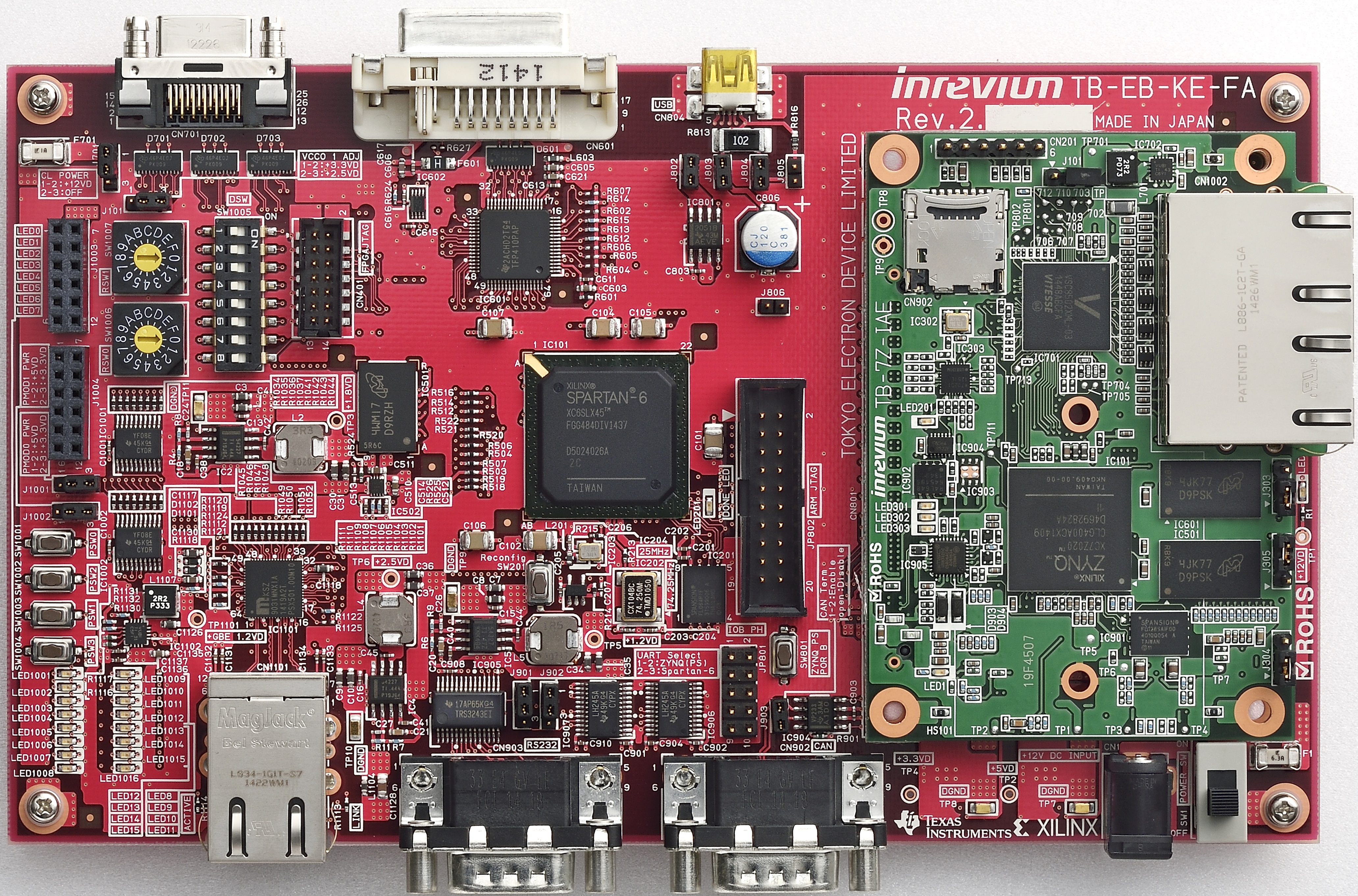

Industrial Grade SOM Development Kit

Industrial Grade SOM Development Kit image/>

User guide

Part Number: TB-7Z-ISDK

  • Industrial Grade SOM Development Kit


  • Daughter Module: TB-7Z-IAE
  • Mother board:
    • Device: XC6SLX45-FGG484
    • Memory:
      • DDR2 SDRAM 1Gbit
      • QSPI Flash 64Mbit
  • Interface:
    • USB2.0 (Host)
    • CameraLink Base
    • 10/100Mbps Ethernet (RJ45)
    • CAN (D-SUB9)
    • RS-232C (D-SUB9)
    • PMOD x2
    • XADC (Pin header)
  • Debug Interface:
    • ARM JTAG 20 pin header
    • 10pin header for XILINX Cable
    • Push Switch, DIP Switch, LED, Rotary Switch
  • Power (AC adapter)
  • Board size:H110 x W185 (mm)
  • SDSoC Development Environment

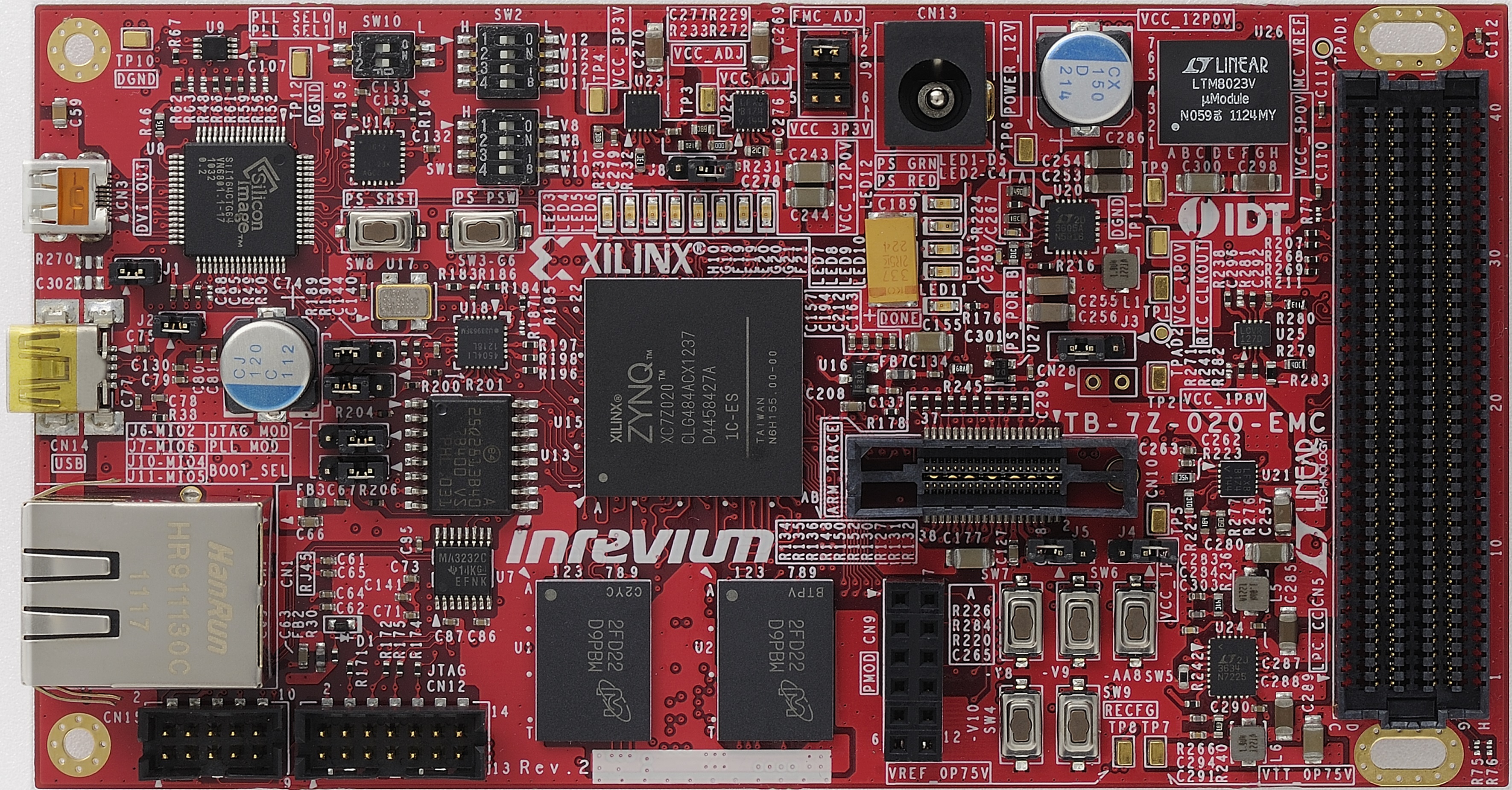

Extension Microcontroller Card

Extension Microcontroller Card image

User guide

End of Life since August 2017

Part Number: TB-7Z-020-EMC

TB-7Z-020-EMC has excellent connectivity with the main development system such as the TB-7V-2000T-LSI or any other inrevium platform. By featuring Zynq-7000 All Programmable SoC , small size and wide range of interfaces, the TB-7Z-020-EMC goes far beyond just connection ability with FPGA evaluation platform. Software engineers can use the TB-7Z-020-EMC to perform repeated testing on real hardware during the development process.


  • Device: XC7Z020-1CLG484
  • Memory:
    • DDR3 SDRAM 1GByte
    • microSD Card socket and media
    • 128 Mbit QSPI flash memory
  • Expansion Interface:
    • FMC (LPC) x 2
      • LPC (Mezzanine)
      • LPC (Carrier)
  • General Purpose interface:
    • Gigabit Ethernet
    • USB2.0 (Host Device)
    • UART (RS-232C)
    • CAN
    • DVI TX
    • Push switch, DIP switch, LED
  • Debug interface:
    • MICTOR-38 for ARM
    • 10pin header for Xilinx cable
  • Clock: Multi-clock generator
    • ARM 33.33MHz
    • Logic 148.5MHz
  • Power Supply
  • Board size:H69 x W130 (mm)
