ACDC 1.0 Base board

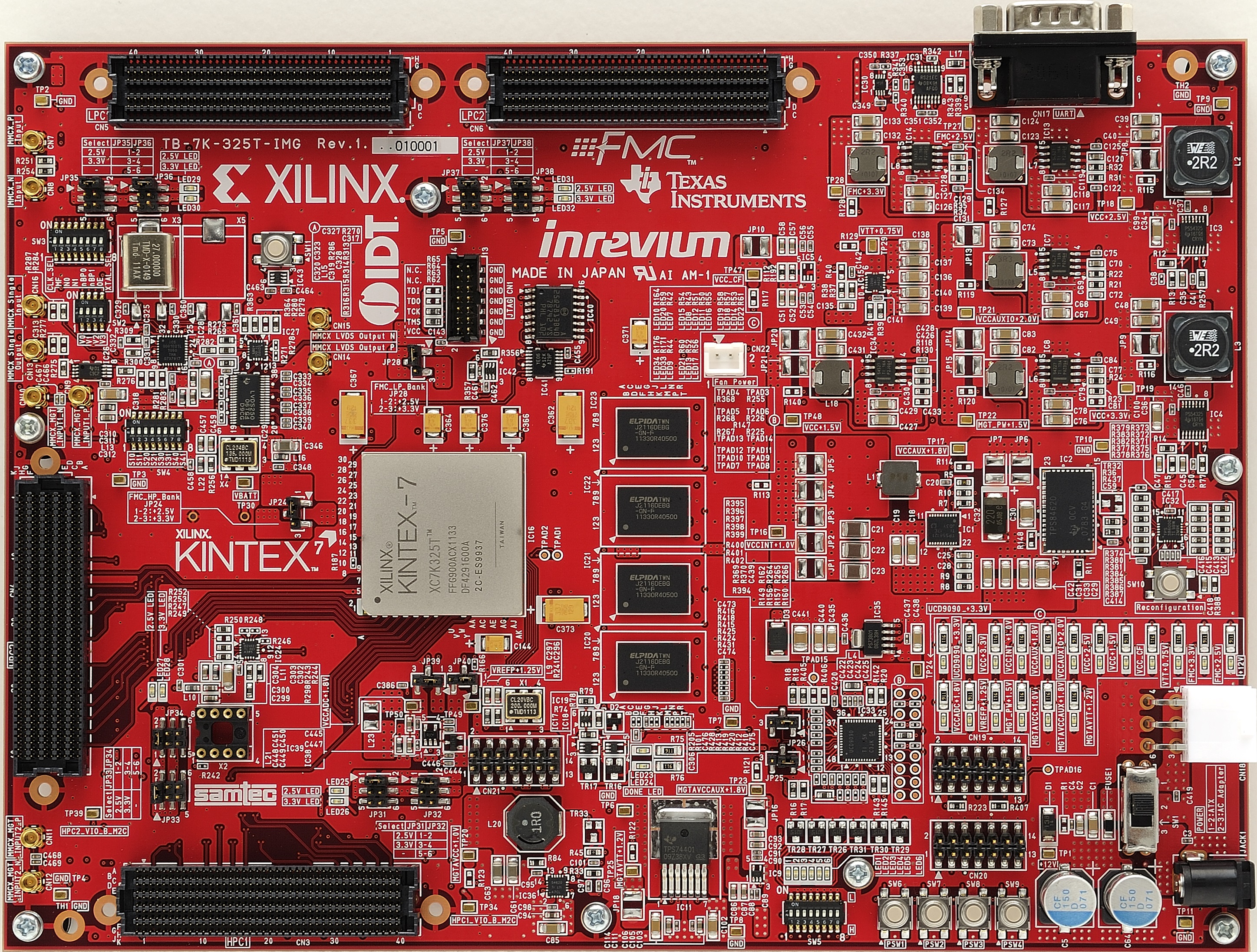

ACDC 1.0 Base board image

User guide
Kintex-7 FPGA Data Sheet

Part Number: TB-7K-325T-IMG

The ACDC 1.0 base board is a revolutionary platform suited for evaluation test-and-debug, and development of video designs. With 12.5Gbps GTX transceivers and 64-bit x 1,800Mbps DDR3 memory the board meets the high-bandwidth, high-performance requirements of ultra-realistic, high-definition display technology such as 4K2K and OLED. The ACDC 1.0 base board also provides the best power-to-performance optimization in designs compared to competitive offerings.


  • Device: XC7K325T-2FFG900
  • Memory: DDR3 SDRAM 2Gbit x4
  • Interface
    • FMC
      • HPC (High Pin Count) x2
      • LPC (Low Pin Count) x2
    • GTX Transceiver 5.4Gbps 8chx2 (HPC)
    • MMCX for External Clock
    • UART (RS-232C D-sub 9 pin)
    • XADC pin header
    • Xiinx cable 10pin header
    • Push switch, DIP switch, LED
  • Clock:
    • 74.25MHz OSC (via Socket)
    • 135MHz OSC
    • 200MHz OSC
    • PLL
  • Configuration: QUAD Dual-SPI Flash
  • Power Supply
  • Board size: H175 x W240 (mm)
  • Reference Design (Verilog HDL)
    • HDMI Frame Buffer Design
      • HDMI frame Buffer Design with TB-FMCH-HDMI2 (sold separately)
      • Memory controller: Generated by Memory Interface Generator (MIG)
    • EDK Base System Builder Design
      • XBD file for EDK base system builder
      • MicroBlaze softcore CPU and peripherals
