MIPI FMC Card

MIPI FMC Card

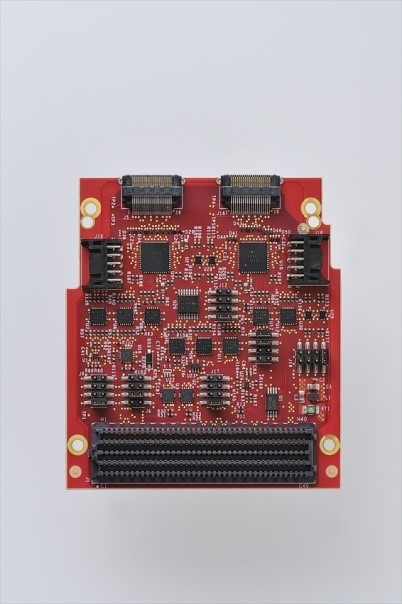

MIPI FMC Connectivity mezzanine card is designed to provide to two 4lane MIPI ports which support D-PHY(CSI-2/DSI)standard with the connection between FMC (LPC) connector. PHY device: Meticom MC20901 MC2092

Features:

  • MIPI FMC card
  • OV13850 sensor module or DSI display or both
  • CSI adapter card or DSI adapter card or both
  • Reference designs available based on Northwest Logic's MIPI IP core
Product NameProduct Description
TB-FMCL-MIPIMIPI FMC Card 4-lane CSI-2/DSI (Rx/Tx)
TB-FMCL-MIPI-2CSIMIPI FMC Card dual CSI (Rx/Rx)
TB-FMCL-MIPI-CSI-SETMIPI FMC Card 4-lane CSI-2/DSI(Rx/Tx) + CSI adapter card +
OV13855 image sensor
TB-FMCL-MIPI-DSI-SETMIPI FMC Card 4-lane CSI-2/DSI(Rx/Tx) + DSI adapter card + DSI
display
TB-FMCL-MIPI-2CSI-SETMIPI FMC Card dual CSI(Rx/Rx) + CSI adapter card + Reverse
offset adapters + OV13855 image sensor x 2
TB-FMCL-MIPI-CSI/DSIMIPI FMC Card 4-lane CSI-2/DSI (Rx/Tx) + CSI adapter card + DSI
adapter card + OV13855 image sensor + DSI display
TB-FMCL-MIPI-DIRECTMIPI DIRECT FMC Card only
TB-FMCL-MIPI-DIRECT-CSI SETMIPI DIRECT FMC Card + CSI Adapter card + OV13855
TB-FMCL-MIPI-DIRECT-DSI SETMIPI DIRECT FMC Card + DSI Adapter card + DSI display
TB-FMCL-MIPI-DIRECT-2CSI SETMIPI DIRECT FMC Card + CSI adapter card + Reverse offset
adapters + OV13855 image sensor x 2
TB-FMCL-MIPI-DIRECT -CSI/DSI SETMIPI DIRECT FMC Card + CSI Adapter card + DSI Adapter card +
OV13855 +  DSI display

Pin Header Cards

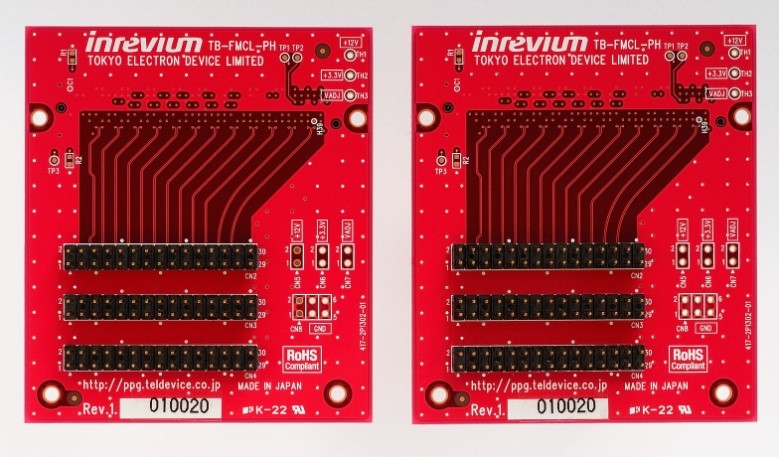

LPC Pin Header Cards image

Part Number: TB-FMCL-PH

The PH FMC Connectivity mezzanine card is designed to provide conversion between FMC (LPC) connector and 2.54mm pitch pin header
