HDMI 2.0 Card

HDMI 2.0 Card image

Part Number : TB-FMCH-HDMI4K

Features:

  • 2x HDMI connectors
    • 1x HDMI4K Source
    • 1x HDMI4K Sink
  • Compatible with FMC Specification (VITA 57.1)
  • Designed for electrical compatibility with most carrier cards
  • Proven operation with inrevium ACDC and KC705
  • Stackable FMC design supports additional TB-FMCH-HDMI4K

User Guide

DisplayPort 1.2 Card

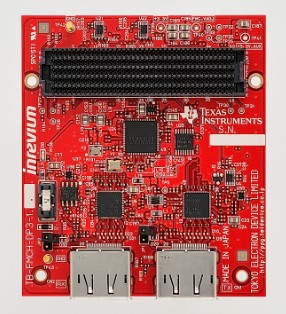

DisplayPort 1.2 Card image

Features:

  • DisplayPort 1.2 Standard
  • Sink/Source 1ch each
  • Working with Xilinx's DisplayPort IP

User Guide

12G-SDI Card

12G-SDI Card image

Part Number : TB-FMCH-12GSDI

The 12GSDI FMC Connectivity mezzanine card is designed to provide 1x input, 1x output, 3x SDI input/output + 1x Video Sync input with the connection between FMC (HPC) connector. It could expand up to 2x input, 2x output and 6x SDI input/output by using expansion connector.
The 12GSDI FMC card consists of Macom/Mindspeed’s Reclocker: M23145G-11P, Cable Driver: M23428G-31P, and Adaptive Equalizer: M23564G-11P which support up to 11.88Gpbs.
It also has two on board crystals (148.5MHz and 148.3516MHz) which each can be reference clocks. 12G-SDI FMC card provides a development platform that enables customers to process their video content such as 4k60p through a single link, dramatically increasing the amount of video processing that can be done on a single card.

More information
User Guide

8Lane V-by-One HS LVDS Card

8Lane V-by-One HS LVDS Card image

Part Number : TB-FMCH-VBY1-AD (51Pin)
Part Number : TB-FMCH-VBY1-AD-41 (41Pin)

End of Life since August 2017

Please contact us for an alternative board

Features:

  • 41/51 Pin connector (mounting option) support for 8Lane
  • Supports LVDS connector
  • X148.25MHz for reference
  • On board OLL
