ClickBeetle™ Reference Platform: SensorBeetle I

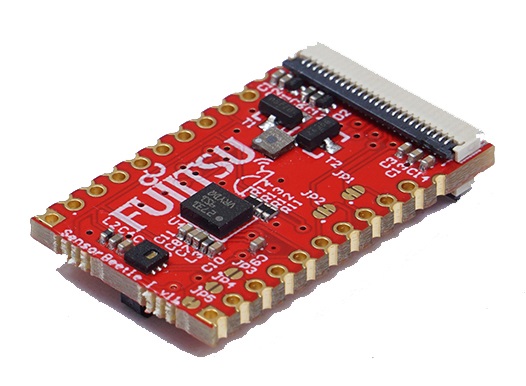

SensorBeetle 1 module

SensorBeetle I is part of the ClickBeetle Reference Platform and adds a sensing features with 9DOF sensor and humidity/temperature sensor to the application. SensorBeetle I contains a STM sensor and a HDK sensor.

SensorBeetle I is available in different versions:

  • Standard version is the fully assembled version with all optional parts
    • Ordering number: CB-SENSOR1
  • Light version (SensorBeetle I-Lite) does not include any of the optional components
    • Ordering number: CB-SENSOR1-L
SensorBeetle 1 diagram

HDK HSU-CHM-01A I2C Sensor:

  • Small size, low profile package dimension 2.0×2.0×0.75 mm
  • Low voltage (1.17 – 5.5V)
  • High sensitivity
  • Low current consumption
  • Anti-dew condensation, Water-proof

STM LSM9DS1 I2C Sensor (option):

  • 3 acceleration channels, 3 angular rate channels, 3 magnetic field channels
  • ±2/±4/±8g linear acceleration full scale
  • ±4/±8/±12/±16 gauss magnetic full scale
  • ±245/±500/±2000dps angular rate full scale
  • 16-bit data output
  • SPI / I2C serial interfaces
  • Programmable interrupt generators
  • Analog supply voltage 1.9V to 3.6V
  • "Always-on" eco power mode down to 1.9mA
  • Embedded temperature sensor
  • Embedded FIFO
  • Position and motion detection functions
  • Click/double-click recognition
  • Intelligent power saving for handheld devices

26-pin ePaper connector (option)


Download documents

*Note: browser plug-in may not support 3D documents.

Software Examples

NameDescriptionDownload
apollo1_clickbeetle-blinky-v10.zipExample blinky software for ClickBeetles with Apollo1 based on FEEU MCU Templatesapollo1_clickbeetle-blinky-v10.zip


SensorBeetle I is available in our webshop
.

Please note: The ClickBeetle™-Reference Platform and all related boards are evaluation kits intended for the testing of components and development of products featuring the same. These custom-build evaluation kits are designed for professionals to be used solely at research and development facilities for such purposes and are only available on a business-to-business basis.
