ClickBeetle™ Reference Platform: MemoryBeetle I

MemoryBeetle 1 module

MemoryBeetle I is part of the ClickBeetle™ Reference Platform and adds a memory to the application. MemoryBeetle I contains footprints for SPI SD-Card, 2x SPI SO8 and 1x I2C SO8 and comes unassembled.

MemoryBeetle I is currently in prototype status. Full release is planned for Q4/19.

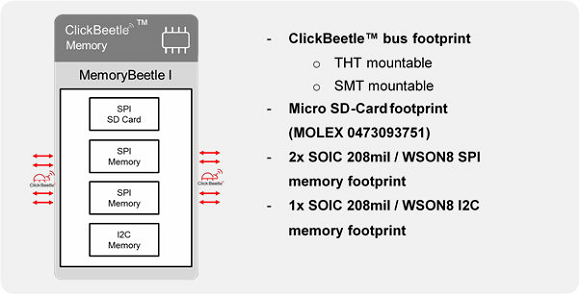

MemoryBeetle 1 diagram

Download documents

  • Factsheet
  • Schematic available Q4/19
  • User Manual available Q4/19

Download Software

  • available Q4/19

Please note: The ClickBeetle™-Reference Platform and all related boards are evaluation kits intended for the testing of components and development of products featuring the same. These custom-build evaluation kits are designed for professionals to be used solely at research and development facilities for such purposes and are only available on a business-to-business basis.

Size and Pin-Description

ClickBeetle pinout
