ClickBeetle™ Reference Platform: BreakOutBeetle

BreakOutBeetle module (preliminary)

BreakoutBeetle is part of the ClickBeetle Reference Platform and adds more freedom in evaluation and prototyping environments by offering 2.54mm pin headers.

The breakout board is a utility to connect jumper-wires or to use bread-boards for prototyping. A debug connector is adding debug functionality and the on-board USB connector a simple way to power ClickBeetle™ in an evaluation environment. mikroBUS™ extends again to a bunch of usable shield boards.


BreakOutBeetle is available in different versions:

  • Standard version is the fully assembled version with all optional parts
    • Ordering number: CB-BREAKOUT
  • Blank version (SensorBeetle I-B) is the unpopulated version and does not include any of the optional components
    • Ordering number: CB-BREAKOUT-B

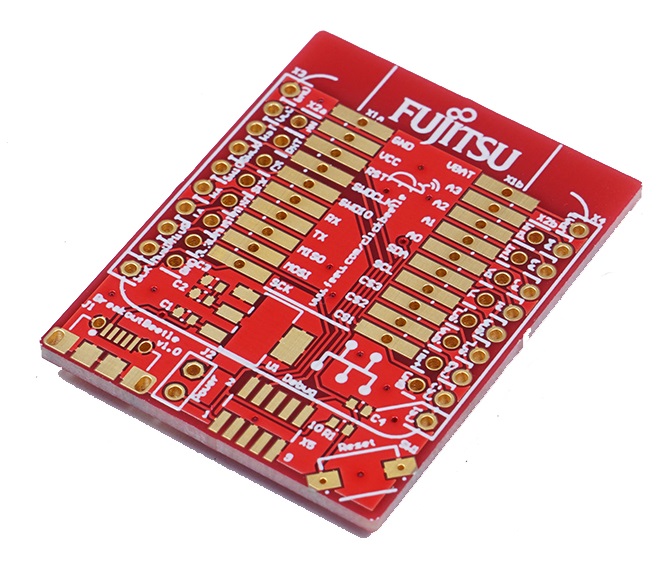

BreakOutBeetle exampleBreakoutBeetle diagram

The breakout board is a utility to connect jumper-wires or to use bread-boards for prototyping. A debug connector is adding debug functionality and the on-board USB connector a simple way to power ClickBeetle™ in an evaluation environment. mikroBUS™ extends again to a bunch of usable shield boards.

Various mounting options are available

BreakOutBeetle mounting options

Download documents

*Note: browser plug-in may not support 3D documents.

Please note: The ClickBeetle™-Reference Platform and all related boards are evaluation kits intended for the testing of components and development of products featuring the same. These custom-build evaluation kits are designed for professionals to be used solely at research and development facilities for such purposes and are only available on a business-to-business basis.

Size and Pin-Description

ClickBeetle pinout
