Improved data reliability combined with Oracle DB - DB (Data Base) Data Guard
ETERNUS AF/ETERNUS DX checks data security using Data Block Guard technology.
While this is very important, it does not cover situations where data corruption occurs in the interfaces between systems. This is because Data Block Guard only verifies data after it has reached the storage device.
That is why Fujitsu also uses another data protection mechanism called "DB (Data Base) Data Guard". This combination of data security measures Oracle Data Base, means ETERNUS AF/ETERNUS DX is able to deliver very robust data integrity.

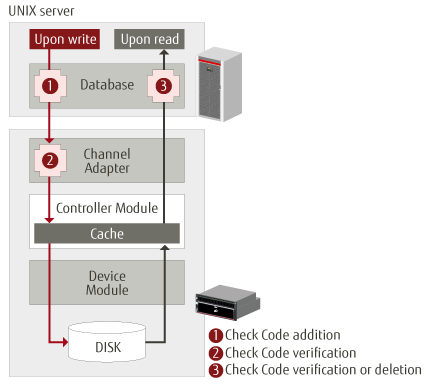

As data is written into the ETERNUS AF/ETERNUS DX, the database adds check codes. The ETERNUS AF/ETERNUS DX has knowledge of the logic of these check codes and where the codes are placed enabling it to verify the data using the check codes.
If an ETERNUS AF/ETERNUS DX identifies any data corruption, it will stop further operation and notify the administrator; thereby preventing the use of data known to be corrupt.
- Prevents use of corrupted data and improves data reliability
||ETERNUS AF250 S2/AF250
ETERNUS AF650 S2/AF650
|Hybrid Storage Systems/
Disk Storage Systems
|ETERNUS DX60 S4/S3
ETERNUS DX100 S4/S3, DX200 S4/S3
ETERNUS DX500 S4/S3, DX600 S4/S3
ETERNUS DX8700 S3/S2, DX8900 S4/S3
ETERNUS DX400 S2/DX400 series
ETERNUS DX8000 series
