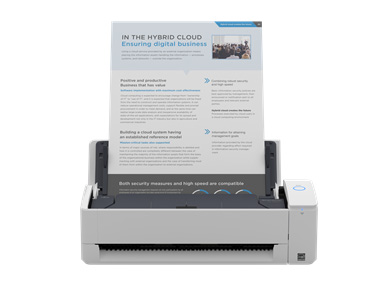

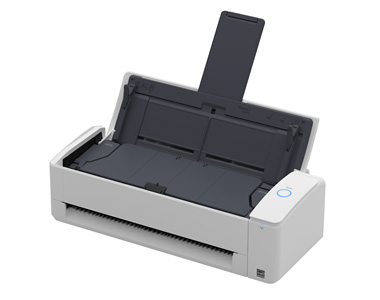

ScanSnap iX1300 is a compact, yet powerful solution to all your daily and ad-hoc scanning needs. Being compact and multi-functional, the iX1300 is the perfect model for a hybrid workstyle.

  • Offering two methods of scanning; U-turn Scan for continuous scanning and Return Scan for folded documents, cards, etc
  • Speedy scan up to 30 ppm/60 ipm (A4-size documents, color, duplex, 300dpi)
  • "one-touch" simple operations
  • Space saving for anywhere use

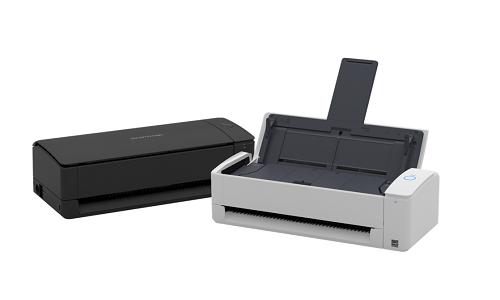

  • White and black options to fit in any environment
  • Equipped with Wi-Fi, connects to cloud services, mobile devices
  • Best experience with ScanSnap Home
  • Scans wirelessly, via a smart device, with ScanSnap Connect Application
  • Connect to ScanSnap Cloud without the PC

Brochure (1.23)

Features

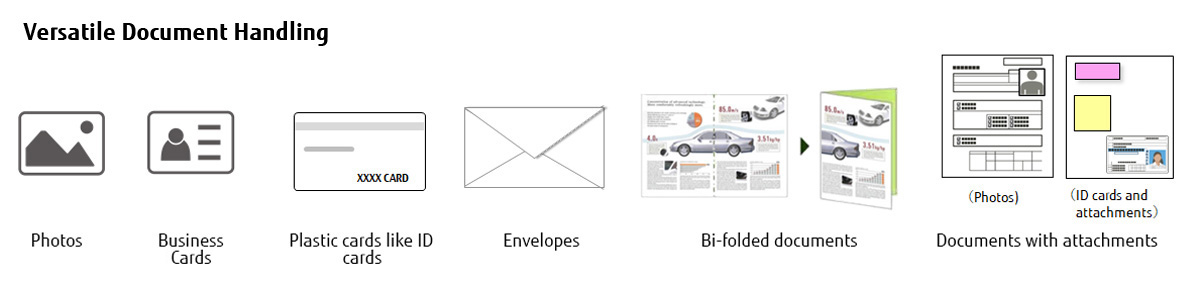

Compact, Speedy, Versatile document handling in One device

ScanSnap iX1300 supports a wide variety of documents in two different scanning methods, making it easy to digitize papers around you.

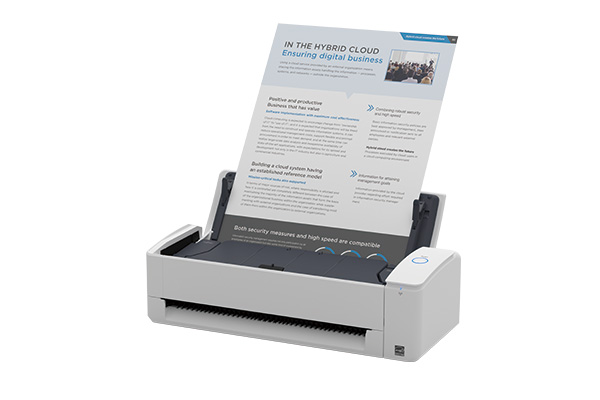

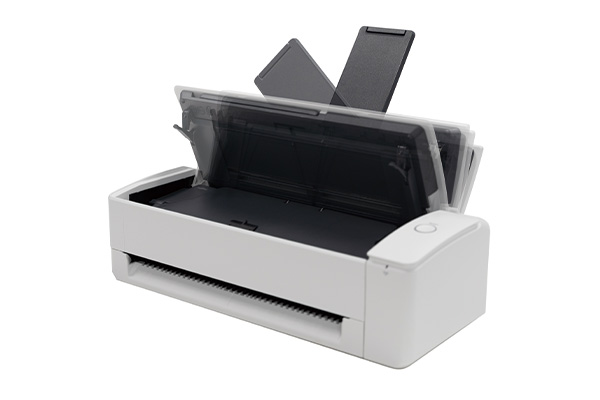

U-turn Scan for continuous scanning with an A4 size footprint

Equipped with a new ADF (Automatic Document Feeder) mechanism to eject scanned paper from the top, the iX1300 occupies approximately the same desk space as an A4 sheet of paper even when scanning and boasts a scan speed of 30 pages per minute.

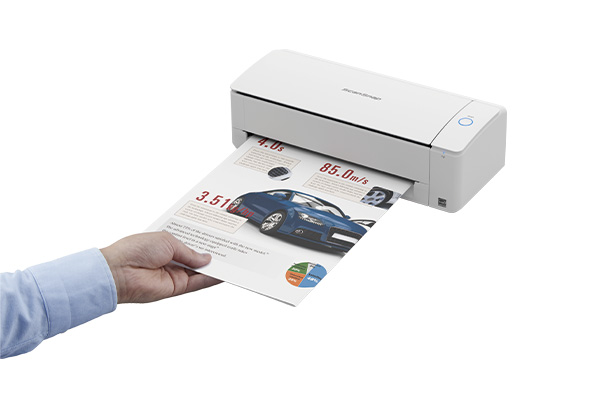

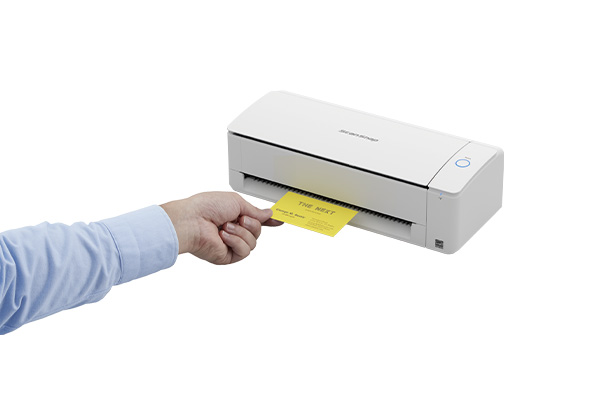

Return Scan, for plastic cards, receipts, bi-folded A3 documents

Feed the document from the front and receive back from the same location. Scanning is possible for multiple document types of thicknesses up to 2mm.



Comfortable for daily use

Get ready for revolutionary scanning with a single action. The iX1300 powers ON, and the document feed extension extends automatically, on opening the cover.

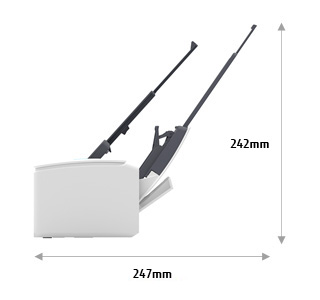

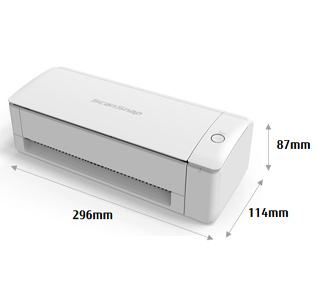

Compact and stylish for placement anywhere

A compact footprint makes the iX1300 an easy fit into any narrow space. Even with the cover opened, the device remains compact.

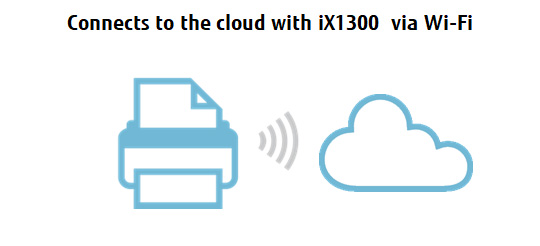

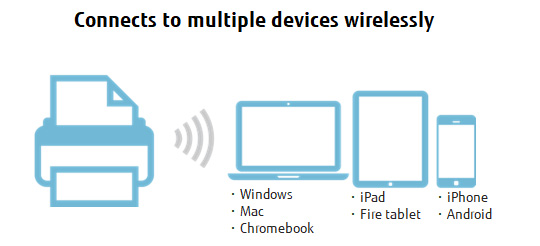

Wi-Fi enabled, for mobile, for cloud

Connect via wireless LAN at home or in office. Access via direct connection mode to scan without Wi-Fi. Supports Windows, Mac, iOS, iPadOS, Android, Chrome OS and Fire OS. Connect directly to the Wi-Fi and save your scanned documents to Cloud*.




*Supports various cloud services via the ScanSnap Cloud service. Availability of ScanSnap Cloud may vary depending on region.

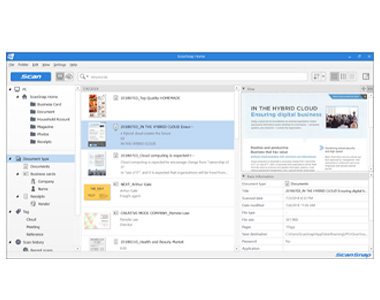

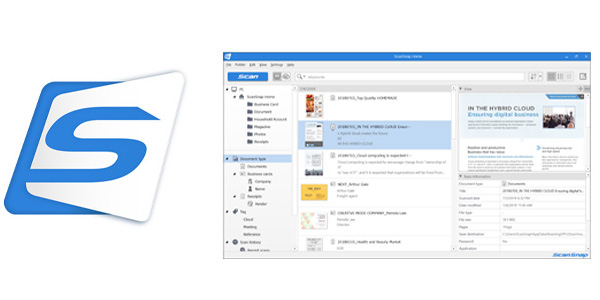

Best experience with ScanSnap Home

ScanSnap Home combines all your favorite functions into one and is the ultimate platform to utilize scanned data in various ways. Easily manage, edit and utilize data from documents, business cards, receipts and photos with the software. You can scan large volumes of various types of documents from color photos to double-sided landscape documents with a host of intelligent automatic image processing functions.

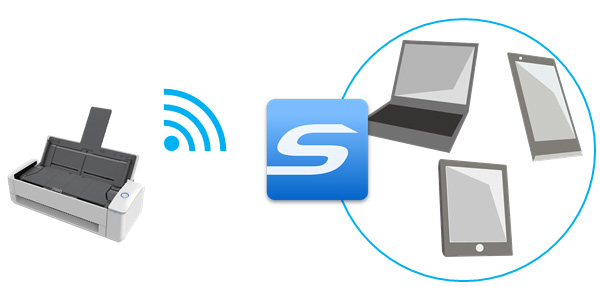

Scans wirelessly via a smart device

ScanSnap Connect Application is a mobile scanning software allowing users to scan from iOS, Android, and Chrome OS, to make use of ScanSnap on your favorite device via Wi-Fi. Scans can be saved as PDF/JPEG image data file formats for later viewing.



Specifications

Product Name ScanSnap iX1300 (White / Black)
Scanner Type ADF (Automatic Document Feeder) / Manual Feeder, Duplex
Scanning Speed*1 (A4 portrait) U-turn Scan (ADF) Auto mode*2 Simplex / Duplex: 30 ppm
Normal mode Simplex / Duplex: 30 ppm (Color / Grayscale: 150 dpi, Monochrome: 300 dpi)
Better mode Simplex / Duplex: 30 ppm (Color / Grayscale: 200 dpi, Monochrome: 400 dpi)
Best mode Simplex / Duplex: 30 ppm (Color / Grayscale: 300 dpi, Monochrome: 600 dpi)
Excellent mode*3*4 Simplex / Duplex: 9 ppm (Color / Grayscale: 600 dpi, Monochrome: 1,200 dpi)
Return Scan (Manual Feeder) Auto mode*2 5 seconds (Color / Grayscale: 150 dpi, Monochrome: 300 dpi)
Normal mode 5 seconds (Color / Grayscale: 150 dpi, Monochrome: 300 dpi)
Better mode 5 seconds (Color / Grayscale: 200 dpi, Monochrome: 400 dpi)
Best mode 5 seconds (Color / Grayscale: 300 dpi, Monochrome: 600 dpi)
Excellent mode*3*4 14 seconds (Color / Grayscale: 600 dpi, Monochrome: 1,200 dpi)
Scanning Color Mode Color, Grayscale, Monochrome, Automatic (Color / Grayscale / Monochrome*3 detection)
Image Sensor CIS x 2 (Front x 1, Back x 1)
Light Source 3 color LED (Red / Green / Blue)
Optical Resolution 600 dpi
Document Size U-turn Scan (ADF) Minimum: 50.8 x 50.8 mm (2 x 2 in.)
Maximum: 216 x 355.6 mm (8.5 x 14 in.)
Return Scan (Manual Feeder) Minimum: 50.8 x 50.8 mm (2 x 2 in.)*6
Maximum: 216 x 355.6 mm (8.5 x 14 in.)
With Photo Carrier Sheet (Option)*3*5 Minimum: 25.4 x 25.4 mm (1 x 1 in.)
Maximum: 127 x 178 mm (5.0 x 7.0 in.)
With Carrier Sheet (Option)*3*5 Minimum: 25.4 x 25.4 mm (1 x 1 in.)
Maximum: 297 x 431.8 mm (11.69 x 17 in.)
With Booklet Carrier Sheet (Option)*3*5 Minimum: 25.4 x 25.4 mm (1 x 1 in.)
Maximum: 150 x 195 mm (5.9 x 7.67 in.)
Long Paper Scanning*7 PC 3,000 mm (863 mm in 32-bit)*8
Smart Device / Cloud Duplex: 863 mm
Simplex: 1,117 mm
Paper Weight (Thickness) U-turn Scan (ADF) 40 to 128 g/m² (11 to 34 lb)
A8 size or less: 128 to 209 g/m² (34 to 56 lb)
A6 size or less: 40 to 209 g/m² (11 to 56 lb)
Return Scan (Manual Feeder) Paper: 20 to 413 g/m² (5.4 to 110 lb)
Booklets: 2 mm (0.08 in.) or less*3
Cards: 1.4 mm (0.06 in.) or less*9
(Includes embossed cards)
ADF Capacity*10 20 sheets (A4, 80 g/m² or 20 lb)
Multifeed Detection Length detection
Interface USB USB 3.2 Gen1x1 / USB 2.0 / USB 1.1 (Connector Type: Type-B)*11
Wi-Fi IEEE802.11a/b/g/n/ac
Frequency band: 2.4 GHz / 5 GHz*12
Wi-Fi Interface Connection Mode Access Point Connect Mode (Infrastructure mode)*13
Direct Connect Mode (Ad-hoc mode)*14
Security WEP (64bit / 128bit), WPA (TKIP / AES), WPA2 (AES), WPA-PSK (TKIP / AES), WPA2-PSK (AES)
Easy Installation WPS2.0
Rated Power (EIRP) 2.4 GHz: 11b: +19.0dBm / 11g: +20.5dBm / 11n/ac: +20.5dBm (20 / 40MHz)
5 GHz*12: 11a: +15.5dBm / 11n/ac: +16.5dBm (20MHz)
Power Requirements AC 100 to 240 V, 50/60 Hz
Power Consumption Operating Mode 17 W or less
Sleep Mode USB connected: 1.7 W or less
Wi-Fi connected: 2.0 W or less
Standby Mode 0.3 W or less
Operating Environment Temperature 5 to 35 °C (41 to 95 °F)
Relative Humidity 20 to 80% (Non-condensing)
Environmental Compliance ENERGY STAR® / RoHS
Dimensions (W x D x H)*15 296 x 114 x 87 mm (11.7 x 4.5 x 3.3 in.)
Weight 2.0 kg (4.4 lb)
Driver ScanSnap specific driver
Windows®: Does not support TWAIN / ISIS®
macOS: Does not support TWAIN
Software*16 ScanSnap Home (All-in-one document management software/driver)
ScanSnap Manager (Conventional driver)
ABBYY FineReader for ScanSnap™
Included Items Safety Precautions, AC Cable, AC Adapter, USB Cable
  1. Scanning speeds may vary due to the system environment. The values shown are the results of the evaluation under the following environment:
    • Windows® 10 / CPU: Intel® Core™ i3-10105 3.7GHz / Memory: 8GB / Storage: SSD
    • macOS Monterey 12 / CPU: 3.0GHz 6 core Intel® Core™ i5 (8th Generation) / Memory: 8GB / Storage: SSD / used Mac Mini (2018)
  2. Scans will be performed in 300 dpi (Color/Grayscale) or 600 dpi (Monochrome) if shorter sides are less than 105 mm, and in 200 dpi (Color/Grayscale) or 400 dpi (Monochrome) if shorter sides exceed 105 mm.
  3. Feature is unavailable when using ScanSnap Connect Application.
  4. Feature is unavailable when using ScanSnap Cloud.
  5. Carrier sheet scanning is only supported when scanning documents in Return Scan (Manual Feeder).
  6. A3, B4, 11 x 17 in. document sizes are required to be folded in half.
  7. Long page scanning (Color/Grayscale: 200 dpi, Monochrome: 400 dpi) is only supported when scanning documents in U-turn Scan (ADF). When using ScanSnap Connect Application and ScanSnap Cloud, scans are performed in Color/Grayscale: 200 dpi, Monochrome: 400 dpi.
  8. Scanning in "Excellent mode" is supported with documents of up to 360 mm.
  9. Compliant with Type ISO7810 ID-1.
  10. Maximum capacity varies, depending upon paper weight.
  11. Some computers do not recognize the ScanSnap when it is connected to a USB 3.2 Gen1/3.0 port. In this case, please use a USB 2.0 cable.
  12. Availability of 5 GHz Wi-Fi may vary depending on region.
  13. Access Point Connect Mode requires a Wi-Fi access point or router.
  14. 5 GHz Wi-Fi is not available with Direct Connect Mode.
  15. Excluding the stacker and other external attachments.
  16. Installation and updates require Internet availability. Software/driver updates to the latest versions are recommended.

System Requirements for PC

Compatible Operating Systems*1*2 Windows 11 / 10 / 8.1 (32-bit / 64-bit) / 7 (32-bit / 64-bit)
Driver / Applications*3 ScanSnap Home*4 Supported
ScanSnap Manager*5 Supported
ABBYY FineReader for ScanSnap™ Supported
Hardware Requirements*6 CPU*7 Intel® or Intel®-compatible processors
Display Resolution 1,024 × 768 pixels or more
Disk Capacity*8*9 3.8 GB or more of free hard disk space
  1. ScanSnap scanners do not run with Windows® 11 and 10 ARM-based PCs such as Surface® Pro X (Microsoft®).
  2. Operate Windows in desktop mode.
  3. Operating systems listed in this table are the only ones supported. Please refer to the ScanSnap Support site for the latest information.
  4. ScanSnap Home Installation requires a computer and Internet. Activation is also necessary for software use. Please visit the ScanSnap Support site for download information.
  5. ScanSnap Manager V7.2 and later is required.
  6. The ScanSnap device may not work if the connected computer does not meet these requirements.
  7. Scanning speeds may vary due to the system environment.
  8. Indicated disk capacity requirements apply when downloading ScanSnap Home.
  9. .NET Framework 4.8 or later must be installed. If it is not installed, it is installed with ScanSnap Home. Up to 4.5 GB of disk space is required for the installation.

*The system requirements may change depending on the support policies of the above system and third-party software.

System Requirements for Mac

Compatible Operating Systems macOS Mojave 10.14 or later
Driver / Applications*1 ScanSnap Home*2 Supported
ScanSnap Manager*3 Supported
ABBYY FineReader for ScanSnap™ Supported
Hardware
Requirements*4
CPU*5*6 Intel® or Apple M1 / M2 processors
Display Resolution 1,024 x 768 pixels or more
Disk Capacity 2.0 GB or more of free hard disk space
  1. Operating systems listed in this table are the only ones supported. Please refer to the ScanSnap Support site for the latest information.
  2. ScanSnap Home Installation requires a computer and Internet. Activation is also necessary for software use. Please visit the ScanSnap Support site for download information.
  3. ScanSnap Manager V7.2 and later is required.
  4. The ScanSnap device may not work if the connected computer does not meet these requirements.
  5. The ScanSnap device also operates with Apple Silicon-based Mac computers. Please refer to the ScanSnap Support site for the latest information.
  6. Scanning speeds may vary due to the system environment.

*The system requirements may change depending on the support policies of the above system and third-party software.

System Requirements for iOS / iPadOS / Android™ / Fire Tablet / Chromebook (ScanSnap Connect Application)

Please refer to ScanSnap Connect Application specifications page.

Accessories

  Part Number Description
Consumables
Pick Roller*1 PA03805-0021 Lifetime: Every 100,000 sheets or one year
Pad Unit*1 PA03805-0022 Lifetime: Every 30,000 sheets or one year
Cleaner F1 PA03950-0352 100 ml bottle
For use on the Pad unit and Pick roller
Cleaning Wipes PA03950-0419 24 packets
For use on the Pad unit and Pick roller
Cleaning Papers CA99501-0012 10 sheets
Use this non-woven sheet with Cleaner F1
Options
Carrier Sheets*2 PA03360-0013 Contains 5 carrier supporting photographs and various document sizes
(For ScanSnap iX1300, iX1600, iX1400, iX1500, iX500, iX100, S1100i)
Photo Carrier Sheets PA03770-0015 Contains 3 sheets supporting photographs (E-size, L-size, King-size), postcards and business cards
Booklet Carrier Sheet PA03795-0018 Contains 1 sheet supporting booklets
ScanSnap Soft Case M PA03805-0002 Stores the ScanSnap iX1300 and accessories
  1. These recommended lifetimes are for 80 g/m² (20 lb) A4 sized documents. Therefore, appropriate replacement lifetimes may vary for other document types.
  2. Although ScanSnap Carrier Sheets have a listed lifespan of 500 scans, the lifespan may vary with usage. ScanSnap Carrier sheets are intended to scan paper documents with weights of 127 g/m2 or less. They also support the scanning of folded documents that are as large as 216 x 297 mm.

*It is recommended to use original or approved accessories for consumables, options and cleaning kits, specially designed for your device. Device failures, troubles and damages arising from use of OEM or 3rd Party accessories may render your warranty invalid and incur charges for repair even during the warranty period.

Warranty

Find out the details about your product's warranty and information on how to extend your warranty.

Warranty Information (Worldwide)

Videos

Start scanning with ScanSnap iX1300



Scanning documents using U-turn scan (ADF)



Scanning documents using Return scan (Manual feeder)
