FUJITSU Server PRIMERGY RX4770 M3

Features & Benefits

Features	Benefits
Rapidly analyze large data sets to gain real-time insights PRIMERGY RX4770 M3 increases the system performance over the previous generation using latest Intel^® Xeon^® E7 v4 product family with up to 24 cores. 20 percent higher maximum core count and 33 percent more L3 cache (60 MB instead of 45 MB). Enormous memory capacity with up to 6TB (96 DIMM slots) on 8 configurable memory boards. 12 Gbit/s SAS/SATA Controller with optional FBU and up to eight 2.5 inch, hot-pluggable SAS/SATA SSDs, SATA HDDs + up to four optional PCIe SSDs.	The new generation of quad-socket PRIMERGY servers accelerates decision-making capabilities and thus shortens the time to business results. New, faster memory technology over the preceding generation allows to implement large scale in-memory computing and virtualization scenarios. Increased performance providing faster access to more data.
Enhanced business-critical x86 RAS features Built-in redundancy and hot-pluggable components, Advanced ECC, Memory Scrubbing, SDDC and DDDC. Advanced resilient system and memory technologies that integrate processor, firmware, and software layers to help diagnose fatal errors, contain faults, and automatically recover to keep the server operating.	Business-critical RAS features lowering the risk for unplanned IT downtimes. Enhanced set of features adds even more reliability, availability, and serviceability that customers need for running their business-critical applications.
Improved efficiency for business-critical services The PRIMERGY RX4770 M3 provides savings in operational expenses with scale-up consolidation efficiencies. Comprehensive management covering the entire lifecycle of servers with a single integrated view of the IT infrastructure via FUJITSU ServerView Suite. Local Service Display (LSD) and integrated Remote Management Controller (iRMC S4) as standard. New power supply units with 80Plus Platinum (94 percent) energy-efficiency.	Saves time and conserves valuable IT resources by simplifying remote management. Integrated Remote Management Controller (iRMC S4) enables extensive monitoring and management of servers regardless of their system status – even at decentralized locations. Use the ServerView Local Service Display on the front panel of the server to check the status of the key system components at any time without opening the housing. Continuous reduction of power and cooling costs.

Technical details

Chipset	Intel^® C114 Scalable Memory Buffer (Advanced) Intel^® C602 J
Mainboard type	D 3749
Product Type	Quad Socket Rack Server
Processor	Intel^® Xeon^® processor E7-8800 v4 product family
Memory	16 GB - 6 TB, DIMM (DDR4)
Memory protection	Advanced ECC, Memory Scrubbing, SDDC, DDDC (Double Device Data Correction), Memory Mirroring support, Rank sparing memory support
Drives (optional)	DVD Super Multi, slimline, SATA I Blu-ray Disc™ Triple Writer, slimline, SATA I
PCI-Express 3.0 x8	9 x Full height 1/2 length
PCI-Express 3.0 x16	2 x Full height 3/4 length
Slot Notes	One of the nine slots are exclusive for internal RAID Controller as connection to internal HDD/SSD slots
Accessible drive bays	1 x 5.25/0.5-inch for DVD-RW/Blu-ray
Storage drive bays	12 x 2.5-inch hot-plug 8 x SAS/SATA + 4 x PCIe
Storage drive type	HDD SAS, 6 Gb/s, 1 TB, 7,200 rpm, hot-plug, 2.5-inch, business critical HDD SAS, 12 Gb/s, 300 GB, 15,000 rpm, 512n, hot-plug, 2.5-inch, enterprise HDD SAS, 12 Gb/s, 450 GB, 15,000 rpm, 512n, hot-plug, 2.5-inch, enterprise HDD SAS, 12 Gb/s, 600 GB, 15,000 rpm, 512n, hot-plug, 2.5-inch, enterprise HDD SAS, 12 Gb/s, 1.2 TB, 10,000 rpm, 512e, hot-plug, 2.5-inch, enterprise HDD SAS, 12 Gb/s, 1.8 TB, 10,000 rpm, 512e, hot-plug, 2.5-inch, enterprise HDD SAS, 12 Gb/s, 600 GB, 10,000 rpm, 512e, hot-plug, 2.5-inch, enterprise HDD SAS, 12 Gb/s, 900 GB, 10,000 rpm, 512e, hot-plug, 2.5-inch, enterprise HDD SAS, 12 Gb/s, 1.2 TB, 10,000 rpm, hot-plug, 2.5-inch, enterprise HDD SAS, 12 Gb/s, 300 GB, 10,000 rpm, 512n, hot-plug, 2.5-inch, enterprise HDD SAS, 12 Gb/s, 600 GB, 10,000 rpm, 512n, hot-plug, 2.5-inch, enterprise HDD SAS, 12 Gb/s, 900 GB, 10,000 rpm, 512n, hot-plug, 2.5-inch, enterprise HDD SAS, 12 Gb/s, 1 TB, 7,200 rpm, 512e, hot-plug, 2.5-inch, business critical HDD SAS, 12 Gb/s, 2 TB , 7,200 rpm, 512e, hot-plug, 2.5-inch, business critical HDD SAS, 12 Gb/s, 1.2 TB , 10,000 rpm, 512n, hot-plug, 2.5-inch, enterprise, SED HDD SAS, 12 Gb/s, 300 GB, 10,000 rpm, 512n, hot-plug, 2.5-inch, enterprise, SED HDD SAS, 12 Gb/s, 600 GB , 10,000 rpm, 512n, hot-plug, 2.5-inch, enterprise, SED HDD SAS, 12 Gb/s, 1.8 TB, 10,000 rpm, 512e, hot-plug, 2.5-inch, enterprise, SED SSD SATA, 6 Gb/s, 120 GB, Mixed-use, hot-plug, 2.5-inch, enterprise, 3 DWPD (drive writes per day for 5 years) SSD SATA, 6 Gb/s, 1.92 TB, Mixed-use, hot-plug, 2.5-inch, enterprise, 3 DWPD (drive writes per day for 5 years) SSD SATA, 6 Gb/s, 3.84 TB, Mixed-use, hot-plug, 2.5-inch, enterprise, 3 DWPD (drive writes per day for 5 years) SSD SATA, 6 Gb/s, 960 GB, Mixed-use, hot-plug, 2.5-inch, enterprise, 3 DWPD (drive writes per day for 5 years) HDD SAS, 12 Gb/s, 1 TB, 7,200 rpm, 512n, hot-plug, 2.5-inch, business critical HDD SAS, 12 Gb/s, 2 TB, 7,200 rpm, 512n, hot-plug, 2.5-inch, business critical SSD SAS, 12 Gb/s, 400 GB, Write-Intensive, hot-plug, 2.5-inch, enterprise, 10 DWPD (Drive Writes Per Day for 5 years) SSD SAS, 12 Gb/s, 400 GB, Write-Intensive, hot-plug, 2.5-inch, enterprise, 10 DWPD (Drive Writes Per Day for 5 years), SED SSD SAS, 12 Gb/s, 3.84 TB, Mixed-use, hot-plug, 2.5-inch, enterprise, 3 DWPD (Drive Writes Per Day for 5 years) SSD SAS, 12 Gb/s, 480 GB, Mixed-use, hot-plug, 2.5-inch, enterprise, 3 DWPD (Drive Writes Per Day for 5 years) SSD SAS, 12 Gb/s, 960 GB, Mixed-use, hot-plug, 2.5-inch, enterprise, 3 DWPD (Drive Writes Per Day for 5 years) SSD SATA, 6 Gb/s, 1.2 TB, Read-Intensive, hot-plug, 2.5-inch, enterprise, 1 DWPD (Drive Writes Per Day for 5 years) SSD SATA, 6 Gb/s, 1.6 TB, Read-Intensive, hot-plug, 2.5-inch, enterprise, 1 DWPD (Drive Writes Per Day for 5 years) SSD SATA, 6 Gb/s, 800 GB, Read-Intensive, hot-plug, 2.5-inch, enterprise, 1 DWPD (Drive Writes Per Day for 5 years) PCIe-SSD SFF, 1.6 TB, Mixed-use, hot-plug, 2.5-inch, Flash drive, 3.0 DWPD (Drive Writes Per Day for 5 years) PCIe-SSD SFF, 3.2 TB, Mixed-use, hot-plug, 2.5-inch, Flash drive, 3.1 DWPD (Drive Writes Per Day for 5 years) PCIe-SSD AIC, 2 TB, Mixed-use, HHHL, Flash drive, 3.0 DWPD (Drive Writes Per Day for 5 years) PCIe-SSD AIC, 4 TB, Mixed-use, HHHL, Flash drive, 3.1 DWPD (Drive Writes Per Day for 5 years) SSD SAS, 12 Gb/s, 480 GB, Read-Intensive, hot-plug, 2.5-inch, enterprise, 1 DWPD (Drive Writes Per Day for 5 years) SSD SATA, 6 Gb/s, 240 GB, Mixed-use, hot-plug, 2.5-inch, enterprise, 3.6 DWPD (Drive Writes Per Day for 5 years) SSD SATA, 6 Gb/s, 480 GB, Mixed-use, hot-plug, 2.5-inch, enterprise, 3.6 DWPD (Drive Writes Per Day for 5 years) SSD SATA, 6 Gb/s, 240 GB, Mixed-use, hot-plug, 2.5-inch, enterprise, 3.1 DWPD (Drive Writes Per Day for 5 years) SSD SATA, 6 Gb/s, 480 GB, Mixed-use, hot-plug, 2.5-inch, enterprise, 3.3 DWPD (Drive Writes Per Day for 5 years) SSD SATA, 6 Gb/s, 1.92 TB, Read-Intensive, hot-plug, 2.5-inch, enterprise, 0.9 DWPD (Drive Writes Per Day for 5 years) SSD SATA, 6 Gb/s, 240 GB, Read-Intensive, hot-plug, 2.5-inch, enterprise, 1.4 DWPD (Drive Writes Per Day for 5 years) SSD SATA, 6 Gb/s, 3.84 TB, Read-Intensive, hot-plug, 2.5-inch, enterprise, 1.0 DWPD (Drive Writes Per Day for 5 years) SSD SATA, 6 Gb/s, 480 GB, Read-Intensive, hot-plug, 2.5-inch, enterprise, 0.9 DWPD (Drive Writes Per Day for 5 years) SSD SATA, 6 Gb/s, 7.68 TB, Read-Intensive, hot-plug, 2.5-inch, enterprise, 0.5 DWPD (Drive Writes Per Day for 5 years) SSD SATA, 6 Gb/s, 960 GB, Read-Intensive, hot-plug, 2.5-inch, enterprise, 0.9 DWPD (Drive Writes Per Day for 5 years) SSD SAS, 12 Gb/s, 1.6 TB, Write-Intensive, hot-plug, 2.5-inch, enterprise, 10 DWPD (Drive Writes Per Day for 5 years) SSD SAS, 12 Gb/s, 800 GB, Write-Intensive, hot-plug, 2.5-inch, enterprise, 10 DWPD (Drive Writes Per Day for 5 years) SSD SAS, 12 Gb/s, 1.6 TB, Write-Intensive, hot-plug, 2.5-inch, enterprise, 10 DWPD (Drive Writes Per Day for 5 years), SED SSD SAS, 12 Gb/s, 800 GB, Write-Intensive, hot-plug, 2.5-inch, enterprise, 10 DWPD (Drive Writes Per Day for 5 years), SED SSD SAS, 12 Gb/s, 1.6 TB, Mixed-use, hot-plug, 2.5-inch, enterprise, 3 DWPD (Drive Writes Per Day for 5 years) SSD SAS, 12 Gb/s, 3.2 TB, Mixed-use, hot-plug, 2.5-inch, enterprise, 2.3 DWPD (Drive Writes Per Day for 5 years) SSD SAS, 12 Gb/s, 400 GB, Mixed-use, hot-plug, 2.5-inch, enterprise, 3 DWPD (Drive Writes Per Day for 5 years) SSD SAS, 12 Gb/s, 800 GB, Mixed-use, hot-plug, 2.5-inch, enterprise, 3 DWPD (Drive Writes Per Day for 5 years) SSD SAS, 12 Gb/s, 1.92 TB, Read-Intensive, hot-plug, 2.5-inch, enterprise, 1 DWPD (Drive Writes Per Day for 5 years) SSD SAS, 12 Gb/s, 3.84 TB, Read-Intensive, hot-plug, 2.5-inch, enterprise, 1 DWPD (Drive Writes Per Day for 5 years) SSD SAS, 12 Gb/s, 960 GB, Read-Intensive, hot-plug, 2.5-inch, enterprise, 1 DWPD (Drive Writes Per Day for 5 years)
RAID Controller	Fujitsu PRAID CP400i, RAID Ctrl., SAS/SATA 12 Gbit/s, 8 ports int. RAID level: 0, 1, 1E, 10, 5, 50, No FBU support Fujitsu PRAID EP400i, RAID 5/6 Ctrl., SAS/SATA 12 Gbit/s, 8 ports int. RAID level: 0, 1, 10, 5, 50, 6, 60, 1 GB, Optional FBU based on LSI SAS3108 Fujitsu PRAID EP420i, RAID 5/6 Ctrl., SAS/SATA 12 Gbit/s, 8 ports int. RAID level: 0, 1, 10, 5, 50, 6, 60, 2 GB, Optional FBU based on LSI SAS3108 Fujitsu PRAID EP420i for SafeStore, RAID 5/6 Ctrl., SAS/SATA 12 Gbit/s, 8 ports int. RAID level: 0, 1, 10, 5, 50, 6, 60, 2 GB, Optional FBU based on LSI SAS3108 Fujitsu PRAID EP440i FH, RAID 5/6 Ctrl., SAS/SATA 12 Gbit/s, 8 ports int. RAID level: 0, 1, 10, 5, 50, 6, 60, 4 GB, Optional FBU based on LSI SAS3108 Fujitsu PRAID EP440i FH TFM SafeStore, RAID 5/6 Ctrl., SAS/SATA 12 Gbit/s, 8 ports int. RAID level: 0, 1, 10, 5, 50, 6, 60, 4 GB, Optional FBU based on LSI SAS3108
I/O controller onboard	2 x 100/1000 Mbit/s / 10 Gbit/s Ethernet (RJ45) Integrated Remote Management Controller (iRMC S4, 256 MB attached memory incl. graphics controller), IPMI 2.0 compatible
Trusted Platform Module (TPM)	Infineon / TPM 1.2 or TPM 2.0 module; TCG compliant (option)
Power supply configuration	Up to 4 hot-plug power supplies. Base unit equipped with 2 power supplies, 3rd and 4th PSU as option, no Mix
Active power (max. configuration)	1,990 W
Weight	max. 46 kg
Rack (W x D x H)	482.6 mm (Bezel) / 445mm (Body) x 765 x 176 mm
Mounting Depth Rack	728 mm
Server Management	Server Management
Standard	Infrastructure Manager (ISM) Essential, Node Management, Health status Monitoring and Control, Capacity/Threshold Management, Power Management, Converged Management, Auto Discovery, Remote Management, Update Management, Logging and Auditing, ServerView Suite - Deploy Installation Manager Scripting Toolkit, ServerView Suite - Control Operations Manager incl. PDA and ASR & R Agents and CIM Providers / Agentless Service System Monitor RAID Manager Capacity Management Power Management Storage Support, ServerView Suite - Maintain Remote Management (iRMC in combination with Intel^® Node Manager) Update Management (BIOS, Firmware, Windows Drivers, Agents and CIM Providers) Performance Measurement Asset Management Online Diagnostics, ServerView Suite - Integrate Integration packs for Microsoft System Center, VMware vCenter, VMware vRealize, Nagios, and HP SIM, Deployment tools and others
Option	ServerView embedded Lifecycle Management (eLCM) Lifecycle management, ServerView Suite - Maintain iRMC Advanced Pack incl. Advanced Video Redirection (AVR), video capturing and Virtual Media, ServerView Suite - Dynamize Virtual-IO Manager (VIOM), Infrastructure Manager (ISM) Automate device config Mass OS Installation Node Management Health Status Monitoring Capacity Management Power Management Converged View Network & Virtual IO Management Update Management Integrate IT, Remote Management Update Management Logging and Auditing Integrate in to Enterprise Management Vendor specific Management Monitor 3rd party platforms
Warranty period	3 years
Warranty type	Onsite warranty
Service Lifecycle	5 years after end of product life
Service Weblink	http://www.fujitsu.com/emeia/products/product-support-services/

Components

QLE2560 Fibre Channel Host Bus Adapter
	The QLE2560 is a PCI Express, single port, Fibre Channel Host Bus Adapter. The HBA offers the next generation 8Gb Fibre Channel technology, meeting the business requirements of the enterprise data center. A wide range of supported Operating Systems and certifications for storage devices ensure a broad set of application scenarios.
QLE2562 Fibre Channel Host Bus Adapter
	The QLE2562 is a PCI Express, dual port, Fibre Channel Host Bus Adapter. The HBA offers the next generation 8Gb Fibre Channel technology, meeting the business requirements of the enterprise data center. A wide range of supported Operating Systems and certifications for storage devices ensure a broad set of application scenarios.
LPe1250 Fibre Channel card
	Streamlined installation and management, unrivaled scalability, and industry-leading virtualization support make the single-channel LPe1250 Fibre Channel host bus adapter (HBA) an ideal solution for mixed-OS SAN environments. With powerful management capabilities and broad platform support, it delivers maximum performance in the broadest range of applications and environments.
LPe12002 Fibre Channel card
	Streamlined installation and management, unrivaled scalability, and industry-leading virtualization support make the single-channel Emulex LightPulse LPe12000 and dual-channel LPe12002 Fibre Channel host bus adapters (HBA) ideal solutions for enterprise, mixed-OS and virtual server environments.

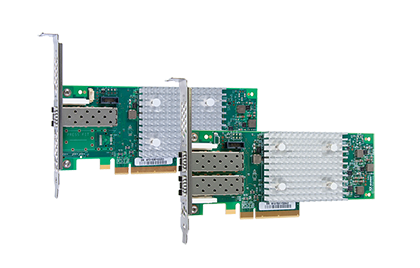

PFC QLE2740 / QLE2742 Fibre Channel Adapters
	The Gen6 32 Gb/s Fibre Channel Host Bus Adapters (HBA) QLE2740 and QLE2742 for the PRIMERGY & PRIMEQUEST servers are ideal for virtualized environments and transaction intensive applications. The adapters support the latest PCIe 3.0 standard for lower cooling and power costs. In addition, QLogic StorFusion technology delivers streamlined provisioning, guaranteed quality of service (QoS), and improved resiliency while addressing the needs of IT organizations that require reliability, integrated management, and guaranteed network performance.
PFC EP Emulex LPe32000 / LPe32002 Fibre Channel Adapters
	The Emulex Gen 6 32 Gb Fibre Channel (FC) Host Bus Adapters (HBA) by Broadcom for PRIMERGY and PRIMEQUEST server systems are optimal Fibre Channel HBAs for virtualized, cloud and mission critical deployments. The PFC EP Emulex Gen 6 Fibre Channel HBAs LPe32000/32002 by Broadcom take performance to a new level with PCIe 3.0 support, data integrity capabilities and cloud scale reliability, and ease of use. Organizations looking to improve performance, protect against data corruption, and simplify operations of FC SANs in cloud or high performance environments can benefit from deploying the PFC EP LPe32000/32002.
LPe16000 / LPe16002 Fibre Channel cards
	The new 16 Gb/s Fibre Channel Host Bus Adapters (HBA) for the PRIMERGY servers are optimal Fibre Channel HBAs for virtualized, cloud and mission critical deployments. The Fibre Channel HBA LPe16000/16002 take performance to a new level with PCIe 3.0 support, data integrity capabilities, cloud scale reliability, and ease of use. Organizations looking to improve performance, protect against data corruption, and simplify operations of FC SANs in cloud or high performance environments can benefit from deploying the LPe16000/16002.
QLE2670 / QLE2672 Fibre Channel cards
	The 16 Gb/s Fibre Channel Host Bus Adapters (HBA) for the PRIMERGY servers are ideal for virtualized environments and transaction intensive applications. The Adapters support the newest PCIe 3.0 standard for lower cooling and power costs. Reliability and security of datastreams to and from the PCI bus and Fibre Channel network are ensured through overlapping protection domains (OPDs).
PFC QLE2690 / QLE2692 Fibre Channel Adapters
	The enhanced Gen5 16 Gb/s Fibre Channel Host Bus Adapters (HBA) QLE2690 and QLE2692 for the PRIMERGY & PRIMEQUEST servers are ideal for virtualized environments and transaction intensive applications. The adapters support the latest PCIe 3.0 standard for lower cooling and power costs. In addition, QLogic StorFusion technology delivers streamlined provisioning, guaranteed quality of service (QoS), and improved resiliency while addressing the needs of IT organizations that require reliability, integrated management, and guaranteed network performance.
PFC EP Emulex LPe31000 / LPe31002 Fibre Channel Adapters
	The Emulex Gen 6 16 Gb Fibre Channel (FC) Host Bus Adapters (HBA) by Broadcom for PRIMERGY and PRIMEQUEST server systems are optimal Fibre Channel HBAs for virtualized, cloud and mission critical deployments. The PFC EP Emulex Gen 6 Fibre Channel HBAs LPe31000/31002 by Broadcom take performance to a new level with PCIe 3.0 support, data integrity capabilities and cloud scale reliability, and ease of use. Organizations looking to improve performance, protect against data corruption, and simplify operations of FC SANs in cloud or high performance environments can benefit from deploying the PFC EP LPe31000/31002.
PRAID CP400i - 8 port 12Gb/s SAS, 6Gb/s SATA
	The Fujitsu PRAID CP400i SAS/SATA controller card based on the LSI SAS3008 allows latest RAID technology at affordable prices with low power consumption. The PRAID CP400i MegaRAID entry controller card offer users a straight-forward solution that includes essential RAID levels and uncomplicated configuration options.
PRAID EP400i / EP420i
	The 8 port Fujitsu PRAID EP400i sets new standards in the fields of speed and data security for internal server memories. With a data transfer of up to 12Gbit/s per port the PRIMEGY Modular RAID Controller family is extended to included the latest technology.
PSAS CP400e
	The PSAS CP400e, eight port SAS/SATA host bus adapter provides increased connectivity and maximum performance for high-end servers and applications within internal and external storage. Performance is based on the LSI SAS9300 IO controller, integrating the latest enhancements in SAS and PCI Express 3.0 technology.
PRAID EP420e
	The 8 port (external) Fujitsu PRAID EP420e sets new standards in the fields of speed and data security for internal server memories. With a data transfer of up to 12Gbit/s per port the PRIMEGY Modular RAID Controller family is extended to included the latest technology.
PRIMERGY 10Gb Network Controller
	The new Fujitsu Ethernet D2755 Server Adapter is the most flexible and scalable Ethernet adapter for today’s demanding data center environments. The Fujitsu Ethernet D2755 Server Adapter addresses the demanding needs of the next-generation data center by providing unmatched features for virtualization, flexibility for LAN and SAN networking, and proven, reliable performance.
X540-T2 2x 10GBase-T LAN Adapter
	The X540-T2 adapter hosts Intel’s latest Ethernet silicon, which uses a single chip solution for "LAN on Motherboard" (LOM) to deliver 10 Gigabit Ethernet (10 GbE) on the latest server platforms. 10GBase-T simplifies the transition to 10 GbE and it can be deployed anywhere in your data center.
InfiniBand HCA 56 Gb 1/2 port FDR
	The InfiniBand HCA 56 Gb/s single/dual port adapter cards with Virtual Protocol Interconnect (VPI) and Ethernet connectivity provide the highest performing and most flexible interconnect solution for Enterprise Data Centers, High-Performance Computing, and Embedded environments.

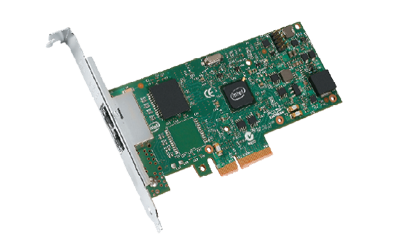

PLAN CP 2x1Gbit Cu Intel^® I350-T2
	Trust the network communication of the new Ethernet LAN adapter. The new Intel^® I350-T2 Ethernet LAN Adapter, based on the latest Intel^® 1GbE chip technology, offers two Gigabit Ethernet ports for 10/100/1000BaseT.
PLAN CP 4x1Gbit Cu Intel^® I350-T4
	Trust the network communication of the new Ethernet LAN adapter. The new Intel I350-T4 Ethernet LAN Adapter, based on the latest Intel^® 1GbE chip technology, offers four Gigabit Ethernet ports for 10/100/1000BaseT.
Converged Network Adapter (CNA) Emulex OCe14102
	As a member of the CNA 14000 family, the OCe14102 uses a 10Gbit/s DCB (Converged Enhanced Ethernet) infrastructure for networking and storage, reducing capital expense (CapEx) for adapters, switches and cables, and operational expense (OpEx) for power, cooling and IT administration. The OCe14102 adapter increases data center IT agility and scalability, as well as optimation of the server hardware utilization by scaling high density virtualization.
Network Adapter Emulex OCe14102
	The Fujitsu Network Adapter "Emulex OCe14102" is from the fourth generation of the Emulex OneConnect^® product line OCe14000. The OCe14000 family of Ethernet network adapters provides high performance 10Gb Ethernet (10GbE) connectivity delivering multiple benefits for the enterprise cloud, including increasing data center IT agility and scalability through the deployment of a secure multi-tenant cloud. This optimizes server hardware utilization by scaling high density virtualization as well as delivering user-controlled bandwidth partitioning across workloads and management services.
InfiniBand HCA 100 Gb 1/2 port EDR
	The InfiniBand Host Channel Adapters (HCA) with Extended Data Rate (EDR) provide an industry leading high-speed, power efficient and easy manageable interconnect solution for High-Performance Computing (HPC), Enterprise Data Center (EDC), Web 2.0, Cloud Computing and embedded environments with 100 Gb/s connectivity on each port.
Network Adapter EmulexOCe14102-NT
	As a member of the OCe14000 network adapter family the “Fujitsu OCe14102-NT” offers a high performance networking solution, which perfectly fits for virtualization, enterprise cloud and datacenter tasks. The difference - in contrast to the Emulex OCe14102 adapter - is the use of the RJ45 connector type. This connector is compatible with CAT6/6A/7/7A twisted pair cabling standards for a maximum 10Gb strong Ethernet connectivity at very low costs. The NIC only adapter OCe14102-NT focusses on cloud functions; it can thus not handle the storage off-load functions (iSCSI and FCoE) of a Converged Network Adapter.

Documents

Data sheet: PRIMERGY RX4770 M3

Configuration Guide PRIMERGY RX4770 M3

Videoflash: PRIMERGY RX4770 M3

Positioning Card: FUJITSU Server PRIMERGY

Server, Storage and Integrated Systems Family Guide

Enterprise Product Facts

Server Manuals

x86 Server Released Operating Systems

Case Studies

South Africa , Industry: IT Industry

PRIMEFLEX for SAP HANA boosts enterprise application hosting strategy of iSphere Technologies

iSphere wanted to offer SAP HANA® as a hosted service but considered it too expensive to deploy and maintain. It needed to find a flexible, cost-effective platform that could deliver high SAP HANA performance to its local SME customer base.Tags: Integrated Systems
Oman , Industry: Healthcare

Oman’s Raysut Cement Company succeeds its wider digital transformation and automates business critical workflows with SAP S/4HANA running on Integrated System PRIMEFLEX for SAP HANA

RCC chose Fujitsu to upgrade to SAP S/4HANA, doubling performance speeds, increasing productivity, improving visibility, automating workflows and adding mobility.Tags: Data Center , ETERNUS CS Virtual Tape Sol., SAP HANA
Germany , Industry: Retail

Integrated System PRIMEFLEX® for SAP Landscapes enables Globus Group to use SAP systems quickly and flexibly

Fujitsu provided a comprehensive “PRIMEFLEX for SAP Landscapes” concept, comprising FUJITSU x86 servers, Cisco Nexus network components, NetApp storage solutions and virtualization software from VMware.Tags: Integrated Systems
Italy , Industry: Aerospace and Defense

Offering a near real-time disaster recovery system, PRIMEFLEX for VMware vSAN enables Multipartner to ensure increasingly efficient service level agreements for customers

Multipartner selects Fujitsu PRIMEFLEX for VMware vSAN to support increasing workloads and ensure increasingly efficient service level agreements for customers.Tags: IT infrastructure
Switzerland , Industry: Media & Communications

The new Fujitsu ETERNUS All-Flash storage cluster has transformed application and database performance significantly at City of Veenendaal

The City of Veenendaal replaces its aging storage system with two FUJITSU Storage ETERNUS AF250 devices, delivering improved performance, disaster recovery and scalability.Tags: Data Center

More Case Studies

Support Packs

Support Pack Options	Globally available in major business areas: 9x5, Next Business Day Onsite Response Time 9x5, 4h Onsite Response Time (depending on country) 24x7, 4h Onsite Response Time (depending on country)
Recommended Service	24x7 Onsite Service with 4h Onsite Response Time
