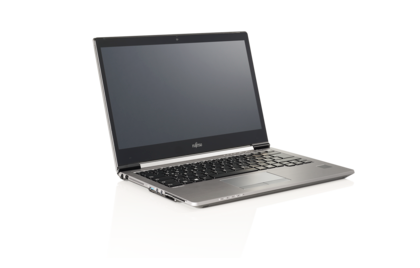

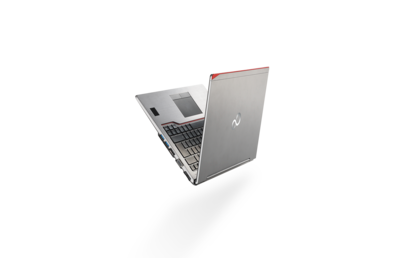

FUJITSU Notebook LIFEBOOK U745

Awards

Notebookcheck.com

Notebookcheck test result: good, FUJITSU Notebook LIFEBOOK U745,
Notebookcheck.com - Germany April 2015

Features & Benefits

Features	Benefits
Windows Windows 7 Professional 64-bit Windows 8.1 64-bit Windows 8.1 Pro 64-bit	Easy integration into customers’ existing infrastructure
Elegance in combination with ergonomics A slim 19 mm (0.75-inch) and lightweight notebook from 1.55 kg (3.42 lbs), FHD anti-glare display or HD+ with touch panel option, magnesium housing with aluminum palm rest	Elegant design and comfortable working in every situation
Optimum mobility and workplace convenience in one Ultrabook™ with VGA port, display port, common port replicator with LIFEBOOK E family, Anytime USB Charge to charge phones, media devices even when the system is turned off, backlit keyboard option	Convenient working anywhere with a variety of features for the most demanding mobile user
Premium security Embedded palm vein sensor or fingerprint sensor option, Full Disk Encryption, SmartCard reader option, Trusted Platform Module option	Guarantee protection of your notebook and company data from unauthorized access
Ultimate connectivity Pull-out LAN connector, embedded 4G/LTE or 3G/UMTS option, WLAN and Bluetooth	Flexibility and increased availability through a variety of options
Easy upgradeability Door to exchange the battery, memory and internal storage	Direct access to key components reduces upgrade time and costs

Technical details

Product	LIFEBOOK U745
Operating system	Windows 7 Professional 64-bit Windows 8.1 64-bit Windows 8.1 Pro 64-bit
Chipset	Integrated
Processor	Intel^® Core™ i3-5010U processor, 3 MB, 2.1 GHz Intel^® Core™ i5-5200U processor, 3 MB, 2.2 GHz, up to 2.7 GHz Intel^® Core™ i5-5300U processor, 3 MB, 2.3 GHz, up to 2.9 GHz Intel^® Core™ i7-5600U processor, 4 MB, 2.6 GHz, up to 3.2 GHz Intel^® Core™ vPro™ Processor - Best Platform for Businesses of all sizes
Supported capacity RAM (max.)	12 GB, 1 Memory slot(s) DIMM (DDR3L)DDR3L – 1,600 MHz 4 GB onboard, 1 DIMM slot with max. 8 GB
Hard disk drive	SSHD, 500 GB / 8 GB SSD Cache, 2.5-inch, S.M.A.R.T. SSD SATA III, 128 GB, 2.5-inch SSD SATA III, 256 GB, 2.5-inch SSD SATA III, 256 GB, 2.5-inch, OPAL capable SSD SATA III, 512 GB, 2.5-inch, OPAL capable
Interfaces	1 x DC-in 1 x Audio: line-in / microphone 1 x Audio: line-out / headphone 2x digital microphones (array) x Internal microphones 3 (1 with Anytime USB Charge functionality) x USB 3.0 total 1 x VGA 1 x DisplayPort 1 (pull-out connector) x Ethernet (RJ-45) 1 x Docking connector for Port Replicator 1 x Kensington Lock support 1 (optional) x SmartCard slot 1 x SIM card slot ( only for models with integrated 3G/UMTS or 4G/LTE module ) 1 (SD up to 2GB, SDHC up to 32GB, SDXC up to 128GB) x Memory card slots
Display	35.6 cm (14-inch),LED backlight,(HD+),Anti-glare touchscreen,magnesium,1,600 x 900 pixel,400:1 ,250 cd/m² 35.6 cm (14-inch),LED backlight,(HD+),Anti-glare display,magnesium,1,600 x 900 pixel,400:1 ,250 cd/m² 35.6 cm (14-inch),LED backlight,(Full HD),Anti-glare IPS display,magnesium,1,920 x 1,080 pixel,700:1,300 cd/m²
Graphics brand name	Intel^® HD Graphics 5500
Camera	Built-in webcam (HD) with Status LED
Weight	from 1.55 kg with non-touch display, from 1.70 kg with touch display - Weight may vary depending on actual configuration from 3.42 lbs with non-touch display, with touch display from 3.75 lbs
Dimensions (W x D x H)	332.6 x 234.0 x 19.0 mm 13.09 x 9.21 x 0.75 inch
Runtime battery	Up to 9:30 h
Battery notes	Battery runtime information is based on worldwide acknowledged BAPCo^® MobileMark^® 2014 (office productivity). Refer to www.bapco.com for additional details. The BAPCo^® MobileMark^® Benchmark provides results that enable direct product comparisons between manufacturers. It does not guarantee any specific battery runtime which actually can be lower and may vary depending on product model, configuration, application and power management settings. The battery capacity decreases slightly with every re-charge and over its lifetime.
Audio codec	Realtek ALC3233
Audio features	Stereo speakers
3G/4G (optional)	Sierra Wireless EM8805 LTE Sierra Wireless EM7305
WLAN (optional)	Intel^® Wireless-N 7265 2x2 b/g/n with integrated Bluetooth 4.0 Intel^® Dual Band Wireless-N 7265 2x2 ac with integrated Bluetooth 4.0
Antennas	2 Dual band WLAN antennas, 2 UMTS/LTE antennas optional, Bluetooth antenna shared with WLAN
LAN	Built-in 10/100/1,000 MBit/s Intel^® 218LM
Special features	Pull-out LAN Connector, VGA on an Ultrabook™
Warranty	2 years (for countries within EMEIA)
Warranty type	Collect & Return Service / Bring-in Service (depending on country)
