This contemporary design exudes refinement in styling and is engineered for optimum agility to fulfill the ever-changing work and leisure needs, making the LIFEBOOK LH532 AP Edition one of the most powerful and functional 14-inch notebook today. Brilliant in style, awe-inspiring in performance, and a thrill to own.
 |
|
| Specifications | ||
|---|---|---|
| Platform | LH532 AP | LH532 AP-V |
| Intel® Core™ i7-3520M (4MB cache, up to 3.60GHz) with Intel® Turbo Boost Technology2
Intel® Core™ i5-3320M (3MB cache, up to 3.30GHz) with Intel® Turbo Boost Technology2 Intel® Core™ i5-3210M (3MB cache, up to 3.10GHz) with Intel® Turbo Boost Technology2 Intel® Core™ i3-3110M (3MB cache, 2.40 GHz) Intel® Core™ i3-2370M (3MB cache, 2.40 GHz) Intel® Core™ i3-2350M (3MB cache, 2.30 GHz) Intel® Pentium® B970 processor 2.30GHz Intel® Pentium® B960 processor 2.20GHz - Intel® HM76 Express Chipset |
Intel® Core™ i7-3632QM (6MB cache, up to 3.20GHz) with Intel® Turbo Boost Technology2
Intel® Core™ i7-3520M (4MB cache, up to 3.60GHz) with Intel® Turbo Boost Technology2 Intel® Core™ i5-3230M (3MB cache, up to 3.20GHz) with Intel® Turbo Boost Technology2 Intel® Core™ i5-3320M (3MB cache, up to 3.30GHz) with Intel® Turbo Boost Technology2 Intel® Core™ i3-3120M (3MB cache, 2.50 GHz) Intel® Core™ i3-3110M (3MB cache, 2.40 GHz) Intel® Core™ i3-2370M (3MB cache, 2.40 GHz) Intel® Core™ i3-2350M (3MB cache, 2.30 GHz) - Intel® HM76 Express Chipset |
|
| Operating System | Windows 7 Professional
Windows 7 Home Premium Windows 7 Home Basic Windows 8 |
|
| Display3 | High Definition SuperFine LCD
14-inch (16:9) SuperFine HD 220nits backlit LED, 1366 x 768 pixels |
|
| Built-in Bay Device | Dual Layer DVD Super Multi Writer4 | |
| Memory | 2GB / 4GB / 8GB DDR3 1600Mhz5
Max. Memory Supported - 2 x 8GB DDR3 1600MHz5, Dual Channel |
|
| Hard Disk | 320GB/ 500GB / 750GB/ 1TB (5400rpm)
500GB/ 640GB (7200rpm) |
|
| Battery | 4400mAh battery up to 6hrs6 | |
| Weight | Approx. 2.1Kg | |
| Detailed Specifications | ||
| Hard Disk Drive | SATA-300 5400rpm / 7200rpm, S.M.A.R.T support, Two Partitions - 50/507 | |
| Graphics | Intel® HD Graphics 40008 | NVIDIA® GeForce® GT620M with Optimus™ technology and 2GB of dedicated video memory |
| High Definition (HD) Audio | Realtek® ALC269 HD audio codec with Dual Built-in DTS® Boost Stereo Speakers
HD Audio-in: External Mic-in, Digital Built-in Microphone HD Audio-out: Headphone-out |
|
| Communication | 720p HD camera, Bluetooth®4.0, 10/100/1000 Mbps9 Ethernet and WLAN 802.11BGN wireless network connection. | |
| User Interface | Spill-resistant Keyboard10
Intelligent Touch Pad with configurable vertical and horizontal scroll functions |
|
| Card Slots | SD/SDHC/SDXC Memory Stick®/Memory Stick® PRO | |
| Connector Interface | USB 3.0 x 3 (Anytime USB Charge x 1), USB 2.0 x 1, VGA (external display), RJ45 (LAN), HDMI-out, HDA-in, HDA-out, Power Adapter DC-in | |
| Security11 | BIOS Lock, Hard Disk Lock, Anti-theft Lock Slot | |
| Dimensions | 335mm (W) x 240mm (D) x 33.5mm (H) (without rubber foot) | |
| Colours | Matt Black Shiny Black/ Ruby Red/ Lavender (UV Paint) | Matt Black Shiny Black/ Ruby Red/ Lavender (UV Paint) Shiny Black/ Garnet Red (Soft touch surface) |
| Bundled Accessories | ||
| AC Adapter | Input AC 100~240V, Output DC 19V 65W
Input AC 100~240V, Output DC 19V 80W |
|
| Bundled Softwares | Adobe® AIR® Adobe® Reader® Cyberlink PowerDirector™ CyberLink PowerDVD™ CyberLink YouCam™ DTS® Boost, F-Connect (TBC) Fujitsu Anytime USB Charge Utility Fujitsu Battery Utility Fujitsu FaceSense Utility Fujitsu MyRecovery Fujitsu Power Saving Utility Fujitsu Support Center Fujitsu UpdateNavi12 Hotkey Utility LCD Color Profile Microsoft® Silverlight® Microsoft® Office Starter13: reduced-functionality Word and Excel® only, with advertising. No PowerPoint® or Outlook® Mobility Center Extension Utility Norton™ Internet Security 60 days trial Oracle® Java Quick Start Utility Roxio® Creator LJ Windows Live® Essentials (Windows Live® Messenger, Windows Live® Photo Gallery, Windows Live® Mail, Windows Live® Writer, Windows Live® Mesh, Windows Live® Movie Maker) | |
| Optional Accessories | ||
| Memory Module | 4GB DDR3, 1600MHz | |
| Media | Fujitsu Portable Speakers (Black) | |
The above information shows the general technical specifications of the product and does not represent actual configuration that would be sold in your region. For specific configurations and their availability, please check with your local distributors.
1. Please check actual bundling with country local distributor. Intel® Core™ i7-3612QM refers to 2.10GHz, 6MB L3 cache. i7-3520M refers to 2.90GHz, 4MB L3 cache. i5-3320M refers to 2.60GHz, 3MB L3 cache. i5-3210M refers to 2.50GHz, 3MB L3 cache. i3-2370M refers to 2.40GHz, 3MB L3 cache. i3-2350M refers to 2.30GHz, 3MB L3 cache. Intel® Pentium® B970 refers to 2.30GHz, 2MB L3 cache. Intel® Pentium® B960 refers to 2.20GHz, 2MB L3 cache.
2. Clock speed and performance will vary depending on workload and other variables. See http://www.intel.com/go/turbo
3. It is natural for all thin-film transistor (TFT) liquid crystal displays (LCD) to show a small number of missing or discolored dots. These are commonly known as non-conforming pixels. This is a technology limitation of TFT LCD and does not represent a defect. Fujitsu warranty does not cover limitations in technology such as non-conforming pixels.
4. Supports DVD multi formats such as DVD-RAM, DL DVD±R, DVD±RW, DVD±R, CD-RW, DVD-ROM, CD-R and CD-ROM.
5. The actual memory speed depends on the processor specifications. Intel® Core™ i3-2370M / i3-2350M and Intel® Pentium® B970 / B960 support a maximum memory speed fo 1333MHz only.
6. Results obtained from BAPCoÒ MobileMarkÒ2007(Productivity Workload) performed on systems with maximum battery life settings under laboratory testing environment. Actual battery life will vary based on screen brightness, sound volume settings, running applications, connected peripherals, power management settings, battery conditioning, and other customer preferences in the real life situation. Built-in bay device or hard drive usage may also have a significant impact on battery life. Note: Battery life is based on Intel® Core Processor i3-2350M with Intel® HD Graphics 4000 (LH532) / nVidia® GeForce GT620M discrete graphics (LH532 V)
7. This refers to Windows® 7 hard disk drives C:\ and D:\ . 50/50 refer to approximate 50% allocation of user accessible hard disk storage to C:\ and D:\ drives respectively. For Windows® 7 hard disk drives, 16GB will be reserved for internal recovery.
8. Intel® HD Graphics depends on the processor specifications. Intel® HD Graphics 4000 is embedded on Intel® Core™ i7-3612QM / i7-3520M / i5-3320M / i5-3210M . Intel® HD Graphics 3000 is embedded on Intel® Core™ i3-2370M / i3-2350M. Intel® HD Graphics is embedded on Intel® Pentium® B970 / B960.
9. This term does not represent actual data rate and simply indicates compliance with IEEE 802.3, IEEE 802.3u and IEEE 802.3ab standards. Actual maximum data rate depends on network configurations, cable conditions as well as connected devices.
10. Spill-resistant keyboard does not imply the system is water-proof. If liquid is spilt onto the keyboard, power off the system immediately and turn the notebook upside down to drain off the liquid.
11. BIOS Lock needs a supervisor/user password to access BIOS setup. BIOS settings can be configured to prompt for password at all bootup sequences. Access to BIOS setup is needed to configure Hard Disk Lock. Hard Disk Lock requires an access key to retrieve data on the hard disk. This is a Data Confidentiality security feature. Anti-theft Lock Slot allows the use of a lock to physically secure the LifeBook. Full security unlock sequence - Bootup Lock (BIOS Lock), Hard Disk Lock. NOTE: Loss of password requires the LifeBook to be returned to Japan factory for system refresh. Cost of shipment and lost data will be borne by the customer. Backup your user's profile before changing HDD. If HDD Lock prompt is enabled, only the HDD Password can be used to boot up the unit. Loss of password means the HDD content cannot be retrieved. It is the customer's responsibility to ensure the safe keeping of the password for retrieval of data from the locked HDD.
12. UpdateNavi is a Fujitsu Proprietary application that updates LifeBook drivers by connecting automatically to Fujitsu’s server. This will help update your LifeBook with the latest software drivers and utilities to ensure compatibility between hardware and software, maintaining smooth operation anytime, anywhere.
13. This PC is preloaded with reduced-functionality versions of Word and Excel® that include advertising. Purchase an Office 2010 Product Key to activate full-featured Office software on this PC.
Specifications reflected above are engineering and hardware specifications. They do not represent actual usage or operating dimensions, sizes, performances and weights as these are dependent on factors such as operating temperature, type of operating system and application used, connected devices and accessories as well as hardware configurations of the notebook. Please check the compatibility of 3rd party accessories before purchase. Ambient temperature: 5° to 35°C / 41 to 95°F (operating), -15° to 60°C / 5 to 140°F (non-operating). Relative humidity: 20% to 85% RH (operating), 8% to 85% RH (non-operating). Please note that GB = billion bytes. 1GB is equivalent to 1,073,741,824 bytes
 |
| The LIFEBOOK LH532 AP is powered by the latest 3rd Generation Intel® Core™ processors for greater performance. |
 |
| Enhanced by the NVIDIA® Optimus™ Technology with embedded 2GB VRAM and the Sound Enhancement which adopt DTS Boost™, enjoy superior graphics and audio performance for all visual and audio experiences. |
 |
| Stylish, thin and light. Its design craftsmanship is derived from the Takumi philosophy, an art that requires craftsmen to grasp users' every need. This is embraced when crafting the most powerful LIFEBOOK. |
 |
| The new Face Sense Utility, a software that enables the built-in HD camera to detect user presence and intelligently pauses or stops application or activities on the laptop when users are away from laptop. |
 |
| Enable hassle-free battery boost to counter any emergency circumstances. Charge external devices whenever, with the Anytime USB Charge even when the laptop is switched off and never lose battery life again. |
 |
| Be at ease with the Spill-resistant Keyboard that works as a buffer to prevent liquid from reaching the device's motherboard. |
 |

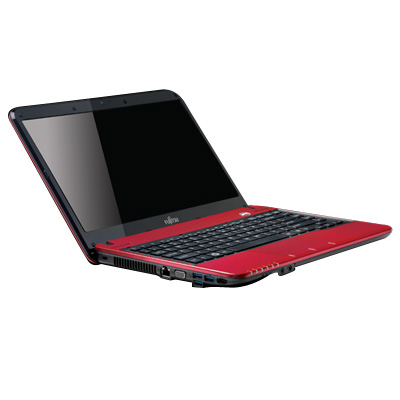

| The LIFEBOOK LH532 AP edition comes brilliantly in a potpourri of lifestyle colours - Shiny Black, Ruby Red, Lavender and Matt Black. |
 |
 |
