NOTE: this is an archived page and the content is likely to be out of date.

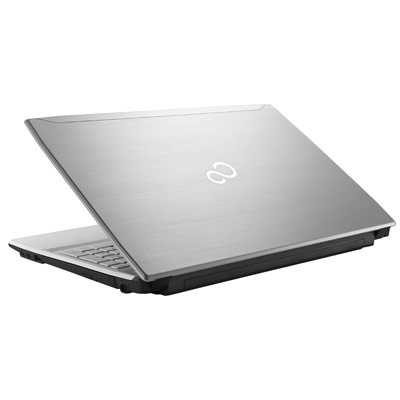

Introducing the new Fujitsu LIFEBOOK AH544 and LIFEBOOK AH564 – where brawn meets brains meet speed to bring you a workplace experience like no other. A business powerhouse driven by the latest high-performance Intel® Core™ processor, ultra-enhanced graphics, a wide 15.6-inch screen, and unmatched DTS Boost™ sound technology to you.
 |
|
| Specifications | ||
|---|---|---|
| Platform(1) | Intel® Core™ i7-4702MQ (6MB cache, 3.2GHz) with Intel® Turbo Boost Technology
Intel® Core™ i5-4200M (3MB cache, 3.1GHz) with Intel® Turbo Boost Technology Intel® Core™ i3-4000M (3MB cache, 2.4GHz) - Intel® HM86 Express Chipset |
|
| Operating System | Windows 8.1 Pro 64-bit
Windows 8.1 64-bit Windows 7 Professional 64-bit Windows 7 Home Premium 64-bit |
|
| Display | 15.6" HD LED Backlit
(1366 x 768 pixels, 200nits brightness, Glare) |
|
| Modular Bay Device | Dual Layer DVD Super Multi
Writer Weight Saver |
|
| Memory | 2GB DDR3L 1600MHz
4GB DDR3L 1600MHz 8GB DDR3L 1600MHz - DIMM Slot x 2 Max. Memory Supported- 2x8GB DDR3L 1600MHz, Dual Channel |
|
| Hard Disk | 500GB HDD (5,400rpm), 750GB HDD (5,400rpm), 1TB HDD (5,400rpm)
500GB Hybrid Hard Disk, 1TB Hybrid Hard Disk |
|
| Bluetooth® | v4.0 | |
| Battery | Up to 8hrs 40min (6cells Li-ion 4500mAh, 49Wh)(2) | |
| Weight | Approx 2.3kg | |
| Detailed Specifications | ||
| Hard Disk Drive | SATA-300 5400rpm, S.M.A.R.T support | |
| Graphics | NVIDIA GeForce GT720M with 2GB Dedicated Video Memory (Optional)
Intel® HD Graphics 4600 |
|
| High Definition (HD) Audio | Realtek ALC269 HD audio codec with Built-in Stereo Speakers
DTS Boost™ enhancement HD Audio-in: External Mic-in, Dual Built-in Stereo Microphone HD Audio-out: Headphone-out |
|
| Communication(4) | 1000/100/10Mbps Gigabit Ethernet
Atheros minicard WB222 a/b/g/n Intel® Wireless-N 7260BN network connection 720p HD camera |
|
| User Interface | Spill-resistant Keyboard(5), 19mm key pitch, 1.7mm key stroke
Touch Pad |
|
| Card Slots | SD/SDXC | |
| Connector Interface | USB 3.0 x 3 (USD 3.0 x 1 supports Anytime USB Charge)
USB 2.0 x 1 RJ45 (LAN) VGA (External display) HDMI-out HDA-in, HDA-out Power Adaptor DC-in |
|
| Security(6) | BIOS Lock
HDD Lock Anti-theft Lock Trusted Platform Module v1.2 (optional) |
|
| Dimensions | 378 x 252 x 25.5-31.1mm w/o rubber foot | |
| Bundled Accessories | ||
| AC Adapter | Input AC 100~240V, Output DC 19V 65W/19V 90W | |
| Bundled Softwares | Windows 7
Adobe® Reader®, CyberLink PowerDirector (Optional), CyberLink PowerDVD (Optional), DTS Boost™, Fujitsu Anytime USB Charge Utility, Fujitsu Battery Utility, Fujitsu Bonus Apps, Fujitsu Hotkey Utility, Fujitsu LCD Color Profile, Fujitsu LIFEBOOK Application Panel, Fujitsu Mobility Center Extension Utility, Fujitsu System Restore and Recovery, Fujitsu Power Saving Utility, Microsoft® Office 2013 60 days Trial, McAfee Multi Access 60 days Trial, Roxio® Creator LJ, TPM Utility (BTO) Windows 8.1 CyberLink PowerDirector (optional), CyberLink PowerDVD (optional), DTS Boost™, Fujitsu Anytime USB Charge Utility, Fujitsu Battery Utility, Fujitsu Bonus Apps, Fujitsu LCD Color Profile, Fujitsu LIFEBOOK Application Panel, Fujitsu Mobility Center Extension Utility, Fujitsu Pointing Device Utility, Fujitsu System Restore and Recovery, Fujitsu Power Saving Utility, Microsoft® Office 2013 60 days Trial, Microsoft® OneNote, McAfee Multi Access 60 days Trial, Roxio® Creator LJ, TPM Utility (optional) |
|
The above information shows the general technical specifications of the product and does not represent actual configuration that would be sold in your region. For specific configurations and their availability, please check with your local distributors.
1 Clock speed and performance will vary depending on workload and other variables. See http://www.intel.com/go/turbo
.
2 Results obtained from BAPCo MobileMark 2007 (Productivity Workload) performed on systems with maximum battery life settings under laboratory testing environment. Actual battery life will vary based on screen brightness, sound volume settings, running applications, connected peripherals, power management settings, battery conditioning, and other customer preferences in the real life situation. Built-in bay device or hard drive usage may also have a significant impact on battery life. Note: Approx. 8.7 hrs battery life for LIFEBOOK AH544 are based on Intel® Core™ i5-4200M with standard 48.8Wh battery and HDD. Approx. 4.5 hrs battery life for LIFEBOOK AH564 are based on Intel® Core™ i7-4702MQ with standard 48.8Wh battery and Hybrid Hard Disk.
3 For Windows 7 and Windows 8 hard disk drives, less than or equal to 32GB will be reserved for internal recovery respectively.
4 This term does not represent actual data rate of 1000/100/10Mbps and simply indicates compliance with IEEE 802.3, IEEE 802.3u and IEEE 802.3ab standards. Actual maximum data rate depends on network configurations, cable conditions as well as connected devices. Availability is subjected based on different country specifications
5 Spill-resistant keyboard does not imply the system is water-proof. If liquid is spilt onto the keyboard, power off the system immediately and turn the notebook upside down to drain off the liquid.
6 BIOS Lock needs a supervisor/user password to access BIOS setup. BIOS settings can be configured to prompt for password at every first bootup or all bootup sequences. Access to BIOS setup is needed to configure Hard Disk Lock. Hard Disk Lock requires an access key to retrieve data on the hard disk. This is a Data Confidentiality security feature. Anti-theft Lock Slot allows the use of a lock to physically secure the LIFEBOOK. Full security unlock sequence - Bootup Lock (BIOS Lock), Hard Disk Lock.It is the customer's responsibility to ensure the safekeeping of password for data retrieval.
7 UpdateNavi is a Fujitsu Proprietary application that updates LIFEBOOK drivers by connecting automatically to Fujitsu's server. This will help update your LIFEBOOK with the latest software drivers and utilities to ensure compatibility between hardware and software, maintaining smooth operation anytime, anywhere. This PC is preloaded with Microsoft® Office 2010 60-day trial version. Purchase an Office 2010 Product Key to activate full-featured Office software on this PC.
RoHS (Restriction on Hazardous Substances) compliance means the system and its internal components comply with the EU RoHS directive (2002/95/EC) on the restricted use of six hazardous substances in the production of the system and its internal components.Vietnam’s legislation “Circular 30/2011/TTBCT: Temporarily regulating the permitted limits for a number of hazardous substances in electric and electronic products”, otherwise known as Vietnam RoHS which came into effect on December 1, 2012.
It is natural for all thin-film transistor (TFT) liquid crystal displays (LCD) to show a small number of missing or discoloured dots. These are commonly known as non-conforming pixels. This is a technology limitation of TFT LCD and does not represent a defect. Fujitsu warranty does not cover limitations in technology such as non-conforming pixels.
Specifications reflected above are engineering and hardware specifications. They do not represent actual usage or operating dimensions, sizes, performances and weights as these are dependent on factors such as operating temperature, type of operating system and application used, connected devices and accessories as well as hardware configurations of the notebook. Please check the compatibility of 3rd party accessories before purchase. Please note that GB = billion bytes. 1GB is equivalent to 1,073,741,824 bytes.
 |
Speed things up with 4th Generation Intel® Core™ i7-4702MQ Quad Core Processor. It delivers up to 15% better CPU performance, while saving battery power by 35% – thanks to the innovative Intel® Power Optimiser feature. |
| Larger storage at faster speed. Enjoy it all with the High Capacity Hybrid HDD. Featuring generous storage capacity for your data. And lightning-fast loading of your applications. |  |
 |
Made to make business a pleasure, the NVIDIA GeForce720M gives you excellent graphic performance in its class. Bringing you pictures that are 3.4X richer, faster, and more detailed than you’ve ever imagined. |
| The 15.6” Wide Screen Glare LCD lets you see more of the action with a larger screen, in crisper, sharper quality. Add the DTS Boost™ feature, and you get a theatre-like sound quality for a theatre-like experience. Wherever you choose to enjoy it, whenever. |  |
 |
AC Adaptor
Recharge your notebook wherever you go. Just leave one AC Adaptor in your office, and bring the extra one along with you. Easy. |
 |
Battery
Maximise your time with a second battery on-hand. And work whenever and wherever you want. |
 |
Port Replicator
The Fujitsu USB 3.0 Port Replicator PR08 is the solution for notebooks without a dedicated docking connector or in hot-desk environments. You can connect to the local area network, and to all of your peripherals with a single USB 3.0 plug and boost your productivity by extending your workspace over up to four displays. |
 |
Carrying Case
Cushion your LIFEBOOK against the impact from life on the go with this stylishly designed carrying case. |
 |
Fujitsu Wireless Mouse E001 Black/White
The Wireless Notebook Mouse E001 is the perfect mouse for road warriors who don’t want to bother with cables. Ultra-slim and sleek design is compact enough to easily slip into a notebook bag or briefcase without getting in the way. It features two buttons and a scroll wheel which can also be used as a third button. |
 |
Mini Router
Connect anywhere in the world with the slim and ultra-lightweight mini router that runs with a speed of up to 150Mbps. |
