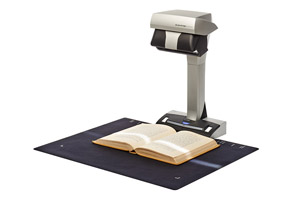

The ScanSnap SV600 Contactless scanner provides a new perspective on document scanning. Easily scan newspapers, magazines, documents or books directly without cutting or damaging them.
The ScanSnap SV600 makes overhead scanning simple, providing users with limitless possibilities.
Scan:
Books
Magazines
Delicate documents
Original designs / notes
Business Cards
A3-size documents
Scan business cards to large A3 size (double-letter) documents
The ScanSnap SV600 breaks free from typical flatbed limitations by scanning
content larger than just letter size. Simply position the document on the A3 scan mat and press scan.
Performance matters
With the touch of the power button, ScanSnap SV600 is ready to scan in just 3 seconds! And with each press of the scan button, a large A3 dimension scan area is captured in less than 3 seconds. Combined with intelligent image correction, great results are just a button push away.
VI Technologies (Versatile Imaging)

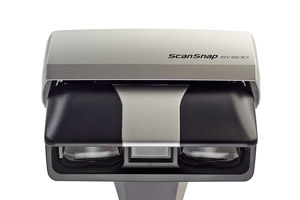

Combining high quality CCD optics and advanced LED illumination, ScanSnap SV600 uses advanced capture technologies to maximize field of depth and minimize unevenness page after page.
Multiple Document Detection
With an advanced cropping and orientation technology built-in, ScanSnap SV600 can scan several business cards, photos, newspaper clippings and other documents at one time.
*Scan up to 10 documents at one time.
Easily create your own digital books
ScanSnap SV600 is your ultimate partner to scan books or magazines efficiently.
Step 1: Scan with one button!
Place the book on the mat and press the scan button.
Page Turning Detection
SV600 detects when a page is turned and automatically begins scanning.
Time Mode
Set a fixed time interval and SV600 scans in real time with you.
Step 2: Auto Image Correction
Auto Image Correction
Automatically crops, de-skews and sets the orientation of multiple sheets placed on the mat.

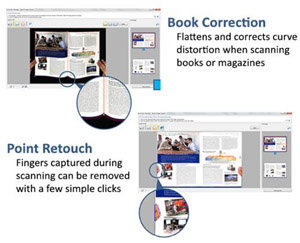

Auto Book Correction
Automatically flattens and corrects the curve distortion of books and magazines.
Step 3: Organizing and Viewing
Keeping scanned content organized and accessible is a Snap!
Best experience with ScanSnap Home
ScanSnap Home combines all your favorite functions into one and is the ultimate platform to utilize scanned data in various ways. Easily manage, edit and utilize data from documents, business cards, receipts and photos with the software. You can scan large volumes of various types of documents from color photos to double-sided landscape documents with a host of intelligent automatic image processing functions.
*Data can be transferred to ScanSnap Home from ScanSnap Organizer, ScanSnap Receipt and CardMinder.
Maximum: 432 x 300 mm (17.0 x 11.8 in.)
Minimum: 25.4 x 25.4mm (1 x 1 in.)(4)
Document Thickness
30 mm (1.18 in.) or less
How to Start Scanning(5)
Normal scan: Press "Scan" button for every page
Timed interval scan (Timed Mode)
Page Turning Detection
Interface(6)
USB 2.0 / USB 1.1 (Connector Type: Type-B)
Image Processing Function
Deskew by text on document, Auto paper size detection, Auto image rotation, Auto color detection, Book image correction(7), Multiple document detection(8)
Magnification in Vertical Scanning (length)
± 1.5 %
Power Requirement
AC 100 to 240 V, 50 / 60 Hz
Power Consumption
Operating Mode
20 W or less
Sleep Mode
2.6 W or less
Auto Standby (Off) Mode
0.4 W or less
Operation Environment
Temperature
5 to 35 °C (41 to 95 °F)
Relative Humidity
20 to 80 % (Non-condensing)
Dimensions (W x D x H)
210 x 156 x 383 mm (8.27 × 6.14 × 15.08 in.)
Device Weight
3 kg (6.62 lb)
Environmental compliance
ENERGY STAR® / RoHS
Driver
ScanSnap specific driver
· Windows®: Does not support TWAIN/ISIS®
· Mac OS: Does not support TWAIN
Inbox Contents
AC cable, AC adapter, USB cable, Background Pad, Setup DVD-ROM, Nuance® Power PDF Standard / Nuance® PDF Converter for Mac DVD-ROM, Extenders (x 2)
Optical resolution differs due to different scanning single on the same document.
Scanning speed may vary due to the system environment used. The Time is measured between actual start of scanning and finish scanning.
Switch between "Better mode" and "Best mode" depends on the length of the document, A4 (portrait, 200 dpi), A6 size or below (300 dpi).
For documents of thickness over 5 mm, the maximum document size is 400 x 300 mm.
When performing continuous scanning, time is needed for the scanning head to return to its original position.
Compatible with USB 3.0 port but connection will run as USB 2.0 speed.
Automatically correct distortion caused by the curve of an opened book or magazine.
Automatically crop several documents in one scan.
System Requirements for PC
Compatible Operating Systems
Windows
10 / 8.1
(32-bit / 64-bit)(1)
7
(32-bit / 64-bit)
Driver / Applications(2)
ScanSnap Home(4)
Supported
Supported
ABBYY FineReader for ScanSnap™
Supported
Supported
Nuance® Power PDF Standard(5)
Supported
Supported
Hardware Requirements(3)
CPU(6)
Intel® Corelon 1.8 GHz (2 core) or higher (Recommended: Intel® Core™ i5 2.5 GHz or higher)
Memory Capacity(6)
2 GB or more (Recommended: 4 GB or more)
Display Resolution
1,024 × 768 pixels or more
Disk Capacity(7)
3.8 GB or more of the free hard disk space
Operate Windows in desktop mode.
Operating systems listed in this table are the only ones supported. Please refer to the ScanSnap Support site for the latest support information.
The ScanSnap device may not work if the connected computer does not meet these requirements.
Installation requires a computer and Internet. Activation is also necessary for software use. Please visit the ScanSnap Support site for download information.
Please refer to the included license certificate to download the software.
Scanning speeds may drop if recommended CPU, memory capacity and USB 1.1 requirements are not met.
.NET Framework 4.7 or later must be installed. If it is not installed, it is installed with ScanSnap Home. Up to 4.5 GB of disk space is required for the installation.
*The system requirements may change depending on the duration of support and the support policy of the companies that make the software listed in the table above.
System Requirements for Mac
Compatible Operating Systems
macOS v10.14
macOS v10.13
macOS v.10.12(1)
Driver / Applications(2)
ScanSnap Home(4)
Supported
Supported
Supported
ABBYY FineReader for ScanSnap™
Supported
Supported
Supported
Nuance PDF Converter for Mac(5)
Supported
Supported
Supported
Hardware Requirements(3)
CPU(6)
Intel® Core i5 1.4 GHz or higher (Recommended: Intel® Core™ i5 2.5 GHz or higher)
Memory Capacity(6)
2 GB or more (Recommended: 8 GB or more)
Display Resolution
1,024 x 768 pixels or more
Disk Capacity
2.0 GB or more of the free hard disk space
macOS v10.12.4 or later is required.
Operating systems listed in this table are the only ones supported. Please refer to the ScanSnap Support site for the latest information.
The ScanSnap device may not work if the connected computer does not meet these requirements.
Installation requires a computer and Internet. Activation is also necessary for software use. Please visit the ScanSnap Support site for download information.
Please refer to the included license certificate to download the software.
Scanning speeds may drop if the recommended CPU, memory capacity and USB 1.1 requirements are not met.
*The system requirements may change depending on the duration of support and the support policy of the companies that make the software listed in the table above.
Accessories
Part Number
Description
ScanSnap SV600 Cleaning Materials
F1 Cleaner
PA03950-0352
100 ml bottle
For cleaning the glass, camera, lamp etc.
of the scanning head
Cleaning Wipe
PA03950-0419
1 pack (24 sheets)
Wet tissue with "F1 Cleaner".
For cleaning the glass, camera, lamp etc
of the scanning head.
ScanSnap SV600 Option
Background Pad
PA03641-0052
Set in front of the scanner when scanning.
*One pad is bundled with the scanner.
Video
In the office
At home
How ScanSnap Home works
Warranty
Find out the details about your product's warranty and information on how to extend your warranty.
