FUJITSU Workstation CELSIUS J550/2

Features & Benefits

Features	Benefits
Windows Windows 10 Pro. Fujitsu recommends Windows 10 Pro. Windows 10 Home	Easy integration into customers’ existing infrastructure
Breakthrough performance in a Small Form Factor Choose between the energy-eficient Intel^® Core™ processors or the powerful Intel^® Xeon^® E3-1200 processor family Support of Windows 10 Pro Support of Windows 7 with selected processors 64 GB DDR4 2,400 MHz memory Full-height graphics cards Boost your storage performance to a capacity of up to 14 TB Take advantage of the super-fast PCIe SSDs to provide a quick loading of core applications PCI support Support of 24/7 operation with reliable high-endurance and business critical drives	German design and engineering with performance and TCO in mind
An industry first - taking the Small Form Factor to the next level 10 liter only Full-height graphics up to NVIDIA^® Quadro^® P2000 52% smaller form factor than the CELSIUS W570 micro-tower	No compromise between performance, design and office space
Whisper quiet design, Made in Germany Optimized thermal management and cooling solutions Low noise emission of 19 dB(A) lead to a silent workplace and enhanced productivity	Fujitsu's desktop workstations are designed, engineered and manufactured in the heart of Europe
Multi-monitor experience Up to 8 monitors with the NVIDIA^® Mosaic™ technology	Ideal for control rooms, surveillance, trading floors or financial services companies

Technical details

Product	CELSIUS J550/2
Operating system	Windows 10 Pro. Fujitsu recommends Windows 10 Pro. Windows 10 Home
Microsoft OS support information	Systems with 7th generation Intel^® processor receive support from Microsoft with Windows 10 Home / Windows 10 Pro only. For more information, please see Microsoft Support Lifecycle. Downgrade to Microsoft Windows 7 Professional only available with 6th generation Intel^® processor
Additional software (preinstalled)	Workplace Protect (secure authentication solution) McAfee^® LiveSafe™ (provides award-winning antivirus protection for your PC and much more. 30 days trial pre-installed) Microsoft Office (1 month trial for new Microsoft^® Office 365 customers. Buy Microsoft Office.)
Mainboard	D3427-U (proprietary )
Chipset	Intel^® C236
Processor Type, Second Level cache, Processor frequency	Intel^® Xeon^® processor E3-1280v6, 8 MB, 3.90 GHz, up to 4.2 GHz Intel^® Xeon^® processor E3-1275v6, 8 MB, 3.80 GHz, up to 4.2 GHz Intel^® Xeon^® processor E3-1270v6, 8 MB, 3.80 GHz, up to 4.2 GHz Intel^® Xeon^® processor E3-1245v6, 8 MB, 3.70 GHz, up to 4.1 GHz Intel^® Xeon^® processor E3-1240v6, 8 MB, 3.70 GHz, up to 4.1 GHz Intel^® Xeon^® processor E3-1230v6, 8 MB, 3.50 GHz, up to 3.9 GHz Intel^® Xeon^® processor E3-1225v6, 8 MB, 3.30 GHz, up to 3.7 GHz Intel^® Xeon^® processor E3-1220v6, 8 MB, 3.00 GHz, up to 3.5 GHz Intel^® Xeon^® processor E3-1280v5, 8 MB, 3.70 GHz, up to 4.0 GHz Intel^® Xeon^® processor E3-1275v5, 8 MB, 3.60 GHz, up to 4.0 GHz Intel^® Xeon^® processor E3-1270v5, 8 MB, 3.60 GHz, up to 4.0 GHz Intel^® Xeon^® processor E3-1245v5, 8 MB, 3.50 GHz, up to 3.9 GHz Intel^® Xeon^® processor E3-1240v5, 8 MB, 3.50 GHz, up to 3.9 GHz Intel^® Xeon^® processor E3-1230v5, 8 MB, 3.40 GHz, up to 3.8 GHz Intel^® Xeon^® processor E3-1225v5, 8 MB, 3.30 GHz, up to 3.7 GHz Intel^® Xeon^® processor E3-1220v5, 8 MB, 3.00 GHz, up to 3.5 GHz Intel^® Core™ i7-7700 processor, 8 MB, 3.60 GHz, up to 4.2 GHz Intel^® Core™ i7-6700 processor, 8 MB, 3.40 GHz, up to 4.0 GHz Intel^® Core™ i5-7600 processor, 6 MB, 3.50 GHz, up to 4.1 GHz Intel^® Core™ i5-7500 processor, 6 MB, 3.40 GHz, up to 3.8 GHz Intel^® Core™ i5-6600 processor, 6 MB, 3.30 GHz, up to 3.9 GHz Intel^® Core™ i5-6500 processor, 6 MB, 3.20 GHz, up to 3.6 GHz Intel^® Core™ i3-7100 processor, 3 MB, 3.90 GHz Intel^® Core™ i3-6100 processor, 3 MB, 3.70 GHz
Supported capacity RAM (max.)	64 GB, 4 Memory slot(s) DIMM (DDR4) ECC/non-ECC, Dual channel support, For dual channel performance, 2 memory modules have to be ordered. Capacity per channel has to be the same. DDR4 2,400 MHz will be clocked with 2,133 MHz in combination with 6th generation Intel^® processor
Serial ATA	5 x Serial ATA total
thereof eSATA	2 (optional)
Controller functions	Serial ATA III (6 Gbit), NCQ, AHCI, RAID 0/1/5/10
Drives (optional)	MultiCard Reader 24in1 USB 2.0 3.5", USB 2.0 DVD Super Multi ultra slim (tray), SATA BD Triple Writer SATA ultra slim (tray), SATA
Hard disk drive	SSD SATA III, 1024 GB, 2.5-inch SSD SATA III, 960 GB High Endurance, 3DWPD, 2.5-inch SSD SATA III, 512 GB, 2.5-inch, SED SSD SATA III, 512 GB, 2.5-inch SSD SATA III, 480 GB High Endurance, 3DWPD, 2.5-inch SSD SATA III, 256 GB, 2.5-inch, SED SSD SATA III, 256 GB, 2.5-inch SSD SATA III, 240 GB High Endurance, 3DWPD, 2.5-inch SSD SATA III, 128 GB, 2.5-inch SSD PCIe, 1024 GB M.2 NVMe module SSD PCIe, 1024 GB M.2 NVMe Highend module SSD PCIe, 512 GB M.2 NVMe module SSD PCIe, 512 GB M.2 NVMe Highend module SSD PCIe, 256 GB M.2 NVMe module SSD PCIe, 256 GB M.2 NVMe Highend module SSD PCIe, 128 GB M.2 NVMe module SSD PCIe, 1x1024 GB M.2 NVMe Highend card SSD PCIe, 1x 1024 GB M.2 NVMe card SSD PCIe, 1x 512 GB M.2 NVMe Highend card SSD PCIe, 1x 512 GB M.2 NVMe card SSD PCIe, 1x 256 GB M.2 NVMe Highend card SSD PCIe, 1x 256 GB M.2 NVMe card HDD SATA III, 7,200 rpm, 500 GB, 3.5-inch HDD SATA III, 7,200 rpm, 6,000 GB, 3.5-inch, business critical HDD SATA III, 7,200 rpm, 4,000 GB, 3.5-inch, business critical HDD SATA III, 7,200 rpm, 2,000 GB, 3.5-inch, business critical HDD SATA III, 7,200 rpm, 2,000 GB, 3.5-inch HDD SATA III, 7,200 rpm, 2,000 GB, 2.5-inch, business critical HDD SATA III, 7,200 rpm, 1,000 GB, 3.5-inch, business critical HDD SATA III, 7,200 rpm, 1,000 GB, 3.5-inch HDD SATA III, 7,200 rpm, 1,000 GB, 2.5-inch, business critical HDD SATA II, 5,400 rpm, 500 GB, 2.5-inch
Drive bays	1 x 3.5-inch internal bays 1 x 5.25-inch external bays
Interfaces	1 x Audio: line-in 1 x Audio: line-out 1 x Front audio: headphone 1 x Front audio: microphone 1 x Internal speakers 2 x USB 2.0 total 2x USB 3.0 x USB front 2x USB 2.0 + 1x USB A 3.0 x USB internal 6x USB 3.0 x USB rear 2 x DisplayPort 1 (optional) x Parallel (25pin with EPP and ECP) 1 x Serial (RS-232) ; optional: 2nd serial port (9pin, 16 byte FIFO, 16550 compatible) 1 x Ethernet (RJ-45) 1 (DVI-D) x DVI 1 (optional) x eSATA 2 x Mouse / Keyboard (PS/2)
Graphics	Intel^® HD Graphics P630, Intel^® HD Graphics 630, Intel^® HD Graphics P530, Intel^® HD Graphics 530, up to 1,782 MB
Graphics features	Support for up to three independent displays, DirectX^® 12, HDCP support, OpenCL^® 2.0, OpenGL^® 4.4, One DisplayPort connector can be converted to DVI-D or HDMI with an optional external adapter, For multi monitoring mode, graphics card and integrated graphics run in parallel, DisplayPort interface supports Ver. 1.2 incl. Multi-Stream, DVI-D interface supports audio output for HDMI monitors Midrange 3D: NVIDIA^® Quadro^® P2000, 5 GB, PCIe x16, 4 x DisplayPort Midrange 3D: AMD Radeon™ Pro WX 5100, 8 GB, 320 stream processors, PCIe x16, 4 x DisplayPort Entry 3D: NVIDIA^® Quadro^® P1000, 4 GB, PCIe x16, 4 x miniDP Entry 3D: AMD Radeon™ Pro WX 3100, 4 GB, 320 stream processors, PCIe x16, 1 x DisplayPort, 2 x miniDP Entry 3D: NVIDIA^® Quadro^® P600, 2 GB, PCIe x16, 4 x miniDP Entry 3D: AMD Radeon™ Pro WX 2100, 2 GB, 320 stream processors, PCIe x16, 1 x DisplayPort, 2 x miniDP Entry 3D: NVIDIA^® Quadro^® P400 , 2 GB, PCIe x16, 3 x miniDP Others: DP to DVI-D (single link) Adapter Cable
Audio codec	Realtek ALC671
LAN	10/100/1,000 MBit/s Intel^® I219LM
Weight	approx. 9 kg approx. 19.84 lbs
Dimensions (W x D x H)	332 x 338 x 89 mm 12.68 x 13.31 x 3.51 inch
Special features	Best-in-class noise emission - 18 dB only, Certified for leading workstation applications, EraseDisk functionality, Halogen free mainboard, Made in Germany
Warranty period	3 years (depending on country)
Warranty type	Bring-In / Onsite Service (for countries within region EMEIA, for all other countries depending on local regulations)

Accessories

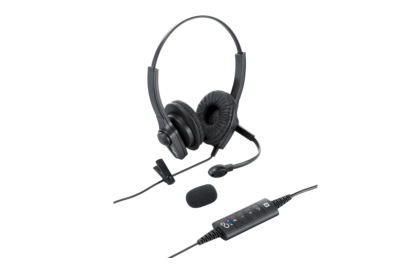

UC&C USB Value Headset
	The FUJITSU UC&C USB Value Headset is a lightweight bi-aural full-size stereo headset with high wearing comfort. This Lync-tested USB-Headset has an appropriate Inline-Controller which supports easy call management. A noise cancelling microphone facilitates undisturbing clear phone calls.
FUJITSU Display P27-8 TS Pro
	If you’re a pixel, color and performance-hungry professional using demanding applications, the FUJITSU P27-8 TS Pro Display is the perfect choice. The display provides outstanding picture performance thanks to cutting-edge panel technology and 3.7 Mio pixels. It also boasts unique and innovative features such as our patent-applied Presence Sensor technology and USB support during standby.
FUJITSU Display B34-9 UE
	The FUJITSU Display B34-9 UE is an ultrawide curved display with 3440 x 1440 resolution with a thin bezel housing. The monitor has a 1900R curvature and a wide viewing angle that delivers consistent picture quality, DisplayView™ software and a range of connectivity options ideal for medium- and large-sized businesses.
Keyboard KBPC PX ECO
	Fujitsu's KBPC PX ECO keyboard is the perfect contribution to Green IT. The keyboard is made out of 45% renewable raw material and comes with a PVC free USB cable. In addition, the KBPC PX ECO offers first class comfort and ergonomics. It attracts attention with its impressive modern design and useful extras.
Blue LED Mouse GL9000
	Blue LED Mouse GL9000 comes in a slim design with proven Fujitsu engineering quality. The state-of-the-art blue LED sensor enables ultra precise switchable resolution at 1,000, 1,500 and 2,000 dpi. Blue LED Mouse GL9000 makes your life easier because it’s tailor-made for right handed users. It just feels great in your hand.
SpaceMouse™ Pro
	Using the SpaceMouse™ Pro 3D mouse to navigate 3D models or environments is as simple as holding them in your hand. A slight movement of the controller cap delivers easy and precise control. SpaceMouse™ Pro is a companion to the traditional mouse and is operated with the free hand. Your traditional mouse hand is free to select, create and edit.
