Overview

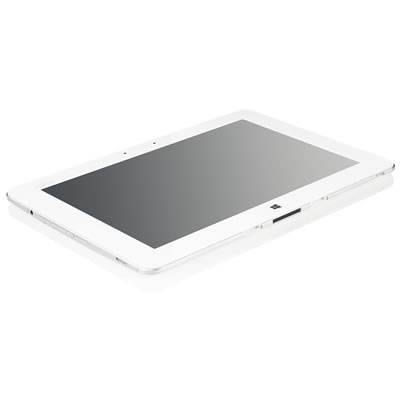

High performance with greater mobility. Yours with the new Fujitsu STYLISTIC Q584 – a state-of-the-art slate that packs everything you need for work and play into a super-slim 9.9mm body. Ultra-lightweight at 640g, it offers unmatched productivity with a lasting battery life of up to 10 hours. And an intuitive experience with the beautiful Windows 8.1 interface. All within an innovative water- and dust-proof design for added peace of mind. Whatever the environment, whenever. Fujitsu. Bringing technology to you.
|
|
- Do more in any condition with the Fujitsu’s thinnest waterproof and dust-proof Intel® Atom Windows slate.*
- Alcohol-resistant for easy disinfection in medical and healthcare fields.
- Flex your options with an attachable slice keyboard and enjoy the productivity of a hybrid tablet.
- Dual digitiser technology supports accurate drawing with your stylus, and greater responsiveness at your fingertip.
- Superior full-fledged security features to protect your digital data and privacy.
- Stay connected anytime, anywhere with the LTE, UMTS, and WiFi communication options.
|
*The water-proof feature is applicable to selected countries and models, and for more detail please check with customer service.
Detailed Specs
| Specifications |
| Platform |
Intel® Atom™ Processor Z37701 (2MB cache, up to 2.40GHz) |
| OS Supported |
Genuine Windows 8.1 Pro 32-bit
Genuine Windows 8.1 32-bit
Genuine Windows 8.1 Single Language 32-bit2 |
| Display |
10.1" WQXGA WideView IPS LED Backlit LCD with Wacom dual digitizer
(2560 x 1600 pixels, 400nits brightness, Glare) |
| Memory |
4GB LPDDR3 1066MHz (on Board) |
| Storage3 |
64GB / 128GB SSD |
| Battery |
Up to 10 hrs (3cells Li-Polymer 38Wh)4 |
| Dimensions |
267.0 x 180.8 x 9.9 mm
267.0 x 180.8 x 13.9 mm (with smartcard reader) |
| Weight |
Approx. 640g |
| Water-proof Standards5,6 |
Tablet: IPX5 / IPX7 / IPX8
Stylus Pen: IPX2 |
| Dust-proof Standard5,6 |
IP5X |
| Detailed Specifications |
| Solid State Drive |
eMMC v4.51 SSD |
| Graphics |
Intel® Integrated Graphics |
| High Definition (HD) Audio |
Realtek ALC5642 HD audio codec with Dual Built-in Stereo Speakers
HD Audio-in: External Mic-in, Dual Built-in Stereo Microphone
HD Audio-out: Headphone-out |
| Rear Camera |
8M Pixels auto focus camera with LED flash light |
| Front Camera |
2M Pixels 1080p FHD camera |
| Digitizer |
Wacom Penable Dual Digitizer
1024-level Pressure Sensitive Pen
10-finger Touch |
| Communication |
802.11 a/b/g/n dual band network connection with dual antennas
Bluetooth® v4.0
NFC (optional) |
| 4G LTE (Optional)7 |
Embedded 4.0G (LTE) WWAN connectivity with dual antenna. Up to 100 Mbps peak downlink and 50Mbps peak uplink speed7
- Supports LTE 800/900/1800/2100/2600 MHz
- Supports UMTS (HSPA+): 850/900/1900/2100 MHz
- Supports triband EDGE/GPRS/GSM: 850/900/1800/1900MHz
- Supports GPS |
| Card Slots |
Micro SD
Micro-SIM (for LTE model only) |
| Connector Interface |
USB3.0 x 1
Micro USB2.0 x 1
HDA-in, HDA-out Combo
Power Adapter DC-in
Docking Interface |
| Security8 |
BIOS Lock
Fingerprint Sensor
Trusted Platform Module v2.0
Smartcard Reader (optional and non-waterproof) |
| Bundled Accessories |
| AC Adapter |
3-pin AC Adaptor, Input AC 100~240V, Output 12V 36W |
| Bundled Softwares |
Windows 8.1
Fujitsu Battery Utility, Fujitsu Bonus Apps, Fujitsu Function Manager, Fujitsu LIFEBOOK Application Panel, Fujitsu Power Saving Utility, Fujitsu Up Time Monitor, Fujitsu System Manager, Fujitsu System Restore and Recovery, Microsoft® Office 2013 60 days Trial, Microsoft® OneNote®, McAfee® Multi Access 60 days Trial, Roxio® Creator LJ, Sierra Wireless AirCard® Watcher (LTE / UMTS only), Softex OmniPass
|
| Optional |
| Slice Keyboard |
Input Interfaces:
US Keyboard (17.5mm key pitch, 1.7mm key stroke)
Touchpad |
| Multi-function Cradle |
Connector Interfaces:
USB 2.0 x 3
HDMI-out
VGA-out (external display)
RJ45 (Gigabit LAN)
Power Adapter DC-in |
The above information shows the general technical specifications of the product and does not represent actual configuration. For specific configurations and their availability, please check with your local distributors.
Disclaimer
1 Please check actual bundling with country local distributor. Intel® Atom™ Z3770 refers to 1.46GHz, 2MB L2 cache.
2 Windows® 8.1 Single Language edition is available for emerging markets only.
3 For Windows® 8.1 solid state drives, less than or equal to 25GB will be reserved for internal recovery respectively.
4 Results obtained from BAPCo MobileMark 2007(Productivity Workload) performed on systems with maximum battery life settings under laboratory testing environment. Actual battery life will vary based on screen brightness, sound volume settings, running applications, connected peripherals, power management settings, battery conditioning, and other customer preferences in the real life situation. Built-in bay device or hard drive usage may also have a significant impact on battery life.
5 IPX5 indicates STYLISTIC Q584 continues to function when directly subjected to 12.5 L of water per minute from all directions using a 6.3 mm inside diameter nozzle at a pressure of 30 kN/m2 and a distance of approximately 3m for at least 3 minutes. IPX7 indicates that STYLISTIC Q584 continues to function and that no water gets inside when the device is dropped in fresh water under up to 1 meter of submersion for a duration of maximum 30 minutes. IPX8 indicates that STYLISTIC Q584 continues to function and that no water gets inside when the device is dropped in fresh water under up to 1.5 meter of submersion for a duration of maximum 30 minutes.Water must be normal temperature and fresh water.When you close the cover of all external connectorl tightly, it can perform dustproof standard IP5X. Refers to IP5X, Q584 can maintain the function for dust below 75µm diameter. IPX2 means the Q584 stylus pen can be protected against dripping water when tilted up to 15 degree. The water-proof feature is applicable to selected countries and models, and for more detail please check with customer service.
6 Please ensure all external connector cover cap are closed firmly for Waterproof and Dustproof Protection. Fujitsu Warranty Coverage is not liable for any customer induced failure if the cover cap are not firmly closed. Please contact Fujitsu PC Asia Pacific Ltd Service Centre for details.
7 4G configuration availability varies from countries. Please check with actual bundling of local distributor. 4G module comes with a 1 year local carry-in warranty. Subjected to network and SIM capabilities. Data rates refer to download or upload speed which is also dependent on network capabilities and conditions.
8 BIOS Lock needs a supervisor/user password to access BIOS setup. BIOS settings can be configured to prompt for password at every first bootup or all bootup sequences.
RoHS (Restriction on Hazardous Substances) compliance means the system and its internal components comply with the EU RoHS directive (2002/95/EC) on the restricted use of six hazardous substances in the production of the system and its internal components. It is natural for all thin-film transistor (TFT) liquid crystal displays (LCD) to show a small number of missing or discolored dots. These are commonly known as non-conforming pixels. This is a technology limitation of TFT LCD and does not represent a defect. Fujitsu warranty does not cover limitations in technology such as non-conforming pixels.
Specifications reflected above are engineering and hardware specifications. They do not represent actual usage or operating dimensions, sizes, performances and weights as these are dependent on factors such as operating temperature, type of operating system and application used, connected devices and accessories as well as hardware configurations of the notebook. Please check the compatibility of 3rd party accessories before purchase. Please note that GB = billion bytes. 1GB is equivalent to 1,073,741,824 bytes.
