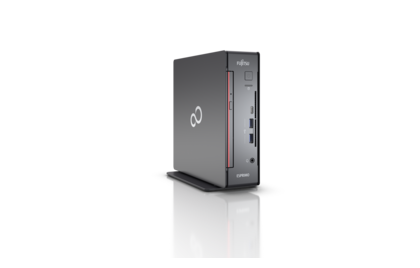

The FUJITSU ESPRIMO Q7010 is an elegant mini PC which provides excellent performance with high energy efficiency. This mini-PC can be used for various purposes apart from the standard office usage like for embedded applications,can be VESA mounted for attaching the PC to displays, stands or walls. The FUJITSU ESPRIMO Q7010 provides an experience of a cleaner, quieter workplace with Zero Noise PC function thus helping to boost office ergonomics and productivity.

Features & Benefits

Features Benefits
  • Windows 10 Home
  • Windows 10 Pro. Fujitsu recommends Windows 10 Pro for business.

  • Easy integration into customers’ existing infrastructure
An elegant mini PC with great performance
  • Fully equipped PC with a volume of ~2.0 liters - based on standard desktop technology
  • 10th generation Intel® Core™ processor family
  • Features multi-bay concept (DVD option/ Smartcard reader option)

  • Eye-catching exclusive modern design
Zero Noise PC
  • Fan stop in standard operations

  • Pleasant working environment due to completely quiet system
Ultimate usability
  • Can be used for horizontal or vertical operations and easy upgrade of major components
  • VESA mount for attaching the PC to displays, stands or walls
  • Embedded usage like PoS systems and optional Windows 10 IoT operating system

  • Various use case scenarios including for special purpose applications
Feature-rich and highly energy-efficient
  • Integrated power supply leads to less than 5 watts power consumption in idle-mode
  • Ready for future needs with double max. memory size, improved graphics

  • Do a lot more with this mini-PC and also get significantly reduced energy bill
State-of-the-art security features
  • Integrated Smartcard reader and security front bezel to prevent misuse
  • Embedded security (TPM 2.0), Fujitsu Authconductor software, Kensington Lock support

  • Keep your most valuable assets safe - your data

Technical details

ProductESPRIMO Q7010
Operating systemWindows 10 Home
Windows 10 Pro. Fujitsu recommends Windows 10 Pro for business.
Operating system notesWindows 10 Support: After the end of the product life FUJITSU will continue to test and support all upcoming Window 10 releases for a period of maximum 5 years – depending on the available extension of hardware services through FUJITSU Warranty top ups. For details please see “FUJITSU Service Statement for Windows 10 Semi-Annual-Channel Support” at
MainboardD3813 (proprietary )
ChipsetIntel® H470
ProcessorIntel® Core™ i7-10700T processor, 16 MB, 2.00 GHz
Intel® Core™ i5-10400T processor, 12 MB, 2.00 GHz
Intel® Core™ i5-10500T processor, 12 MB, 2.30 GHz
Intel® Core™ i5-10600T processor, 12 MB, 2.40 GHz
Intel® Core™ i3-10100 processor, 8 MB, 3.60 GHz
Intel® Celeron® processor G5905, 4 MB, 3.50 GHz
Intel® Pentium® Gold G6400, 4 MB, 4.00 GHz
Supported capacity RAM (max.)64 GB, 2 Memory slot(s) DIMM (DDR4), Dual channel support, For dual channel performance, 2 memory modules have to be ordered. Capacity per channel has to be the same. 2933 MHz may be clocked down to 2400MHz depending on processor and memory configuration
Serial ATA total2
thereof SATA IIISerial ATA III (6 Gbit), NCQ, AHCI
Drives (optional)DVD Super Multi ultra slim (tray), SATA
BD Triple Writer SATA ultra slim (tray), SATA
Interfaces1 x Audio: line-out
4 x USB 3.2 Gen 1 (5 Gbps) total
3 x USB 3.2 Gen 2 (10 Gbps) total
4 x USB 2.0 total
2x Type-A USB 3.2 Gen 2; 1x Type-C USB 3.2 Gen 2; supports up to 15W) x USB front
2x Type-A USB 2.0; 4x Type-A USB 3.2 Gen 1; 1x optional USB 2.0 Type-C (supports DisplayPort 1.4), 1x optional Type-A USB 2.0 x USB rear
optional VGA
1 x Ethernet (RJ-45)
1 x Kensington Lock support
2 x DisplayPort
GraphicsIntel® HD Graphics 610, Intel® HD Graphics 630, Up to half size of total system memory
Audio typeRealtek ALC623
Communication10/100/1,000 MBit/s Realtek RTL8111H
1 (optional with Bluetooth together) x Integrated WLAN
Weight1.6 kg
3.53 lbs
Dimensions (W x D x H)185 x 190 x 54 mm; with VESA cover: 185 x 190 x 56.2 mm
7.29 x 7.49 x 2.13 inch
Power efficiency notepower supply efficiency (at 230V; 2 Watt/ 10% / 20% / 50% / 100% load) : x› 85%/ 90% / 90% / 92% / 92%
Warranty period1 year
