FUJITSU Image Scanner fi Series - Accessories

The following options, consumables and cleaning kits are available for Fujitsu scanner products.

Options

Check : Supported  check : Standard Bundled

Options Part No. fi-5950 fi-6800
fi-6400
Imprinter Option
fi-590PRF
imprinter
PA03450-D700 Check
fi-590PRB
imprinter
PA03450-D710 Check
fi-680PRF
imprinter
PA03575-D201   Check
fi-680PRB
imprinter
PA03575-D203   Check
Software
2D Barcode for PaperStream check check
Fujitsu Scanner Control SDK Check Check

Options Part No. fi-7480 fi-7460 fi-5530C2 fi-7280 fi-7180
Imprinter Option
fi-748PRB
Back Imprinter
PA03710-D401 Check Check
fi-553PR
imprinter
PA03334-D401     Check
fi-718PR
imprinter
PA03670-D201         Check
Document holding pad(black)
fi-728BK
pad
PA03670-D801       Check
Carrier Sheet
Carrier Sheets PA03360-0013       Check Check
Software
2D Barcode for PaperStream check check check check check
Fujitsu Scanner Control SDK Check Check Check Check Check

Options Part No. fi-7260 / fi-7240 fi-7160 / fi-7140 fi-7030 fi-6110 fi-65F
Imprinter Option
fi-718PR
imprinter
PA03670-D201   Check
Document holding pad(black)
fi-728BK
pad
PA03670-D801 Check     Check
Carrier Sheet
Carrier Sheets PA03360-0013 Check Check Check Check
Software
2D Barcode for PaperStream Check Check Check Check Check
Fujitsu Scanner Control SDK Check Check Check Check Check

Options Part No. N7100
Carrier Sheet
Carrier Sheets PA03360-0013 Check
Software
N7100 SDK Check

Consumables

Pad / Pick Roller / Brake Roller   Print Cartridge

Scanner Model Consumables Part No. Recommended replacement cycle
fi-5950
fi-5900

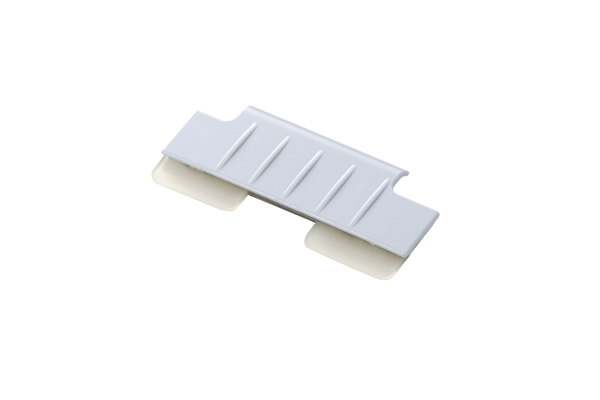

Pad Assy
pad assy
PA03450-K014 600,000 sheets or one year

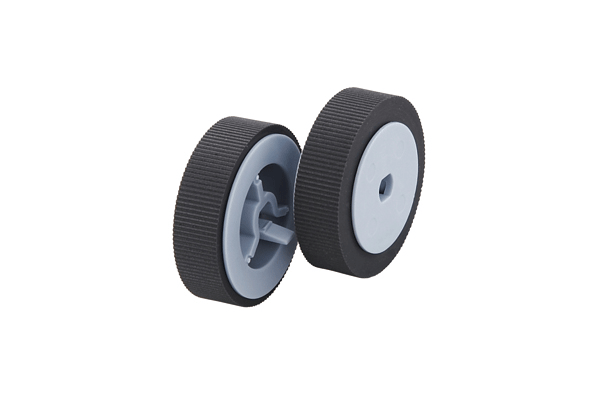

Pick Roller
pick roller
PA03450-K011 600,000 sheets or one year

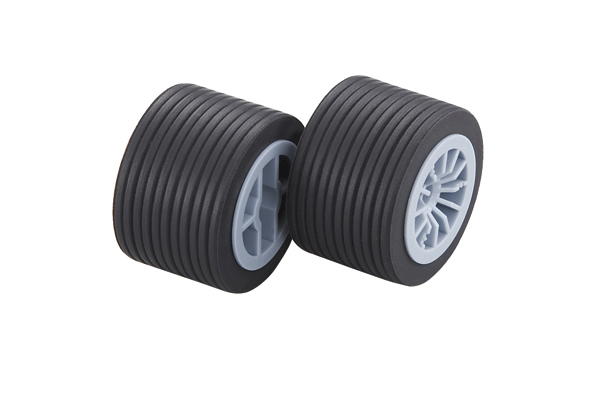

Separator Roller
separator roller
PA03450-K012 600,000 sheets or one year

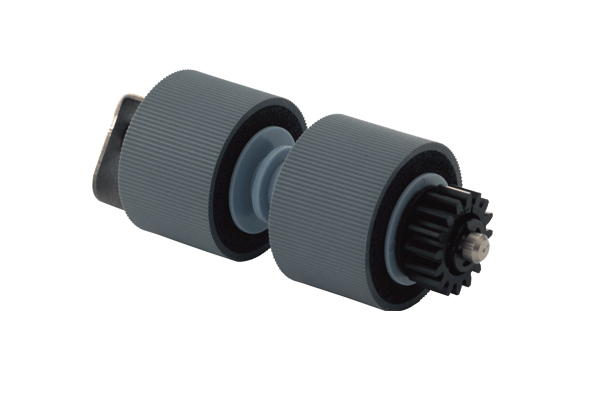

Brake Roller
brake roller
PA03450-K013 600,000 sheets or one year
fi-6800
fi-6400

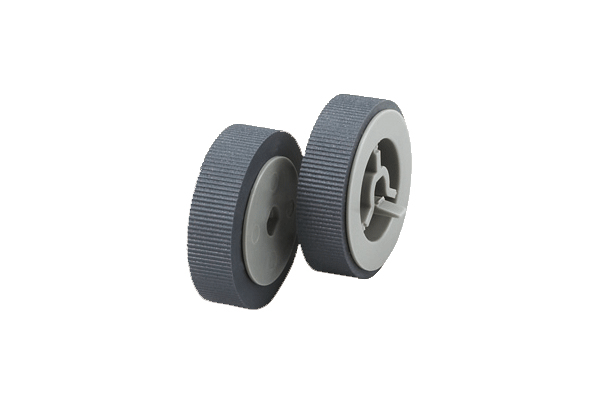

Pick Roller
pick roller
PA03575-K011 600,000 sheets or one year
Separator Roller
separator roller
PA03575-K012 600,000 sheets or one year

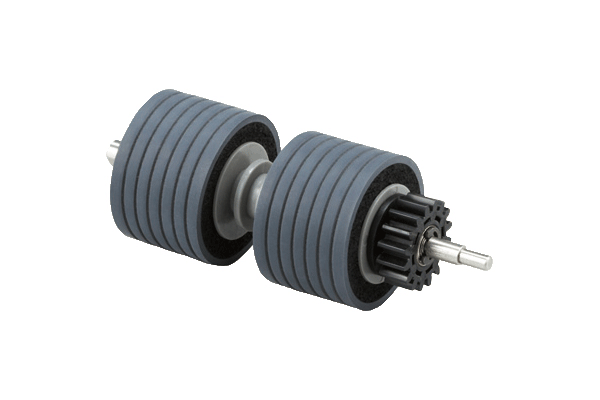

Brake Roller
brake roller
PA03575-K013 600,000 sheets or one year
fi-7480
fi-7460

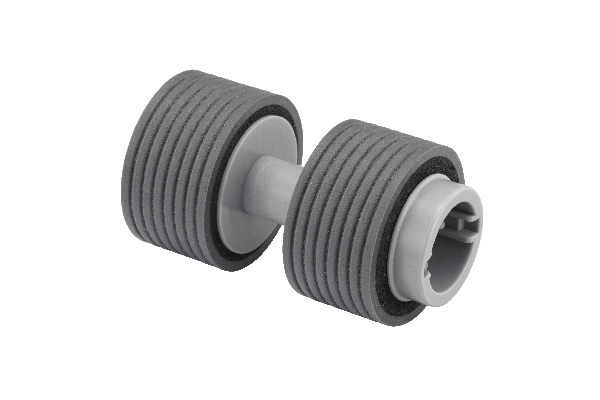

Brake Roller
brake roller
PA03710-0001 200,000 sheets or one year

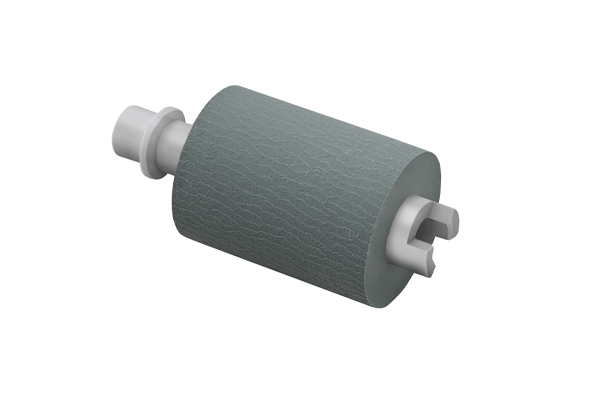

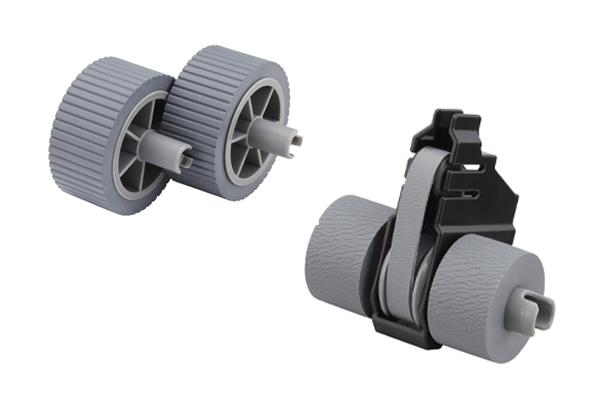

Pick Roller
pcik roller
PA03670-0002 200,000 sheets or one year

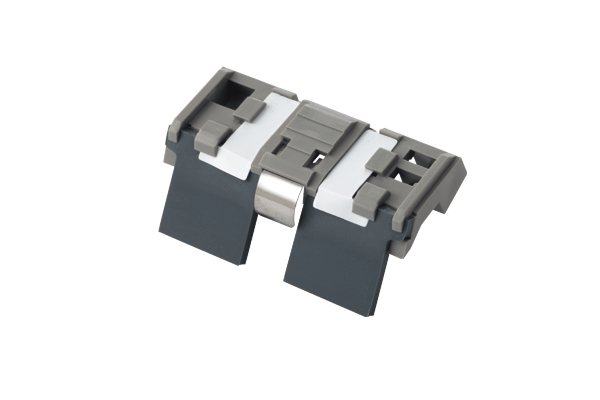

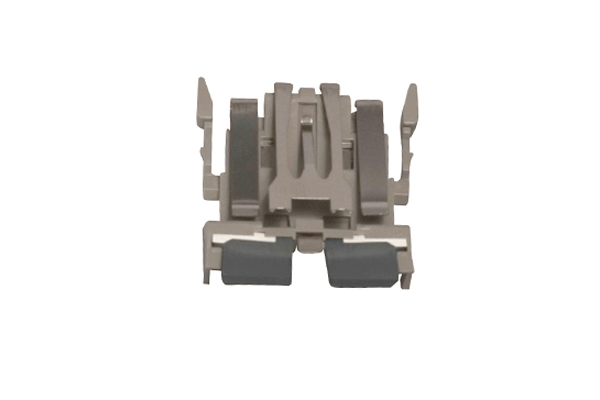

fi-5530C2 Pad Assy
pad assy
PA03334-0002 100,000 sheets or one year

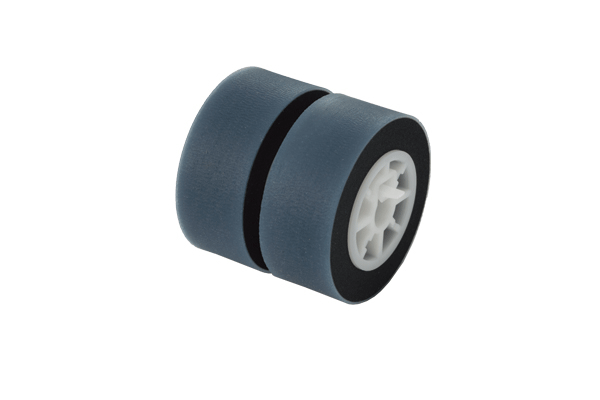

Pick Roller
pick roller
PA03334-0001 200,000 sheets or one year
fi-4340C Pad Assy
pad assy
PA03277-0002 100,000 sheets or one year
Pick Roller
pick roller
PA03277-0001 200,000 sheets or one year
fi-5015C Pad Assy
pad assy
PA03209-0550 20,000 sheets or one year
Pick Roller
pick roller
PA03209-0551 100,000 sheets or one year
fi-7280
fi-7180
fi-7260
fi-7160
fi-7240
fi-7140

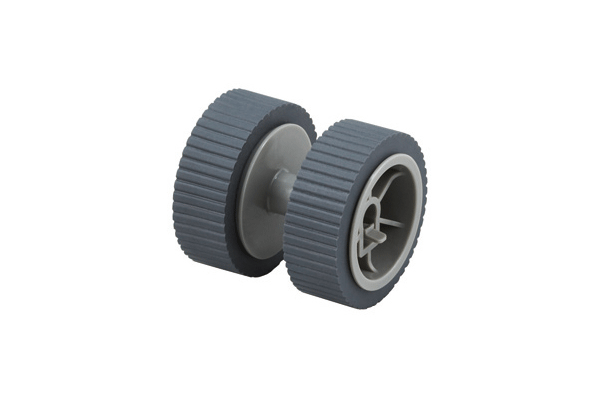

Pick Roller
pick roller
PA03670-0002 200,000 sheets or one year

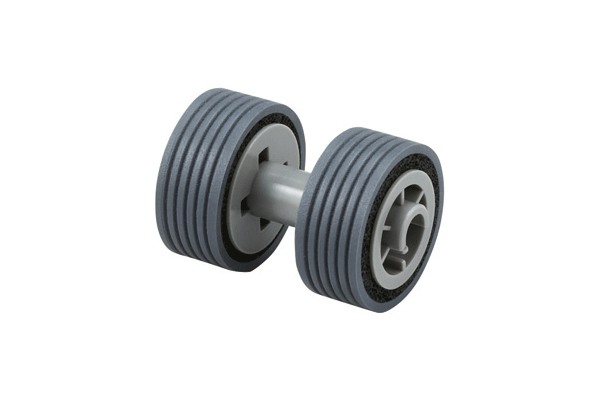

Brake Roller
brake roller
PA03670-0001 200,000 sheets or one year
fi-6240Z
fi-6140Z
fi-6230Z
fi-6130Z
fi-6240
fi-6140
fi-6230
fi-6130
Pick Roller
pick roller
PA03540-0002 200,000 sheets or one year
Brake Roller
brake roller
PA03540-0001 200,000 sheets or one year
fi-7030 Brake Roller
Brake Roller
PA03706-0001 200,000 sheets or one year
Pick Roller
Pick Roller
200,000 sheets or one year
fi-6110 Pad Assy
pad assy
PA03586-0002 50,000 sheets or one year
Pick Roller
pick roller
PA03586-0001 100,000 sheets or one year
fi-5110C Pad Assy
pad assy
PA03360-0002 50,000 sheets or one year
Pick Roller
pick roller
PA03360-0001 100,000 sheets or one year
fi-6010N Pad Assy
pad assy
PA03289-0111 50,000 sheets or one year
Pick Roller
pick roller
PA03289-0001 100,000 sheets or one year
N7100 Roller Set
roller set
PA03706-0001 200,000 sheets or one year

Recommended replacement cycle:
Replacement cycles are based upon 80g/m2 (20lbs) A4 paper and may vary for different paper types. Therefore, appropriate replacement lifetimes may vary for other paper types.
Note: The scanner's driver will display a message whenever time has come to replace scanner consumables.


Print Cartridge

Scanner Model Consumables Part No. Recommended replacement cycle
fi-5950
fi-5900C
fi-6800
fi-6670
fi-6670A
fi-4340C
fi-5530C2
fi-7480
fi-7460

fi-7180
fi-7160
fi-7140
fi-6140
fi-6130
Print Cartridge
print cartridge
CA00050-0262 4,000,000 printed characters

Recommended replacement cycle:
The replacement cycles are based upon 80g/m2 (20lbs) A4 paper and may vary for different paper types.

Cleaning Kits

Cleaning Kits Remarks
Cleaner F1
"Cleaner F1" Photography Image

  • For all models
  • Anion surface-active agent 0.5wt%
  • 100ml/bottle
  • Moisten a dry cloth with this cleaner to clean pick rollers, feed rollers and PAD assemblies.
Cleaner F2
"Cleaner F2" Photography Image

  • For fi-6770 / fi-6750S / fi-6670
  • Anion surface-active agent 3.4wt%
    Nonionic surface-active agent 0.2wt%
  • 80ml/bottle
  • Use this cleaner to clean the Plastic Roller only.
  • Do not use this cleaner on rubber rollers.
Cleaning sheet
"Cleaning sheet" Photography Image

  • For fi-5950 / fi-6800
  • 20 sheets/pack
  • Use for simple paper path cleaning tasks.
Cleaning paper
"Cleaning paper" Photography Image

  • For all models
  • 10 sheets/pack
  • Use for simple ADF paper path cleaning tasks.
  • Use cleaning paper with Cleaner F1.
Cleaning wipe
"Cleaning wipe" Photography Image

  • For all models
  • 24 sheets/pack
  • Use this sheet to clean pick rollers, feed rollers and PAD assemblies.

Cleaning frequency:
Scanners should be cleaned whenever their outer surface or automatic document feeder (ADF) has become dirty. In general, scanners should be cleaned after ever 1,000 sheets scanned.

Do not use aerosol sprays near the scanner:
Do not use any aerosol sprays or alcohol based sprays to clean the scanner. Dust blown up by strong air from the spray may enter the inside of the scanner. This may cause the scanner to fail or malfunction. Sparks, caused by static electricity, generated when blowing off dust and dirt from the outside of the scanner may cause a fire.
