Consumables

Pad / Pick Roller / Brake Roller   Print Cartridge  Consumables for Discontinued Scanners

Consumables	Part No.	Scanner Model	Recommended Replacement Cycle
Brake Roller	PA03810-0001	fi-8290 fi-8190 fi-8270 fi-8170 fi-8250 fi-8150	Every 200,000 sheets or one year
Pick Roller	PA03670-0002		Every 200,000 sheets or one year

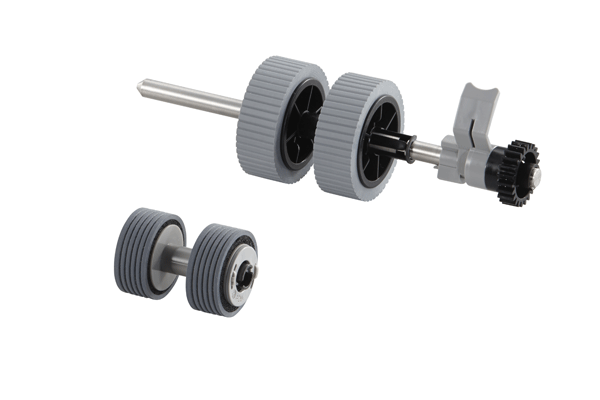

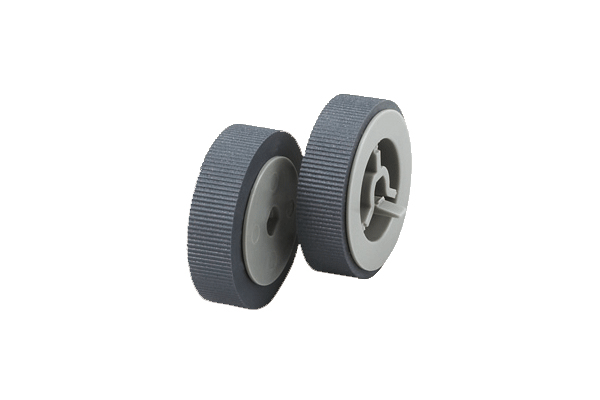

Pick Roller	PA03575-K011	fi-7900 fi-7800 fi-6800* fi-6400*	Every 600,000 sheets or one year
Separator Roller	PA03800-K012		Every 600,000 sheets or one year

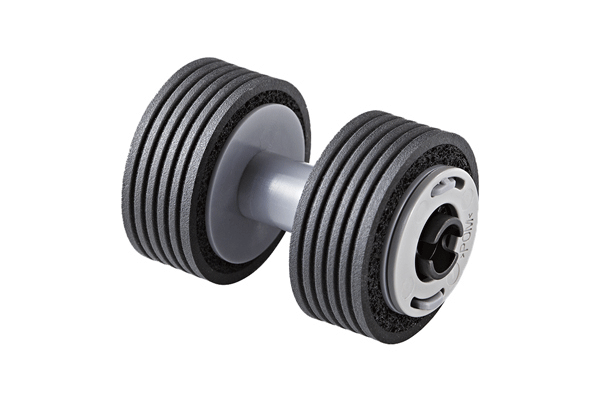

Brake Roller	PA03575-K013		Every 600,000 sheets or one year

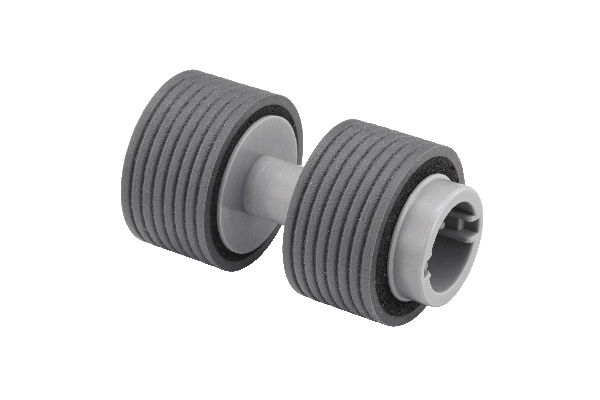

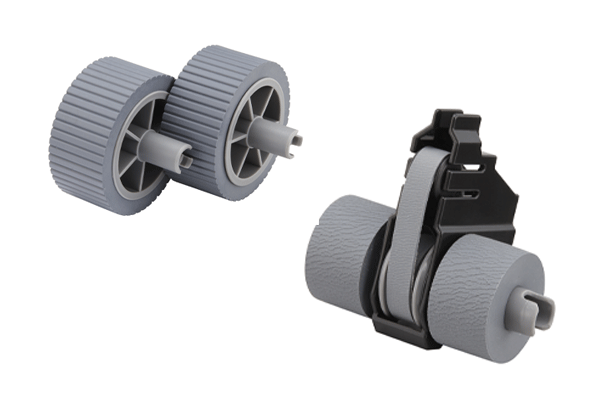

Brake Roller	PA03740-K010	fi-7700 fi-7700S fi-7600	Every 250,000 sheets or one year
Pick Roller	PA03740-K011		Every 250,000 sheets or one year

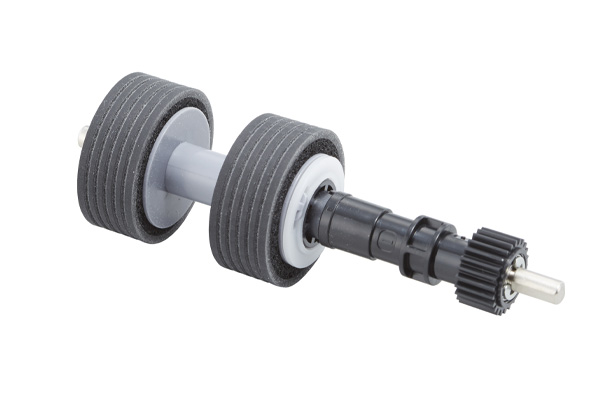

Brake Roller	PA03710-0001	fi-7480 fi-7460	Every 200,000 sheets or one year
Pick Roller	PA03670-0002		Every 200,000 sheets or one year
Brake Roller	PA03670-0001	fi-7300NX fi-7280 fi-7180 fi-7260 fi-7160 fi-7240 fi-7140	Every 200,000 sheets or one year
Pick Roller	PA03670-0002		Every 200,000 sheets or one year

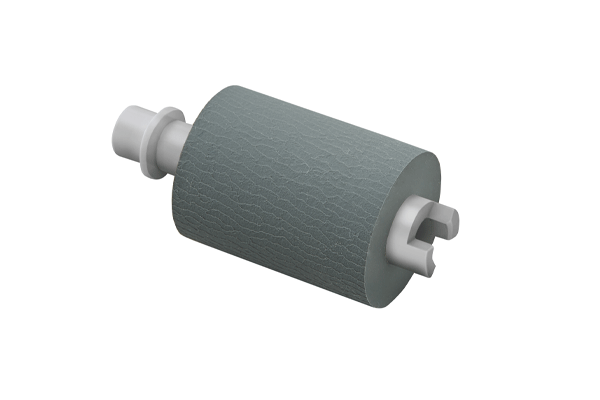

Pick Roller	PA03795-0001	fi-800R	Every 150,000 sheets or one year

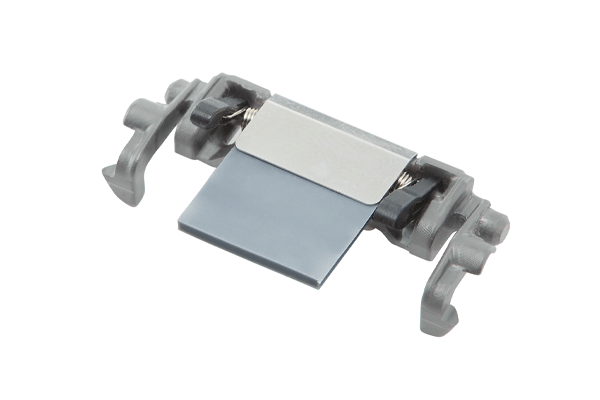

Pad Unit	PA03795-0002		Every 30,000 sheets or one year
Roller Set(Brake Roller / Pick Roller)	PA03706-0001	fi-7030 N7100E N7100*	Every 200,000 sheets or one year
Roller Set (Brake roller/Pick roller)	PA03708-0001	SP-1130N SP-1125N SP-1120N SP-1130 SP-1125 SP-1120	Every 100,000 sheets or one year

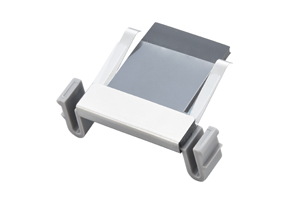

Pad Unit	PA03753-0001	SP-1425	Every 30,000 sheets or one year

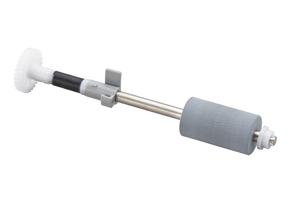

Pick Roller Unit	PA03753-0002		Every 200,000 sheets or one year

Recommended Replacement Cycle:
Replacement cycles are based upon 80g/m² (20lbs) A4 paper and may vary for different paper types. Therefore, appropriate replacement lifetimes may vary for other paper types.
Note: The scanner's driver will display a message whenever time has come to replace scanner consumables.

Print Cartridge

Consumables	Part No.	Scanner Model	Recommended Replacement Cycle

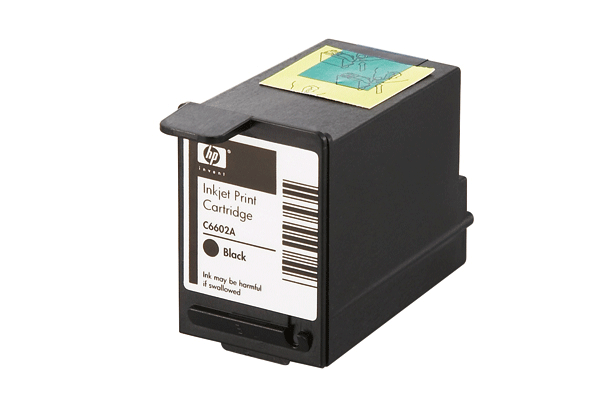

Print Cartridge	CA00050-0262	fi-8190 fi-8170 fi-8150 fi-7900 fi-7800 fi-7600 fi-7480 fi-7460 fi-7180 fi-7160 fi-7140 fi-6800* fi-6400* fi-6130Z* fi-5530C2*	4,000,000 printed characters or 6 months after opening the bag

Recommended Replacement Cycle:
The replacement cycles are based upon 80g/m² (20lbs) A4 paper and may vary for different paper types.

Consumables for Discontinued Scanners

Consumables	Part No.	Scanner Model	Recommended Replacement Cycle

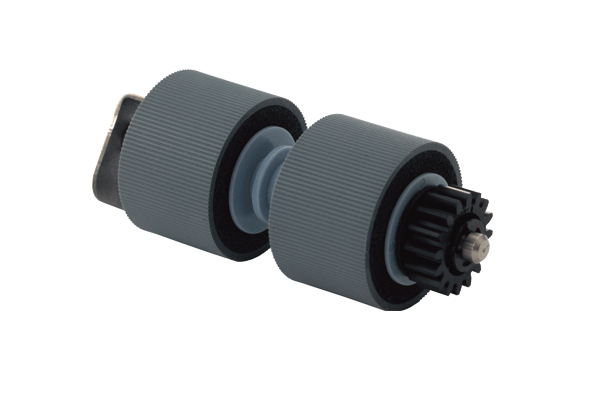

Pick Roller	PA03450-K011	fi-5950*	Every 600,000 sheets or one year
Separator Roller	PA03450-K012
Brake Roller	PA03450-K013

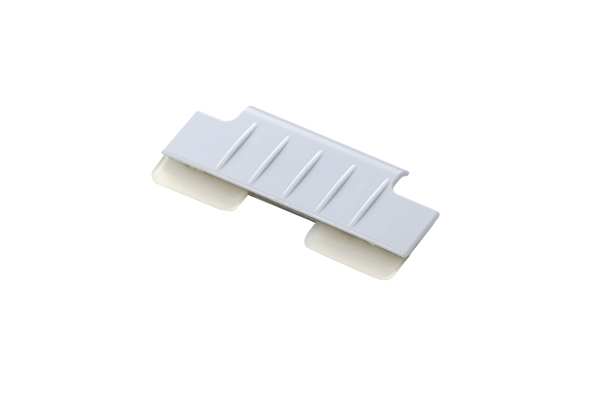

Pad	PA03450-K014
Pick Roller	PA03334-0001	fi-5530C2*	Every 100,000 sheets or one year

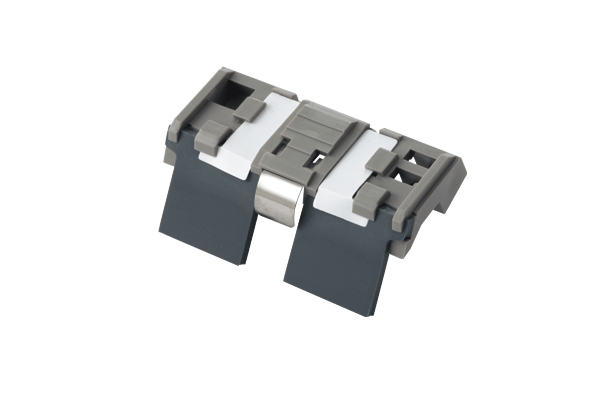

Pad Assy	PA03334-0002		Every 200,000 sheets or one year

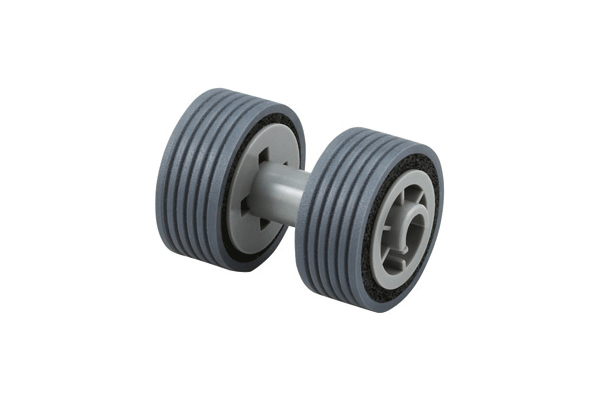

Brake roller	PA03540-0001	fi-6230Z / fi-6130Z / SP30F*	Every 200,000 sheets or one year

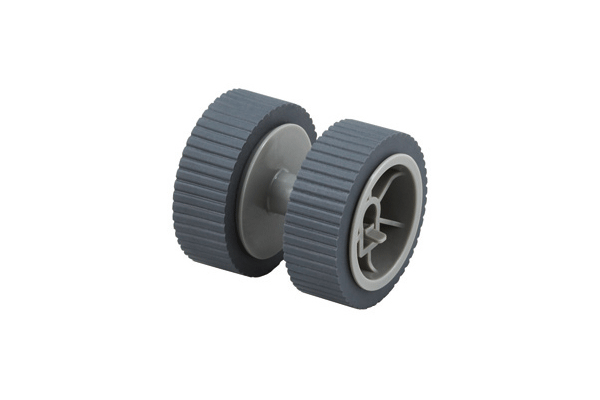

Pick roller	PA03540-0002

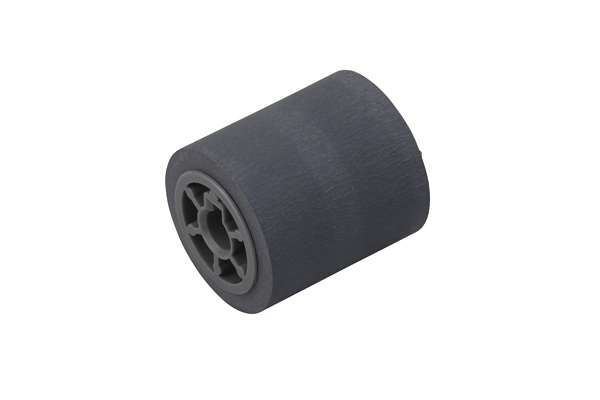

Pick Roller	PA03586-0001	fi-6110*	Every 100,000 sheets or one year
Pad Assy	PA03586-0002		Every 50,000 sheets or one year
Pick Roller	PA03209-0551	fi-5015C*	Every 100,000 sheets or one year
Pad Assy	PA03209-0550		Every 20,000 sheets or one year

Options

Options   Options for Discontinued Scanner

Options	Part No.	Scanner Model
Imprinter Option
Post Imprinter(fi-819PRB)	PA03810-D201	fi-8190 / fi-8170 / fi-8150

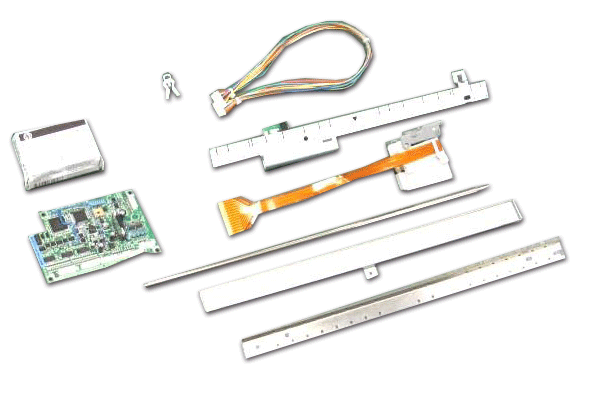

Post Imprinter(fi-680PRF)	PA03575-D201	fi-7600

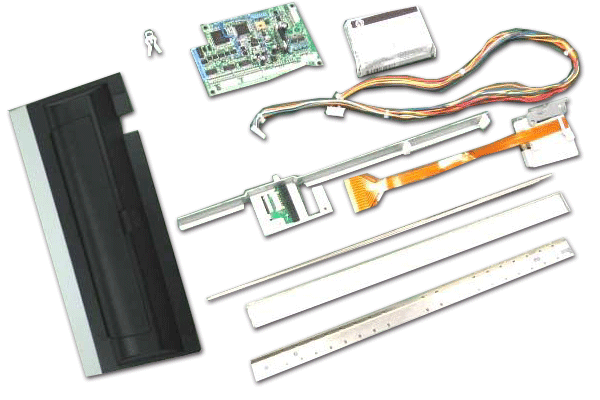

Post Imprinter(fi-680PRB)	PA03575-D203

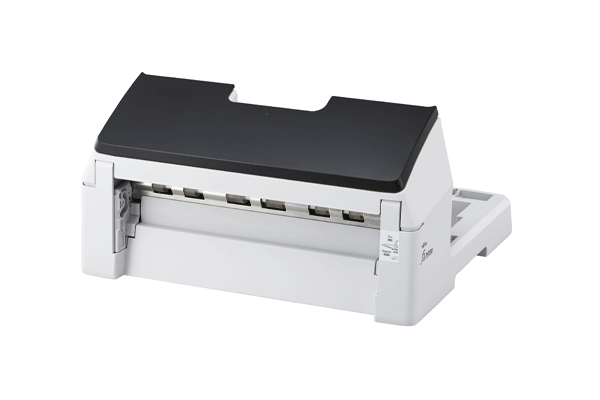

Post Imprinter(fi-760PRB)	PA03740-D101	fi-7600

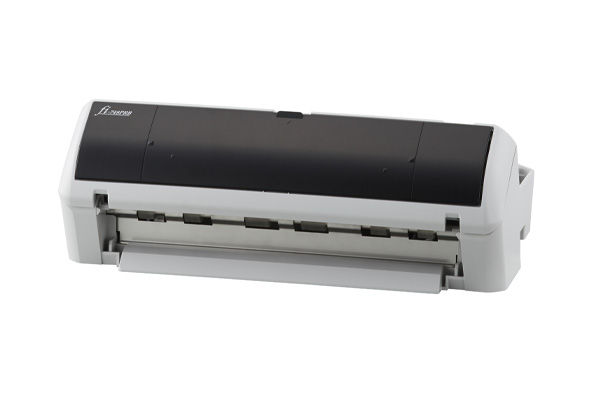

Post Imprinter(fi-748PRB)	PA03710-D401	fi-7480 / fi-7460

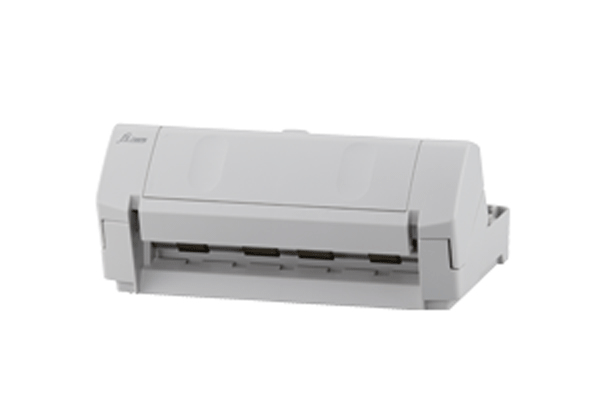

Post Imprinter(fi-718PR)	PA03670-D201	fi-7180 / fi-7160 / fi-7140
Document holding pad
Black Document Pad(fi-829BK)	PA03810-D301	fi-8290 / fi-8270 / fi-8250

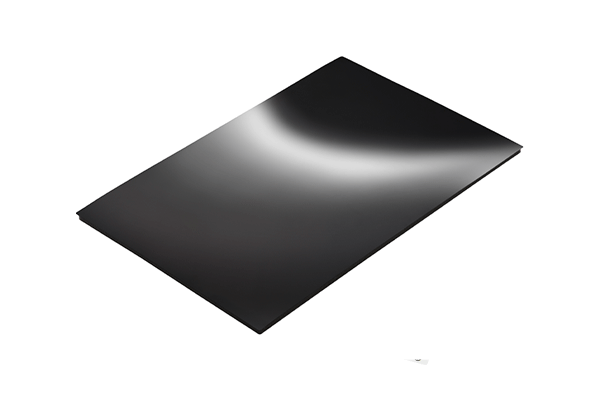

Black Document Pad(fi-575BK)	PA03338-D960	fi-7700 / fi-7700S

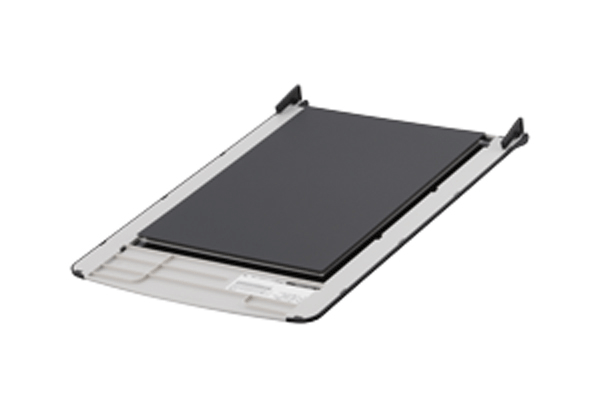

Black Document Pad(fi-728BK)	PA03670-D801	fi-7280 / fi-7260 / fi-7240
Carrier Sheet

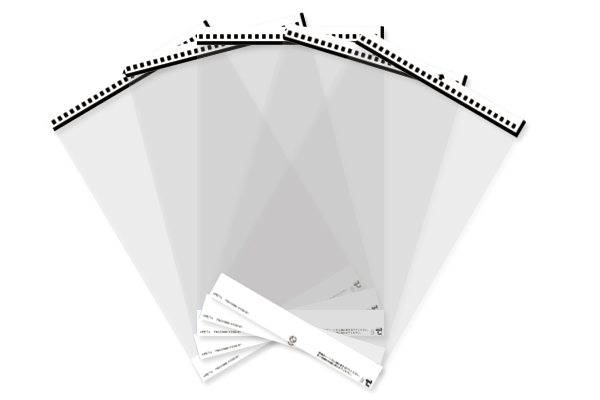

Carrier Sheets	PA03360-0013	fi-8290 / fi-8270 / fi-8250 / fi-8190 / fi-8170 / fi-8150 / fi-7480 / fi-7460 / fi-7300NX / fi-7180 / fi-7160 / fi-7280 / fi-7260 / fi-800R / fi-7030 / N7100 / N7100E / fi-6240Z* / fi-6230Z* / fi-6140Z* / fi-6130Z* / fi-6240* / fi-6230* / fi-6140* / fi-6130* / fi-6010N* / SP30F*

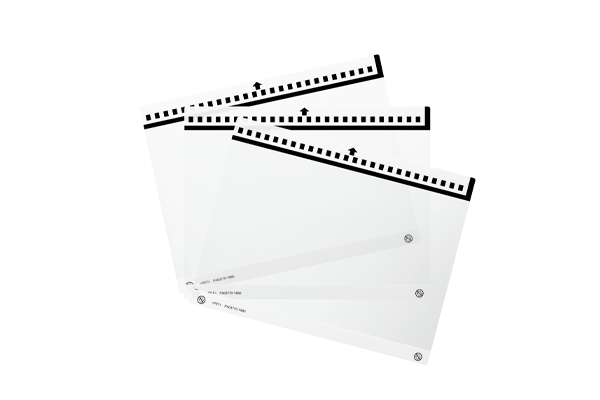

Photo Carrier Sheets	PA03770-0015	fi-8290 / fi-8270 / fi-8250 / fi-8190 / fi-8170 / fi-8150 / fi-800R
Booklet Carrier Sheet	PA03810-0020

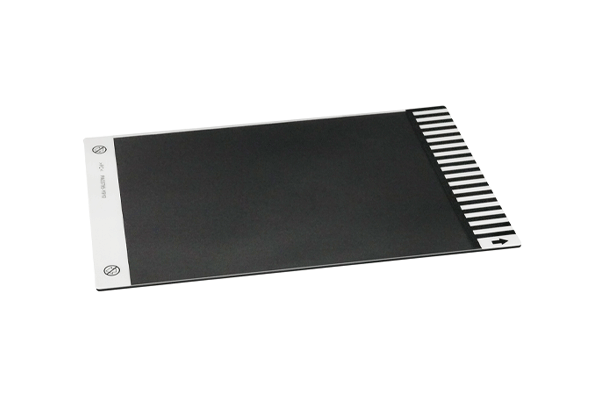

Booklet Carrier Sheet	PA03795-0018	fi-800R
Software
2D Barcode for PaperStream	PA43404-A433	fi-8290 / fi-8270 / fi-8250 / fi-8190 / fi-8170 / fi-8150 / fi-7900 / fi-7800 / fi-7700 / fi-7700S / fi-7600 / fi-7480 / fi-7460 / fi-7300NX / fi-7180 / fi-7160 / fi-7140/ fi-7280 / fi-7260 / fi-7240/ fi-800R / fi-7030 / fi-65F / SP-1130N / SP-1125N / SP-1120N / SP-1425
Fujitsu Scanner Control SDK	-	fi-7900 / fi-7800 / fi-7700 / fi-7700S / fi-7600 / fi-7480 / fi-7460 / fi-7300NX / fi-7180 / fi-7160 / fi-7140 / fi-7280 / fi-7260 / fi-7240 / fi-800R / fi-7030 / fi-65F
PaperStream Capture Pro Scan Station (DP)	PA43404-A675	fi-8290 / fi-8190
PaperStream Capture Pro Scan Station (WG)	PA43404-A665	fi-8270 / fi-8170 / fi-8250 / fi-8150
PaperStream Capture Pro Scan Station (MV)	PA43404-A695	fi-7900 / fi-7800
PaperStream Capture Pro Scan Station (LV)	PA43404-A685	fi-7700 / fi-7700S / fi-7600

Options for Discontinued Scanners

Options	Part No.	Scanner Model
Imprinter Option

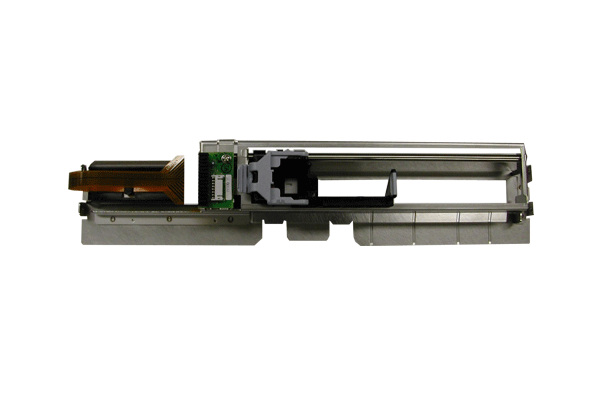

Pre-Imprinter (FI-590PRF)	PA03450-D700	fi-5950*

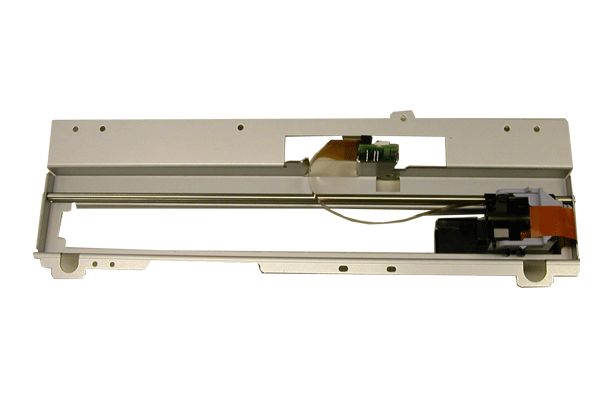

Post-Imprinter (FI-590PRB)	PA03450-D710

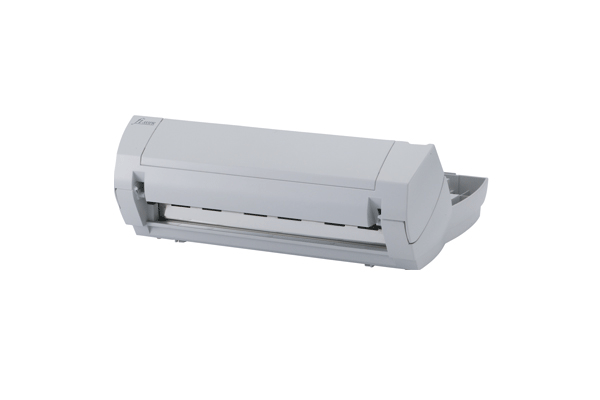

Post-Imprinter (FI-553PR)	PA03334-D401	fi-5530C2*
Software
2D Barcode for PaperStream	PA43404-A433	fi-5950* / fi-6800* / fi-6400* / fi-6770* / fi-6750S* / fi-6670* / fi-5530C2* / fi-6240Z* / fi-6230Z* / fi-6140Z* / fi-6130Z* / fi-6110* / fi-60F*
Fujitsu Scanner Control SDK	-	fi-5950* / fi-6800* / fi-6400* / fi-6770* / fi-6750S* / fi-6670* / fi-5015C* / fi-5530C2* / fi-6240Z* / fi-6230Z* / fi-6140Z* / fi-6130Z* / fi-6110* / SP30F* / fi-60F* / SP-1130* / SP-1125* / SP-1120* / SP35F* / SP30* / SP25*

Cleaning Kits

Cleaning Kits	Part No.	Scanner Model	Remarks
Cleaner F1	PA03950-0352	All models	Anion surface-active agent 0.5wt% 100ml/bottle Moisten a dry cloth with this cleaner to clean pick rollers, feed rollers and PAD assemblies.
Cleaning wipes	PA03950-0419	All models	24 sheets/pack Use this sheet to clean pick rollers, feed rollers and PAD assemblies.
Cleaning papers	CA99501-0012	All models	10 sheets/pack Use for simple ADF paper path cleaning tasks. Use cleaning paper with Cleaner F1.
Cleaning sheets	CA99501-0016	fi-7900 fi-7800 fi-6800* fi-6400*	20 sheets/pack Use for simple paper path cleaning tasks.

Cleaning frequency:
Please keep the device surface and the automatic document feeder (ADF) clean of dust and dirt at all times. It is generally recommended to clean the scanner for every 1,000 sheets scanned.

Caution:
Do not use any aerosol sprays or alcohol-based sprays to clean the scanner. Dust blown up from the spray strength may infiltrate the scanner interior and cause operation failures or malfunctions. Sparks generated from the blown-up dust and dirt, may also ignite a fire.
