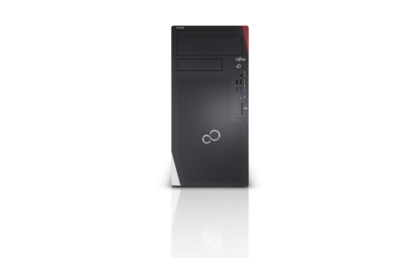

Fujitsu Workstation CELSIUS W5010

Fujitsu Workstation CELSIUS W5010

  • Windows 11 Pro. Fujitsu recommends Windows 11 Pro for business.
  • 10th Gen Intel® Core™ (up to i9) and the powerful Intel® Xeon® W-1200 processors
  • Dual slot full-length graphics cards (up to NVIDIA RTX™ A5000 or AMD Radeon™ Pro WX 3200)
  • Up to 128 GB DDR4 2,933 MHz memory (incl. ECC)
  • Ideal for 3D CAD, design, multimedia and manufacturing

More Details
ImgPlaceholder ImgPlaceholder ImgPlaceholder ImgPlaceholder
No compromise in terms of performance, expandability and price
VR-ready desktop workstation
The smartest microtower workstation
Multiple application scenarios

Designed with CAD customers in mind: performance, reliability and flexibility - at an affordable price

Enjoy a fully immersive and real-time VR experience

Ultimate usability, reliability and ease of use

Ideal for 3D CAD, CAE, design, multimedia, visualization and manufacturing
  • ImgPlaceholder
    No compromise in terms of performance, expandability and price
    Designed with CAD customers in mind: performance, reliability and flexibility - at an affordable price
  • ImgPlaceholder
    VR-ready desktop workstation
    Enjoy a fully immersive and real-time VR experience
  • ImgPlaceholder
    The smartest microtower workstation
    Ultimate usability, reliability and ease of use
  • ImgPlaceholder
    Multiple application scenarios
    Ideal for 3D CAD, CAE, design, multimedia, visualization and manufacturing

Tech Specs

Product CELSIUS W5010
Operating system Windows 11 Pro. Fujitsu recommends Windows 11 Pro for business.
Windows 11 Home
Windows 10 Pro. Fujitsu recommends Windows 11 Pro for business.
Operating system compatible FREE Upgrade to Windows 11*
*Upgrade timing may vary by device. Features and app availability may vary by region. Certain features require specific hardware (see aka.ms/windows11-spec).
Chipset Intel® W480
Processor Intel® Xeon® processor W-1250P, 12 MB, 4.10 GHz, up to 4.8 GHz
Intel® Xeon® processor W-1250, 12 MB, 3.30 GHz, up to 4.7 GHz
Intel® Xeon® processor W-1270P, 16 MB, 3.80 GHz, up to 5.1 GHz
Intel® Xeon® processor W-1270, 16 MB, 3.40 GHz, up to 5.0 GHz
Intel® Xeon® processor W-1290P, 20 MB, 3.70 GHz, up to 5.2 GHz
Intel® Xeon® processor W-1290, 20 MB, 3.20 GHz, up to 5.1 GHz
Intel® Core™ i9-10900 processor, 20 MB, 2.80 GHz
Intel® Core™ i9-10900K processor, 20 MB, 3.70 GHz
Intel® Core™ i7-10700 processor, 16 MB, 2.90 GHz
Intel® Core™ i7-10700K processor, 16 MB, 3.80 GHz
Intel® Core™ i5-10500 processor, 12 MB, 3.10 GHz
Intel® Core™ i5-10600 processor, 12 MB, 3.30 GHz
Intel® Core™ i3-10100 processor, 6 MB, 3.60 GHz
Supported capacity RAM (max.) 128 GB, 4 Memory slot(s) DIMM (DDR4) ECC/non-ECC, Dual channel support, For dual channel performance, 2 memory modules have to be ordered. Capacity per channel has to be the same. 2933 MHz may be clocked down to 2400MHz depending on processor and memory configuration
Interfaces 1 x Audio: line-in
1 x Audio: line-out
1 x Internal speakers
3 x USB 3.2 Gen1 (5 Gbps) total
5 and 1 optional x USB 3.2 Gen2 (10 Gbps) total
4 x USB 2.0 total
2x USB 2.0; 2x USB 3.2 Gen 2; 1x USB 3.2 Gen 2 Type-C (supports up to 15W) x USB front
1x USB 2.0 Type A x USB internal
2x USB 2.0; 2x USB 3.2 Gen 1; 2x USB 3.2 Gen 2; optional: additional 1x USB 3.2 Gen 2 Type-C (supports DisplayPort 1.4 and power delivery (PD) up to 15W or 60W (occupies PCIe x16 slot) x USB rear
2 x DisplayPort
1 (optional) x Parallel (25pin with EPP and ECP)
optional x VGA
1 x Ethernet (RJ-45)
optional (DVI-D) x DVI
1 (optional) x eSATA
2 (optional) x Mouse / Keyboard (PS/2)
Graphics Intel® UHD Graphics P630, Intel® UHD Graphics 630, Up to half size of total system memory
Graphics features Support for up to three independent displays, DirectX® 12, HDCP support, OpenCL™ 2.1, OpenGL® 4.5, For multi monitoring mode, graphics card and integrated graphics run in parallel, DisplayPort interface supports Ver. 1.4 incl. Multi-Stream, Digital audio formats are supported, including Dolby Digital Plus (7.1 channels), DVI-D interface supports audio output if connected to the HDMI interface of a display via suitable adapter cables (not included), Additional I/O connectors configurable, choice of, DVI-D, HDMI™, VGA, USB Type-C™ (supports DisplayPort™ 1.4 and power delivery (PD) up to 15W), USB Type-C™ (supports DisplayPort™ 1.4 and power delivery (PD) up to 60W. Occupies PCIe x16 slot)
Midrange 3D: NVIDIA® RTX™ A2000, 6 GB, PCIe x16, 4 x DisplayPort
High-end 3D: NVIDIA® RTX™ A4000, 16 GB, PCIe x16, 4 x DisplayPort
Ultra-high-end 3D: NVIDIA® RTX™ A5000, 24 GB, PCIe x16, 4 x DisplayPort
Entry 3D: AMD Radeon™ Pro WX 3200, 4 GB, PCIe x16, 4 x miniDP
High-end 3D: NVIDIA® Quadro RTX™ 4000, 8 GB, PCIe x16, 3 x DisplayPort, 1 x Virtual Link
Midrange 3D: NVIDIA® Quadro® P2200, 5 GB, PCIe x16, 4 x DisplayPort
Entry 3D: NVIDIA® T1000, 4 GB, PCIe x16, 4 x miniDP
Entry 3D: NVIDIA® Quadro® P1000, 4 GB, PCIe x16, 4 x miniDP
Entry 3D: NVIDIA® T600, 4 GB, PCIe x16, 4 x miniDP
Entry 3D: NVIDIA® T400, 2 GB, PCIe x16, 3 x miniDP
Others: MiniDP to DP Adapter Cable
Audio codec Realtek ALC623
Weight approx. 10 kg
approx. 22.05 lbs
Warranty type Bring-In / Onsite Service (for countries within region EMEIA, for all other countries depending on local regulations)

Read full specs

Accessories

Keyboard KB955

The KB955 is a very flat keyboard with extra low keys and spill-resistant protection. The elegant design and top-quality construction makes the KB955 the ideal input device for any PC or Notebook user. If you accidently spill some water or coffee onto the keyboard, this special construction helps the liquid to flow away.

Blue LED Mouse M960

The Blue LED Mouse M960 comes in a slim design with proven Fujitsu engineering quality. The track on glass Blue LED sensor enables ultra precise switchable resolution at 1,000, 1,600 and 2,000 dpi. Blue LED Mouse M960 makes your life easier because it’s tailor-made for right handed users. It just feels great in your hand.

SpaceMouse Pro

Using the SpaceMouse™ Pro 3D mouse to navigate 3D models or environments is as simple as holding them in your hand. A slight movement of the controller cap delivers easy and precise control. SpaceMouse™ Pro is a companion to the traditional mouse and is operated with the free hand. Your traditional mouse hand is free to select, create and edit.

Show all in the data sheet
