Fujitsu Desktop ESPRIMO G6012
Fujitsu Desktop ESPRIMO G6012
- Windows 11 Pro. Fujitsu recommends Windows 11 Pro for business.

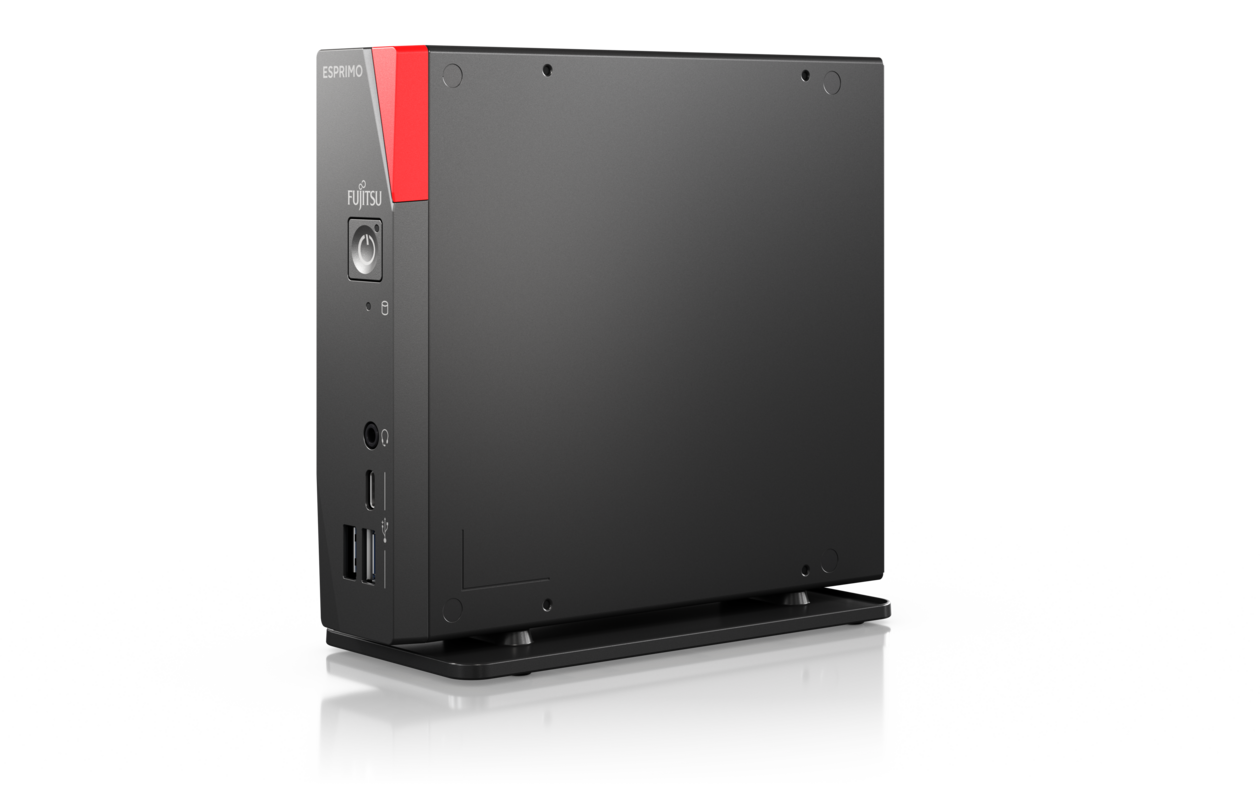

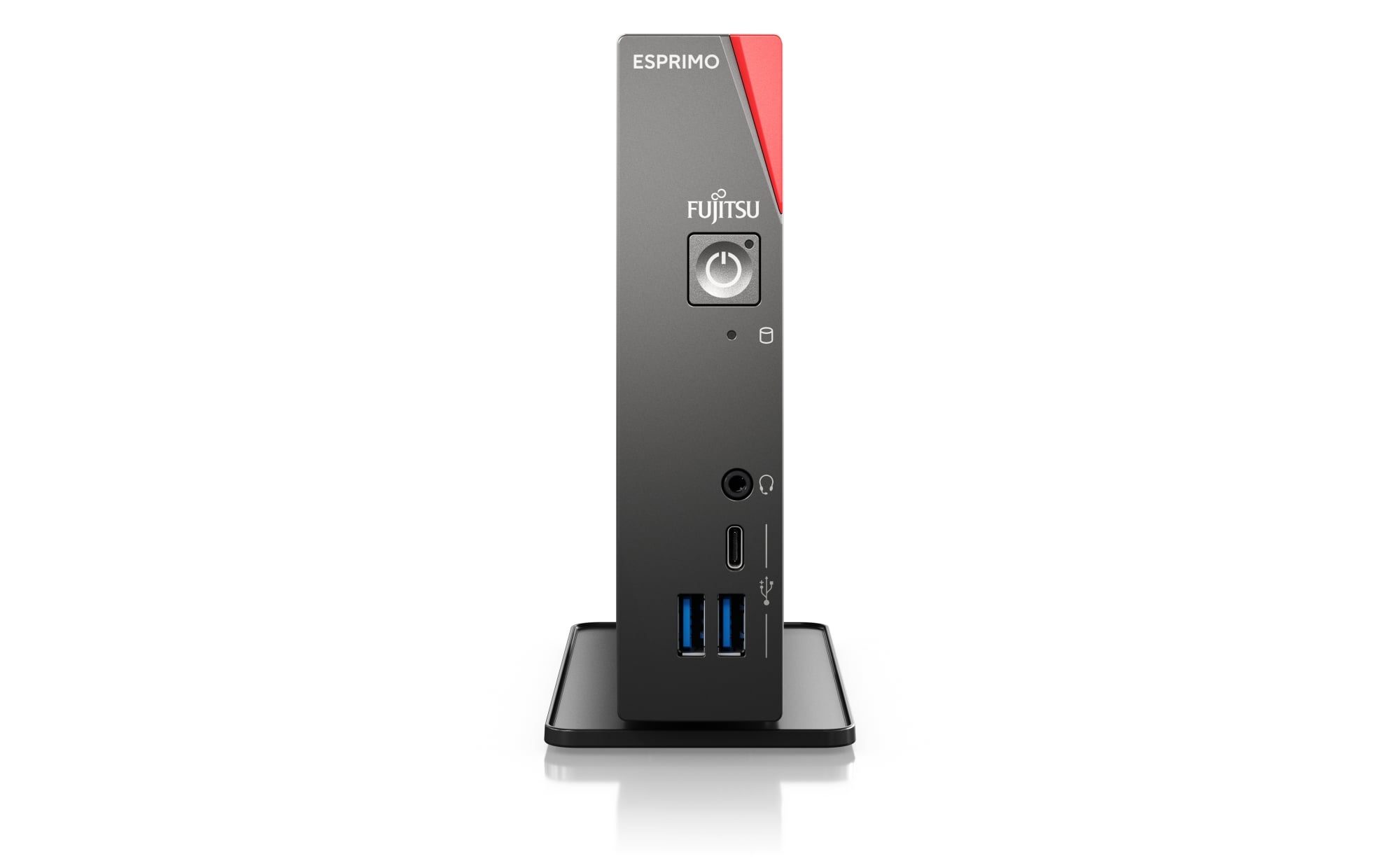

- A stylish Mini PC with ultra-compact design
- Energy and space-saving device for clean, clutter-free desk
- Flexible mounting options and wide range of usage scenarios
- The PC which can transform your workplace for the next generation
A stylish Mini PC with ultra-compact design |
Ultimate usability |
Small yet grand |
Perfect fit for modern offices and workplaces of tomorrow |
Energy and space-saving for clean, clutter-free desk with convenient access to ports and ODD |
Flexible mounting and wide range of usage scenarios |
High performance in a small Mini PC design |
The PC which can transform your workplace for the next generation |
-
A stylish Mini PC with ultra-compact design
Energy and space-saving for clean, clutter-free desk with convenient access to ports and ODD -
Ultimate usability
Flexible mounting and wide range of usage scenarios -
Small yet grand
High performance in a small Mini PC design -
Perfect fit for modern offices and workplaces of tomorrow
The PC which can transform your workplace for the next generation
Tech Specs
Product |
ESPRIMO G6012 |
Operating system |
Windows 11 Pro. Fujitsu recommends Windows 11 Pro for business. Windows 11 Home Windows 10 Pro. Fujitsu recommends Windows 11 Pro for business. |
Operating system compatible |
Certified for Red Hat© Enterprise Linux |
Mainboard |
D4014-B (proprietary ) |
Chipset |
Intel® B660 |
Processor |
Intel® Core i7-12700T processor, 25 MB, 1.4 GHz Intel® Core i5-12400T processor, 18 MB, 1.8 GHz Intel® Core i5-12500T processor, 18 MB, 2.0 GHz Intel® Core i3-12100 processor, 12 MB, 3.3 GHz Intel® Pentium® Gold G7400, 6 MB, 3.7 GHz Intel® Celeron® processor G6900, 4 MB, 3.4 GHz |
Supported capacity RAM (max.) |
64 GB, 2 Memory slot(s) DIMM (DDR4), Dual channel support, For dual channel performance, 2 memory modules have to be ordered. Capacity per channel has to be the same. 3200 MHz may be clocked down to 2933/2400 MHz depending on processor and memory configuration |
Serial ATA total |
2 |
thereof SATA III |
Serial ATA III (6 Gbit), NCQ, AHCI |
Drives (optional) |
DVD Super Multi ultra slim (tray), SATA BD Triple Writer SATA ultra slim (tray), SATA |
Drive bay |
x 3.5-inch external bay x 3.5-inch internal bay |
Interfaces |

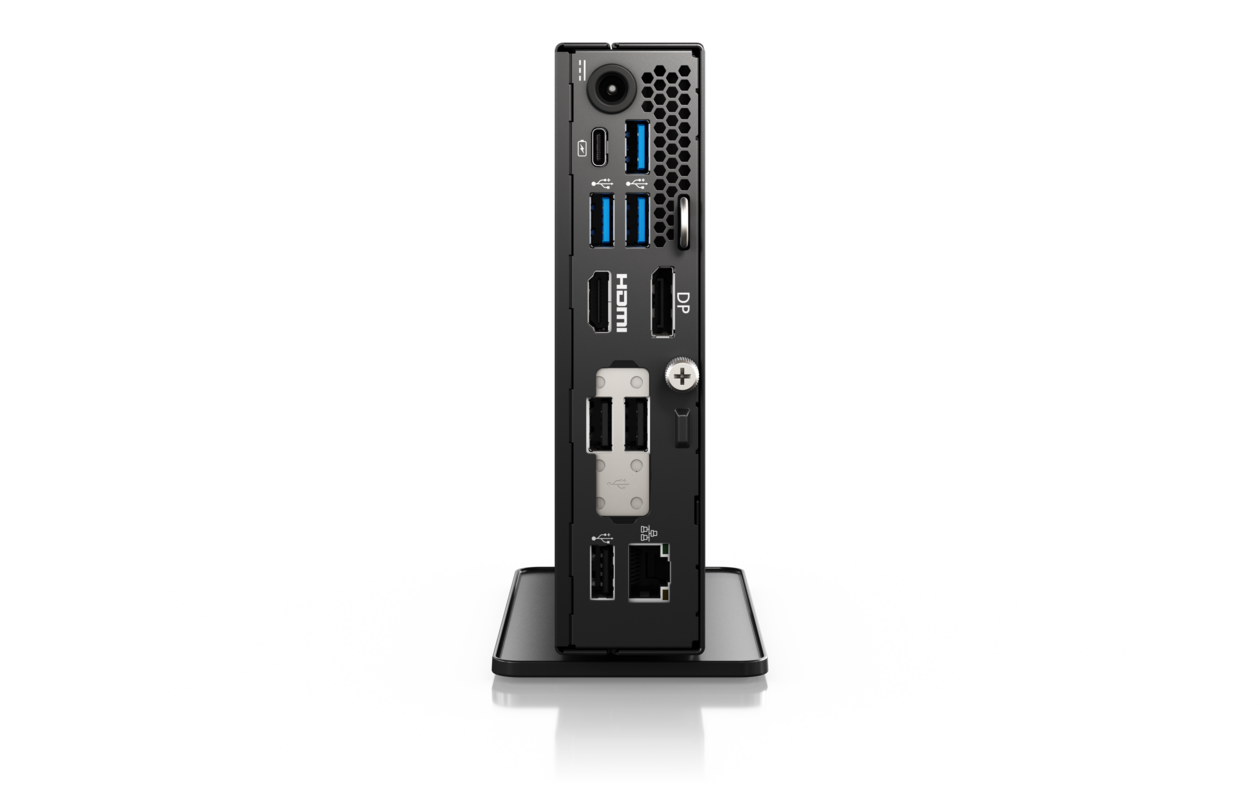

1x USB 3.2 Gen 1 (5 Gbps) Type-A 1x USB 3.2 Gen 2 (10 Gbps) Type-A 1x USB 3.2 Gen 2 (10 Gbps) Type-C (provides up to 15W) x USB front 2x USB 2.0 Type-A 1x USB 3.2 Gen 1 (5 Gbps) Type-A 1x USB 3.2 Gen 2 (10 Gbps) Type-A 1x USB 3.2 Gen 2 Type-C (10 Gbps, supports DisplayPort 1.4 and power delivery sink **) see flexible interface options x USB rear 1 x Ethernet (RJ-45) 1 x Kensington Lock support 1 (DisplayPort 1.4; DP++) x DisplayPort 1 x HDMI |
Graphics |
Intel® UHD Graphics 770, Intel® UHD Graphics 730, Intel® UHD Graphics 710, Up to half size of total system memory |
Audio type |
Realtek ALC257N |
Communication |
10/100/1,000 MBit/s Intel® I219V optional Integrated WLAN |
Weight |
Small: Min:0.85kg; 1x mem.,1x SDD Max:1.015kg; 2x mem.,2x SSD,HDD,Flexi,WLAN ODD version: Min:1.185kg / Max:1.275kg AC adapter (0.32kg) and power cord 0.175kg) are not part of min/max |
Dimensions (W x D x H) |
146.5 x 164.5 x 36 mm 5.77 x 6.48 x 1.42 inch |
Power efficiency note |
90 Watt AC adapter: power supply efficiency at 115/230V: 89% average efficiency |
