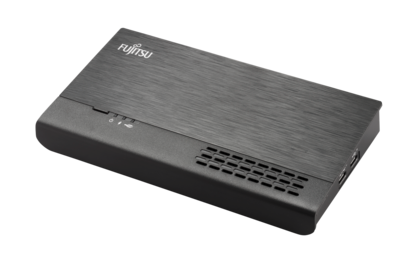

USB Port Replicator PR09
USB Port Replicator PR09
The Fujitsu USB Port Replicator PR09 is the perfect solution for shared desk environments within a hyperconnected world. It connects your mobile system to your main peripherals with a single USB plug. This Port Replicator is equipped with the most powerful DisplayLink chipset supporting high performance video streaming with Dualhead-DisplayPort.
Highest data throughput is guaranteed due to an USB Type-C based Gen2 Hub-Controller enabling up to 10 Gbit/s data streaming. The newest version of USB Power Delivery chipset (PD3.0) provides powerful charging during your workday.
|
|
Main Features |
Highlights |
|
Dualhead high-end graphics up to 4k |
Developed for shared multi-vendor system workplaces |
-
Main Features
Dualhead high-end graphics up to 4k
Singlehead up to 5k
Gigabit-LAN integrated
USB Type-C upstream
USB Power Delivery (PD3.0)
Multiport USB 3.1 Gen1 DFP hub
Multiport USB 3.1 Gen2 DFP hub
SPDIF digital audio 2.0 -
Highlights
Developed for shared multi-vendor system workplaces
System independent investment protection (TCO)
Future proof & backwards compatible (e.g. to USB-A systems)
Easy IT integration (PXE / MAC spoofing support)
Mac Address Pass Through (MAPT) for Fujitsu Notebooks enabling MAPT in the BIOS from S3 or lower.
Fast one-cable connection for data and power
Global country certifications
Appealing design ID workplace device
Tech Specs
| Product |
USB Port Replicator PR09 |
| Color |
Black |
| Required interface |
USB Type-C |
| Power supply |
1 AC/DC Power Adapter 120 W (package content) |
| DC-in |
20 V |
| DisplayPort |
2 (DP1.2a as Dualmode DP++) |
| Kensington Lock support |
yes |
| Resolution |
show full list of resolutions |
| System requirements |
For office and productivity: Intel Core i3 2+ GHz / Intel Core M / AMD Trinity or better USB 3.1 Gen 2 recommanded 40MB of free storage space |
| Power supply input |
100-240 V AC 50-60 Hz |
| Power supply output |
20 V DC at 6 A |
| Package content |
USB Port Replicator PR09 AC/DC Adapter 20 V, 120 W EU-power cord, 1,8 m USB Type-C cable, 1 m Quick Start Guide Service Desk & Warranty Informations Safety Notes Informationcard for driver download |
| Weight |
340 g (device only w/o AC-Adapter) |
| Dimensions (W x D x H) |
200 x 97.6 x 29 mm |
| Acc order code SAP |
S26391-F6007-L500 |
| Warranty type |
Bring-In / Send-In Service (depending on country) |
| Warranty Terms & Conditions |
http://www.fujitsu.com/warranty |
| Warranty Terms & Conditions |
http://www.fujitsu.com/warranty |
