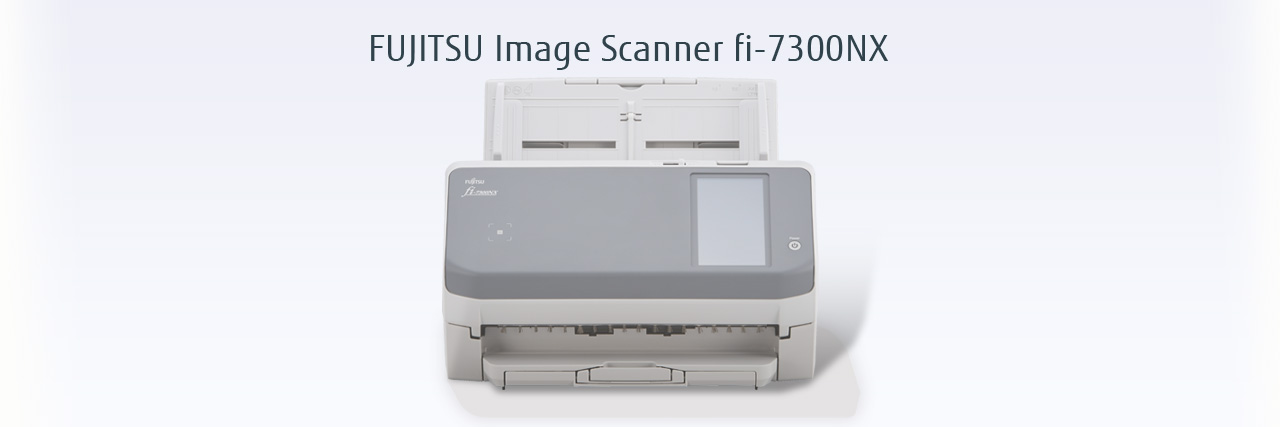

mainvisual_fi7300nx

.

Overview

How it works

Gateway to flexible capture

The fi-7300NX boasts a speed of 60 ppm/120 ipm (200/300 dpi) for scanning A4 portraits, loads up to 80 sheets at a time, and ensures utmost efficiency as the first standalone* scanner in the world to support 5 GHz Wi-Fi.

*Based on a study by PFU Limited on scanners with Wi-Fi connectivity (September 4th, 2018).

  • Scan from the scanner with touch screen operation
  • Various authentication methods for improved efficiency and security
  • Scan from your smart device to any business platform
  • 3 types of SDKs to suit any environment
  • PaperStream NX Manager and Scanner Central Admin for centralized management
  • Paper Protection function protects scans from jamming by detecting anomalies in document length and sound
  • Manual Feed Mode for scanning folded or bound documents




PDF Datasheet (1.92 MB )

Features

Seamless integration into business systems

Users can begin scanning from the scanner’s touch screen or from various applications on smart devices to suit all business needs. Not only is direct data transfer to client-unique web systems possible with SDK use, but secure data transfer is also possible with strong data encryption.

Scan without the computer

Users can scan and save documents without any requirement for a local computer. They can simply login to the scanner using user authentication and select a job from their personalized job menus on the fi-7300NX’s touch screen. Customized job menus ensure efficient and secure decentralized data entry is possible for each user.

The fi-7300NX supports NFC (Type-A and Type-B) authentication and user authentication with username and password input on the touch screen. It is also possible for different job menus to be assigned to each scanner, and avoid any authentication processes.





Scan from your smart device to any business platform

With PaperStream NX Manager, users can scan from mobile or web applications opened up on smart devices or thin client terminals. Seamless integration into company systems enables use of a variety of devices for scanning operations.





3 types of SDK to suit user environments

The PaperStream NX Manager SDK is provided to enable integration with various client systems and applications. Developers can utilize suitable SDK for their clients who want to use their own systems.

・REST API

An interface for development of web applications that carry out scanning functions. With the REST API, web applications can call on the fi-7300NX to scan paper documents.

・Authentication API

An interface for development of applications that use the fi-7300NX’s authentication function. Not only can users link the scanner to NFC, but can also link the scanner with their currently used authentication server.

・Connector API

An interface for development of applications designed to link PaperStream NX Manager with various systems. With the Connector API, users can link to their business systems or OCR/document management software.

Reduce operation cost with centralized management

The user authentication function, job menu, and other scan settings are all centrally managed with PaperStream NX Manager and Scanner Central Admin. With the fi-7300NX’s server software, there is no need for the conventional single client computer to scanner environment and the system administrator to stand by the scanner. This reduces the total burden of installation*, expansion, operation, and management.

*Installation requires other tools such as fi-7300NX Rollout Tool and Network Setup Tool for fi-7300NX.

Manage jobs and process images with PaperStream NX Manager

The server software carries out user authentication, job management, image processing of scanned data, and data output for the fi-7300NX. Automatic sharing of authentication methods and job settings throughout all connected scanners can be done with PaperStream NX Manager, capable of managing up to 1,000 fi-7300NX scanners.

Monitor scanner operation with Scanner Central Admin

The software specializes in centralized management of multiple scanners, including batch updates of scanner settings and firmware, as well as monitoring of errors and consumables status. This is also capable of managing up to 1,000 scanners per server.

User-friendly hardware

Consistent, high-speed scanning

Inheriting the fi Series legacy of high-speed, consistent paper feeding, the fi-7300NX boasts a speed of 60 ppm/120 ipm for A4 size documents*1. Documents folded in half and carbon-copy sales slips are also an ease to scan with Manual Feed Mode. As the first standalone scanner in the world*2 to support Wi-Fi in the 5 GHz bandwidth*3, the fi-7300NX reduces potential stress from waiting time of data transfer.

*1 A4 size documents fed in vertically, 200/300 dpi.
*2 Based on a study by PFU Limited on scanners with Wi-Fi connectivity (September 4th, 2018).
*3 5 GHz Wi-Fi availability may vary across regions.

4.3 inch touch screen

The touch screen enables users to perform operations intuitively, like scanning and data checking, with thumbnail reviews of scans. The screen also displays messages or instructions with illustrations so that users can handle errors themselves.





Suitable operation methods for your environments

When scanning with computers, the fi-7300NX can be used with PaperStream IP, a specialized scanner driver for Fujitsu image scanners, via Wi-Fi connection, wired network, and USB connection. Connection without need for the USB cable allows the scanner to be positioned wherever needed, to improve user productivity, reduce interruptions, and make more room for more frequently used equipment.

Both advanced driver and software, PaperStream IP and PaperStream Capture, enable users to fully enjoy simple scanning operations and high quality images, like our other Fujitsu image scanners.

Specifications

Product Name fi-7300NX
Scanner Type ADF (Automatic Document Feeder), Duplex
Scanning Speed(1) (A4 Portrait)
(Color(2)/Grayscale(2)/Monochrome(3))
Simplex: 60 ppm (200/300 dpi)
Duplex: 120 ipm (200/300 dpi)
Image Sensor Type Color CCD x 2 (front x 1, back x 1)
Light Source White LED Array x 2 (front x 1, back x 1)
Optical Resolution 600 dpi
Output Resolution(4)
(Color / Grayscale / Monochrome)
50 to 600 dpi (adjustable by 1 dpi increments), 1,200 dpi (driver)(5)
Output Format Color: 24-bit, Grayscale: 8-bit, Monochrome: 1-bit
Background Colors White / Black (selectable)
Document SizeMaximum(6)216 x 355.6 mm (8.5 x 14 in.)
Minimum(7)50.8 x 54 mm (2 x 2.1 in.)
Long Page Scanning(8)5,588 mm (220 in.)
Paper Weight (Thickness)Paper27 to 413 g/m² (7.2 to 110 lb)(9)
Plastic Card1.4 mm (0.055 in.) or less(10)
ADF Capacity(11)(12) 80 sheets (A4 80 g/m² or Letter 20 lb)
Expected Daily Volume(13) 9,000 sheets
Multifeed Detection Overlap detection (Ultrasonic sensor), Length detection
Paper Protection Lag detection, Sound detection (iSOP)(14)
Display 4.3 in. TFT color touch screen
Authentication Keyboard (on touch screen), NFC
Interface USB USB 3.1 Gen1 / USB 3.0 / USB 2.0 / USB 1.1
Ethernet 10BASE-T, 100BASE-TX, 1000BASE-T
Wi-Fi IEEE802.11 a/b/g/n/ac
Frequency band: 2.4 GHz / 5 GHz (15)
Network Protocols IPv4(16), TCP, UDP, ICMP, DHCP, HTTP/HTTPS, DNS
Power Requirements AC 100 to 240 V ±10 %
Power Consumption(17) Operating 42 W or less
Power Saving 2.4 W or less
Power Off 0.35 W or less
Operating Environment Temperature 5 to 35 °C (41 to 95 °F)
Relative Humidity 20 to 80% (Non-condensing)
Environmental Compliance ENERGY STAR®, RoHS
Dimensions(18) (W x D x H) 300 x 202 x 170 mm (11.8 x 7.9 x 6.6 in.)
Weight 4.9 kg (10.8 lb) or less
Supported Operating System Windows® 10 (32-bit/64-bit), Windows® 8.1 (32-bit/64-bit), Windows® 7 (32-bit/64-bit), Windows Server® 2019 (64-bit), Windows Server® 2016 (64-bit), Windows Server® 2012 R2 (64-bit), Windows Server® 2012 (64-bit), Windows Server® 2008 R2 (64-bit), Windows Server® 2008 (32-bit/64-bit)
Included Software / Drivers PaperStream IP Driver (TWAIN/TWAIN x64/ISIS), WIA Driver(19), PaperStream Capture, ScanSnap Manager for fi Series(20), Software Operation Panel, Network Setup Tool, ABBYY FineReader for ScanSnap™(20), Scanner Central Admin
Image Processing Functions Error diffusion, Dither
Included Items Chuter unit, AC cable, AC adapter, USB cable, Setup DVD-ROM
  1. Actual scanning speeds are affected by data transmission and software processing times.
  2. Indicated speeds are from using JPEG compression.
  3. Indicated speeds are from using TIFF CCITT Group 4 compression.
  4. Selectable maximum density may vary depending on the length of the scanned document.
  5. Some limitations may apply to the size of documents that can be scanned, depending on system environment, when scanning at high resolution (over 600 dpi).
  6. Scans folded documents of up to 297 x 432 mm (11.7 x 17 in.) with carrier sheet scanning.
  7. Capable of scanning in both portrait and landscape orientation.
  8. Capable of scanning documents longer than A4 (210 x 297 mm / 8.3 x 11.7 in.) sizes. When using PaperStream IP (TWAIN/ISIS) to scan at 200 dpi, the maximum scanning length is 5,588 mm (220 in.).
  9. Thicknesses of up to 128 to 209 g/m2 (34 to 56 lb) can be scanned for A8 (52 x 74 mm / 2.1 x 2.9 in.) sizes.
  10. Capable of scanning up to 3 cards at a time (Note: does not set more than one embossed card at a time).
  11. Maximum capacity depends on paper weight and may vary.
  12. Capable of setting additional documents while scanning.
  13. When operating 8 hours a day.
  14. Intelligent Sonic Paper Protection.
  15. Availability of 5 GHz Wi-Fi may vary depending on region.
  16. IPv6 is not supported.
  17. Scanner automatically enters power saving mode when not used and powers off by default when not used for 4 hours.
  18. Excludes the ADF paper chute and stacker.
  19. Functions equivalent to those offered by PaperStream IP may not be available with the WIA Driver.
  20. Software can be downloaded from the website designated in the Setup DVD-ROM.

Accessories

  Part Number Description
Consumables
Brake Roller PA03670-0001 Every 200,000 sheets or one year
Pick Roller PA03670-0002 Every 200,000 sheets or one year
Cleaner F1 PA03950-0352 100 ml bottle for Roller cleaning
Cleaning Wipe PA03950-0419 1 pack (24 sheets) for Roller cleaning
Cleaning Paper CA99501-0012 1 pack (10 sheets) for use with Cleaner F1
Options
Carrier Sheets PA03360-0013 Each package contains 5 carrier sheets
2D Barcode for PaperStream PA43404-A433 Reads PDF417, QR code, Data Matrix, Aztec Code
