FUJITSU Workstation CELSIUS

Powerful tools to speed up your design and creative workflows

CELSIUS workstations from Fujitsu support creativity, simulation, calculation and visualization at the highest professional level.

With end-to-end capabilities from design and engineering to production, CELSIUS workstations have gained a great reputation for offering ingenious thermal management and cooling as well as reaching world-leading benchmarks. All mobile, desktop and rack workstations are optimized for use with a host of leading applications such as Autodesk, Dassault Systèmes, Siemens PLM or PTC.

FUJITSU CELSIUS workstations are designed for those using demanding professional applications. Performance, reliability, expandability, serviceability and security are at the heart of these machines. These devices are built for power users who want to do things faster, wait less and achieve more in less time. Equipped with the latest NVIDIA^® Quadro^® GPUs, Intel^® Xeon^® and Core^TM i CPUs, massive memory and storage, FUJITSU CELSIUS workstations offer the highest levels of performance, visualization and data integrity.

Outstanding Performance

Graphics capability is most crucial for workstations. FUJITSU CELSIUS workstations come with the most advanced graphics cards from AMD and NVIDIA. They offer the latest and highest-specification CPUs, including a range of Intel^® Xeon^® and Core^TM i processors. For the most demanding multi-threaded processes, such as CPU ray-trace rendering, some workstations even have two CPUs. Our workstations support up to 2,933 MHz DDR4 memory. With massive storage capability and high-speed performance, FUJITSU Workstations enable super-fast rendering and near-real-time visualization.

Maximum Reliability

FUJITSU CELSIUS workstations use top-quality components and features such as advanced tri-channel thermal management for reliability and whisper-quiet operation. These devices also feature server-grade features, such as ECC memory to protect against crashes, and enterprise-class storage designed to handle multiple read / write cycles of colossal datasets. CELSIUS workstations are built for 24/7 operations with reliable high-endurance and business critical drives. Reliability goes beyond hardware – ISV certifications from leading ISVs mean our workstations are compatible and optimized for stability when running professional software applications.

Unrivalled Expandability

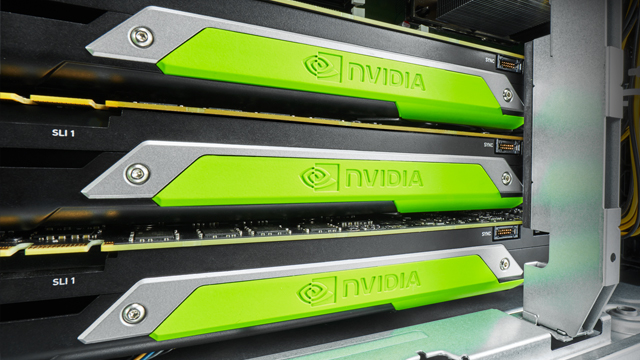

Workstations are built for expandability with some models able to take three ultra-high-end NVIDIA^® Quadro^® graphics cards, two Intel^® Xeon^® processors, up to 1 TB of DDR4 memory and multiple storage devices. With maximum component selection (processors, graphics cards and hard drives), multiple expansion bays, front access storage and tool-less design, CELSIUS workstations by Fujitsu offer virtually unmatched expandability.

Enterprise-Grade Security

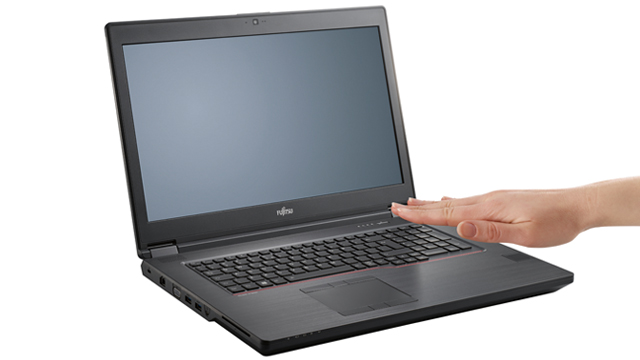

Our workstations offer extremely robust security features. Advanced security features, such as PalmSecure™, EraseDisk, SmartCard, Trusted Platform Module (TPM 2.0) ensure enterprise data security and peace of mind. Fujitsu mobile workstations have embedded PalmSecure™ (optional) – state-of-the-art, highly secure authentication system using biometric technology that authenticates users through vein pattern recognition. With CELSIUS, you can be more confident about the safety of your precious creative and design data.

Virtual Reality Software Development

“I needed a computer that was able to keep up with me; I do a lot of simulations and modeling and I need to run them all in real time. With FUJITSU CELSIUS Workstations, we have got a deal - I do the high-level thinking and it does the math."

- Juraj Hudák, VR designer

Find the right workstation

FUJITSU Workstation CELSIUS H7510

Windows 10 Pro for Workstations
True workstation performance: 10th Gen Intel^® Core™ or Intel^® Xeon^® processors; up to NVIDIA^® Quadro RTX™ 3000 graphics card
Improved memory and storage: Up to 128GB DDR4 memory, up to 4TB M.2 PCIe NVMe SSD storage
The world's most secure 15.6-inch mobile workstation with PalmSecure™ - Fujitsu's palm vein authentication technology
Full connectivity options (1x VGA, 1x HDMI) and mechanical port replicator

add to comparison

×

	FUJITSU Workstation CELSIUS H7510	FUJITSU Workstation CELSIUS C780	Fujitsu Workstation CELSIUS R970
Operating system	Windows 10 Pro Windows 10 Pro for Workstations Windows 10 Pro High End	Windows 10 Pro for Workstations Windows 10 Pro	Windows 10 Pro. Fujitsu recommends Windows 11 Pro for business.
Chipset	Intel^® QM480 or WM490 (depending on CPU)	Intel^® C246	-
Processor	Intel^® Core™ i5-10400H processor, 2.60 GHz, up to 4.6 GHz Intel^® Core™ i7-10875H processor, 2.30 GHz, up to 5.1 GHz Intel^® Core™ i7-10850H processor, 2.70 GHz, up to 5.1 GHz Intel^® Core™ i9-10885H processor, 2.40 GHz, up to 5.3 GHz Intel^® Xeon^® processor W-10885M, 2.4 GHz, up to 5.3 GHz Intel^® Xeon^® processor W-10855M, 2.80 GHz, up to 5.1 GHz	Intel^® Xeon^® processor E-2224G, 8 MB, 3.50 GHz, up to 4.7 GHz Intel^® Xeon^® processor E-2224, 8 MB, 3.40 GHz, up to 4.6 GHz Intel^® Xeon^® processor E-2234, 8 MB, 3.60 GHz, up to 4.8 GHz Intel^® Xeon^® processor E-2236, 12 MB, 3.40 GHz, up to 4.8 GHz Intel^® Xeon^® processor E-2244G, 8 MB, 3.80 GHz, up to 4.8 GHz Intel^® Xeon^® processor E-2246G, 12 MB, 3.60 GHz, up to 4.8 GHz Intel^® Xeon^® processor E-2274G, 8 MB, 4.00 GHz, up to 4.9 GHz Intel^® Xeon^® processor E-2276G, 12 MB, 3.80 GHz, up to 4.9 GHz Intel^® Xeon^® processor E-2278G, 16 MB, 3.40 GHz, up to 5.0 GHz Intel^® Xeon^® processor E-2286G, 12 MB, 4.00 GHz, up to 4.9 GHz Intel^® Xeon^® processor E-2288G, 16 MB, 3.70 GHz, up to 5.0 GHz Intel^® Core™ i9-9900 processor, 16 GB, 3.10 GHz, up to 5.0 GHz Intel^® Core™ i9-9900K processor, 16 GB, 3.60 GHz, up to 5.0 GHz Intel^® Core™ i7-9700K processor, 12 MB, 3.60 GHz, up to 4.9 GHz Intel^® Core™ i5-9500 processor, 9 MB, 3.00 GHz, up to 4.4 GHz Intel^® Core™ i3-9100 processor, 6 MB, 3.60 GHz, up to 4.2 GHz	Intel^® Xeon^® Silver processor 4215R Intel^® Xeon^® Silver processor 4214R Intel^® Xeon^® Silver processor 4210R Intel^® Xeon^® Platinum processor 8276 Intel^® Xeon^® Gold processor 6244 Intel^® Xeon^® Gold processor 6240R Intel^® Xeon^® Gold processor 6240 Intel^® Xeon^® Gold processor 6226R Intel^® Xeon^® Gold processor 5222 Intel^® Xeon^® Gold processor 5220R Intel^® Xeon^® Gold processor 5218R
Supported capacity RAM (max.)	128 GB, 4 Memory slot(s) SO DIMMBased on Intel^® design, systems built with four DIMM slots run at 2400 MT/s.	128 GB, 4 Memory slot(s) DIMM (DDR4) ECC/non-ECC, Dual channel support, For dual channel performance, 2 memory modules have to be ordered. Capacity per channel has to be the same. 2666 MHz may be clocked down to 2400 MHz depending on processor and memory configuration	1024 GB, DIMM (DDR4) ECC, 2933 MT/s
Hard disk drive	HDD SATA III, 5,400 rpm, 1000 GB PCIe-SSD, NVMe, 1024 GB Highend, M.2 module PCIe-SSD, NVMe, 2048 GB Highend, M.2 module PCIe-SSD, NVMe, 256 GB Highend, M.2 module HDD SATA III, 5,400 rpm, 500 GB SSD SATA III, 512 GB, M.2 module, SED PCIe-SSD, NVMe, 512 GB Highend, M.2 module PCIe-SSD, NVMe, 512 GB Highend, M.2 module, SED	-	-
Interfaces	1x x DC-in 1 x Audio: line-in / line-out 2x digital array microphones x Internal microphones 1x (type A) power off charge x USB 3.1 Gen1 (USB 3.0) total 2 x USB Type-C 1x x VGA 1 x HDMI 1× x Ethernet (RJ-45) 1x x SmartCard slot 1 x SIM card slot	2 x USB 2.0 total 2x 2.0 x USB front 1x 3.0 x USB internal 3x 3.0 x USB rear 1 x Serial (RS-232, optional via slot bracket) 1 (IRMC) x VGA 2 x Ethernet (RJ-45)	-
Display	39.6 cm (15.6-inch), LED backlit, (Full HD), Anti-glare IPS display, 700 typ., 400 cd/m²	-	-
Graphics brand name	NVIDIA^® Quadro RTX™ 3000 NVIDIA^® Quadro^® T2000 NVIDIA^® Quadro^® T1000 NVIDIA^® Quadro^® P620	-	-
Camera	Built-in webcam (Full HD) with Status LED	-	-
Weight	from 2.7 kg - Actual weight may vary depending on configuration from 5.95 lbs	approx. 13 kg approx. 28.7 lbs	-
Dimensions (W x D x H)	380.0 x 258.0 x 31.9 mm 14.96 x 10.16 x 1.26 inch	-	-
Runtime battery	up to 12 hours (depending on configuration)	-	-
Audio codec	Realtek ALC255 with MaxxAudio	-	-
Audio features	Stereo speakers, 2 digital microphones	-	-
3G/4G (optional)	Sierra Wireless EM7421 (Cat. 7)	-	-
LAN	10/100/1,000 MBit/s Intel^® I219LM	-	-
Warranty	3 years (depending on country)	-	-
Graphics features	-	Ultra-high-end 3D: NVIDIA^® Quadro^® GV100, 32 GB, PCIe x16, 4 x DisplayPort Ultra-high-end 3D: NVIDIA^® Quadro^® RTX 8000, 48 GB, PCIe x16, 4 x DisplayPort, 1 x Virtual Link Ultra-high-end 3D: NVIDIA^® Quadro^® RTX 6000, 24 GB, PCIe x16, 4 x DisplayPort, 1 x Virtual Link Ultra-high-end 3D: NVIDIA^® Quadro^® P6000, 24 GB, PCIe x16, 1 x Dual Link DVI-D, 4 x DisplayPort Ultra-high-end 3D: NVIDIA^® Quadro^® RTX 5000, 16 GB, PCIe x16, 4 x DisplayPort, 1 x Virtual Link High-end 3D: NVIDIA^® Quadro^® RTX 4000, 8 GB, PCIe x16, 3 x DisplayPort, 1 x Virtual Link High-end 3D: NVIDIA^® Quadro^® P4000, 8 GB, PCIe x16, 4 x DisplayPort Midrange 3D: NVIDIA^® Quadro^® P2200, 5 GB, PCIe x16, 4 x DisplayPort Entry 3D: NVIDIA^® T1000, 4 GB, PCIe x16, 4 x miniDP Entry 3D: NVIDIA^® Quadro^® P1000, 4 GB, PCIe x16, 4 x miniDP Entry 3D: AMD Radeon™ Pro WX 2100, 2 GB, 320 stream processors, PCIe x16, 1 x DisplayPort, 2 x miniDP Entry 3D: NVIDIA^® T600, 4 GB, PCIe x16, 4 x miniDP Entry 3D: NVIDIA^® Quadro^® P620, 2 GB, PCIe x16, 4 x miniDP Entry 3D: NVIDIA^® T400, 2 GB, PCIe x16, 3 x miniDP Entry 3D: NVIDIA^® Quadro^® P400 , 2 GB, PCIe x16, 3 x miniDP Remote Graphics: CELSIUS RemoteAccess Dual Card, PCIe x1, 2 x miniDP, PCoIP Remote Graphics: CELSIUS RemoteAccess Quad Card, PCIe x1, 4 x miniDP, PCoIP Others: DP to DVI-D (single link) Adapter Cable Others: MiniDP to DP Adapter Cable	-
Drive bays	-	-	1 x M.2-2280 8 x 2.5-inch internal bays 4 x 3.5-inch internal bays 2 x 3.5-inch external bays 1 x 5.25-inch external bays
Graphics	-	-	NVIDIA RTX™ A4000, 16 GB AMD Radeon™ Pro WX 3200, 4 GB NVIDIA RTX A6000, 48 GB NVIDIA RTX™ A5000, 24 GB NVIDIA RTX™ A2000, 6 GB NVIDIA RTX A4500, 20 GB NVIDIA^® Quadro^® GV100, 32 GB NVIDIA^® Quadro^® RTX 6000, 24 GB NVIDIA^® Quadro^® P6000, 24 GB NVIDIA^® Quadro^® RTX 4000, 8 GB NVIDIA^® Quadro^® P2200, 5 GB NVIDIA^® T1000, 4 GB NVIDIA^® Quadro^® P1000, 4 GB NVIDIA^® T600, 4 GB NVIDIA^® T400, 2 GB CELSIUS RemoteAccess Dual Card CELSIUS RemoteAccess Quad Card DP to DVI-D (single link) Adapter Cable MiniDP to DP Adapter Cable

×

FUJITSU CELSIUS Workstation stories

Media & Entertainment (animation)

"CELSIUS workstations made the photogrammetry possible for this project. We accelerated our work time per episode by about 30% and reduced animation production time by almost six months.”

Gigapixel Panorama Stitching

"A typical Desktop computer would run for a number of days, while the CELSIUS R970 workstation gets the job down within hours.”

UYO Architects

“We were able to quickly and easily turn the CAD project into interactive, real-time experience. Using mobile CELSIUS H980 workstation even allowed us to bring the VR to the green fields, which were yet to become a house."

Extraordinary Performance
