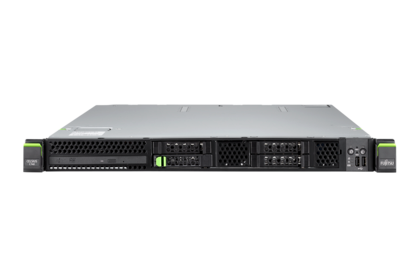

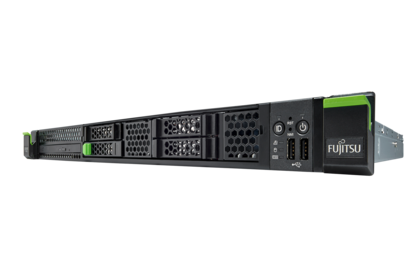

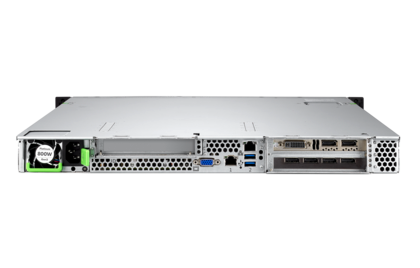

FUJITSU Workstation CELSIUS C740

Driven by German precision engineering and innovation, Fujitsu’s engineers maximized rack density in the datacenter while at the same time offering true workstation performance in only 1U. This allows customers in the automotive, aeronautic, broadcasting,energy as well as healthcare industry to benefit from faster time-to-market and reduced innovation cycles from the safety of the datacenter.
  • Intel Xeon logo - Workstations (except Mobile WS)
  • NVIDIA generic logo
  • CELSIUS: AMD FirePro Logo

Features & Benefits

Features Benefits
Windows
  • Windows 10 Pro
  • Windows 7 Professional 64-bit

  • Easy integration into customers’ existing infrastructure
Manageability
  • Windows® Server 2012 R2
  • The integrated Remote Management Controller iRMC S4 allows comprehensive control, irrespective of the system status
  • ServerView embedded Lifecycle Management (eLCM) offers image management and enables LAN enhanced security and stability in a fully automized environment
  • Easy to set-up

  • Server based management in a rack workstation
Energy efficiency
  • Temperatures in the data center can now vary between 5 °C and 40 °C
  • Benefits: cost savings and optimization potential

  • Fujitsu’s Cool-safe® Advanced Thermal Design technology for a broader range of ambient temperature
Best visualization - even virtualized
  • Support of up to two high-end graphic cards (single height) or one ulta-high-end graphic card (double height)
  • Up to 256 GB DDR4 (2133 MHz) memory

  • Meeting your demands as a 1:1 remote workstation, a 1:n virtualized workstation or even a node in a render cluster
Storage Flexibility
  • SATA DOM: Disk-On-Module with SSD performance i.e. for booting your hypervisor
  • Fujitsu PCIe SSD: Choice of on-board or PCIe card solution for maximum I/O performance
  • SATA SSD: High-speed SATA SSDs

  • Comprehensive choice of storage solutions

Technical details

ProductCELSIUS C740
Operating systemWindows 10 Pro
Windows 7 Professional 64-bit
Additional software (preinstalled)Nero Essentials S (burning software)
Fujitsu Recovery (hard disk based recovery)
Norton Internet Security (incl. Firewall) 60 days version
Microsoft Office (buy license to activate the pre-installed Microsoft Office)
MainboardD3288-A2 (proprietary )
ChipsetIntel® C612
Processor Type, Second Level cache, Processor frequencyIntel® Xeon® processor E5-2699v4, 55 MB, 2.20 GHz
Intel® Xeon® processor E5-2697v4, 45 MB, 2.30 GHz
Intel® Xeon® processor E5-2690v4, 35 MB, 2.60 GHz
Intel® Xeon® processor E5-2680v4, 35 MB, 2.40 GHz
Intel® Xeon® processor E5-2650v4, 30 MB, 2.20 GHz
Intel® Xeon® processor E5-2640v4, 25 MB, 2.40 GHz
Intel® Xeon® processor E5-2630v4, 25 MB, 2.20 GHz
Intel® Xeon® processor E5-2643v4, 20 MB, 3.40 GHz
Intel® Xeon® processor E5-1680v4, 20 MB, 3.40 GHz
Intel® Xeon® processor E5-1660v4, 20 MB, 3.20 GHz
Intel® Xeon® processor E5-2620v4, 20 MB, 2.10 GHz
Intel® Xeon® processor E5-2609v4, 20 MB, 1.70 GHz
Intel® Xeon® processor E5-1650v4, 15 MB, 3.60 GHz
Intel® Xeon® processor E5-2637v4, 15 MB, 3.50 GHz
Intel® Xeon® processor E5-2603v4, 15 MB, 1.70 GHz
Intel® Xeon® processor E5-1630v4, 10 MB, 3.70 GHz
Intel® Xeon® processor E5-1620v4, 10 MB, 3.50 GHz
Intel® Xeon® processor E5-1607v4, 10 MB, 3.10 GHz
Intel® Xeon® processor E5-1603v4, 10 MB, 2.80 GHz
Intel® Xeon® processor E5-2623v4, 10 MB, 2.60 GHz
Intel® Xeon® processor E5-1660v3, 20 MB, 3.00 GHz
Intel® Xeon® processor E5-1650v3, 15 MB, 3.50 GHz
Intel® Xeon® processor E5-1630v3, 10 MB, 3.70 GHz
Intel® Xeon® processor E5-2697Av4, 40 MB, 2.60 GHz
Processor quantity maximum1
Supported capacity RAM (max.)512 GB, 8 Memory slot(s) DIMM (DDR4) ECC, Quad channel support. For quad channel performance, a minimum of 4 memory modules have to be ordered. Capacity per channel has to be the same.
Serial ATA6 x Serial ATA total
Controller functionsSerial ATA III (6 Gbit), NCQ, AHCI, RAID 0/1/5/10
SATA RAID support0, 1, 10, 5
Drives (optional)DVD Super Multi ultra slim (tray), SATA
Hard disk driveSSD SATA III, 1024 GB, 2.5-inch
SSD SATA III, 512 GB, 2.5-inch
SSD SATA III, 480 GB, 2.5-inch
SSD SATA III, 256 GB, 2.5-inch, SED
SSD SATA III, 256 GB, 2.5-inch
SSD SATA III, 240 GB, 2.5-inch
SSD SATA III, 128 GB, 2.5-inch
PCIe-SSD, 1024 GB Highend, M.2 module
PCIe-SSD, 1024 GB
PCIe-SSD, 512 GB Highend, M.2 module
PCIe-SSD, 512 GB
PCIe-SSD, 256 GB Highend, M.2 module
PCIe-SSD, 256 GB
HDD SATA III, 10,000 rpm, 500 GB, 2.5-inch, business critical
HDD SATA III, 7,200 rpm, 2,000 GB, 2.5-inch, business critical
HDD SATA III, 7,200 rpm, 1000 GB, 2.5-inch, enhanced availability
HDD SATA III, 7,200 rpm, 1,000 GB, 2.5-inch, business critical
HDD SATA III, 7,200 rpm, 500 GB, 2.5-inch, enhanced availability
HDD SAS, 10,000 rpm, 1200 GB, 2.5-inch
HDD SAS, 10,000 rpm, 900 GB, 2.5-inch
HDD SAS, 10,000 rpm, 600 GB, 2.5-inch
DOM SATA, 128 GB, enterprise
DOM SATA, 64 GB, enterprise
Drive bays1 x 5.25-inch external bays
Slots1 x PCI-Express 3.0 x16
Interfaces2 x USB 2.0 total
2x 2.0 x USB front
1x 3.0 x USB internal
2x 3.0 x USB rear
1 x Serial (RS-232, optional via slot bracket)
1 (IRMC) x VGA
2 x Ethernet (RJ-45)
Graphics featuresUltra-high-end 3D: NVIDIA® Quadro® M6000, 24 GB, 3,072 cores, PCIe x16, 1x Dual Link DVI-I, 4 x DisplayPort, stereo, SLI
Ultra-high-end 3D: AMD FirePro™ W9100, 16 GB, 2816 stream processors, PCIe x16, 6x miniDP, 6x miniDP/DP Adapter
Ultra-high-end 3D: NVIDIA® Quadro® M5000, 8 GB, 2304 cores, PCIe x16, 1x Dual Link DVI-I, 4 x DisplayPort
High-end 3D: AMD FirePro™ W7100, 8 GB, PCIe x16, 4 x DisplayPort
High-end 3D: NVIDIA® Quadro® M4000, 8 GB, 1344 cores, PCIe x16, 4 x DisplayPort
Midrange 3D: NVIDIA® Quadro® M2000, 4 GB, 768 cores, PCIe x16, 4 x DisplayPort
Midrange 3D: AMD FirePro™ W5100 , 4 GB, PCIe x16, 4 x DisplayPort
Midrange 3D: AMD FirePro™ W4300, 4 GB, 512 stream processors, PCIe x16, 4x miniDP, 4x miniDP/DP Adapter
Entry 3D: NVIDIA® Quadro® K1200, 4 GB, 384 cores, PCIe x16, 4x miniDP, 4x miniDP/DP Adapter
Entry 3D: AMD FirePro™ W4100, 2 GB, 512 stream processors, PCIe x16, 4x miniDP, 4x miniDP/DP Adapter
Entry 3D: NVIDIA® Quadro® K620, 2 GB, 384 cores, PCIe x16, 1x Dual Link DVI-I, 1x DisplayPort
Entry 3D: AMD FirePro™ W2100, 2 GB, 320 stream processors, PCIe x16, 2x DisplayPort
Entry 3D: NVIDIA® Quadro® K420, 2 GB, 192 cores, PCIe x16, 1x Dual Link DVI-I, 1x DisplayPort
Professional 2D: NVIDIA® NVS™ 510, 2 GB, 16 cores, PCIe 2.0 x16, 4x miniDP, 4x miniDP/DP Adapter
Professional 2D: NVIDIA® NVS™ 315, 1 GB, 48 cores, PCIe 2.0 x16, 1x LFH59 (max. 2x DP or 2x DVI-I)
Remote Graphics: CELSIUS RemoteAccess Dual Card, PCIe x1, 2x miniDP, PCoIP
Remote Graphics: CELSIUS RemoteAccess Quad Card, PCIe x1, 4x miniDP, PCoIP
Others: DP to DVI-D (single link) Adapter Cable
Ultra-high-end 3D: NVIDIA® Quadro® P5000, 16 GB, PCIe x16, 1x Dual Link DVI-D, 4 x DisplayPort
Ultra-high-end 3D: NVIDIA® Quadro® P6000, 24 GB, PCIe x16, 1x Dual Link DVI-D, 4 x DisplayPort
LAN2x Built-in 10/100/1,000 MBit/s Intel® I217LM and Intel® I210AT
Weightapprox. 13 kg
approx. 28.7 lbs
Dimensions (W x D x H)431 x 683 x 44.45 mm
16.97 x 26.89 x 1.75 inch
Special features1 height unit only, Support of ultra high-end graphics or compute card, Made in Germany
Warranty period3 years (depending on country)
Warranty typeOnsite Service (depending on country)

Documents

Data Sheet - FUJITSU Workstation CELSIUS C740

Positioning Card - FUJITSU Workstation CELSIUS

ISV Overview - FUJITSU Workstation CELSIUS

Brochure - FUJITSU Workstation CELSIUS

Certificates

Hardware Maintenance & Software Support Offerings at a Glance

AMD FirePro™ graphic cards and FUJITSU CELSIUS workstation family
