Advanced Copy EC

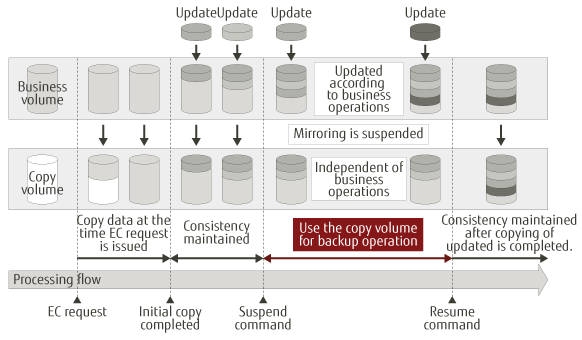

Equivalent Copy creates and maintains a copy volume (mirror) synchronized to the business data volume, until they are 'detached' (mirror suspend or break) to enable a backup operation to start.
As the detached copy volume contains the same data as the business volume - up to the time synchronization stopped, it can be used as a point-in-time copy for back up to a tape device while business operations continue on the original business volume.

Two methods of breaking the mirror are provided. If a complete break is made the copy volume is fully detached and any subsequent use of EC will copy all the operational data again to a new copy volume before maintaining the mirror in synchronization. If the Suspend/Resume functions are used (mirror suspend) the same copy can be resumed. In this case only the differences between the business and copy volume will be copied until synchronization is once again reached and then maintained.
Which method of re-establishing synchronization will depend on how long the copy volume has been detached. If the suspension time is relatively short, the suspend resume method will be quickest.

Advanced Copy EC

Applicable Operation

  • Operations where there is need to avoid competition between heavy load operations such as storage copying and batch transactions.

Benefits

  • Ensures significant reductions in time, by enabling backup data to be created and maintained in parallel with normal business operations.
  • Enables copy data to be detached and used for other processes, data discovery, batch enquiries, system testing, at any point in time, without effect on operational processes.

Product Requirements

Supported Storage Disk Storage Systems ETERNUS DX60 S3
ETERNUS DX100 S3/DX200 S3
ETERNUS DX500 S3/DX600 S3
ETERNUS DX8700 S3/DX8900 S3
ETERNUS DX60/DX60 S2
ETERNUS DX80/DX80 S2
ETERNUS DX90/DX90 S2
ETERNUS DX400/DX400 S2 series
ETERNUS DX8000 series/DX8700 S2
ETERNUS4000, ETERNUS8000
All Flash Arrays ETERNUS DX200F
Supported Servers GlobalServer, Mission Critical IA Server
UNIX Server, Industry Standard Servers
Operational Interface GlobalServer Systemwalker StorageMGR GR/CF
Mission Critical IA Server
UNIX Server
Industry Standard Servers
ETERNUS SF AdvancedCopy Manager 16

*Note: Products/features/support content introduced on this page may be modified without notice.
