MB86R01 "Jade"

MB86R01 "Jade"

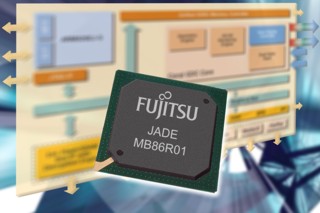

Fujitu's first System-on-Chip (SoC) Graphics Controller

MB86R01 'Jade'

Description

MB86R01 'Jade' Graphic Controller SoC Fact Sheet (2.09 MB )
MB86R01 'Jade' is a highly-integrated device for embedded automotive graphics applications. Incorporating an ARM926EJ-S CPU core, together with an enhanced version of the successful Coral PA graphic processor and a number of external interfaces, this 90nm technology device is highly optimized for various types of applications which require outstanding CPU performance in combination with sophisticated 2D/3D graphics features in a compact SoC. Target applications include on-board and mobile navigation systems, graphical dashboard systems, HUD (head-up display) units, rear seat entertainment systems, Point of Sales terminals and industrial control panels.

Visteon, Land Rover and Fujitsu Case Study

MB86R01 'Jade' Block DiagramMB86R01 'Jade' Block Diagram



Top of Page


Key Features

  • CMOS 90 nm technology
  • ARM926EJ-S CPU core with 16kb instruction and 16kb data cache
  • CPU core: 16kb ITCM / 16 kb DTCM, ETM9 and JTAG ICE interface
  • Internal/memory frequency: 320 MHz
  • Display resolutions typically from 320 x 240 up to 1280 x 768
  • 6 layers of overlay display (windows)
  • Alpha plane and constant alpha value for each layer
  • Dual display output (2 seperate display controllers are integrated supporting RGB8, RGB16 and RGB24)
  • Dual digital video input (2 seperate video capture units supporting various formats including YUV, RGB and ITU656)
  • Video scaler (up/down scaling)
  • Brightness, Contrast, Saturation control
  • Rendering engine for 2D/3D graphic acceleration functions
  • Geometry processor supporting floating point transformations
  • Texture mapping unit (up to 4096 x 4096)
  • Bit BLT Unit for transfers up to 4096 x 4096 surfaces
  • Alpha Bit BLT and ROP2 functions
  • External DDR2-SDRAM interface (320MHz) for graphic memory (up to 128Mbytes)
  • Parallel flash/SRAM host interface with decryption engine
  • Parallel ATA interface
  • SD card interface
  • CAN interface
  • Media LB interface
  • USB 2.0 (host and function) interface
  • I2C interface
  • I2S interface
  • UART interface
  • Program protection support: support for encrypted program code helps prevent unauthorized changes or access
  • BGA-484 Package
  • Temperature range -40 to +85 °C

Top of Page


Documentation / Support


Fact Sheet (2.09 MB )
BGA-484P-M07 Specification (40 KB)

Technical Backgrounder

Unlocking the 3D Capabilities of Fujitsu Graphics Display Controllers

Application Notes


Using NOR Flash Bigger than 32MB with the MB86R0x “Jade” Family (908 KB)
Using More than Two Displays with MB86R01 ‘Jade’ (256 KB)
JTAG Flash Programming with MB86R01 ‘Jade’ (500 KB)

User Manuals


ARM Tool Chain Setup on MB86R01 ‘Jade’ Board (475 KB)
Installing myCable Linux Tool Chain on MB86R01 ‘Jade’ Starter Kit (521 KB)



Top of Page


Development Tools

PCI Board for PC's

An evaluation board and a starterkit will be made available for MB86R01 'Jade'.
A ZIPBitmap Converter (138 KB/sw-bmpconverter.zip) tool is available for this Graphics Controller (139KB ZIP)
A ZIPFont Converter (117 KB/sw-fontconverter.zip) tool is available for this Graphics Controller (117KB ZIP)


Top of Page


Software

This section provides access to examples and demo software as well as links to software development tools.


Top of Page


GDC Ordering Information

MB86R01 'Jade' Graphic Display Controller

Ordering part number (lead-free package): MB86R01RB-GSE1

General Package Guide (2.41 MB ) (195 pages, 2.5MB)
