The Fujitsu Server PRIMERGY CX400 M1 helps to meet the immense challenges now facing companies as well as research and development institutions. The system with only 2 height units contains up to four server nodes, 8 Intel® Xeon® processors and 64 DDR4 memory DIMMs, thus providing the very highest performance and energy efficiency levels.
  • 2Star Icon - Green IT
  • PRIMERGY 20years Badge

Features & Benefits

Features Benefits
Condensed 4-in-2U server density
  • The PRIMERGY CX400 M1 features up to 4 half-wide dual socket server nodes plus up to 24 storage drives in a single 2U enclosure.

  • 50% less rack space in comparison with standard rack servers enables to scale-out more smartly. Higher server density results in more performance per rack unit (4 servers, 8 processors, 24 drives and 64 DIMMs in 2U chassis).
Server nodes for every scenario
  • Different dual socket server nodes featuring latest Intel® Xeon® processor E5-2600 v4 product family
  • Standard server node, 16 DIMMs (1U)
  • Enhanced HPC node with up to two GPGPU or co-processor cards, 16 DIMMs (2U)

  • Different types of server nodes allow for best match to particular scale-out solution stacks.
  • Latest Intel CPU technology for top performance and lower energy budgets.
Traditional air cooling or optional liquid cooling
  • The PRIMERGY CX400 M1 complies to conventional datacenter front-to-back airflow and cooling and standard 19” industry rack infrastructure and applications.
  • The optional direct-to-chip hot water (40 °C / 105 °F) based Cool-Central® Liquid Cooling captures between 60-80% of the servers heat.

  • Easy rack-wide team play with already existing datacenter infrastructure lowers overall investment.
  • Helps to reduce data center cooling costs by over 50% and allows for 2.5-5x higher data center density.
Variable local storage
  • Up to 24x 2.5" hot-plug storage drives (HDD, SSD, PCIe) for 4 server nodes.

  • Flexibility of drive choice, adaptable to any demand
  • Up to 6 drives can be assigned to a single server node to suit even high storage demands

Technical details

System unit type2 U chassis for 19-inch rack
Weightup to 40 kg
Front baysStorage drives: 6x 2.5-inch, 12x 2.5-inch or 24x 2.5-inch (HDD, SSD)
Rear bays4 bays for half wide server trays CX25y0 M1/M2,2 x for PSU
Fan configuration4 non hot plug fans
Power supply configuration2x hot-plug power supply modules
Operating buttonsOn/off switch,ID button
Status LEDsIdentification (blue),Power (green)
Warranty period3 years
Warranty typeOnsite warranty
Recommended ServiceX - 24x7, Onsite Response Time: 4h - For locations outside of EMEIA please contact your local Fujitsu partner.
Service Lifecycle5 years

Server Nodes

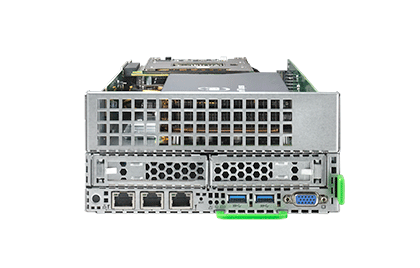

PRIMERGY CX2550 M1 / M2 front 3DThe PRIMERGY CX2550 M2 is a compact server node with support for the latest Intel® Xeon® processor E5-2600 v4 product family, enabling highest computing density with four independent servers in 2U. It is ideal for high performance computing, hosting, and hyper-converged stacks as well as in dedicated Big Data environments.

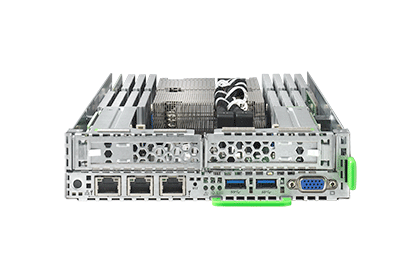

PRIMERGY CX2570 M1 / M2 fornt 3DThe PRIMERGY CX2570 M2 is a compact server node with support for the latest Intel® Xeon® processor E5-2600 v4 product family, two GPGPU or co-processor cards, enabling high computing density with two independent servers in 2U. It is ideal for ambitious high performance computing, analytics and visualization solutions.
