The sale of this product was terminated in September 2018.
The successor products is ETERNUS AF650 S2.
Archived content
NOTE: this is an archived page and the content is likely to be out of date.

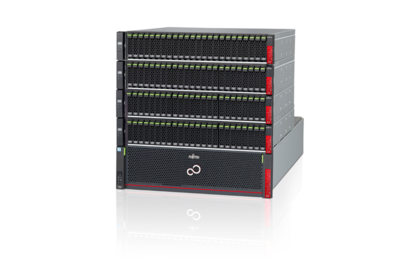

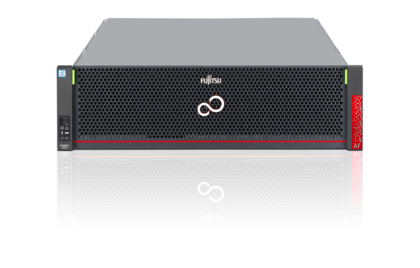

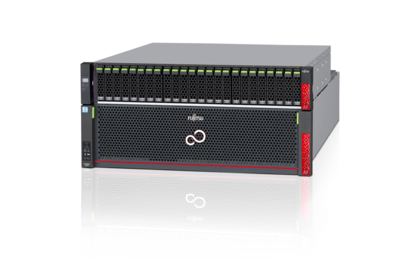

FUJITSU Storage ETERNUS AF650
The Fujitsu All-Flash Storage system ETERNUS AF650 delivers leading storage performance and automated quality of service management enabling a maximum of system utilisation and contributing to a fast ROI. It is the perfect solution when consolidating data of large-scale databases, business-critical applications and business analytics / big data – all into one all-flash system. Extensive high-availability and disaster recovery capabilities make ETERNUS AF650 an ideal storage system for any kind of business data.
Features & Benefits
Features | Benefits |
---|
Based on ETERNUS DX standard architecture
|
- Performance optimised design
- Proven and mature technology
- Common management across all-flash and hybrid ETERNUS storage systems
|
Flexible and flash optimised storage
|
- Ultra-low response times for all applications
- Massive increase of IOPS
- No complicated tuning measures required
- Scalable in capacity and connectivity
|
Selective use of deduplication / compression
|
- Decide on volume label whether to use it or not
- Cost reduction for flash
- Increased lifespan of flash
|
Automated Quality-of-Service
|
- Control of applications priorities according to business needs.
- Automation of monitoring and adjustment
- Minimisation of admin efforts
- Guaranteed service levels
|
Storage Cluster Option/Transparent failover
|
- Avoid planned or unplanned downtimes
- Enjoy 100% data insurance and non-stop operations
|
Convincing access performance and latency
- Random access performance: Up to 2.560.000 IOPS (4 KB Blocks)
- Sequential access performance: Max. 12 GB/s (128 KB Blocks)
- Latency: Less than 0.1 ms (4 KB Blocks)
|
- Sufficient performance for all applications requiring high data rates and low response times
|
Technical details
Type | All-Flash Array
|
---|
Latency | Write 60 μs , Read 160 μs (Minimum)
|
---|
Sequential access performance | 2,560,000 IOPS (100 % Read, 4 KB Blocks)
|
---|
Random access performance | 620,000 IOPS (100 % Read, 4 KB Blocks)
|
---|
Host Interfaces | Fibre Channel (16 Gbit/s) iSCSI (10 Gbit/s)
|
---|
Maximum Disk Drives | 96
|
---|
Maximum Storage Capacity | 368.64 TB
|
---|
No. of host interfaces | 32 ports [FC(16Gbit/s)], 16 ports [iSCSI(10Gbit/s)]
|
---|
Max. no. of hosts | 4,096
|
---|
Supported RAID levels | 0, 1, 1+0, 5, 5+0, 6
|
---|
Drive interface | Serial Attached SCSI (12 Gbit/s)
|
---|
Thin Provisioning | Yes
|
---|
Automated Storage Tiering | Yes
|
---|
Remote Copy functionality | Synchronous and asynchronous
|
---|
For further information, please see
ETERNUS AF650 data sheet
Data Sheets
Brochures & Flyers
Videos
Support Packs
Support Pack Options | Globally available in major business areas: 9x5, Next Business Day Onsite Response Time 9x5, 4h Onsite Response Time 24x7, 4h Onsite Response Time
|
---|
Recommended Service | 24x7, Onsite Response Time: 4h
|
---|
