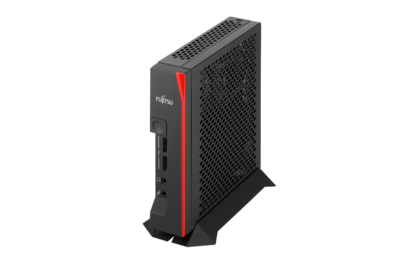

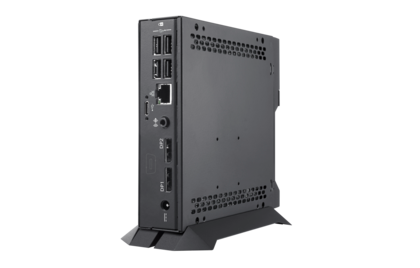

FUJITSU Thin Client FUTRO S540

FUJITSU Thin Client FUTRO S540

  • Windows® 10 IoT Enterprise (Win10IoT)
  • Powerful performance in an ultra-compact housing
  • UC&C ready with multi-monitor support for up to two 4K displays
  • Certified for leading protocols and ideal for SBC and VDI scenarios
  • Central administration and manageability with Scout Enterprise Management Suite

Technical details

Product FUTRO S540
Operating system eLux® RP
Windows® 10 IoT Enterprise (Win10IoT)
Functions eLux® RP 6
Updates and optional software packages are available at www.myelux.com
Mainboard D3544-B ()
Processor Intel® Celeron® processor
Supported capacity RAM (max.) 2 GB - 8 GB, SO DIMM (DDR4, 2400 MHz)
Hard disk drive SSD SATA, 8 GB, M.2 module, Flash drive (MLC technology)
SSD SATA, 16 GB, M.2 module, Flash drive (MLC technology)
SSD SATA, 32 GB, M.2 module, Flash drive (MLC technology)
SSD SATA, 64 GB, M.2 module, Flash drive (MLC technology)

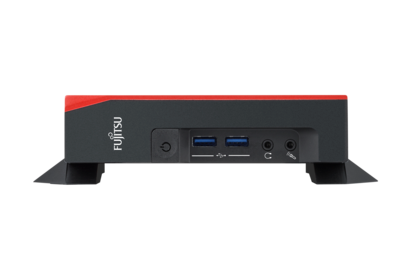

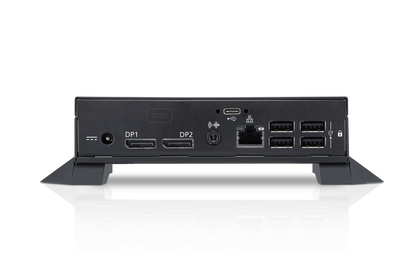

Interfaces 1 x Audio: line-out
1 x Front audio: headphone
1 x Front audio: microphone
2 (front) + (1x Type-C (rear) as option) x USB 3.1 Gen1 (USB 3.0) total
4 (rear) x USB 2.0 total
2 x USB front
5 x USB rear
1 (pin header) x USB internal
1 x Ethernet (RJ-45)
1 x Kensington Lock support
2x DP1.2a x DisplayPort
Audio type Realtek ALC671
Communication Built-in 10/100/1,000 MBit/s Realtek RTL8111G
Intel Wireless-AC 9260 WLAN (optional) x Integrated WLAN
Dimensions (W x D x H) 165 x 147 x 36 mm
Special features Ultra-compact housing, Made in Germany, Dual monitoring, Backpack Solution
Warranty period 2 years (depending on country)
Warranty type Bring-In Service (for countries within region EMEIA, for all other countries depending on local regulations)
