Online high-speed backup - Advanced Copy functions

The Advanced Copy functions allow the disk storage system to carry out high-speed copying operations itself, with no need to draw on server CPU resources. With Advanced Copy functions, at any point in time a business data volume can be copied to a separate copy volume, quickly and within the disk storage system. Once the copy is complete, the copy volume can be separated from the business volume ensuring no further updates to the business volume are applied to the copy volume. This allows the copy volume data to be backed up to a tape device, as a point in time copy of the business data, while normal operations continue.

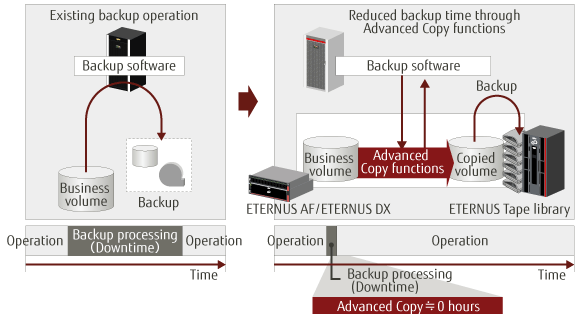

Advanced copy functions1

The Advanced Copy functions offer different copy methods: "Mirror Suspend", "Background Copy" and "Copy-on-Write" that are implemented as "Equivalent Copy (EC)", "One Point Copy (OPC)", and "SnapOPC+" functions.
There is also a QuickOPC function, which only copies data that has been updated since the previous update, while the SnapOPC+ function also enables generation management.

EC (Equivalent Copy) function

A function that always creates a synchronized copy of a business data volume on a copy volume (Mirroring method).
The business volume and copy volume are synchronized but can be separated at any required time (mirror suspend). The copy volume can then be backed up to a tape device while business operations continue on the business volume.
Suspend/Resume functions can be used to re-establish the mirror by copying only updated data since the mirror was suspended.

OPC (One Point Copy) function

A function that creates a copy of the business data volume at any point in time (Background Copy).
Data on the business volume is copied logically to a copy volume, quickly, as and when required.
The copy volume can be used for backup operation, to a tape device, without waiting for physical copy completion, while business operations can continue on the business volume.

QuickOPC

A function that creates a copy of all the business data volume and subsequently only copies updated data (Background Copy). This suits large database operation where backup times must be reduced.

SnapOPC

A function that creates a copy of the data prior to it being updated (Copy-on-Write).
As requires less copy volume capacity compared with full backup, SnapOPC is ideal for backup operations for systems with relatively few updates such as file servers.

SnapOPC+

Like SnapOPC, SnapOPC+ only copies the data prior to it being updated on the business volume. However, it enables generation management of the updated data (Copy-on-Write).
As SnapOPC+ doesn't actually store duplicate data but manages it as history information (unlike SnapOPC), disk-based generation backup can be achieved using less copy volume capacity.

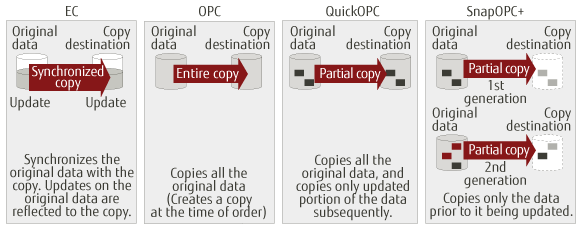

Advanced copy functions2

Benefit

  • Non-disruptive backup operations using Advanced Copy functions not only reduce backup processing times but also ensure backup data is always up-to-date.

Product Requirement

Supported Disk Storage Systems/Servers

  Supported Storage Supported Servers
EC ETERNUS DX60 S3
ETERNUS DX100 S3/DX200 S3 (SAN environment)
ETERNUS DX500 S3/DX600 S3 (SAN environment)
ETERNUS DX8700 S3/DX8900 S3
ETERNUS DX60/DX60 S2
ETERNUS DX80/DX80 S2
ETERNUS DX90/DX90 S2
ETERNUS DX400/DX400 S2 series
ETERNUS DX8000 series/DX8700 S2
ETERNUS4000, ETERNUS8000
ETERNUS DX200F All Flash Array
Global Server
Mission Critical IA Server
UNIX Server
Industry Standard Servers
OPC ETERNUS DX60 S3
ETERNUS DX100 S3/DX200 S3 (SAN environment)
ETERNUS DX500 S3/DX600 S3 (SAN environment)
ETERNUS DX8700 S3/DX8900 S3
ETERNUS DX60/DX60 S2
ETERNUS DX80/DX80 S2
ETERNUS DX90/DX90 S2
ETERNUS DX400/DX400 S2 series
ETERNUS DX8000 series/DX8700 S2
ETERNUS4000, ETERNUS8000
ETERNUS DX200F All Flash Array
Global Server
Mission Critical IA Server
UNIX Server
Industry Standard Servers
QuickOPC ETERNUS DX60 S3
ETERNUS DX100 S3/DX200 S3 (SAN environment)
ETERNUS DX500 S3/DX600 S3 (SAN environment)
ETERNUS DX8700 S3/DX8900 S3
ETERNUS DX60/DX60 S2
ETERNUS DX80/DX80 S2
ETERNUS DX90/DX90 S2
ETERNUS DX400/DX400 S2 series
ETERNUS DX8000 series/DX8700 S2
ETERNUS4000, ETERNUS8000
ETERNUS DX200F All Flash Array
Mission Critical IA Server
UNIX Server
Industry Standard Servers
SnapOPC
ETERNUS DX60 S3
ETERNUS DX100 S3/DX200 S3 (SAN environment)
ETERNUS DX500 S3/DX600 S3 (SAN environment)
ETERNUS DX8700 S3/DX8900 S3
ETERNUS DX80 S2
ETERNUS DX90 S2
ETERNUS DX400/DX400 S2 series
ETERNUS DX8000 series/DX8000 S2
ETERNUS4000, ETERNUS8000
ETERNUS DX200F All Flash Array
Mission Critical IA Server
UNIX Server
Industry Standard Servers
SnapOPC+ ETERNUS DX60 S3
ETERNUS DX100 S3/DX200 S3 (SAN/NAS environments)
ETERNUS DX500 S3/DX600 S3 (SAN/NAS environments)
ETERNUS DX8700 S3/DX8900 S3
ETERNUS DX60/DX60 S2
ETERNUS DX80/DX80 S2
ETERNUS DX90/DX90 S2
ETERNUS DX400/DX400 S2 series
ETERNUS DX8000 series/DX8700 S2
ETERNUS4000, ETERNUS8000
ETERNUS DX200F All Flash Array
Mission Critical IA Server
UNIX Server
Industry Standard Servers

Operational Interface

  Operational Interface Supported Servers
EC Systemwalker StorageMGR GR/CF GlobalServer
ETERNUS SF AdvancedCopy Manager 16 Mission Critical IA Server
UNIX Server
Industry Standard Servers
OPC Systemwalker StorageMGR GR/CF GlobalServer
ETERNUS SF AdvancedCopy Manager 16 Mission Critical IA Server
UNIX Server
Industry Standard Servers
QuickOPC ETERNUS SF AdvancedCopy Manager 16 Mission Critical IA Server
UNIX Server
Industry Standard Servers
VSS(Volume Shadow copy Service) Mission Critical IA Server
Industry Standard Servers
SnapOPC ETERNUS SF AdvancedCopy Manager Mission Critical IA Server
UNIX Server
Industry Standard Servers
SnapOPC+ ETERNUS SF AdvancedCopy Manager Mission Critical IA Server
UNIX Server
Industry Standard Servers
ETERNUS Web GUI, ETERNUS CLI (*Note 2)
ETERNUS SF Express (*Note 1) (*Note 2) Industry Standard Servers
VSS(Volume Shadow copy Service) (*Note 2) Mission Critical IA Server
Industry Standard Servers

*Note 1: Up to 8 sessions of this function are available for free with ETERNUS DX100 S3, DX200 S3, DX60/DX60 S2/DX60S3, DX80/DX80 S2, DX90/DX90 S2 and ETERNUS DX200F

*Note: Products/features/support content introduced on this page may be modified without notice.
