The PRIMERGY SX05 S1 backup subsystem is a cost-efficient solution for external backup drives with minimum space requirements (1U). The PRIMERGY SX05 S1 backup subsystems offer space for backup devices that are directly connected to the server. The backup subsystem is available with 6 GB/s SAS interfaces, it also support 3Gb/s LTO devices. The PRIMERGY SX05 S1 backup subsystem consolidates data backup in 19-inch rack environments and can accommodate up to two 5.25-inch backup devices.

Features & Benefits

Features Voordelen
  • High density form factor - 1 U Rack-mount
  • The high density form factor allows the customer to consolidate external storage on small footprint.
  • Available in two different versions: with an SAS connection or a USB connection
  • High availability through individual switchover and replacement of a backup device.
  • Available with an SAS connection
  • Also enables optimal and individual data backup for servers which have no internal backup drive
  • The SX05 SAS enclosure supports SAS tape drives
  • The SAS enclosure supports up to two SAS tape drives and provides up to 6 TB of storage capacity (assuming 2:1 compression) using two LTO-5 HH Ultrium 3000 drives.

Technical details

Accessible drive baysLTO3HH Ultrium, 60 MB/s, 400 GB, SAS 3Gb/s
LTO4HH Ultrium, 120 MB/s, 800 GB, SAS 6Gb/s
LTO5HH Ultrium, 140 MB/s, 1,500 GB, SAS 6Gb/s
LTO6HH Ultrium, 160 MB/s, 2,500 GB, SAS 6Gb/s
Number of baysTwo 5.25" half height
InterfacesSAS (6 Gbit/s, 3 Gbit/s)
Active power (max. configuration)140 W
8.07 Kg (depending on configuration; without backup drives)
Weight428.8 x 641.4 x 43.2
Height Unit Rack1 U

Components

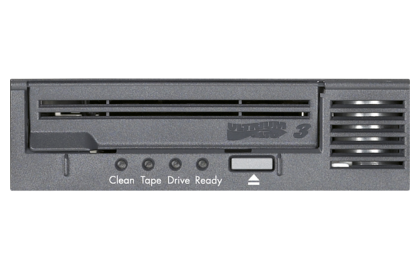

PRIMERGY LTO-3 HH Ultrium Tape Drive
LTO3With the third generation of the LTO (Linear Tape Open) drive, we are offering an innovative product with adaptive lossless data compression, digital speed matching (DSM) and a 128 MB memory.

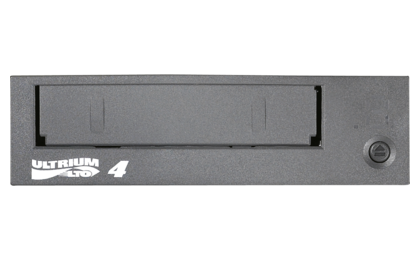

PRIMERGY LTO-4HH Ultrium (F3626) V2
LTO4The tape drive LTO-4 HH (Linear Tape Open technology) with its 800 GB (1.6 TByte compressed) saves twice as much data as its predecessor LTO-3. It is smaller, saves space and has the same performance and reliability as the LTO-4 full height tape drives.

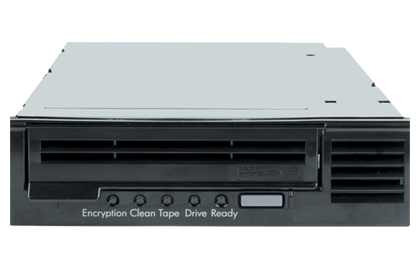

PRIMERGY LTO-5 HH Ultrium
For the first time, the fifth generation of the Linear Tape Open (LTO-5) tape drive offers uncompressed storage capacity of 1.5 TB per tape and a transfer rate of up to 280 MB/s. With enabled compression up to 3000 GB can be backed up on a single drive.

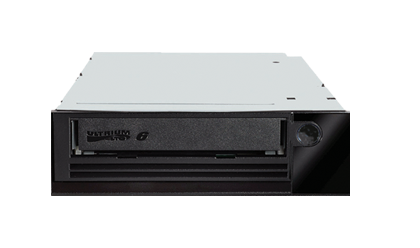

PRIMERGY LTO-6 HH Ultrium
For the first time, the sixth generation of the Linear Tape Open (LTO-6) tape drive offers uncompressed storage capacity of 2.5 TB per tape and a transfer rate of up to 160 MB/s. With enabled compression up to 6250 GB can be backed up on a single drive with up to 400 MB/s transfer rate.
