PaperStream Capture


PaperStream Capture builds on the power and features of ScandAll PRO scanning software with an intuitive interface to decrease operator training times. Click on the profile icon for batch and ad hoc scanning. Clone, modify, or create new profiles with a clear, step-by-step interface. Setup single button scanning and release options. Included in the box, PaperStream Capture makes document workflow easier.


Standard File Outputs

Scan to PDF, PDF/A, PDF with OCR, TIFF Group 4, Multipage TIFF, JPEG, BMP with a single click.

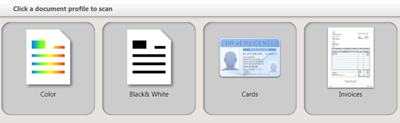

Preset Profiles

Built-in Black and White, Color, and Auto-Color profiles to save time.

Automatic Image Quality Check

Batches automatically mark multi-feeds and document edge issues for fast quality control.


Detailed thumbnails and zoom allow for quick quality review.



Pause and resume batches to handle document scanning interruptions.

SCA Profile Integration

Deploy fleet updates and profiles using Fujitsu's free Scanner Central Admin.

Assisted Scan Integration

Use PaperStream IP integrated Assisted Scan Integration for quick rescan and powerful image clean up.

assisted scanning

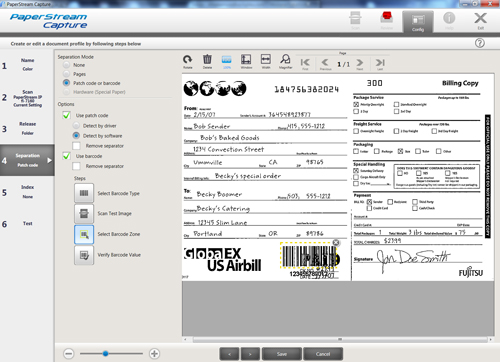

Batch Separation

Separate documents with barcodes and patch codes to avoid post process file organization.


File or Folder Naming

Read a barcode and ZoneOCR to name a file or folder for fast file organization.

Release File Naming

Name scanned files at release for ad hoc batches.

Barcode Support

Read 1D barcodes: UPC-A/EAN/JAN, Code 3 of 9, Code 128/EAN128, Codabar (NW7), ITF.
Departmental scanners and above support 2D barcodes*, PDF417, QR Code, and Data Matrix.
* Option(extra) for fi-6750S / fi-7260 / fi-7160 / fi-6110 / fi-6230Z / fi-6130Z /fi-65F

Selectable Batch Icons

Personalize batch icons for easy work-flow recognition.

Profile Lock

Administrator can lock profiles to maintain scanning consistency.


Product PaperStream Capture 1.x
Recommended for these Scanners fi-6800, fi-6400, fi-5950, fi-7160, fi-7260, fi-7180, fi-7280, fi-6140Z, fi-6240Z, fi-6130Z, fi-6230Z, fi-5530C2, fi-6670, fi-6770, fi-6750S, fi-6110, fi-65F
Key Features
File Output PDF, PDF/A, TIFF Group 4, Multipage TIFF, JPEG, JPEG2000, BMP
Optical Character Recognition Yes
Driver Support PaperStream IP TWAIN & ISIS
Batch Scan Profile Editor Settings (Name rule, Linking, etc), Batch lock, & Hotkey setting
Editing Rotate, flip, and skew correction
Batch Suspend and Review Yes
Display Multipage View, and Thumb Nails
Linkage FTP, SharePoint® Server to 2010
(1 Dimensional)
UPC-A/EAN/JAN, Code 3 of 9, Code 128/EAN128,
Codabar (NW7), ITF
(2 Dimensional)
PDF417, QR Code, Data Matrix for departmental scanners and above
* Option (extra) for fi-6750S / fi-7260 / fi-7160 / fi-6110 / fi-6230Z / fi-6130Z / fi-65F
Indexing Preset data (Date, time, File name, Page #, Zone OCR, & Barcode) to XML, CSV, or Unicode TXT
System Requirements
Operating System Windows® 10 32-bit/64-bit
Windows® 8.1 32-bit/64-bit
Windows® 8 32-bit/64-bit
Windows® 7 32-bit/64-bit (SP1 or later)
Windows Vista® 32-bit/64-bit (SP2 or later)
Windows® XP 32-bit (SP3 or later)
Windows® XP 64-bit (SP2 or later)
Windows Server® 2012 64-bit / 2012 R2 64-bit
Windows Server® 2008 32-bit/64-bit / 2008 R2 64-bit
CPU Intel® Pentium® 4 1.8 GHz or higher
*Recommended: Intel® Core™ i5 (2.5GHz or higher, except for mobile)
Memory 1GB or more *Recommended: 4GB or more
Disk 10GB or more
*Enough disk capacity is necessary for the saved file when scanning.
Display 1024 x 768 Pixels or more
Software .NET Framework 4.5 (excluding Windows XP)
.NET Framework 4 + the latest Windows Update (Windows XP)
