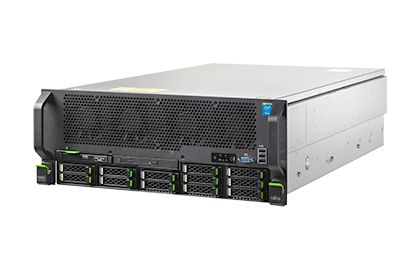

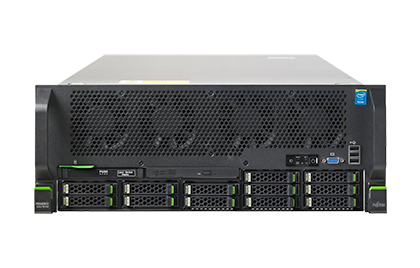

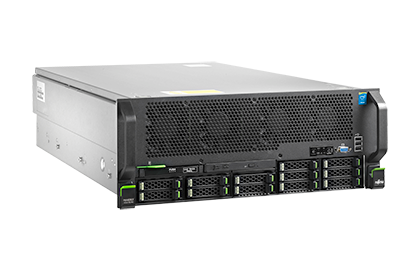

FUJITSU Server PRIMERGY RX4770 M2
The FUJITSU Server PRIMERGY RX4770 M2 defines four-socket rack server technology without compromising performance, scalability, and expandability. Featuring the latest Intel® Xeon® processor E7-4800/8800 v3 product family with up to 72 cores as well as superfast DDR4 main memory, the PRIMERGY RX4770 M2 fulfills the requirements of solutions operating ‘in-memory’ such as SAP HANA®. It is ideal for virtualization, server consolidation, databases, business processing, and general 4-socket data-intensive applications where price/performance and highest realibility is paramount.
Features & Benefits
Features | Benefits |
---|
Rapidly analyze large data sets to gain real-time insights
- PRIMERGY RX4770 M2 increases the system performance over the previous generation using latest Intel® Xeon® E7 v3 product family with up to 72 cores
- 20 percent higher maximum core count and 20 percent more L3 cache (45 MB instead of 37.5 MB)
- Enormous memory capacity with up to 6TB (96 DIMM slots) on 8 configurable memory boards
- 12 Gbit/s SAS/SATA Controller with optional FBU and up to eight 2.5 inch, hot-pluggable SAS/SATA SSDs, SATA HDDs + up to four optional PCIe SSDs
|
- The new generation of quad-socket PRIMERGY servers accelerates decision-making capabilities and thus shortens the time to business results
- New, faster memory technology over the preceding generation allows to implement large scale in-memory computing and virtualization scenarios
- Increased performance providing faster access to more data
|
Enhanced business-critical x86 RAS features
- Built-in redundancy and hot-pluggable components, Advanced ECC and Memory Scrubbing
- Advanced resilient system and memory technologies that integrate processor, firmware, and software layers to help diagnose fatal errors, contain faults, and automatically recover to keep the server operating
|
- Business-critical RAS features lowering the risk for unplanned IT downtimes
- Enhanced set of features adds even more reliability, availability, and serviceability that customers need for running their business-critical applications
|
Improved efficiency for business-critical services
- The PRIMERGY RX4770 M2 provides savings in operational expenses with scale-up consolidation efficiencies
- Comprehensive management covering the entire lifecycle of servers with a single integrated view of the IT infrastructure via Fujitsu Software ServerView Suite
- Local Service Display (LSD) and integrated, new Remote Management Controller (iRMC S4) as standard
- New power supply units with 80Plus Platinum (94 percent) energy-efficiency
|
- Saves time and conserves valuable IT resources by simplifying remote management
- Integrated Remote Management Controller (iRMC S4) enables extensive monitoring and management of servers regardless of their system status – even at decentralized locations.

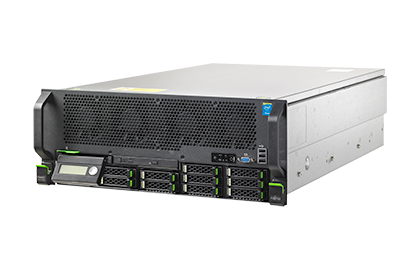

- Use the ServerView Local Service Display on the front panel of the server to check the status of the key system components at any time without opening the housing
- Continuous reduction of power and cooling costs
|
Technical details
Chipset | Intel® C114 Scalable Memory Buffer (Advanced) Intel® C602 J
|
---|
Mainboard type | D 3349
|
---|
Product Type | Quad Socket Rack Server
|
---|
Processor | Intel® Xeon® processor E7-4800 v3 product family, Intel® Xeon® processor E7-8800 v3 product family
|
---|
Memory | 16 GB - 6 TB, DIMM (DDR4)
|
---|
Memory protection | Advanced ECC, Memory Scrubbing, SDDC, Memory Mirroring support, Rank sparing memory support
|
---|
PCI-Express 3.0 x8 | 9 x Full height 1/2 length
|
---|
PCI-Express 3.0 x16 | 2 x Full height 3/4 length
|
---|
Slot Notes | One of the nine slots are exclusive for internal RAID Controller as connection to internal HDD/SSD slots
|
---|
Accessible drive bays | 1 x 5.25/0.5-inch for DVD-RW/Blu-ray
|
---|
Storage drive bays | 12 x 2.5-inch hot-plug
|
---|
I/O controller onboard | 2 x 10 Gbit/s Ethernet (RJ45) Integrated Remote Management Controller (iRMC S4, 256 MB attached memory incl. graphics controller), IPMI 2.0 compatible
|
---|
Trusted Platform Module (TPM) | Infineon / TPM 1.2 module; TCG compliant (option)
|
---|
Power supply configuration | Up to 4 hot-plug power supplies. Base unit equipped with 2 power supplies, 3rd and 4th PSU as option, no Mix
|
---|
Active power (max. configuration) | 1,990 W
|
---|
Weight | max. 46 kg
|
---|
Rack (W x D x H) | 482.6 mm (Bezel) / 445mm (Body) x 765 x 176 mm
|
---|
Mounting Depth Rack | 728 mm
|
---|
Server Management | Server Management
|
---|
Standard | ServerView Suite - Deploy Installation Manager Scripting Toolkit, ServerView Suite - Control Operations Manager incl. PDA and ASR & R Agents and CIM Providers / Agentless Service System Monitor RAID Manager Capacity Management Power Management Storage Support, ServerView Suite - Maintain Remote Management (iRMC in combination with Intel® Node Manager) Update Management (BIOS, Firmware, Windows Drivers, Agents and CIM Providers) Performance Measurement Asset Management Online Diagnostics, ServerView Suite - Integrate Integration packs for Microsoft System Center, VMware vCenter, VMware vRealize, Nagios, and HP SIM, Deployment tools and others
|
---|
Option | ServerView embedded Lifecycle Management (eLCM) Lifecycle management, ServerView Suite - Maintain iRMC Advanced Pack incl. Advanced Video Redirection (AVR), video capturing and Virtual Media, ServerView Suite - Dynamize Virtual-IO Manager (VIOM)
|
---|
Warranty period | 3 years
|
---|
Warranty type | Onsite warranty
|
---|
Service Lifecycle | 5 years after end of product life
|
---|
Service Weblink | http://www.fujitsu.com/fts/products/product-support-services/
|
---|
-
