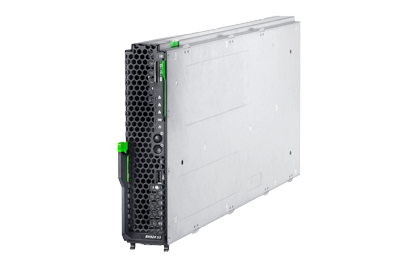

| Fujitsu Server PRIMERGY BX920 S3 |
|---|
 | The Fujitsu PRIMERGY BX920 S3 offers the ideal balance of performance and cost-efficiency. By packing two CPUs of the latest Intel® Xeon® processor E5-2400 product family, two hot-plug disk drives, up to 384 GB of memory, and a flexible dual-channel 10 Gigabit Converged Network Adapter on board, it delivers highest performance to ensure today’s demand while being prepared for future requirements.
|
| Fujitsu Server PRIMERGY BX924 S3 |
|---|
 | The Fujitsu PRIMERGY BX924 S3 is designed from the ground up to set a new standard for scalable performance to meet highest requirements of extensive virtualization/consolidation scenarios and demanding high performance computing applications. Using two Intel® Xeon® E5-2600 processors and 24 memory modules clearly underlines the approach as the perfect high-end server blade.
|
| Fujitsu Server PRIMERGY SX910 S1 |
|---|
 | The PRIMERGY SX910 S1 Storage Blade Tape module can be used to archive and backup local data in the PRIMERGY BX400 and 900 system units. Up to 1,500 GB may be stored on one LTO tape drive therein, matching the demands of a server blade’s disk capacities and leaving room for future, higher capacities. The Storage Blade requires one Blade slot within the PRIMERGY BX system unit.
|
| Fujitsu Server PRIMERGY SX940 S1 |
|---|
 | The PRIMERGY SX940 S1 Direct Attached Storage Blade Disk can be used to extend the internal storage capacity of PRIMERGY BX92x Server Blades. A maximum of four internal disk drives greatly extends the maximum amount of disk storage of a Server Blade. One Storage Blade occupies one blade slot within the PRIMERGY BX system units; it is positioned either on the left or right to an adjacent BX92x Server Blade, or between the two. The 1x 4 or 2x 2 disk drives of one SX940 S1 are driven by 1 or 2 integrated, highly functional SAS/RAID controllers with 512 Mbyte cache and BBU. Each controller provides RAID levels 0, 1, 5 and 6.
|

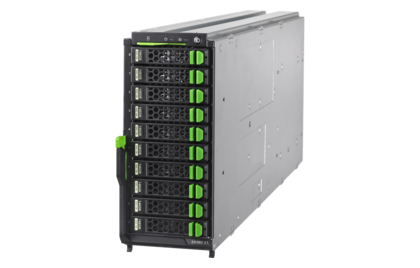

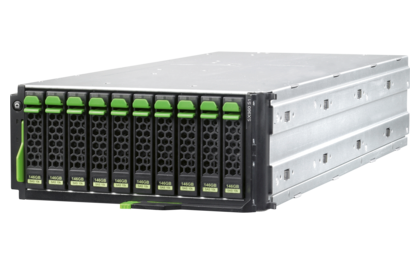

| Fujitsu Server PRIMERGY SX960 S1 |
|---|
 | The Fujitsu PRIMERGY SX960 Storage Blade offers direct-attached storage for the PRIMERGY BX Blade Server with support of up to 10 hot-plug SAS or SATA hard disks. The storage blade can be inserted, like a server blade, in the front of the blade server housing. It can be hot-plugged and used with various types of server blades. The BX Blade Servers' midplanes offer PCI Express connections to the adjacent server blades, enabling top-quality memory access without using additional cables. The PRIMERGY SX960 Storage Blade has an onboard LSI MegaRAID controller with 512 MB Write Back Cache and optional Battery Backup Unit, for top performance and data security.
Use Microsoft Windows Storage Server 2012 or other software products of your choice to turn the SX960 into an iSCSI SAN for all severs in the enclosure. As part of a network-attached storage appliance, Windows Storage Server 2012 enhances the traditional file serving capabilities and delivers excellent economics for a shared storage solution by leveraging industry standard hardware matched with robust storage capabilities. It delivers continuous availability that is designed to protect from a range of failures and prevent downtime in a scalable and reliable manner.
|
| Fujitsu Server PRIMERGY SX980 S1 |
|---|
 | The Fujitsu PRIMERGY SX980 storage blade disk is a SAS 2.0 storage solution that helps customers easily transition from direct attached to centralized storage.
This storage blade is connected via midplane to a SAS connection blade (CB), holding up to 10 hot-plug SAS hard disks, accessible by any PRIMERGY BX server blade installed in the same enclosure. Each single storage drive or compound RAID array of an SX980 S1 can be assigned to a dedicated server blade.
|
| Fujitsu Server PRIMERGY SX980 S2 |
|---|
| The Fujitsu PRIMERGY SX980 S2 is ideal suited for mid-sized organizations and branch offices which would like to expand their internal storage capacity within the PRIMERGY Blade Server chassis. The SX980 S2 is a SAS 2.0 storage solution that helps users easily transition from direct attached to centralized storage. This storage blade is connected via midplane to one or two SAS Connection Blades, holding up to 10 hot-plug SAS HDD’s or SSD’s, accessible by any server blade installed in the enclosure.
|
| Fujitsu Server PRIMERGY BX Ethernet Switch/IBP 1Gbit/s 36/12 |
|---|
 | The PRIMERGY Ethernet Switch/IBP 36/12 is an integrated 1 Gbit/s Connection Blade for use in the PRIMERGY BX400 and BX900 chassis. It can be installed in all Connection Blade bays (4x in BX400, 8x in BX900) and provides 36 downlink ports each with 1 Gbit/s to the midplane to connect with the Server Blades. The module contains 12 uplink ports each 1 Gbit/s; Layer 2+ functionalities are supported.
|
| PRIMERGY BX Ethernet Switch/IBP 1Gbit/s 36/8+2 |
|---|
 | The PRIMERGY Ethernet Switch/IBP 36/8+2 is an integrated 1 Gb Connection Blade for use in the PRIMERGY BX400 and BX900 chassis. It can be installed in each Connection Blade slot (4x in BX400, 8x in BX900) and provides 36 downlink ports each with 1 Gb to the midplane to connect with the Server Blades.
|
| Fujitsu Server PRIMERGY BX Ethernet Switch/IBP 10Gbit/s 18/8 |
|---|
 | The PRIMERGY Ethernet Switch/IBP 18/8 is an integrated 10 Gbit/s Ethernet connection blade with DCB mode for use in the PRIMERGY BX400 and BX900 blade server chassis. Collaboration with Top of Rack (ToR) switches enables for operation of converging FCoE, extending usage areas comprehensively.
|
| Fujitsu Server PRIMERGY BX Fibre Channel Switch 8 Gbit/s 18/8 (Brocade 5450) |
|---|
 | Blade Server and Fibre Channel SANs form an ideal infrastructure for maximizing consolidation and server virtualization benefits. By connecting blade servers and SAN switch platforms of the highest density Fujitsu and Brocade offer extraordinary performance, reliability and flexibility.
|
| Fujitsu Server PRIMERGY BX InfiniBand Switch 40 Gbit/s 18/18 |
|---|
 | The InfiniBand Switch 40 Gb 18/18 is a double-width Connection Blade that can be used in the PRIMERGY BX400 (Fabric 3) and BX900 (Fabrics 2, 3, 4). The Connection Blade offers maximum performance by providing a high bandwidth and at the same time low latency.
|
| Fujitsu Server PRIMERGY BX Fibre Channel Pass Thru 8Gbit/s 18/18 |
|---|
 | Blade Servers and Fibre Channel SANs build an ideal infrastructure for maximizing the benefits of consolidation and server virtualization. In addition to Fibre Channel switch blades Fujitsu offers a connection blade for direct transmission of sensitive data between servers and storage.
|
| PRIMERGY BX Ethernet Pass Thru 1/10Gbit/s 18/18 |
|---|
 | Each of the up to six auto-sensing 1/10Gbit/s Ethernet Pass-Thru Blades in a PRIMERGY BX Blade Server is an ideal complement for clients looking to enable up to 18 end-to-end non-blocking and lossless, direct 1 and 10 Gbit/s connections between server blades and the network.
|

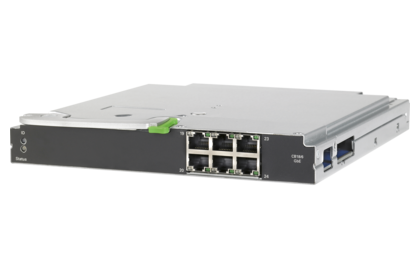

| Fujitsu Server PRIMERGY BX Ethernet Switch/IBP 1Gbit/s 18/6 |
|---|
 | The PRIMERGY Ethernet Switch/IBP 18/6 is an integrated 1 Gbit/s Connection Blade for use in the PRIMERGY BX chassis. It provides 18 downlink ports with respective 1Gbit/s to the midplane for connection with the server blades as well as 6 uplink ports.
|

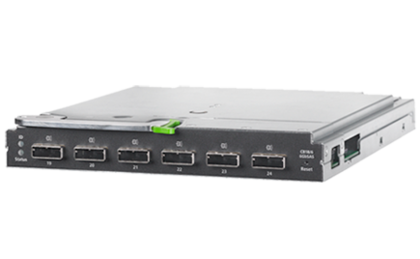

| Fujitsu Server PRIMERGY BX SAS Switch 6Gbit/s 18/6 |
|---|
 | The Fujitsu CB SAS Switch 6Gb 18/6 for the PRIMERGY BX Blade Servers is an integral part of the SAS storage solution, providing a straight forward architecture for chassis internal and external, dedicated as well as shared storage resources. The SAS Connection Blade is the connecting part between the SAS mezzanine card in the server blades and the PRIMERGY SX980 storage blade(s) in the PRIMERGY BX Blade Servers.
|
| Fujitsu Server PRIMERGY BX InfiniBand Switch 56 Gbit/s 18/18 |
|---|
 | The InfiniBand Switch 56 Gb 18/18 is a double-width Connection Blade that can be used in the Fujitsu PRIMERGY Blade Servers. The Connection Blade offers maximum performance by providing a high bandwidth and at the same time low latency.
|
| Fujitsu Server PRIMERGY BX Ethernet Fabric Switch 10Gbit/s 18/6+6 (BROCADE VDX 2730) |
|---|
 | The PRIMERGY BX Ethernet Fabric Switch 10Gbit/s 18/6+6, also known as Brocade VDX 2730, is a Connection Blade for Fujitsu’s PRIMERGY Blade Servers and utilizes the latest emerging industry standards, including Fibre Channel over Ethernet (FCoE), and Data Center Bridging (DCB). It provides six external native 8Gbit/s Fibre Channel (FC) ports and six external 10Gbit/s Ethernet ports, allowing you to combine storage and network traffic on a single network.
|

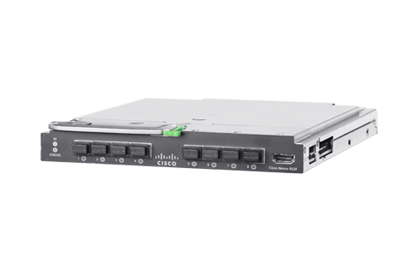

| Fujitsu Server PRIMERGY BX Ethernet FEX 10Gbit/s 16/8 (Cisco Nexus B22F) |
|---|
 | The PRIMERGY BX Ethernet FEX 10Gbit/s 16/8 is a Connection Blade for Fujitsu PRIMERGY Blade Servers and is an element of Fujitsu’s DynamicFabric approach to create a highly-flexible and optimized network infrastructure. The Connection Blade is part of the Cisco Fabric Extender (FEX) portfolio, which provides a scalable unified server access platform supporting up to 10Gbit/s Ethernet over both fiber and copper and data center bridging protocols.
|
