Brocade ICX6610
The Brocade ICX 6610 series switches are designed for data center deployments mainly requiring 1 GbE connectivity at a small form factor. In addition, up to eight 10GbE SFP+ ports can be enabled via software license providing high-speed connectivity.
They deliver enterprise-class Ethernet functions with three different software packages(Base, Premium, Advance) allowing customers to choose the optimized feature set for their particular needs. If requirements increase over time, up to eight Brocade ICX 6610 switches can be stacked together to form a single logical switch with up to 384 GbE and 64 10 GbE ports.

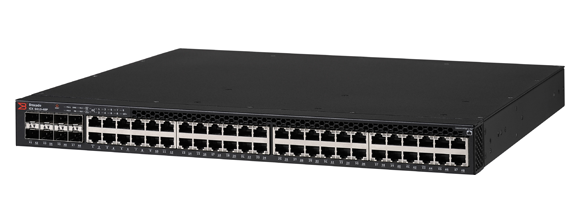

Brocade ICX6610
Features |
Benefits |
HyperEdge™ Architecture
|
- Enables stacking with Brocade ICX 6610 and 6450 switches and propagates premium software features across the entire stack.
|
Up to eight 10 GbE ports
|
- Up to eight SFP+ ports can be converted in two groups of four ports from 1GbE to 10 GbE with software key activation.
|
Available with three different software licenses
|
- With different software license customers only pay for what they really need. It is possible to start with base switching functions and enable a full layer 3 feature set if needed later on.
|
Four 40GbE standard QSFP stacking ports
|
- Instead of using proprietary stacking cables standard QSFP cables and modules can be used for stacking. Advanced stacking features allow hitless stack failover and hot switch replacement.
|
Redundant PSU and FAN units
|
- Data center class availability is enabled by redundant and hot pluggable PSU and FAN units.
|
IP Switches
Switch |
Main Features |
Brocade VDX 6720
Data Center Switch |
- Available in two modular form factors:
- 2U providing up to 60 10GbE ports
- 1U providing up to 24 10GbE ports
- Delivers innovative Virtual Cluster Switching technology to enhance and simplify networks
- Rich set of Layer 2 features makes it the ideal platform for traditional Top-of-Rack (ToR) switch deployments
|
Brocade ICX 6430 / 6450 IP Switch |
- Provides up to 48 1GbE ports
- Available in two modular form factors:
- ICX 6430 providing up to 4 1GbE uplink ports
- ICX 6450 providing up to 4 1/10GbE uplink ports
- Enterprise-class stackable switching technology at an entry-level price
- Designed for branch offices and distributed campuses
|
Brocade ICX 6610 IP Switch |
- Provides up to 48 1GbE ports
- Up to eight 10 GbE SFP+ Ports available
- Available with three different software licenses (Base, Premium, Advance) for full layer 3 capabilities
- HyperEdge™ technology propagates premium software features to ICX 6450 switches when stacked together
- Four 40GbE standard QSFP stacking ports
- Redundant PSU and FAN units for high availability
- Data center friendly design
- Out of band management
|
