Non-stop RAID group capacity expansion - Logical Device Expansion
The Logical Device Expansion function provides increased capacity for a RAID group by real-time addition of disk drives while operations continue uninterrupted. This allows for the deployment and expansion of logical volumes (LUN) in 'non-stop' environments.

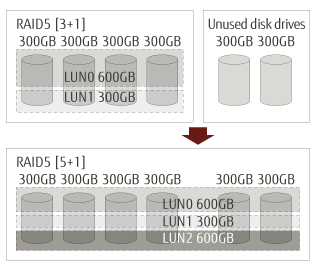

Expansion of a RAID5 (3+1) group to RAID5 (5+1) using spare disk drives and definition of a new LUN2 to cover the additional space.

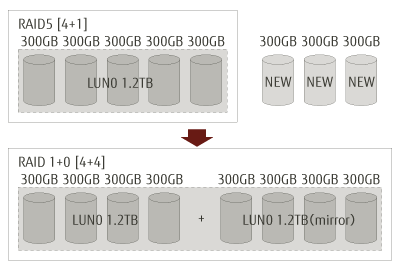

Addition of new disk drives to convert RAID5 (4+1) to RAID 1+0 (4+4)
- Enables RAID group capacity increases by adding disk drives while retaining data
- Enables reorganization of RAID groups to different levels and different capacities at the same time
|Supported Storage Systems
||Disk Storage Systems
||ETERNUS DX60 S3
ETERNUS DX100 S3/DX200 S3
ETERNUS DX500 S3/DX600 S3
ETERNUS DX8700 S3/DX8900 S3
ETERNUS DX60/DX60 S2
ETERNUS DX80/DX80 S2
ETERNUS DX90/DX90 S2
ETERNUS DX400/DX400 S2 series
ETERNUS DX8000 series/DX8700 S2
|All Flash Arrays
||Mission Critical IA/UNIX/Industry Standard Server
*Note: Products/features/support content introduced on this page may be modified without notice.
