Advanced Copy OPC

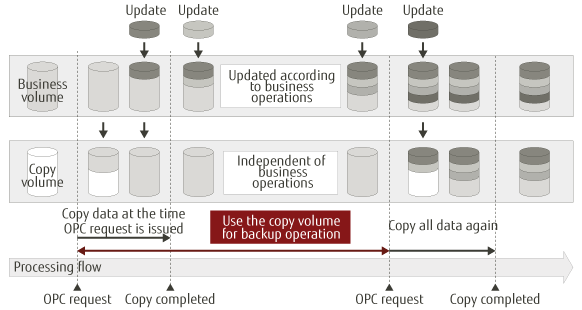

One Point Copy (OPC) enables the creation of a high speed copy of an entire business data volume at any specific point in time.
Unlike EC, with its data synchronization (mirroring) capability the copy volume created by OPC is always separate from the business volume (a point in time copy) and never reflects ongoing updates to the business data.
This means the copy is a snapshot of the business data at the time the OPC request is issued and as such can be backed up to a tape device in parallel with the business operation.
However for subsequent backup, OPC requires that all the data is copied once again. To copy only updated data, QuickOPC(*Note 1) is provided.

Advanced Copy OPC

Applicable Operation

  • Any operations where data copies are required including before/after heavy load transactions such as batch updating.

Benefit

  • High-speed backup and near real-time disk-to-disk-to-tape backup extends business operation hours and availability.

Product Requirements

Supported Storage Disk Storage Systems ETERNUS DX60 S3
ETERNUS DX100 S3/DX200 S3
ETERNUS DX500 S3/DX600 S3
ETERNUS DX8700 S3/DX8900 S3
ETERNUS DX60/DX60 S2
ETERNUS DX80/DX80 S2
ETERNUS DX90/DX90 S2
ETERNUS DX400/DX400 S2 series
ETERNUS DX8000 series/DX8700 S2
ETERNUS4000, ETERNUS8000
All Flash Arrays ETERNUS DX200F
Supported Servers GlobalServer, Mission Critical IA Server, UNIX Server
Industry Standard Servers (*Note 1)
Operational Interface GlobalServer Systemwalker StorageMGR GR/CF
Mission Critical IA Server
UNIX Server
Industry Standard Servers
ETERNUS SF AdvancedCopy Manager 16

*Note 1: QuickOPC is not available with GlobalServer.

*Note: Products/features/support content introduced on this page may be modified without notice.
