Increasing storage availability - Reverse Cabling

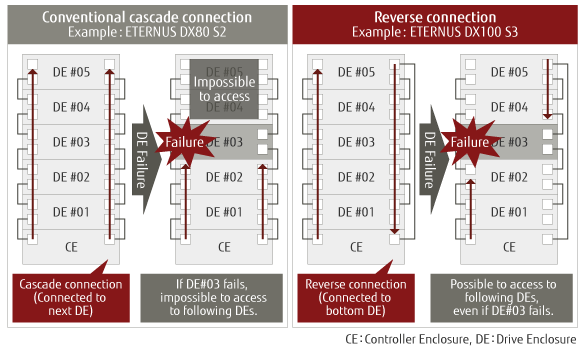

In order to provide higher availability, the controller enclosure is connected to the drive enclosure via reverse cabling. The connection of the primary path is implemented in ascending order while the secondary path is connected in descending order, as shown in the following figure.
- Drive enclosure access is ensured even when a DE failure occurs.
- Availability for data transfer paths between controllers and drives is better than older models.
|Supported Disk Storage Systems
||ETERNUS DX100 S3/ DX200 S3
ETERNUS DX500 S3/DX600 S3
ETERNUS DX8700 S3/DX8900 S3
